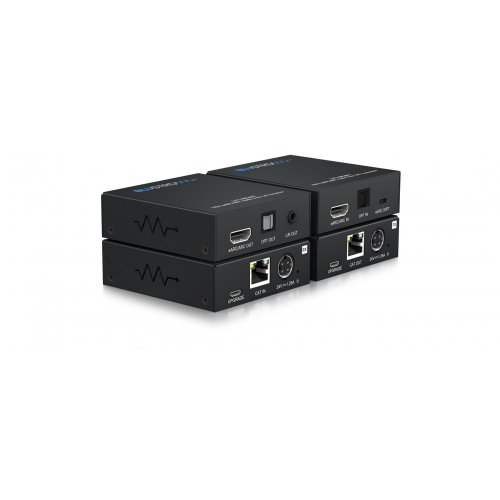

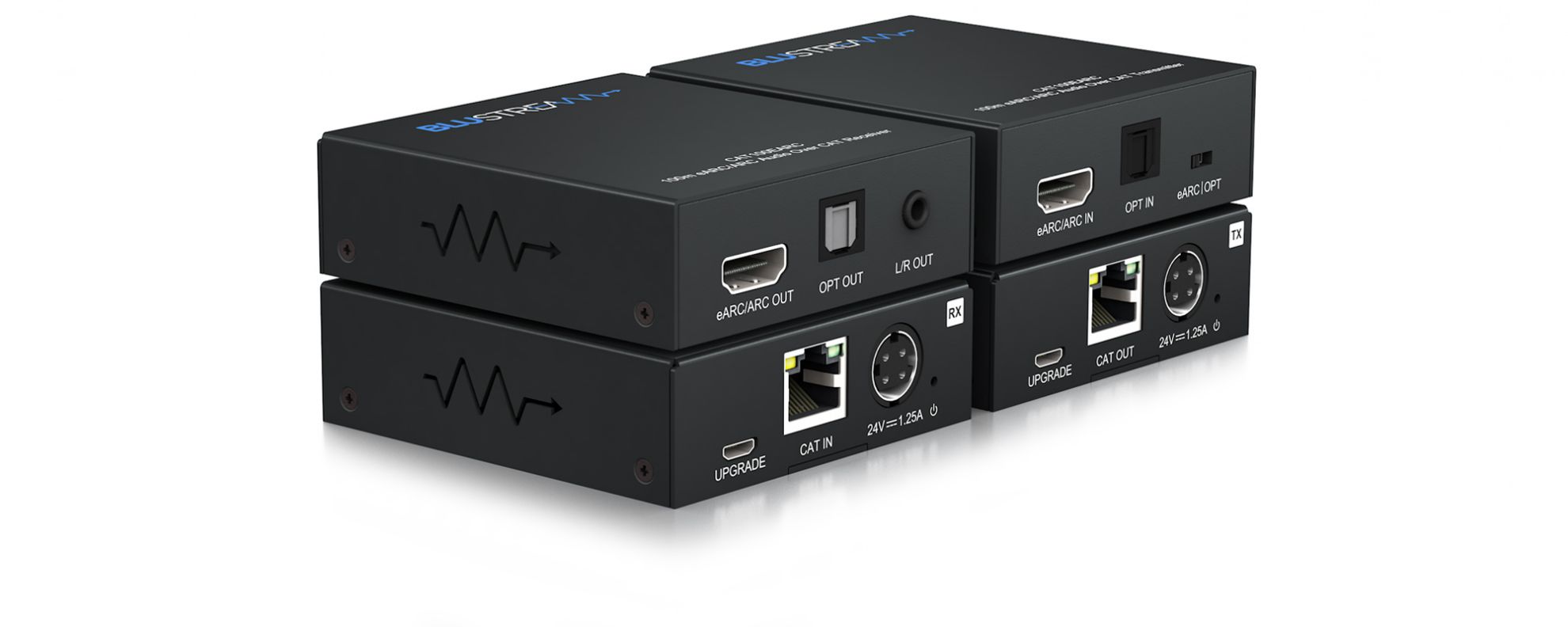

BLUSTREAM CAT100EARC eARC/ARC Over CAT

About: BLUSTREAM CAT100EARC eARC/ARC Over CAT

Our CAT100EARC Audio over CAT cable extender transmits HDMI eARC/ARC or optical digital audio signals up to a distance of 200m (eARC/ARC signals up to 100m).

This plug and play device supports CEC pass-through when HDMI eARC/ARC audio is selected and features a built in DAC to convert either of the inputs to a stereo left / right audio output.

Features

• Extend either eARC/ARC or optical digital audio signals over a single CAT cable*
• CAT100EARC supports eARC/ARC distribution distances of up to 100m
• CAT100EARC supports Optical audio distribution distances of up to 200m
• Built in DAC (Digital to Analogue audio Converter) converts either HDMI eARC/ARC or optical digital to analogue stereo left/right audio output (2ch PCM only)*
• Supports CEC pass-through when HDMI eARC/ARC mode selected
• Supports the following audio formats:
  • eARC: PCM 2.0/5.1/7.1ch, Dolby Digital Plus, DTS, Dolby TrueHD, DTS-HD MA, Dolby Atmos
  • ARC: PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch
  • Optical: PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch
• Bi-directional PoC (Power over Cable) to power extenders from either the transmitter or receiver
  • *Selection between HDMI eARC/ARC or Optical digital audio via dipswitch on the TX

Specifications

• CAT100EARC-TX:
  • Audio Input Connectors: 1x Optical (S/PDIF) & 1x HDMI Type A
  • Output Connectors: 1x RJ45
  • Firmware Upgrade: 1x Micro-USB
  • Dimensions (WxHxD): 2.91 x 3.15 x 0.94 inch (74 x 80 x 24mm)
• CAT100EARC-RX
  • Input Connectors: 1x RJ45 & 5V/1A DC
  • Output Connectors: 1x Optical (S/PDIF), 1x HDMI Type A & 1x Analogue audio L/R (3.5mm stereo Jack)
  • Firmware Upgrade: 1x Micro-USB
  • Dimensions (WxHxD): 2.91 x 3.15 x 0.94 inch (74 x 80 x 24mm)
• General
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature : -4°F to 140°F (-25°C to +70°C)
  • Power Supply: 24V/1.25A DC
  • Shipping Weight: 1.54 lbs (0.7kg)
