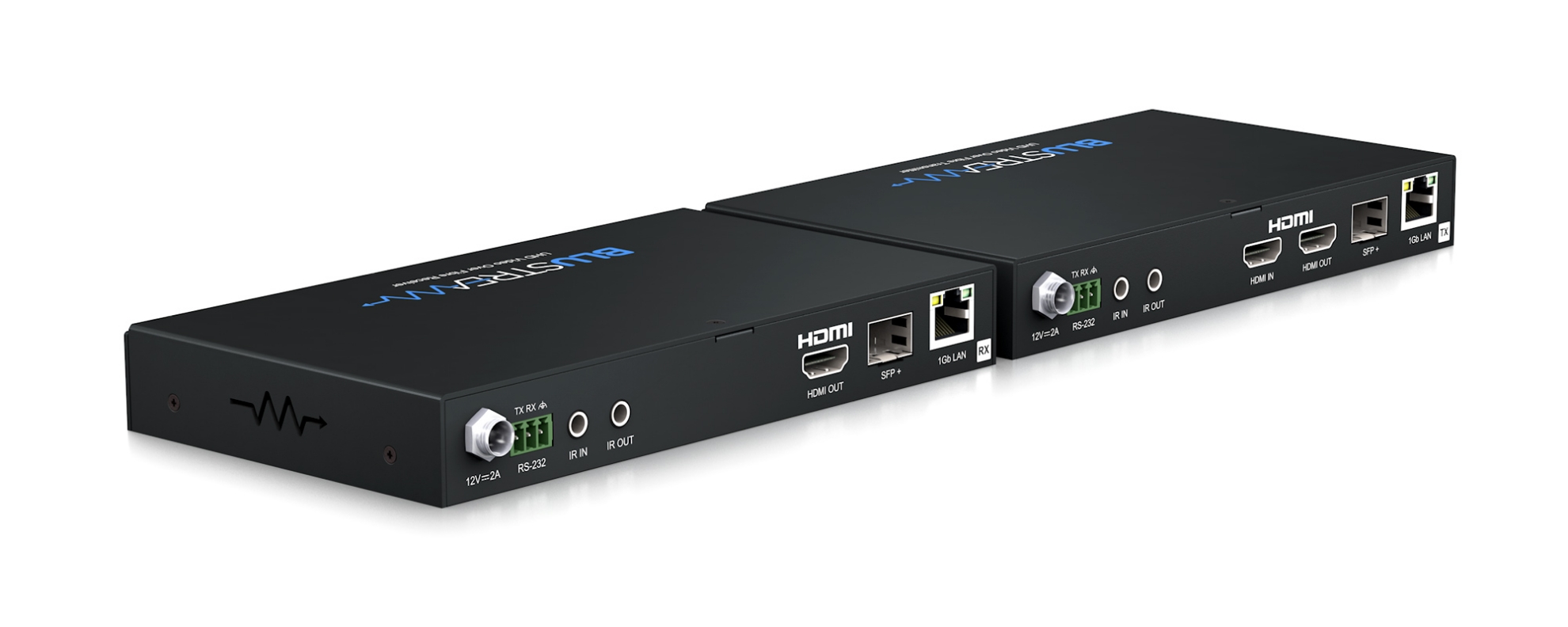

BLUSTREAM FVE4K-KIT UHD Video Over Fibre Extender

About: BLUSTREAM FVE4K-KIT UHD Video Over Fibre Extender

The FVE4K-KIT is an industry leading HDMI2.0 4K 60Hz 4:4:4 HDCP 2.2 fibre extender solution utilising the latest in SDVoE technology.

The FVE4K-KIT supports un-compromised distribution of the latest 4K resolutions including HDR / Dolby Vision LLM resulting in the ability to transmit 18Gbps signals over distances not capable of being achieved over copper cabling.

The FVE4K-KIT supports bi-directional IR, RS-232, USB1.1, and 1Gbps LAN up to distances supported by the 10Gbps SFP+ modules and fibre cable in use.

Features

• Advanced 18Gbps UHD Video over 10Gbps fibre cable with visually lossless compression and zero latency
• Supports HDMI 2.0 18Gbps specification with pass-through for up to 4K 60Hz 4:4:4 and 10/12-bit HDR sources, including Dolby Vision LLM
• Features 1x HDMI loop-out on FVE4K-TX for integrating local displays or cascading to multiple devices
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• USB 1.1 point to point pass-through
• Bi-directional 10/100/1000BaseT Ethernet pass-through
• Supports bi-directional 5V or 12V IR pass-through
• Bi-directional RS-232 pass-through
• HDCP 2.2 compliant with advanced EDID management
• Local 12V 2A power supply required at TX & RX (supplied)

Specifications

• Distance capabilities
  • The FVE4K-KIT has been designed with 10Gb SFP+ slots to allow for flexible connectivity over varying distances to suit the individual installation, and requirements of different fibre cable types that can be used.
  • Using SDVoE Technology, the fibre link will need to be 10Gb capable, and Blustream would recommend using SFP+ modules that are designed to work in conjunction with the fibre cable being used. Please use the below as a guide to the distance capabilities of the differing fibre cable types that can be used with the FVE4K-KIT.
    • Single mode fibre (OS2) – up to 10km (10Gb Base SE-SR)
    • Multimode fibre (OM3) – 300m
    • Multimode fibre (OM4) – 400m
    • Multimode fibre (OM5) – 300m
• FVE4K-RX
  • Video Input Connectors: 1 x SFP+ module video network (SFP+ module not supplied)
  • Video Output Connectors: 1 x HDMI Type A, female
  • Ethernet Port: 1 x 1Gb LAN RJ45 pass-through
  • USB / KVM Port: 2 x USB-Type A (Devices)
  • 5V IR Input Port: 1 x 3.5mm stereo jack
  • 5V IR Output Port: 1 x 3.5mm mono jack
  • RS-232 Port: 1 x 3-pin Phoenix connector
  • Power Supply: 12V/2A DC, screw type connector
• FVE4K-TX
  • Video Input Connectors: 1 x HDMI Type A, female
  • Video Output Connectors: 1 x SFP+ module video network, 1 x HDMI Type A, female (SFP+ module not supplied)
  • Ethernet Port: 1 x 1Gb LAN RJ45 pass-through
  • USB / KVM Port: 1 x USB-Type B (Host)
  • 5V IR Input Port: 1 x 3.5mm stereo jack
  • 5V IR Output Port: 1 x 3.5mm mono jack
  • RS-232 Port: 1 x 3-pin Phoenix connector
  • Power Supply: 12V/2A DC, screw type connector
• FVE4K-KIT
  • Operating Temperature: 32°F to 104°F (0°C to +40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to +60°C)
  • Casing Dimensions (TX / RX - without connections) (WxDxH): 7.09 x 4.06 x 0.94 inch (180mm x 103mm x 24mm)
  • Casing Dimensions (TX / RX - with connections) (WxDxH): 7.09 x 4.25 x 0.94 inch (180mm x 108mm x 24mm)
  • Shipping Weight: 3.53 lbs (1.6kg)

What's in the Box

• 1 x FVE4K-TX
• 1 x FVE4K-RX
• 2 x 12V/2A DC power supply
• 1 x IR emitter
• 1 x IR receiver
• 2 x Mounting kit
• 1 x Quick Reference Guide
