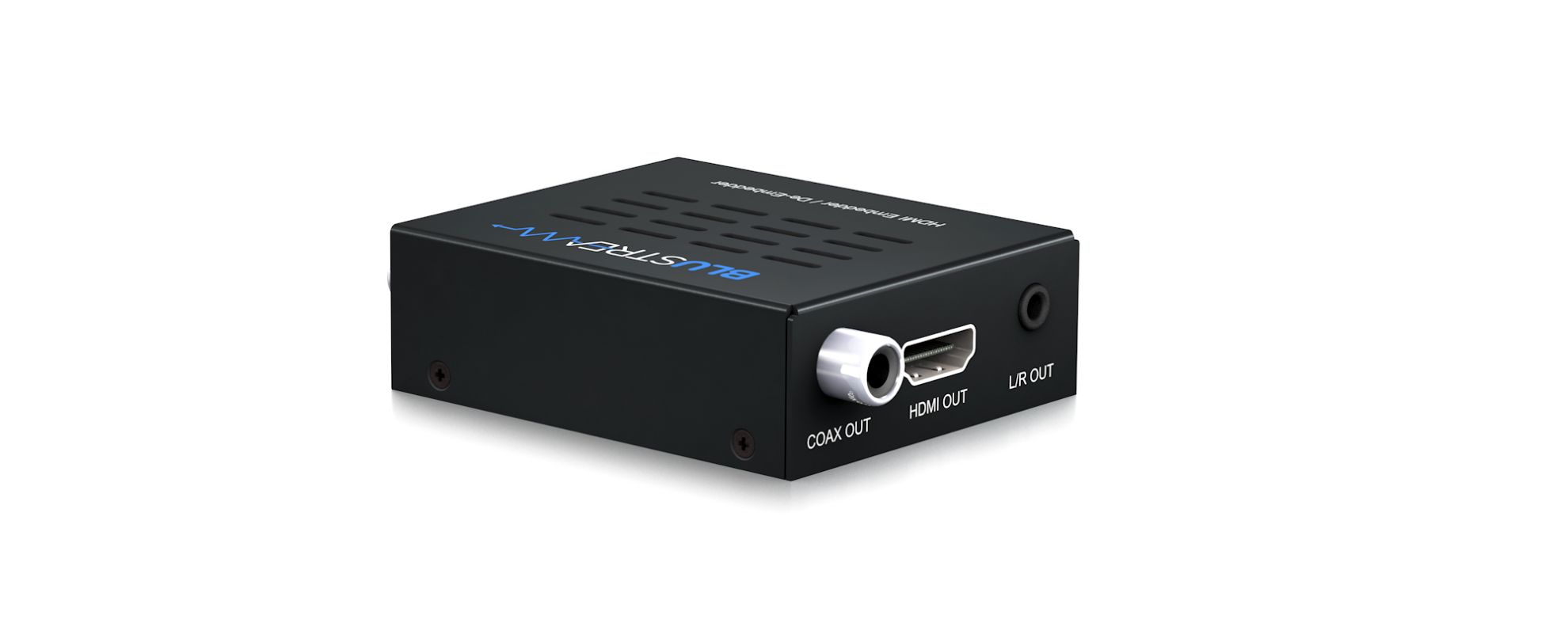

BLUSTREAM HD11AU HDMI Audio Embedder / De-Embedder

About: BLUSTREAM HD11AU HDMI Audio Embedder / De-Embedder

Our HD11AU is the perfect solution for either de-embedding or embedding audio within the HDMI signal path.

This solution allows you to breakout up to 7.1ch audio signals. Connect the HD11AU between your source and display via HDMI, then select the whether to embed or de-embed audio as required.

Features

• Can be configured to work as either a HDMI audio de-embedder or audio embedder
• HDMI audio de-embedded to both analogue L/R audio and coaxial digital outputs concurrently
• Extract audio and embed analogue L/R audio input onto the HDMI output
• Extract audio with or without a connected display - acts as an end-sink
• Supports 4K UHD video (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission*
  • *Embedded HDMI 5.1ch PCM transmission is not supported via coax audio connections and is therefore not supported by the HD11AU
• Supports CEC bypass (Consumer Electronics Control)

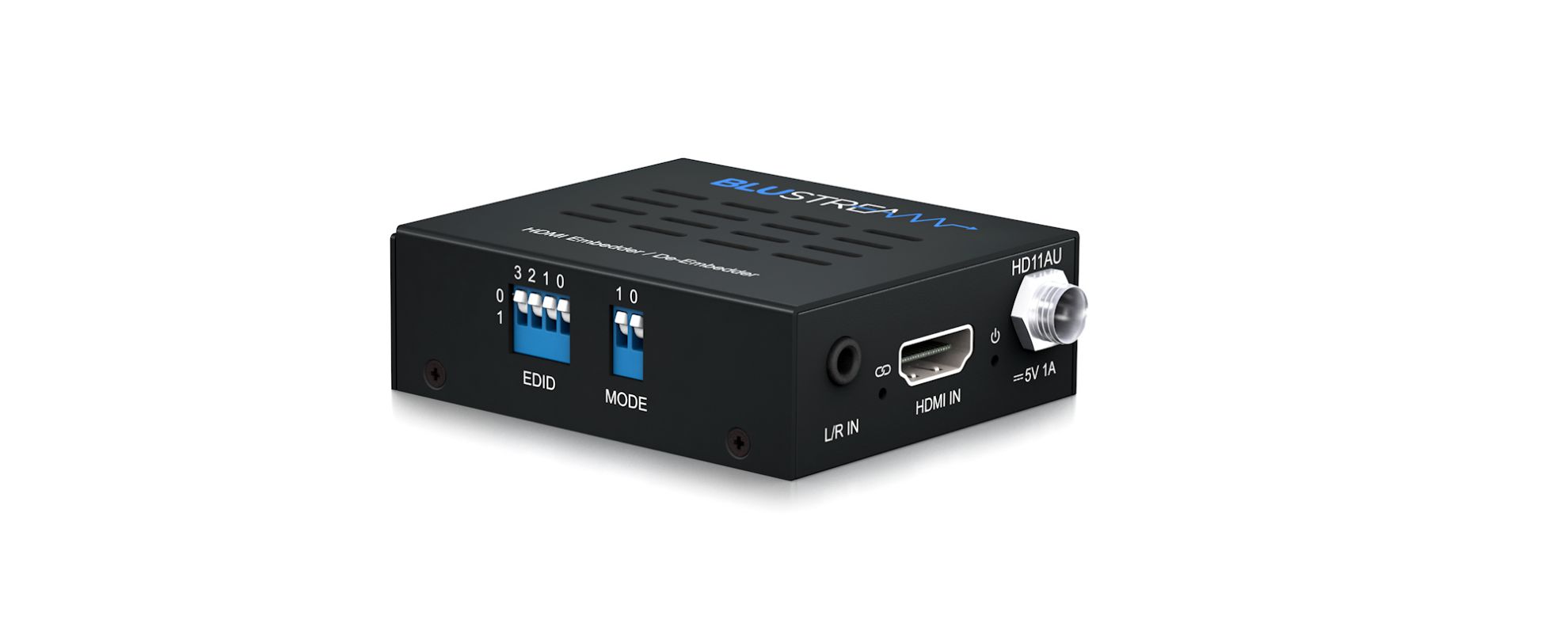

• Advanced EDID management allows for hand-shaking issues between HDMI equipment to be resolved when used as a repeater
• HDCP 1.4 compliant

Specifications

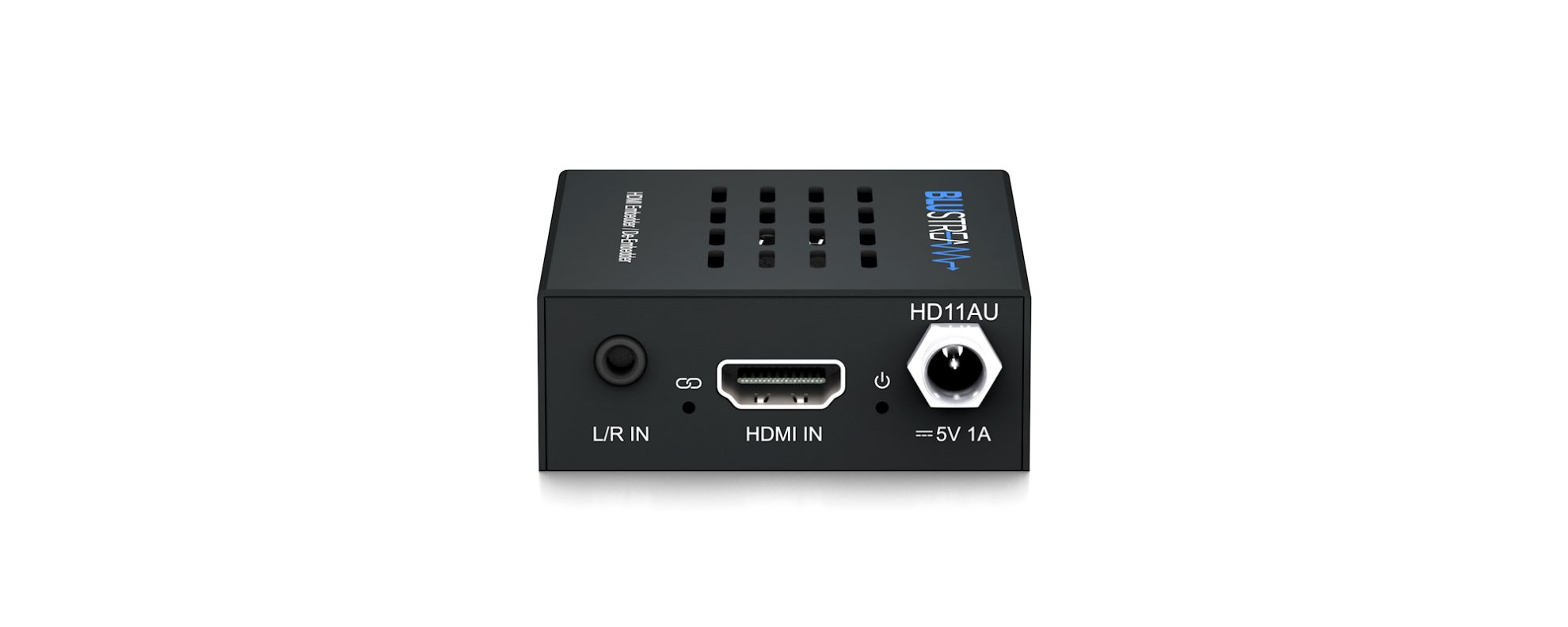

• Audio Input Connectors: 1 x Analogue Left / Right audio (3.5mm stereo jack)

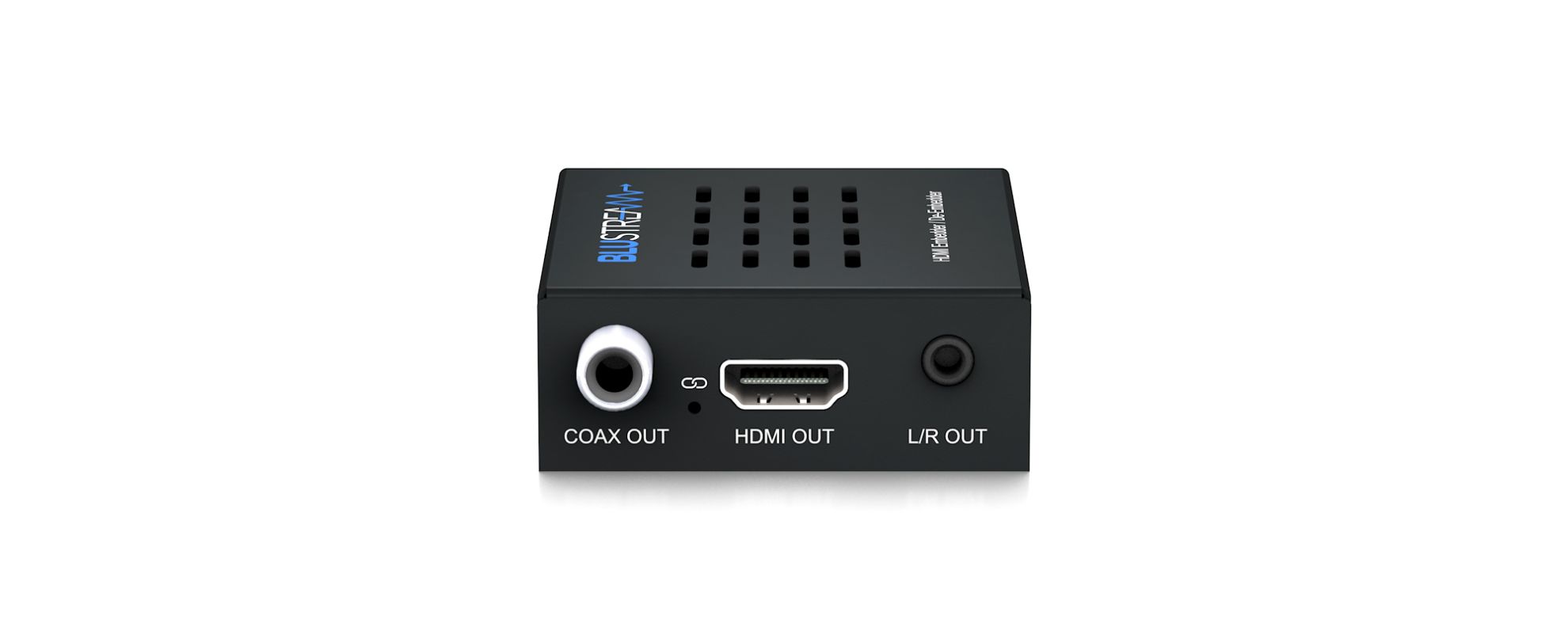

• Audio Output Connectors: 1 x RCA (S/PDIF) & 1 x Analogue Left / Right audio (3.5mm stereo jack)
• Video Input Connectors: 1 x HDMI Type A
• Video Output Connectors: 1 x HDMI Type A
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 5V/1A DC, screw type connector
• Product Dimensions (with connections) (WxDxH): 2.36 x 3.15 x 0.98 inch (60 x 80 x 25mm)
• Product Dimensions (without connections) (WxDxH): 2.36 x 2.76 x 0.98 inch (60 x 70 x 25mm)
• Product Weight: 0.33 lbs (0.15kg)
• Shipping Weight: 1.1 lbs (0.5kg)

What's in the Box

• 1x HD11AU
• 1x 5V/1A DC Power Supply
• 1x Mounting Kit
• 1x User Manual
