C2G Superbooster 4-Port USB 3.2 (5Gbps) Over Cat6a Extender Kit

About: C2G Superbooster 4-Port USB 3.2 (5Gbps) Over Cat6a Extender Kit

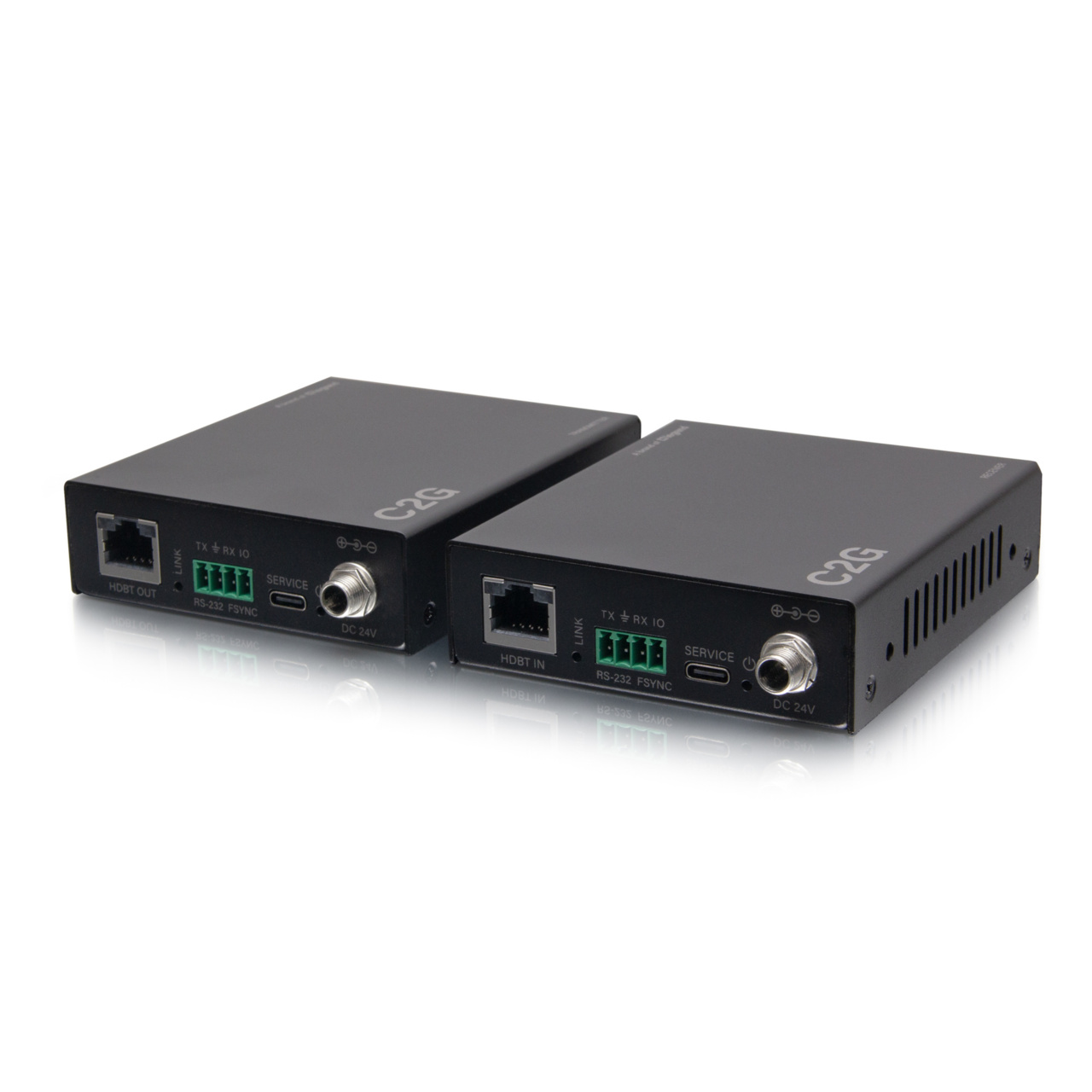

C2G’s Superbooster 4-Port USB over Cat6a Extender Kit – USB 3.2 Gen 1 (5Gbps) was designed to extend data from USB 3.2, 2.0 and 1.1 devices simultaneously up to 328 feet (100m) over a single Cat6a cable, making it a perfect solution for USB 3.2 conferencing cameras, interactive white boards, security and monitoring, remote storage, and/or any other USB 3, 2 and 1 device.

• Tested and proven to support leading video conferencing cameras, solid state drives, docks, keyboards,
• mice and flash drives
• Extension of USB 3.2 data up to 328 ft (100m) over Cat6a cable
• USB 3.2 connectivity with data transfer rate up to 5Gbps
• Backwards compatible with USB 2.0 and 1.1
• Support RS-232 pass-through and FSYNC GPIO pass-through (for industry camera use)
• Supports bi-directional 24V PoC
• Plug and play - no drivers required
• Perfect for extending cameras, white boards, storage drives, and other high bandwidth USB devices

No software drivers are required, making installation quick and easy with true plug and play convenience. Simply connect the Transmitter to the source computer, extend with a single category cable, and connect the Receiver to as many as four USB devices.

This Superbooster 4-Port Extender Kit provides the ability to connect USB 3.2 Gen 1 (5 Gbps) device types and is backwards compatible to USB 2.0 and 1.1 across a point-to-point connection.

Tested and Proven

This C2G Superbooster USB Extender has undergone rigorous compatibility testing with industry-leading video conferencing cameras, as well as solid state drives, docks, keyboards, mice and flash drives—ensuring total reliability and deployment confidence, plus saving valuable time for AV integrators as well.

Category Cables

For best performance, use 295 ft (90m) or shorter Cat6a F/FTP cable.

• U/FTP cable can also be used, but may not perform as well, particularly at maximum distances
• Performance using Cat6a cables with other types of shielding, Cat6, and Cat5e cannot be guaranteed

At the full 328 ft (100m) distance, there could be intermittent but rare occurrences of USB link disconnects that cannot be replicated reliably.

• When this does happen, the devices reconnect automatically

For best link stability at long lengths, the transmitter and receiver should be placed in a minimal vibration environment.

• It is recommended that you stabilize the devices using the mounting ears

USB Cables

• Recommended max distance of USB cables used on the transmitter or receiver side is 6 ft (1.8m)
• USB cable from the host to the transmitter can be an A-B or a C-B cable
  • ° If you experience any performance issues, please ensure you are using a USB-IF certified cable

Specifications

• PHYSICAL SPECIFICATIONS
  • Operating Temperature - 0°C to 40°C (32°F to 104°F)
  • Storage Temperature - -20°C to 60°C (-4°F to 140°F)
  • Storage Humidity - 20% to 90% relative humidity, non-condensing
• PHYSICAL CHARACTERISTICS
  • Regulatory Approvals - Product CE/FCC, RoHS, and UKCA certified
  • Dimensions (HxWxD)
    • Transmitter: 1 x 3.35 x 3.94in (25.5 x 85 x 100mm)
    • Receiver: 1 x 3.35 x 3.94in (25.5 x 85 x 100mm)
  • Material - Metal
  • Housing Color - Pantone Gray
• PORTS

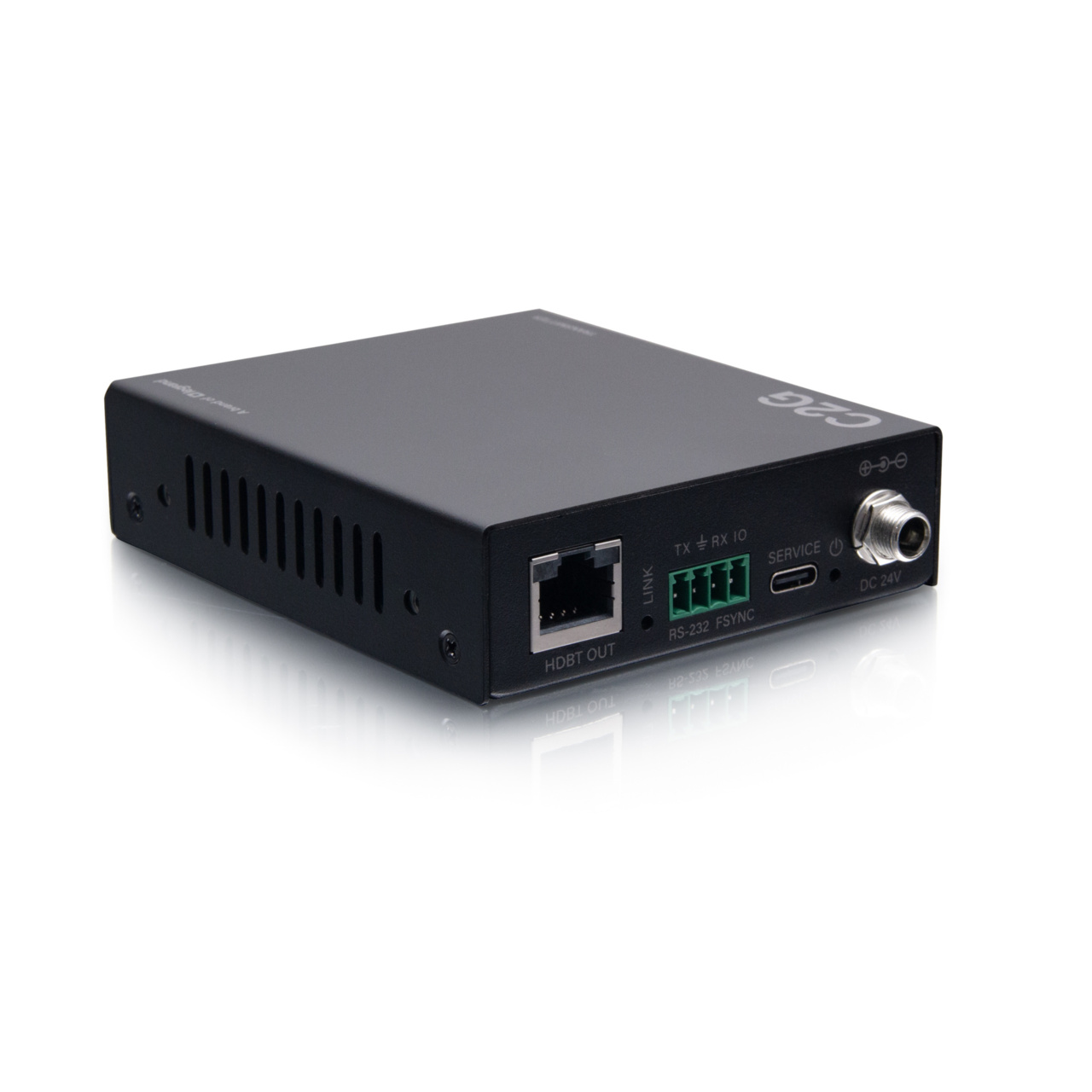

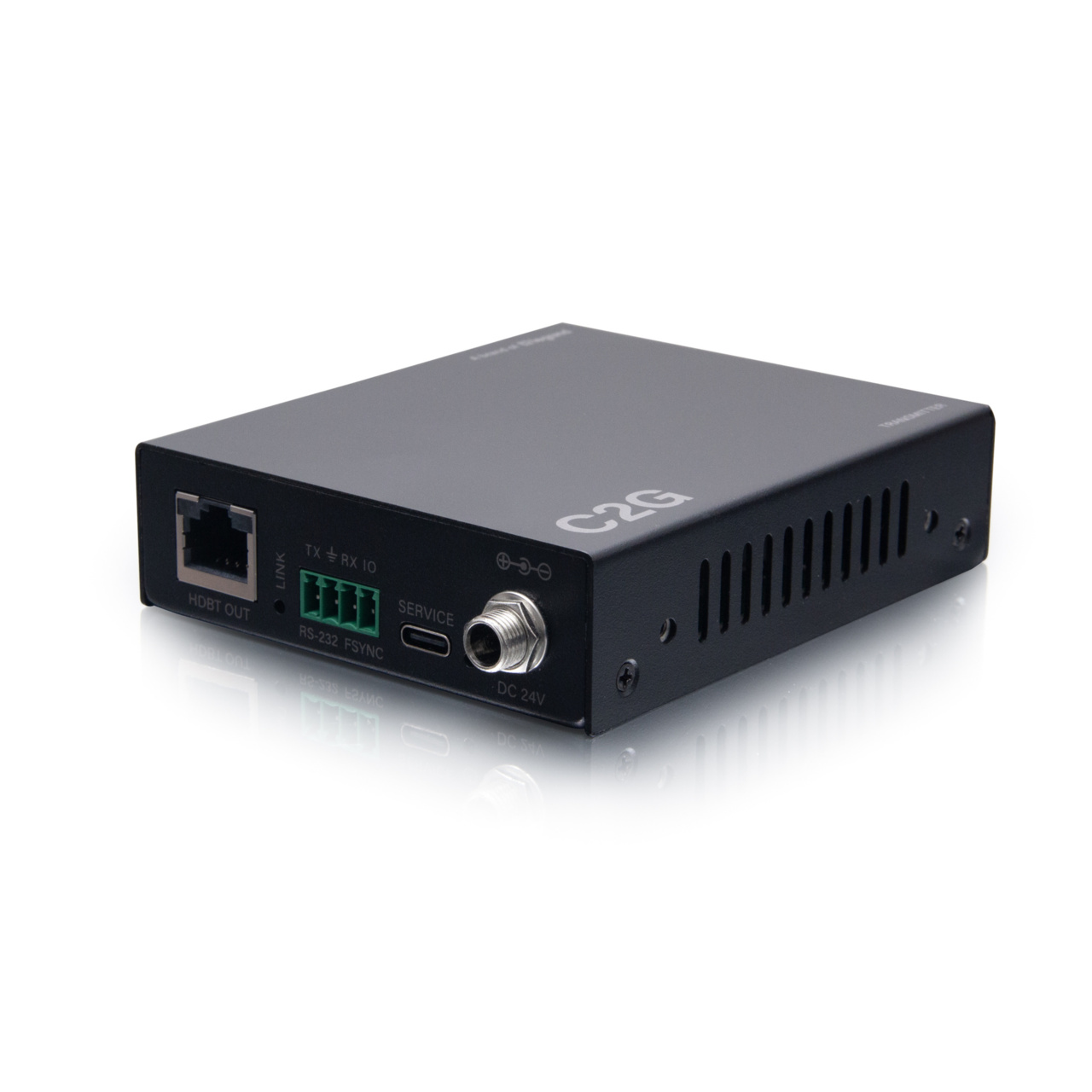

  • Transmitter

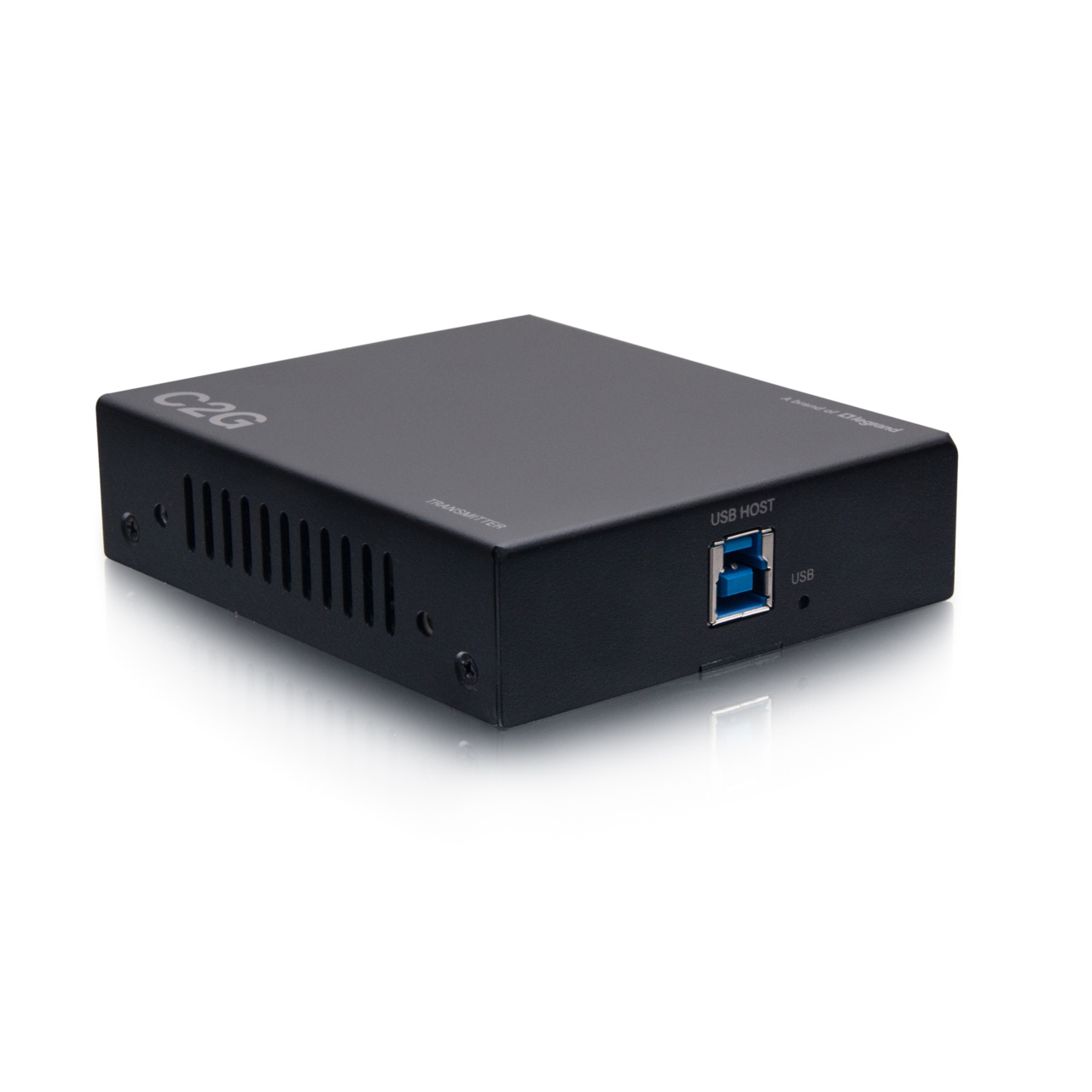

    • 1x USB-B Host Port: Supports USB 3.2 Gen 1
    • 1x RJ45 HDBT Port
    • 1x RS232: 3-pin Pheonix Connector
    • 1x USB-C: Firmware Update Port
    • 1x DC 24V/ 2A Power Input Port

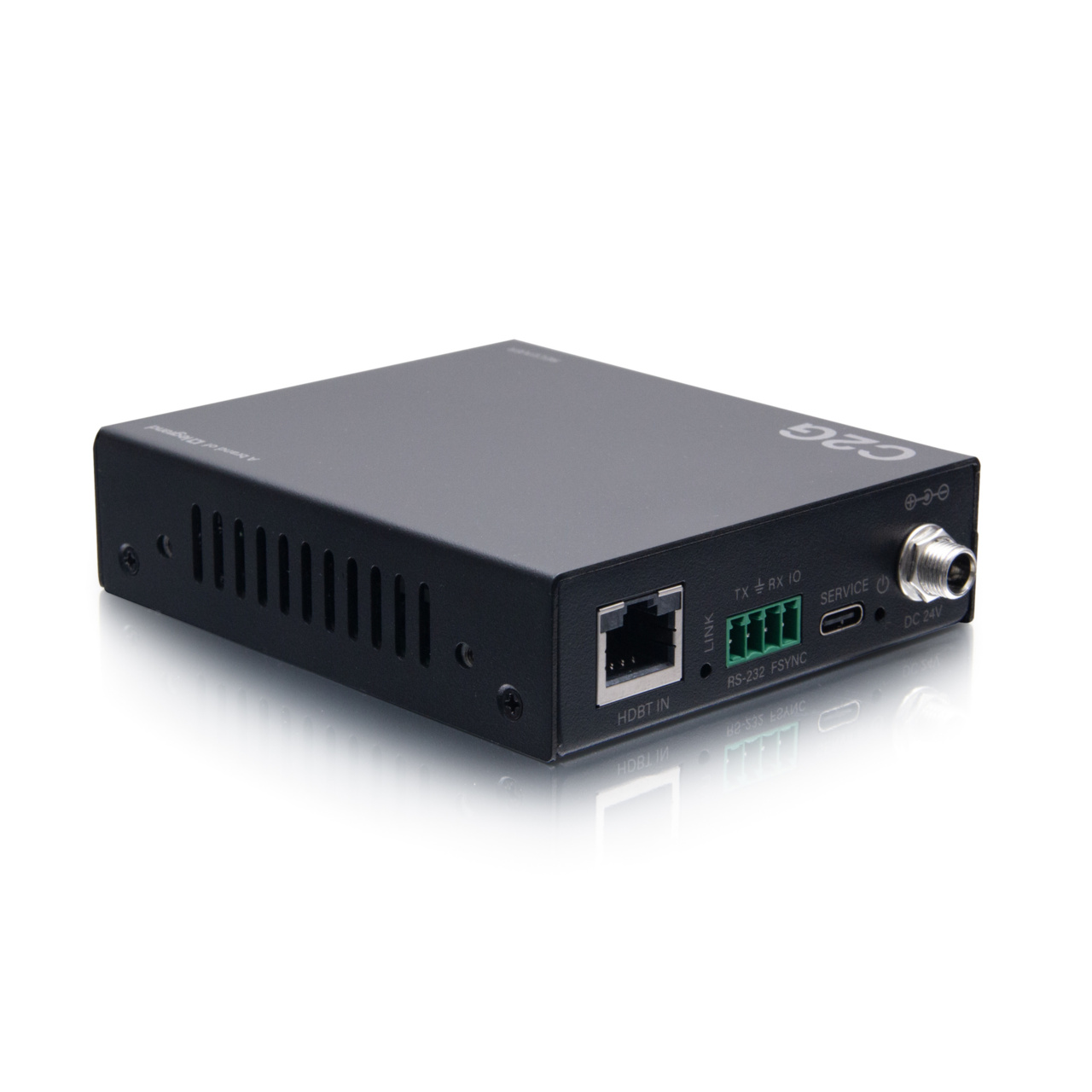

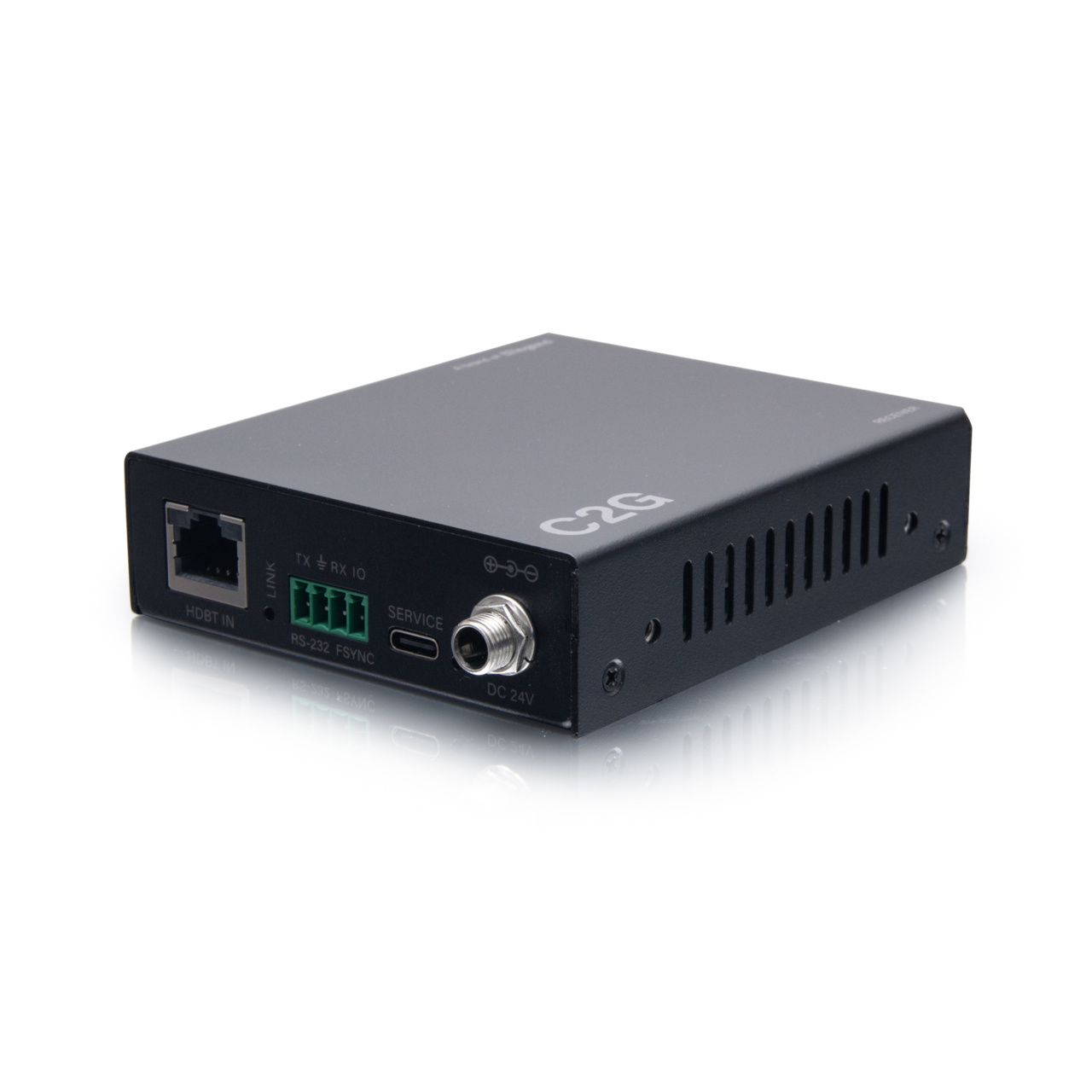

  • Receiver

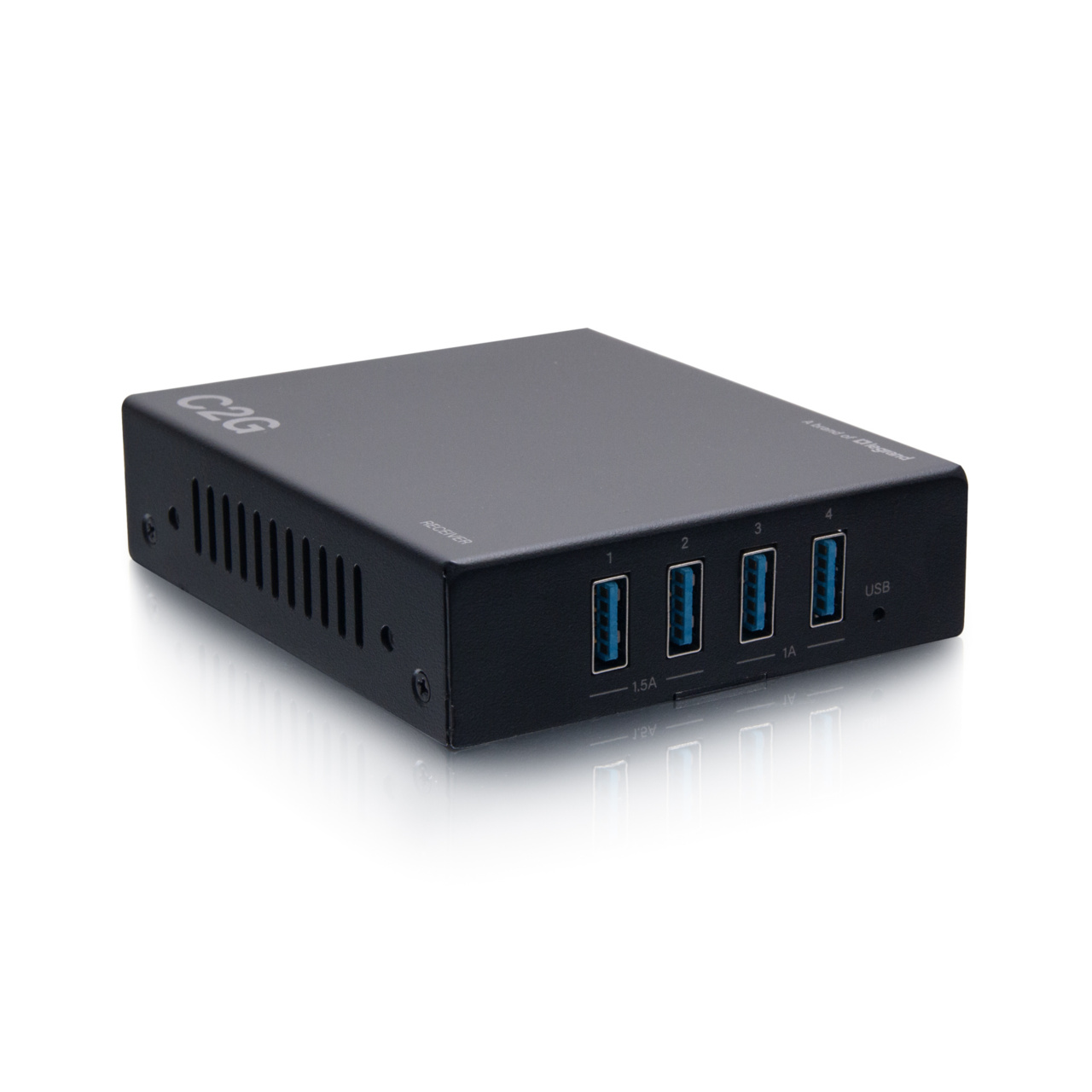

    • 4x USB-A Ports:
    • Port 1/2 - Max Output Power up to 5V/1.5A
    • Port 3/4 – Max Output Power up to 5V/1A
    • 1x RJ45 HBDT Port
    • 1x RS232: 3-pin Pheonix Connector
    • 1x USB-C: Firmware Update Port
    • 1x DC 24V/ 2A Power Input Port

What's in the Box

• 1× USB 3.0 Extender (Transmitter)
• 1× USB 3.0 Extender (Receiver)
• 1× 24V/1.5A Power Supply
• 2x 4pin-3.5mm Phoenix Connector (male)
• 4× Mounting Ear
• 8× Machine Screw (KM3*4)
• 1× User Manual
