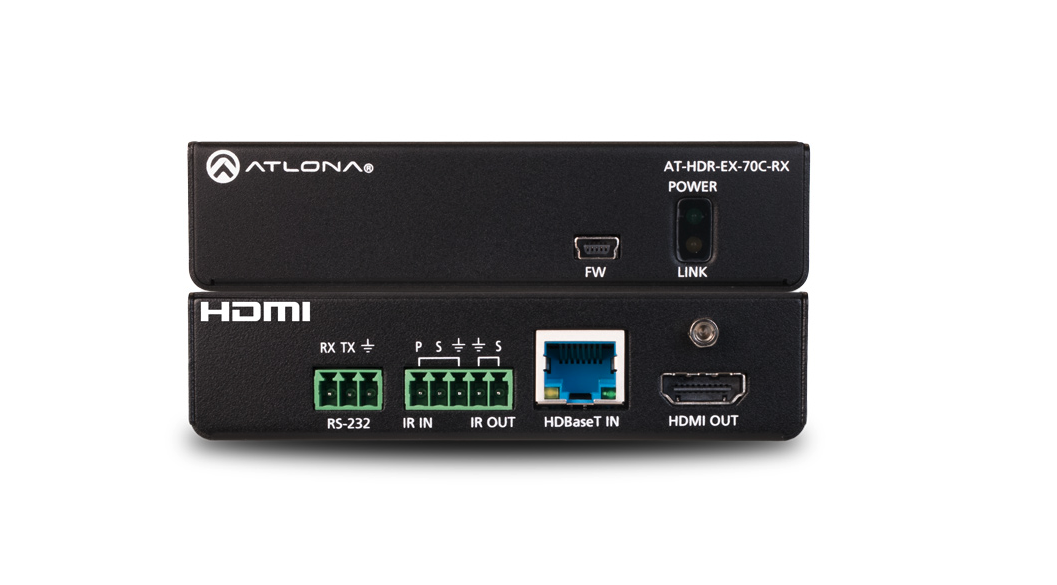

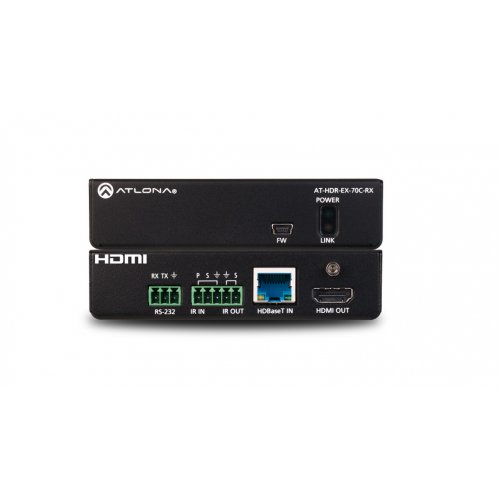

Atlona AT-HDR-EX-70C-RX 4K HDR HDBaseT Receiver with Control and Remote Power

About: Atlona AT-HDR-EX-70C-RX 4K HDR HDBaseT Receiver with Control and Remote Power

The Atlona AT-HDR-EX-70C-RX is a HDBaseT to HDMI receiver for 4K and high dynamic range (HDR) content. It supports extension of 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus HDR data, multi-channel audio, control signals, and power up to 130 ft. (40 m) or 1080p up to 230 ft. (70 m) over Category 6/6A cable. The HDR-EX-70C-RX is ideal for use with the AT-HDR-CAT-2, AT-HDR-CAT-4, and AT-HDR-CAT-8 distribution amplifiers for passing 4K HDR signals to a display. A compact enclosure and remote power supplied by the transmitter means the receiver can be conveniently mounted in furniture, behind a display, or above a projector.

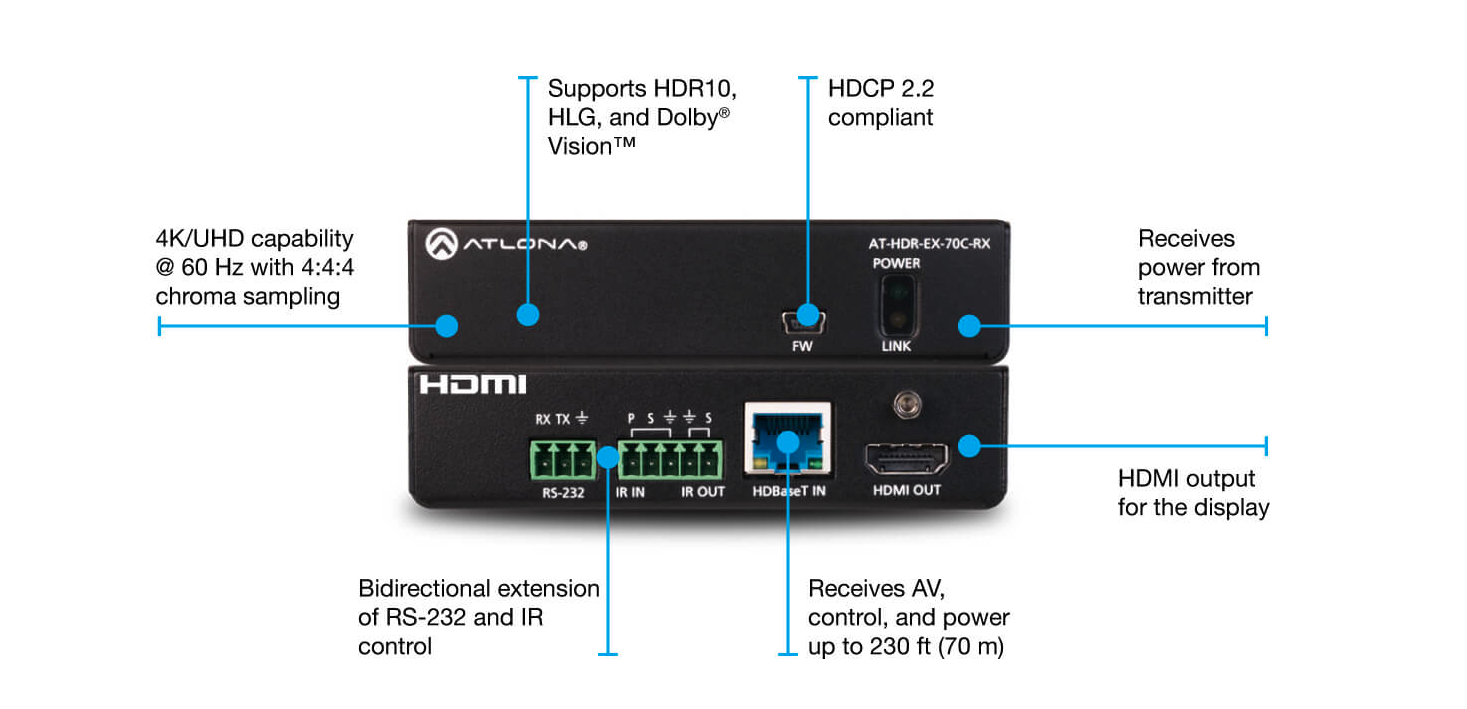

Features

• HDBaseT receiver for use with the AT-HDR-CAT-2, AT-HDR-CAT-4, and AT-HDR-CAT-8 distribution amplifiers
• 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling
• Supports HDR10, HLG, and Dolby® Vision™ HDR formats
• Features visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT
• HDBaseT input receives HDMI, control signals, and power up to 130 feet (40 meters) for 4K HDR or 230 feet (70 meters) for 1080p with Category 6/6A
• Extends bidirectional RS-232 and IR control signals over HDBaseT
• Remotely powered by the AT-HDR-CAT distribution amplifiers over HDBaseT
• Compliant with HDCP 2.2, the latest specification for passing protected content between devices
• Multi-channel audio pass-through
• Front panel Power and Link status LEDs
• Front panel USB port for firmware updates
• Rear panel connections simplify wire management and save installation time
• Compact enclosure can be mounted in furniture, behind a display, or above a projector
• Included accessories – surface mounting hardware and installation guide
• To view the product warranty, use the following link: https://atlona.com/warranty/

Specifications

• Signal: Input – HDBaseT, Output – HDMI
• HDCP 2.2
• UHD/HD/SD:
  • 4096×2160@60/50/30/25/24Hz
  • 3840×2160@60/50/30/25/24Hz
  • 1080p@60/59.9/50/30/29.97/25/24/23.98Hz
  • 1080i@30/29.97/25Hz
  • 720p@60/59.94/50Hz
  • 576p@50Hz
  • 576i@25Hz
  • 480p@60/59.96Hz
  • 480i@30Hz
• VESA:
  • 2560×1600
  • 2048×1536
  • 1920×1200
  • 1680×1050
  • 1600×1200
  • 1440×900
  • 1400×1050
  • 1280×1024
  • 1280×800
  • 1366×768
  • 1360×768
  • 1152×864
  • 1024×768
  • 800×600
  • 640×480
• Color Space: YUV, RGB
• Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
• Color Depth: 8-bit, 10-bit, 12-bit
• HDR: Up to 4K HDR10 @ 60 Hz, 4K Hybrid-Log Gamma (HLG) @ 60 Hz, and 4K Dolby® Vision™ @ 60 Hz
