C2G 4-Port USB 3.1 Over Cat6a Extender

About: C2G 4-Port USB 3.1 Over Cat6a Extender

The 4-Port USB 3.1 Over Cat6a Extender was designed to extend USB 3.1, 2.0 and 1.1 devices simultaneously up to 328 feet over a single Cat6a cable, making it a perfect solution for USB 3.1 conferencing cameras, interactive white boards, security and monitoring, video matrix systems, remote storage, and/or any other USB 3, 2 and 1 device.

• USB 3.1 Gen 1 data rate up to 5 Gbps
• Integrated four port USB 3.1 hub
• Supports all USB 3.1, 2.0, 1.1 devices simultaneously at full bandwidth
• Up to 1.2A (6W) per USB port
• 100/1000 Mbps Ethernet channel
• LAN pass-through
• Point-to-point connection
• Requires a single Cat6a cable
• Plug and Play—no driver required

Convenience

No software drivers required, making installation quick and easy with true plug and play convenience. Simply connect the Transmitter to the source computer, extend with a single category cable, and connect the Receiver to as many as four USB devices.

Performance

The 4-Port USB 3.1 Over Cat6a Extender provides the ability to connect USB 3.1 Gen 1 (5 Gbps) device types and is backwards compatible to USB 2.0 and 1.1 across a point-to-point connection. The extender also includes an Ethernet pass-through for connecting to network enabled devices or to use existing infrastructure without losing LAN connectivity.

Specifications

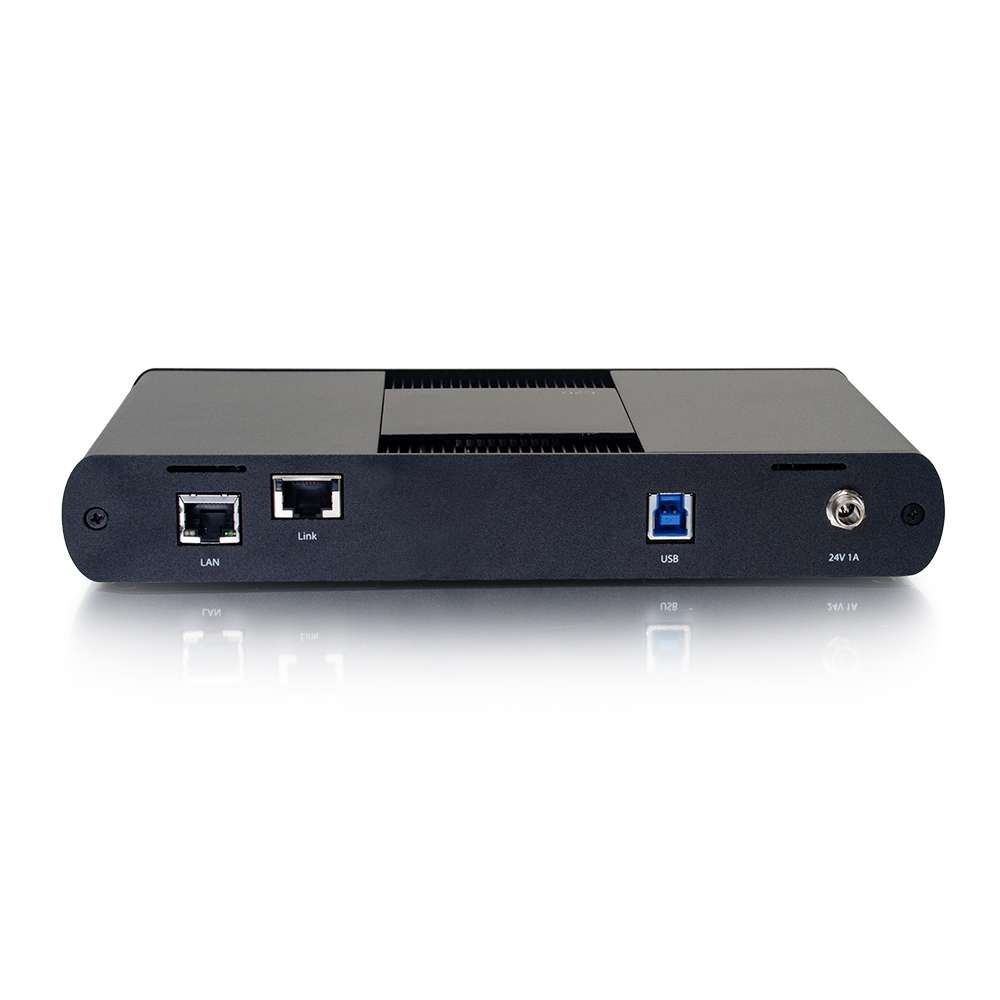

• LEX (Local Extender)
  • 1x USB 3.1 Gen 1 Type-B Receptacle
  • 1x RJ45 Ethernet 100/1000 Port
  • 1x RJ45 Ethernet Link Port
  • 24V 1A DC Locking Jack
  • Enclosure Material: Silver Anodized Aluminum
  • Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4” x 9.1” x 1.3”)
  • 920g (2.03 lbs.)
  • Mounting: 4 Surface Mounting Holes or Optional Mounting Kit Available

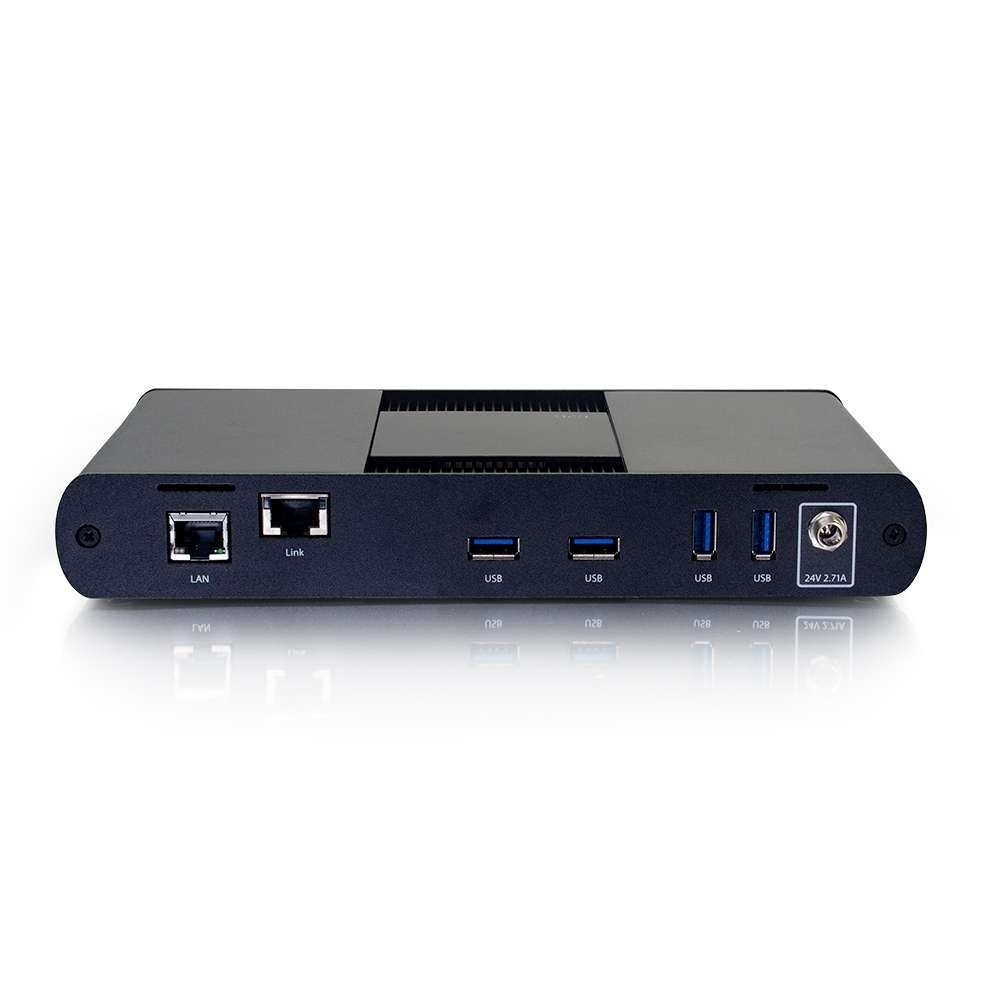

• REX (Remote Extender)
  • 4x USB 3.1 Gen 1 Type-A Receptacles
  • 1x RJ45 Ethernet 100/1000 Port
  • 1x RJ45 Ethernet Link Port
  • 24V 2.71A DC Locking Jack
  • Available Current: Up to 1.2A (6W) per USB port
  • Enclosure Material: Silver anodized aluminum
  • Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4” x 9.1” x 1.3”)
  • 990g (2.18 lbs.)
  • Mounting: 4 surface mounting holes or optional mounting kit available
• Speeds
  • USB 3.1: Up to 5Gbps
  • USB 2.0: Up to 480Mbps - USB 1.1: Up to 12Mbps
• General
  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Storage Temperature: -20°C to 70°C (-4°F to 158°F)
  • Operating Humidity: 20% to 80% Relative Humidity, Non-condensing - Storage Humidity: 10% to 90% Relative Humidity, Non-condensing
  • Molding Material: White PVC Conforms to RoHS
  • Product is CE Marked and Conforms to 2011/65/EU RoHS2
• Compliance
  • EMC: FCC (Class B), CE (Class B)
  • Environmental: RoHS2, REACH, Conflict Minerals”
