AIDA HD-NDI-CUBE NDI|HX Camera
Model: HD-NDI-CUBE
About: AIDA HD-NDI-CUBE NDI|HX Camera

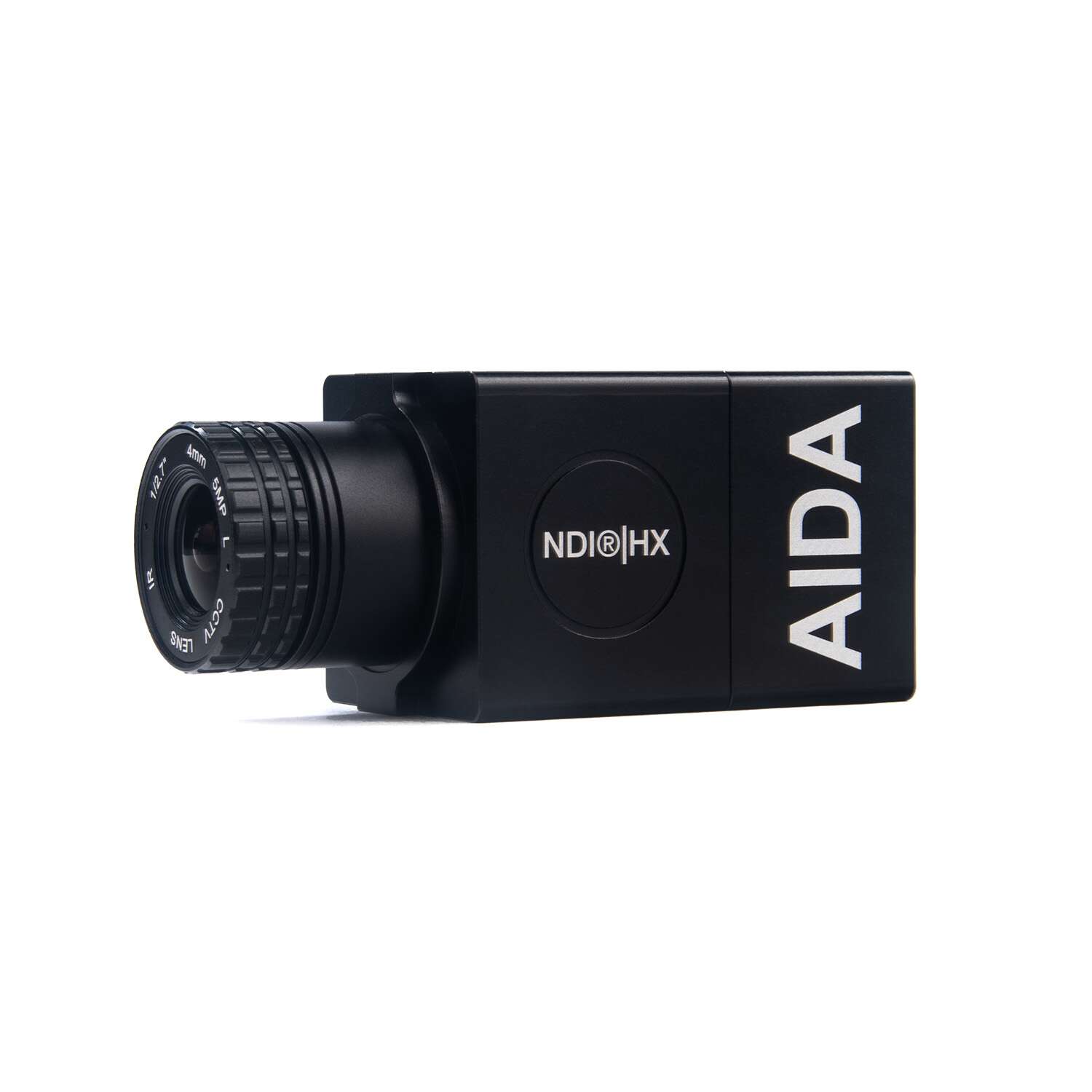

Don’t let the HD-NDI-CUBE fool you. Its tiny form factor does not compromise any FULL-HD quality seen in our POV cameras. With the ability to output NDI|HX, SRT, RTSP and RTMP simultaneously, its no wonder why the CUBE is a production game-changer.
- Full-HD 1/3” Progressive Scan CMOS sensor capable of 1080 60p NDI®|HX Video.
- Accessible Web UI to stream directly to social media platforms and control image parameters over IP.
- Versatile design with top and bottom tripod mounts for unique shot creation.

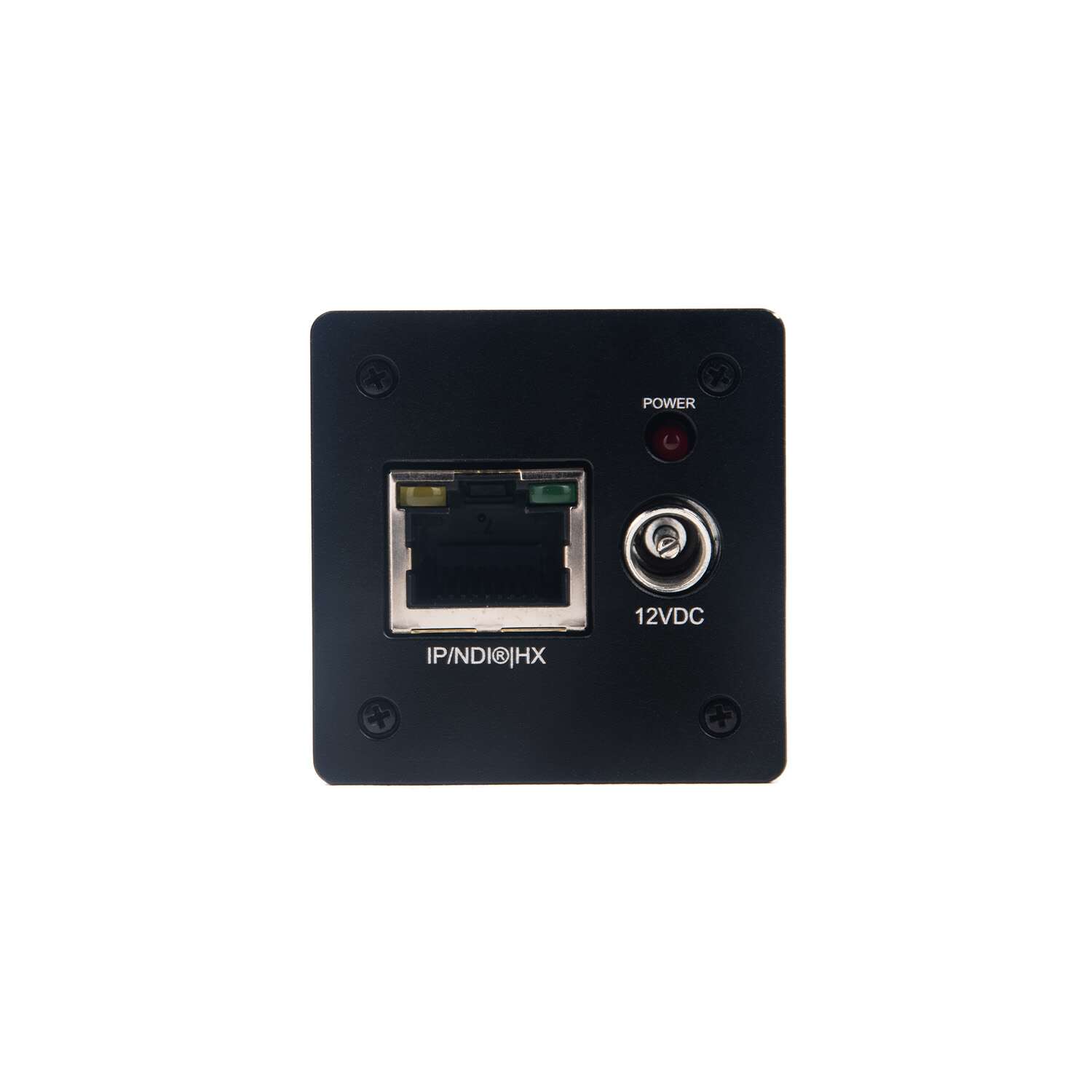

- USB SVC port for easy network setting adjustments and updates.
- Small form-factor makes it placeable in discreet places
- Perfectly suited as extra angles for any new or existing NDI®|HX setup
Specifications
Video
- Image Sensor: 1/3″ Progressive CMOS
- Sensor Size: 5.346mm x 3.003mm (16:9)
- Effective Pixels: Horizontal: 1920, Vertical: 1080
- Pixel Size: 2.75 μm (H) x 2.75 μm (V)
- Resolution
- 1080p / 1080i : 1920 x 1080
- 720p : 1280 x 720
- Resolution | Rate
- 1080p : 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24
- 1080i : 60 / 59.94 / 50i 720
- 720p : 60 / 59.94 / 50p
- Output: IP (NDI|HX/SRT/RTMP/RTSP)
- Color Space: 4:2:2 (YCbCr) 10bit
- Min Illumination: 0.2Lux (Day), 0.1Lux (Night), 0.005Lux (Slow Shutter ON)
- White Balance: Auto & Manual (9,000 K – 11,000 K)
LENS
- Lens C/CS Mount (Default 4mm HD Lens)
STANDARD
- IP Protocol UDP|IP, RTSP|RTMP, SRT, NDI|HX
PHYSICAL
- Camera Control Protocol: VISCA Over IP
- Operation Temp: 32°F - 104°F
- Dimension: 86mm x 40mm x 40mm / 3.38” x 1.57” x 1.57” (with default 4mm lens)
- Weight: 180g / 0.39lbs (with default 4mm lens)
- Power: 12VDC (+9 - +15VDC) (PoE Adapter Included)
What's in the Box
- PoE Dongle Adapter
- USB Cable
- DC 12v Power Supply & Sockets Adapter
- C-Mount Cap Adapter
- 4mm 5MP Lens (Pre-Installed)
- Sensor Cap
UPC: 686091739809
Reviews: AIDA HD-NDI-CUBE NDI|HX Camera
Warranty: AIDA HD-NDI-CUBE NDI|HX Camera
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
AIDA gives a two (2) year warranty to the original owner/user of any AIDA product. The warranty will be in effect from the original date of purchase
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and AIDA Imaging do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
