Hollyland Astra P1 Pan-Tilt-Zoom PTZ Camera

About: Hollyland Astra P1 Pan-Tilt-Zoom PTZ Camera

The Astra P1 PTZ combines a high-performance UHD 4K60 imaging system and 30x optical zoom with intelligent face-detection AE and AI auto-tracking. With support for NDI|HX3 and diverse I/O interfaces, it is a comprehensive professional solution for churches, halls, various live events, and beyond.

• UHD 4K60
• Face Detection AE
• 30x Optical Zoom
• AI Auto Tracking
• NDI|HX3 Support
• Optional PTZ Controller
• Ease of Use
• 5-Year Warranty

UHD 4K60 Cinema Clarity. Shine in Shadows

Live venues aren’t always well lit — halls, auditoriums, and churches often present challenging and complex lighting environments. The Astra P1’s 1/1.8” sensor increases per-pixel light intake to deliver crisp, noise-free 4K footage.

Face Detection AE - Exposure That Stays With You

The light shifts, but the target stays bright. The Astra P1 intelligently tracks the performer and optimizes exposure in real-time. In low-light settings, auto exposure simplifies your team’s workflow. At least it's one less thing for you to worry about with the Astra P1.

30x Optical Zoom - All in 4K Detail

Go from a wide shot to a close-up with clarity in every pixel. Powered by a 30x optical lens with an aperture up to f/1.6, the Astra P1 gathers impressive light even when zoomed to the max. Combined with 16x digital zoom and 0.1° preset accuracy, it switches between long-shot and extreme close-up presets with fluid motion.

• Up to 30x optical
• Effective Pixels 8.42 megapixels
• Image Sensor 1/1.8″ CMOS

AI Auto Tracking - Locks on the Presenter. Tracks Every Move.

• Presenter Tracking: The Astra P1 uses human-based logic to follow the presenter, analyzing posture and motion to distinguish them from the background. In crowded environments or complex setups, it maintains a precise lock on every move.
• Zone Tracking: Define up to 4 key areas (podium, whiteboard, demo table, etc.). The Astra P1 then tracks between them as the target moves to provide a smooth transition in large spaces. Ideal for large auditoriums where a single operator needs reliable, automatic coverage.

NDI|HX3 Support - Pro Connectivity. No Licenses Needed.

An NDI|HX3 license is included with every Astra P1 — no extra cost. Just connect one Ethernet cable to stream near-lossless 4K video with ultra-low latency. The Astra P1 integrates into your NDI workflow, ready for vMix, OBS, or any professional broadcast studio.

Web Control - Every Setting in One View

Open a browser tab on your computer for full access to your control panel. Pan, tilt, zoom, and manage every professional setting remotely.

• Power of One: A single PoE+ cable delivers 4K video, audio, power, and control.

Broadcast-Grade I/O & Protocol Support

The Astra P1 supports simultaneous output via HDMI 2.0, 3G-SDI, USB, and LAN. It delivers up to three independent HD streams and supports a full range of protocols, from standard VISCA/Pelco for control systems to USB UVC, IP-based streaming, and FreeD for AR/VR virtual production.

Any Workflow. Every Stage.

Output independent main and sub streams to handle high-quality recording and low-latency monitoring at once. Whether in churches, halls, or live events, the Astra P1 is built to perform in any professional setup.

5‑Year Warranty - FAE Instant Support

Every Astra P1 includes a 3-year standard warranty, with an extra 2 years available through product registration. Our field application engineers are on standby to provide instant technical support. At Hollyland, your vision is our mission. We are committed to your long-term success.

Specifications

• Camera
  • Image Sensor: 1/1.8″ High-quality CMOS Sensor
  • Effective Pixels: 8.42 Megapixels (16:9 aspect ratio)
  • Optical Zoom: 30x Zoom (f = 7.1mm ~ 210mm)
  • Digital Zoom: 16x
  • Video Format
    • HDMI
      • 2160p25/29.97/30/50/59.94/60
      • 1080p29.97/30/50/59.94/60
      • 1080i50/59.94/60
      • 720p59.94/60
    • 3G-SDI
      • 1080p25/29.97/30/50/59.94/60
      • 1080i50/59.94/60
      • 720p59.94/60
  • Aperture Range: F1.61 ~ F5.19
  • Field of View (H/V)
    • Horizontal: 59.2° ~ 2.5°
    • Vertical: 34.6° ~ 1.4°
  • Minimum Illumination: 0.5 Lux (F1.8, AGC ON)
  • Shutter Speed: 1/30s ~ 1/10000s
  • Signal-to-Noise Ratio (SNR): ≥55dB
• PTZ Performance
  • Rotation Range
    • Pan: ±170°
    • Tilt: -30° ~ +90°
  • Rotation Speed
    • Pan: 1.7°/s ~ 100°/s
    • Tilt: 1.7°/s ~ 69.9°/s
  • Preset Positions: 255 Positions (Accuracy: 0.1°)

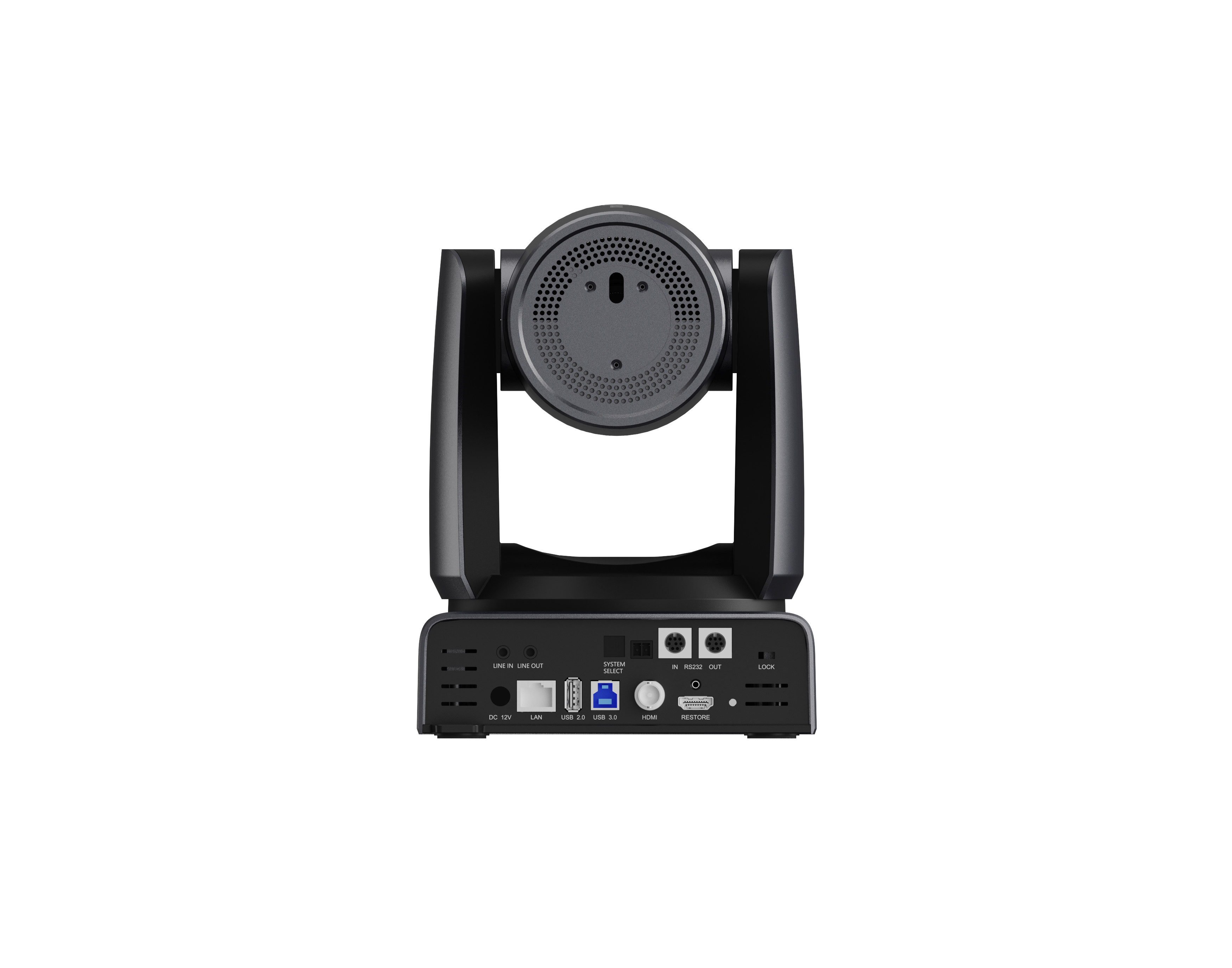

• I/O Interface
  • Audio
    • 1 x 3.5mm LINE IN
    • 1 x 3.5mm LINE OUT
  • Communication
    • 1 x RS485 (2-pin Phoenix Terminal)
    • 1 x RS232 IN (8-pin Mini-DIN)
  • Network: 1 x RJ45 10M/100M/1000M Adaptive Ethernet
  • USB
    • 1 x USB 2.0 Type-A
    • 1 x USB 3.0 Type-B
  • Video
    • 1 x 3G-SDI
    • 1 x HDMI 2.0
  • Power: DC 12V (JEITA Type)
• Network Features
  • Video Compression: H.264 / H.265 / MJPEG
  • Video Streams: Main Stream (First Stream), Sub Stream (Second Stream)
  • Main Stream Resolution: 3840x2160, 1920x1080, 1280x720, 1024x576, 720x480, 720x408, 640x480, 640x360
  • Sub Stream Resolution: 720x480, 720x408, 640x480, 640x360, 480x320, 320x240
  • Supported Protocols: NDI|HX3, TCP/IP, HTTP, RTSP, RTMP(S), DHCP, SRT, Multicast, etc.
• General
  • Input Voltage: DC 12V/PoE+
  • Input Current: 2A (max.)
  • Power Consumption: 18W (max.)
  • Operating Temperature: 32°F ~ 104°F (0°C ~ 40°C)
  • Storage Temperature: -40°F ~ 140°F (-40°C ~ 60°C)
  • Dimensions (LxWxH): 6.65 x 7.4 x 8.9 inch (169 x 188 x 226mm)
  • Weight: Approx. 5.1 lbs (2.3kg)

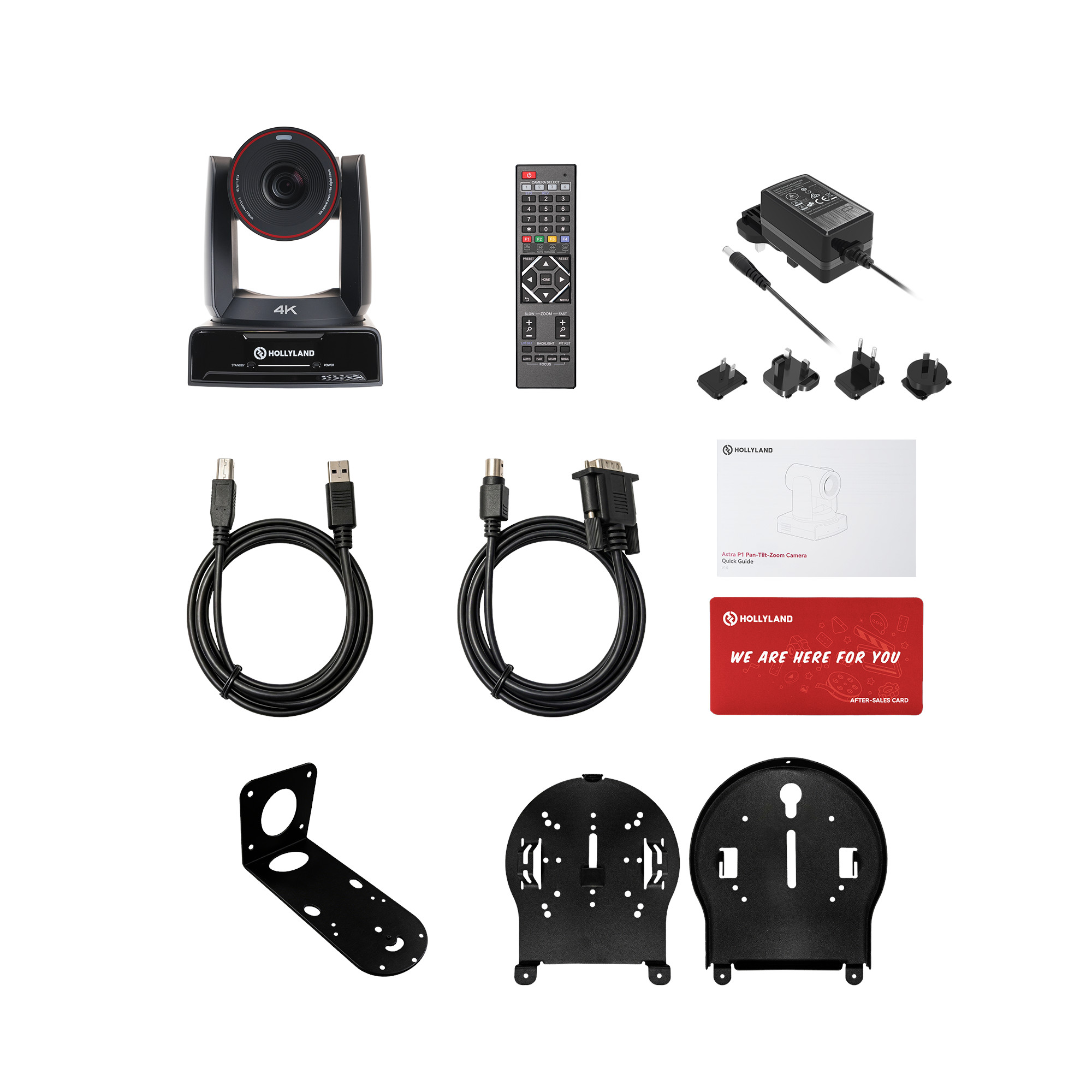

What's in the Box

• 1x PTZ Camera
• 1x Remote Controller
• 1x Power Adapter
• 1x USB-B to USB-A Cable
• 1x RS232 Cable
• 1x Wall Mount Bracket
• 1x Ceiling Mount Bracket
• 1x User Manual
• 1x Warranty Card
• 1x Packing List Card
