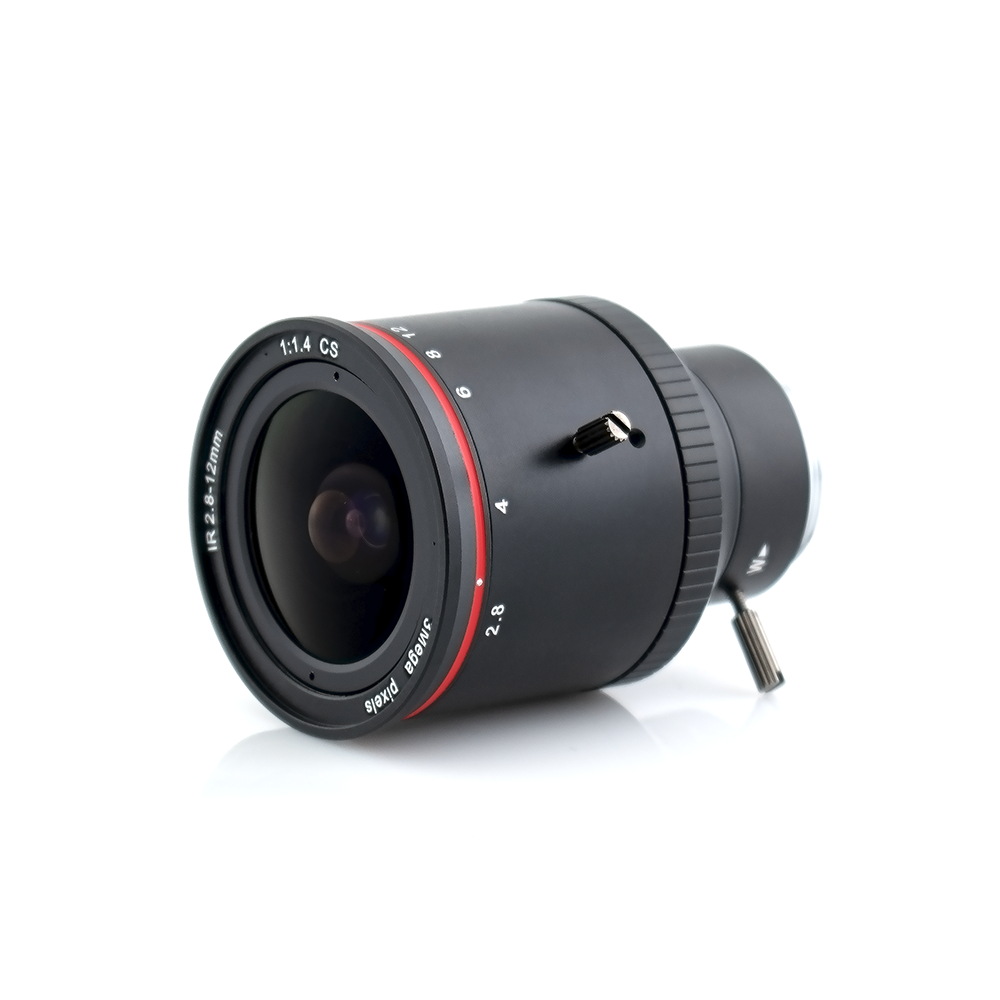

AIDA CS Mount 2mm-12mm Varifocal Lens

Model: CS-2812V

AIDA CS Mount 2mm-12mm Varifocal Lens
  • Free Shipping on orders over $199
  • Not in-Stock: Estimated Lead Time 7-10 Days
  • Not yet reviewed

About: AIDA CS Mount 2mm-12mm Varifocal Lens

The CS-Mount 28mm-12mm Varifocal 3 Megapixel Lens from AIDA is optimized with the AIDA Imaging Full HD cameras with 1/3″ Progressive CMOS sensors.

  • Optimized and tuned with Full HD Cameras.
  • CS-Mount.
  • Fixed DC Iris.
  • Varifocal 2.8mm~12mm
  • Horizontal Field of View: 60°-6°


  • Focal Length 2.8mm – 12mm
  • F-Stop F1.4
  • Focus Operation Manual
  • Iris Operation Fixed
  • FOV (Horizontal) 1/2.7″ : 113° – 28°
  • 1/3″ : 97° – 24.5°
  • Image Format 1/2.7″, 1/3″
  • TV Distortion 1.5% with 1/2.5″ Sensor


  • Mount Type CS
  • Operation Temp -4°F – 140°F
  • Dimension 46.5mm x 68.97mm / 1.83″ x 2.71″
  • Weight 4g/0.009Lbs

UPC: 682863380088 is a Canadian authorized AIDA Imaging retailer.

Reviews: AIDA CS Mount 2mm-12mm Varifocal Lens

There are currently no product reviews.

Warranty: AIDA CS Mount 2mm-12mm Varifocal Lens Warranty:

30 Days

Manufacturer's Warranty:

AIDA warrants to the original owner-user that this AIDA product will be free from defects in workmanship or material. This warranty is limited to one(1) year from the original purchase date, whether or not actual use begins on that date.
