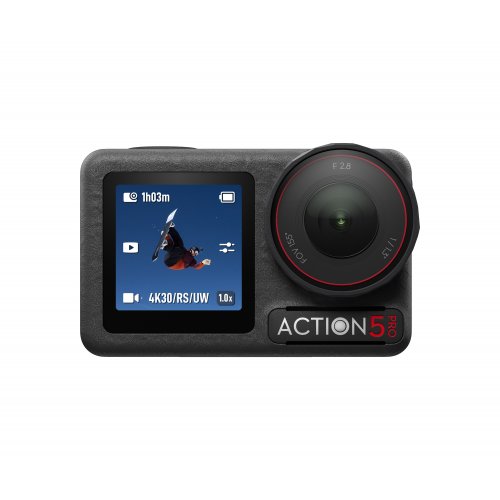

DJI Osmo Action 5 Pro Camera - Standard Combo

About: DJI Osmo Action 5 Pro Camera - Standard Combo

Osmo Action 5 Pro - Revolutionary Image Quality Action Camera

• Dual OLED High-Brightness Touchscreens
• Next-Gen 1/1.3″ Sensor
• 47GB Built-in Storage
• Color Temperature Sensor
• 4nm High-Performance Chip
• Wi-Fi 6.0 & USB 3.0 High-Speed Transfer
• Professional Air Pressure Gauge/Water Pressure Gauge
• DJI OsmoAudio Connectivity Ecosystem
• 360° HorizonSteady
• Subject Centering & Tracking
• 4-Hour Extended Battery Life
• Dual DJI Microphone Direct Connection

Next-Gen 1/1.3″ Sensor

Our new sensor captures your best. From city nights to dramatic sunrises, get crystal-clear images with a 4nm chip. Experience vibrant imagery with 2.4 μm pixels and 13.5 stops of dynamic range, rivaling pro cameras.

• 2.4μm Pixel Size
• Up to 13.5Stops Dynamic Range
• f/2.8 Aperture

Shoot in 4K/60fps for breathtaking high-dynamic low-light video, maintaining a balance of highlights and shadows without overexposure.

SuperNight mode uses noise reduction algorithms for sharper, cleaner footage in extreme low-light.

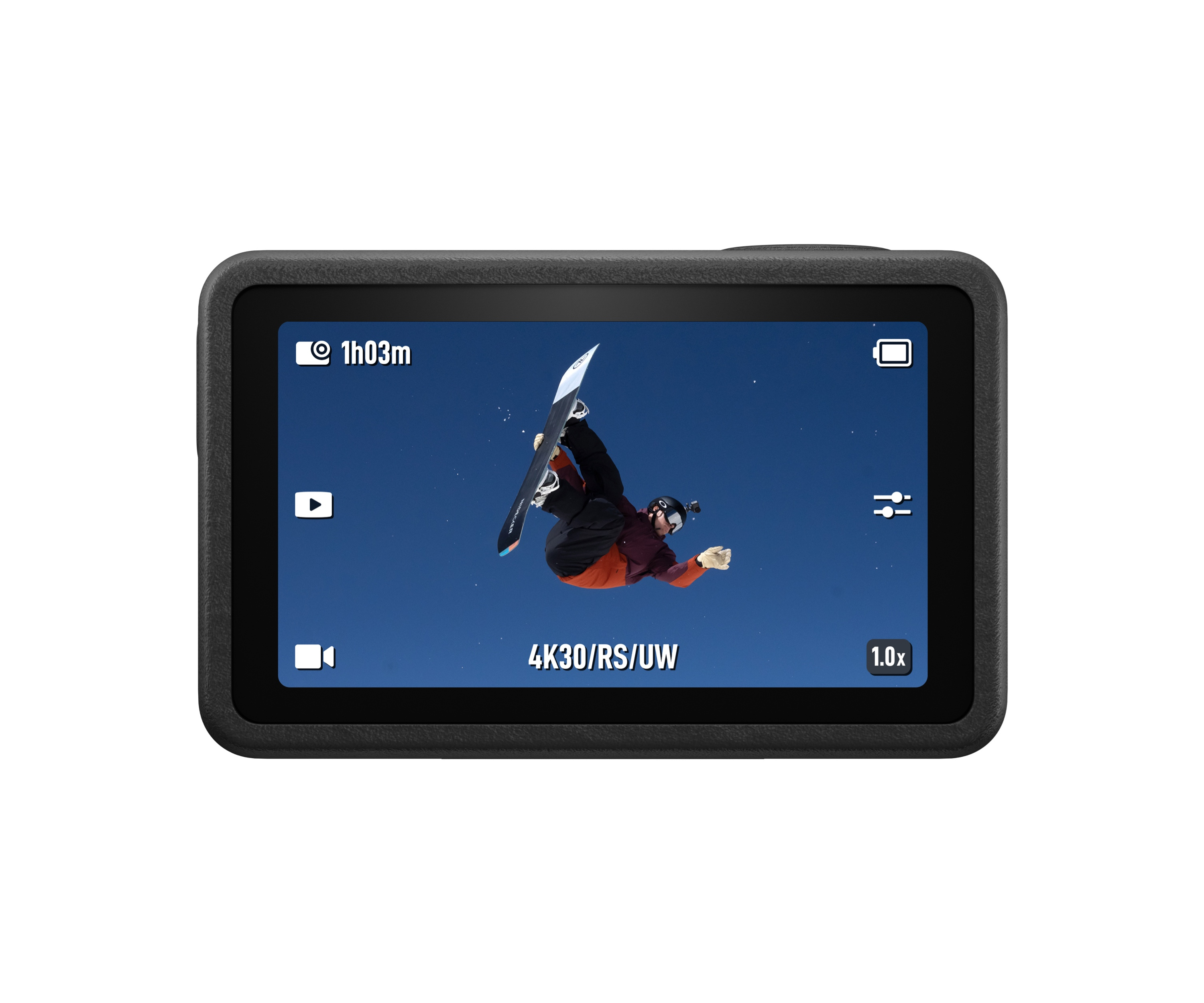

Crystal Clear OLED Touchscreens

Catching the day's action? See it clearly thanks to the rear OLED screen's peak brightness now reaching a whopping 1000 nits. Make sure each shot has rich colors and high contrast with the front and rear OLED high-brightness touchscreens. The screens are larger with narrower bezels increasing the screen-to-body ratio by 16%.

Tempered glass ensures durability, and the AF coating keeps touch controls responsive, even when wet. With Always On Display enabled, both screens show recording duration and specifications for lower power consumption. Get essential information at a glance, without being disturbed by bright lights at night.

Color All The Bases With 10-bit D-Log M

Action 5 Pro's front and rear touchscreens let you preview 10-bit D-Log M footage with color recovery, so you can adjust color and brightness for top-quality raw footage at a glance. Get more color depth with 10-bit D-Log M and 10-bit HLG modes. Detailed highlights and shadows ensure your footage will stand out from the crowd.

Bursting With 40MP of Action

Simply press the shutter for stunning shots and crop with confidence. Each photo boasts approximately 4x the clarity of the previous generation with roughly 40 megapixels (7296x5472) or 8K (16:9) resolution.

• 155° Ultra-Wide FOV: Bring more life into every shot with the 155° ultra-wide FOV and capture video with a dynamic perspective.
• 4:3 Aspect Ratio Powers All the Pixels: Get more compositional space and cropping flexibility now that the maximum video specification has been upgraded to 4K/120fps in a 4:3 aspect ratio with full-pixel recording at 4K (3840x2880).
• Slow-Motion Goes Super, 32 Times: Make the WOW last longer with 32x Super Slow Motion. The Action 5 Pro's powerful 4nm chip enables frame-by-frame analysis and 4x frame interpolation achieving up to 32x slow-motion; shoot at 1080p/240fps and produce the video equivalent of 960fps in post.

Everything's On Track Now

DJI brings subject tracking to an action camera. Action 5 Pro now intelligently detects the subject's position and dynamically adjusts the composition. Keep the subject centered in every frame, during horizontal or vertical shots.

4-Hour Power

We're setting a new benchmark for action camera battery performance. A single battery now delivers up to four hours of continuous use. Never miss awesome with 50% more operating time compared to Action 4. Even in low-temperature conditions get up to 3.6 hours recording time at temperatures as low as -20° C.

• 50% Battery Life Boost
• 4 Hours Max Operating Time

Stabilize to Maximize

• 360° HorizonSteady
  • HorizonSteady not only effectively reduces shakes but also corrects horizontal tilts within a 360° range, handling intense bumps and rotations effortlessly.
  • HorizonBalancing only corrects horizontal tilts within a ±45° range and supports video recording up to 4K/60fps.
• RockSteady 3.0
  • This mode effectively reduces shakes while retaining the dynamic impact of motion, delivering a more immersive first-person perspective and supports video recording up to 4K/120fps.

Master Every Scene - Flexible, All-Scene Creativity

• Diving and Swimming
  • Action 5 Pro allows you to check real-time underwater depth and duration while diving or swimming. You can also enhance your footage by adding depth data in the Mimo app. The camera automatically starts or stops recording upon entering or exiting the water, allowing you to capture every thrilling moment while facilitating crisp and efficient shooting.
    • 20m Waterproof: The rugged, waterproof camera body innovatively advances the Osmo Action's waterproof capabilities. Moreover, it is certified with EN13319, meeting the globally recognized standard for diving accessories. Simply power on with one button and dive up to 20 meters, without additional accessories.
    • Vivid Underwater: Action 5 Pro delivers true-to-life colors with the built-in color temperature sensor. Pair it with Mimo's Vivid Underwater feature for even clearer and more natural underwater footage.
• Cycling/Motorcycling
  • ​Action 5 Pro connects directly to the DJI Mic 2/Mic Mini Transmitter with the DJI OsmoAudio connectivity ecosystem, enabling ultra-high-sample-rate audio recording. This setup provides studio-quality sound while eliminating the need for a receiver, so you don't need to worry about gear falling off during your ride. When paired with two transmitters, conversations are captured clearly. Additionally, with Built-in Mic Audio Backup enabled, Action 5 Pro simultaneously records ambient sounds, adding a rich layer of authenticity to your video.
    • Always On Display: Both the front and rear screens display only essential recording specifications and duration at reduced brightness to conserve battery life and minimize distractions from screen glare, allowing you to focus entirely on your ride.
    • Third-Party Sports Data Integration: Cycling/motorcycling data recorded with Apple Watch, Garmin devices, or other third-party FIT files can be added to your footage in a dashboard format, showcasing your professional edge.
    • Magnetic Quick-Release & Native Vertical Shooting: With diverse accessories, the camera can be mounted flexibly under the bike seat, on the handlebar, on the helmet chin, or on the wrist, capturing the excitement of your ride from different angles. Moreover, it can instantly switch to vertical shooting for lossless vertical videos on the go.
    • Stereo Recording & Wind Noise Reduction: Featuring three built-in microphones, Action 5 Pro captures immersive stereo sound from all directions. It supports both Mono and Stereo modes, with noise reduction algorithms that effectively minimize wind noise during cycling/motorcycling, ensuring clear and vibrant audio.
    • GPS Bluetooth Remote Controller: Worn on the wrist or mounted on the handlebar, it allows easy control of camera start/stop recording and wake/sleep functions. A single remote controller can control up to 16 cameras simultaneously, making multi-camera setups a breeze. The built-in multi-GNSS chip tracks various sports data, which can be overlaid on your video in a dashboard format for added detail.
    • Quickly Locate Highlight Moments: Effortlessly mark important moments during recording or playback. Even with long-distance one takes, you can quickly locate key moments in post-production, saving time spent searching for footage.
• Skiing/Snowboarding
  • 32x Super Slow Motion: Surpassing traditional 8x slow-motion video, 32x super-slow-motion video captures richer details of jumps, spins, and flips, highlighting your unrivaled prowess.
  • InvisiStick: Remove the selfie stick in the Mimo app to keep the focus on you, not the selfie stick. Additionally, you can quickly produce clean and vibrant slow-motion videos.
  • Cold-Resistant Battery: Even in frigid conditions down to -20° C, the battery won't let you down, offering up to 3.6 hours of continuous recording in the cold.
  • 155° Ultra-Wide FOV: Capture the scenery and your arms simultaneously, showcasing your speed and technique like never before. During vertical shooting, the skis/snowboard can also be included to immerse your audience in your adventure.
• Travel and Lifestyle
  • Built-in Professional Air Pressure Gauge for Intelligent Shooting: The camera, with a built-in professional air pressure gauge, records and displays altitude data in real-time while shooting, giving you precise control for both creations and activities. After shooting, you can use the Mimo app to add a data dashboard to your final footage, enhancing the sense of immersion.
  • Stereo Sound That Defeats Wind Noise: Featuring three built-in microphones, Action 5 Pro can capture sound from all directions, making playback feel like you are back on the scene. It supports switching between Mono and Stereo modes, with excellent wind noise reduction capabilities to tackle wind interference.
  • Compatibility With Third-Party Sports Data: The Mimo app allows you to directly import sports data from Apple Watch, Garmin devices, and third-party FIT files. This data can be converted into sports dashboards, making your footage even more engaging.
  • Quick-Release for Instant Vertical Shooting: The camera mounts securely and detaches easily, allowing you to switch angles and accessories in seconds, enriching the visual language of your footage. Simply remove the camera, rotate it, and snap it back in place to capture lossless vertical footage.
  • AI Editor With Extensive Templates: After filming, simply select your preferred editing template within the Mimo app to create a stunning video with one tap, ready to share the highlights of your travels and daily life instantly.

Practical Features, Enhanced Performance

• 47GB Built-in Storage: Further optimized bitrate for smaller file sizes.
• High-Speed Transfer: Wi-Fi 6.0 & USB 3.0, with wireless transfer speeds up to 80 MB/s.
• Battery Fast Charging: Charge for 15 minutes, and enjoy 2 hours of shooting.
• DisplayPort (DP) Transmission: In real-time filming scenarios such as events and advertisements, DP transmission* facilitates your team's multi-camera live streaming and monitoring. When in 4K Livestream mode, Action 5 Pro can stream ultra-clear 4K footage to display devices or live streaming platforms while simultaneously recording in 1080p internally. Alternatively, in 1080p Livestream mode, it can concurrently record 4K video, preserving the original footage in ultra-clear quality.
  • * A Type-C to DP cable is required for DP transmission and sold separately.
• Wi-Fi Livestreaming: Supports various resolutions for live streaming and recording.
• Timecode: Quickly synchronize footage from multiple cameras.
• FOV Boost Lens Mode: When equipped with the FOV Boost Lens*, Action 5 Pro's FOV can be expanded to 182°**. With the same shooting parameters, the FOV increases by 26% in width and 24% in height when compared to the standard lens without the FOV Boost Lens. This ultra-wide-angle perspective delivers striking visuals and a powerful immersive experience while maintaining excellent image quality.
  • * The FOV Boost Lens is sold separately. The recommended operating temperature range for the FOV Boost Lens is 0° to 45° C (32° to 113° F). To use the FOV Boost Lens, Action 5 Pro must be updated to the latest firmware, and FOV Boost Lens mode must be enabled. Once the FOV Boost Lens is properly attached, the camera is waterproof up to 5 meters. However, using it underwater may cause image distortion, so it is recommended to avoid underwater use. In FOV Boost Lens mode, Slow Motion and Subject Tracking modes are not supported.
  • ** While 182° is the maximum optical FOV achievable with this design, the actual FOV during shooting may vary slightly due to distortion correction and stabilization settings.
• Timer Shooting: Set a specific shooting time, and Action 5 Pro will wake up and start recording as scheduled according to your preset mode. This feature lets you avoid waiting around while ensuring you won't miss any critical moments.
• Live Photos: Convert 3-second videos into dynamic photos.
• Pre-Rec: Capture and retain exciting moments before the official recording starts.
• Highlight: Quickly mark key moments to speed up the editing process.

Mimo App: Intelligent Shooting and Editing

Once wirelessly connected to Action 5 Pro, the Mimo app allows you to preview the camera view and adjust the settings. It comes with a variety of editing templates and a One-Tap Edit feature. The Mimo app also includes diverse editing features for action cameras, such as Sports Dashboard, Vivid Underwater, and InvisiStick.

• Background Download: While downloading footage, the Mimo app can continue to download in the background even if you switch to other apps on your smartphone.
  • * The performance of the background download feature is affected by the system policies of different smartphone manufacturers. To enhance user experience, avoid running the DJI Mimo app in the background for extended periods and ensure the phone's screen remains on during the download.
• D-Log M Color Recovery: The Mimo app supports color recovery for D-Log M footage, allowing for more stylish adjustments. This process is quick and convenient, with no computer required.
• Live Photos & High-Definition Screenshots: The Mimo app can generate static and live photos, including model information and shooting parameters. Traditional video screenshots are limited to screen resolution (approximately 1080p to 2K), while DJI's Screenshots feature can capture high-definition photos up to 4K resolution, maintaining the original quality.

Specifications

• Camera
  • Sensor: 1/1.3-inch CMOS
  • Lens
    • FOV: 155°
    • Aperture: f/2.8
    • Focus Range: 0.35 m to ∞
  • ISO Range
  • Photo: 100-25600
  • Video: 100-51200
  • Electronic Shutter Speed
  • Photo: 1/8000-30 s
  • Video: 1/8000 s to the limit of frames per second
  • Max Photo Resolution: 7296x5472
  • Zoom
    • Digital Zoom
    • Photo: Max 2x
    • Video: Max 2x
    • Slow Motion/Timelapse: Not available
  • Still Photography Modes
    • Single: Approx. 40 MP
    • Countdown: Off/0.5/1/2/3/5/10 s
    • Burst: Up to 30 images/3 seconds
  • Standard Recording
    • 4K (4:3): 3840x2880@100/120fps
    • 4K (4:3): 3840x2880@24/25/30/48/50/60fps
    • 4K (16:9): 3840x2160@100/120fps
    • 4K (16:9): 3840x2160@24/25/30/48/50/60fps
    • 2.7K (4:3): 2688x2016@100/120fps
    • 2.7K (4:3): 2688x2016@24/25/30/48/50/60fps
    • 2.7K (16:9): 2688x1512@100/120fps
    • 2.7K (16:9): 2688x1512@24/25/30/48/50/60fps
    • 1080p (16:9): 1920x1080@100/120/200/240fps
    • 1080p (16:9): 1920x1080@24/25/30/48/50/60fps
  • SuperNight
    • 4K (16:9): 3840x2160@24/25/30/48/50/60fps
    • 2.7K (16:9): 2688x1512@24/25/30/48/50/60fps
    • 1080p (16:9): 1920x1080@24/25/30/48/50/60fps
  • Subject Tracking
    • 2.7K (16:9): 2688x1512@24/25/30/48/50/60fps
    • 2.7K (9:16): 2688x1512@24/25/30/48/50/60fps
    • 1080p (16:9): 1920x1080@24/25/30/48/50/60fps
    • 1080p (9:16): 1920x1080@24/25/30/48/50/60fps
  • Slow Motion
    • 4K: 4x (120fps)
    • 2.7K: 4x (120fps)
    • 1080p: 8x (240fps), 4x (120fps)
  • Hyperlapse: 4K/2.7K/1080p@25/30fps: Auto/x2/x5/x10/x15/x30
  • Timelapse: 4K/2.7K/1080p@25/30fps
    • Intervals: 0.5/1/2/3/4/5/6/8/10/15/20/25/30/40 s, 1/2/5/30/60 mins
    • Duration: 5/10/20/30 mins, 1/2/3/5 hours, ∞
  • Stabilization
    • EIS:
      • RockSteady 3.0
      • RockSteady 3.0+
      • HorizonBalancing
      • HorizonSteady
        • EIS is not supported in Timelapse and Slow Motion modes. HorizonSteady is only available when the video resolution is 1080p (16:9) or 2.7K (16:9) with a frame rate of 60fps or below. HorizonBalancing is only available when the video resolution is 1080p (16:9), 2.7K (16:9), or 4K (16:9) with a frame rate of 60fps or below.
  • Pre-Rec: Pre-Recording Duration: 5/10/15/30 s, 1/2/5 mins
  • Max Video Bitrate: 120 Mbps
  • Supported File System: exFAT
  • Photo Format: JPEG/RAW
  • Video Format: MP4 (HEVC)
  • Built-in Storage Capacity: The camera features 64 GB of built-in storage, with 47 GB available for use. The storage capacity can be expanded by inserting a microSD card.
  • Audio Recording: 48 kHz 16-bit; AAC
• Battery
  • Type: Li-ion 1S
  • Capacity: 1950 mAh
  • Energy: 7.5 Wh
  • Voltage: 3.87 V
  • Operating Temperature: -20° to 45° C
  • Charging Temperature: 5° to 40° C
  • Operating Time: 240 mins
    • Measured at a room temperature of 25° C, while recording 1080p/24fps (16:9) video, with RockSteady on, Wi-Fi off, and screens off. Data was collected in a controlled environment. Please refer to your actual experience.
• Connection
  • Wi-Fi Operating Frequency
    • 2.400-2.4835 GHz
    • 5.150-5.250 GHz
    • 5.725-5.850 GHz
  • Wi-Fi Protocol
    • Wi-Fi 6.0
    • 802.11 a/b/g/n/ac/ax
  • Wi-Fi Transmitter Power (EIRP)
    • 2.4 GHz: < 23 dBm (FCC), < 20 dBm (CE/SRRC/MIC)
    • 5.1 GHz: < 23 dBm (FCC/CE/SRRC/MIC)
    • 5.8 GHz: < 23 dBm (FCC/SRRC), < 14 dBm (CE)
  • Bluetooth Operating Frequency: 2.400-2.4835 GHz
  • Bluetooth Transmitter Power (EIRP): < 13 dBm
  • Bluetooth Protocol: BLE 5.1
• Others
  • Power consumption (Standby mode/Low power mode): 0.5W
  • Low power mode and standby mode activated: Within 20 minutes (default)
• General
  • Waterproof: 20 m without the Waterproof Case, 60 m with the Waterproof Case
    • Before use, close the battery compartment cover and the USB-C port cover, and tighten the Glass Lens Cover. It is recommended to install the Waterproof Case for long-duration underwater shooting or in environments with high water impact pressure. Osmo Action 5 Pro and its Waterproof Case have an IP68 waterproof rating. Do not use the camera in hot springs or extreme underwater environments, or let it come into contact with corrosive or unknown liquids.
  • Number of Microphones: 3
  • Touchscreens
    • Front Screen
      • 1.46-inch 331 ppi 342x342
      • 800 cd/㎡ max brightness (typical)
    • Rear Screen
      • 2.5-inch 326 ppi 400x712
      • 800 cd/㎡ max brightness (typical), 1000 cd/㎡ peak brightness
  • Supported SD Cards: ​microSD (up to 1 TB)
  • Recommended microSD Cards
    • SanDisk Extreme PRO 32GB U3 A1 V30 microSDHC
    • Kingston CANVAS Go! Plus 64GB U3 A2 V30 microSDXC
    • Kingston CANVAS Go! Plus 128GB U3 A2 V30 microSDXC
    • Kingston CANVAS Go! Plus 256GB U3 A2 V30 microSDXC
    • Kingston CANVAS Go! Plus 512GB U3 A2 V30 microSDXC
    • Lexar Professional 1066x 64GB U3 A2 V30 microSDXC
    • Lexar Professional 1066x 512GB U3 A2 V30 microSDXC
    • Kingston CANVAS Go! Plus 1TB U3 A2 V30 microSDXC
  • Dimensions (LxWxH): 2.78 x 1.74 x 1.29 inch (70.5 x 44.2 x 32.8 mm)
  • Weight: 0.32 lbs (146 g)

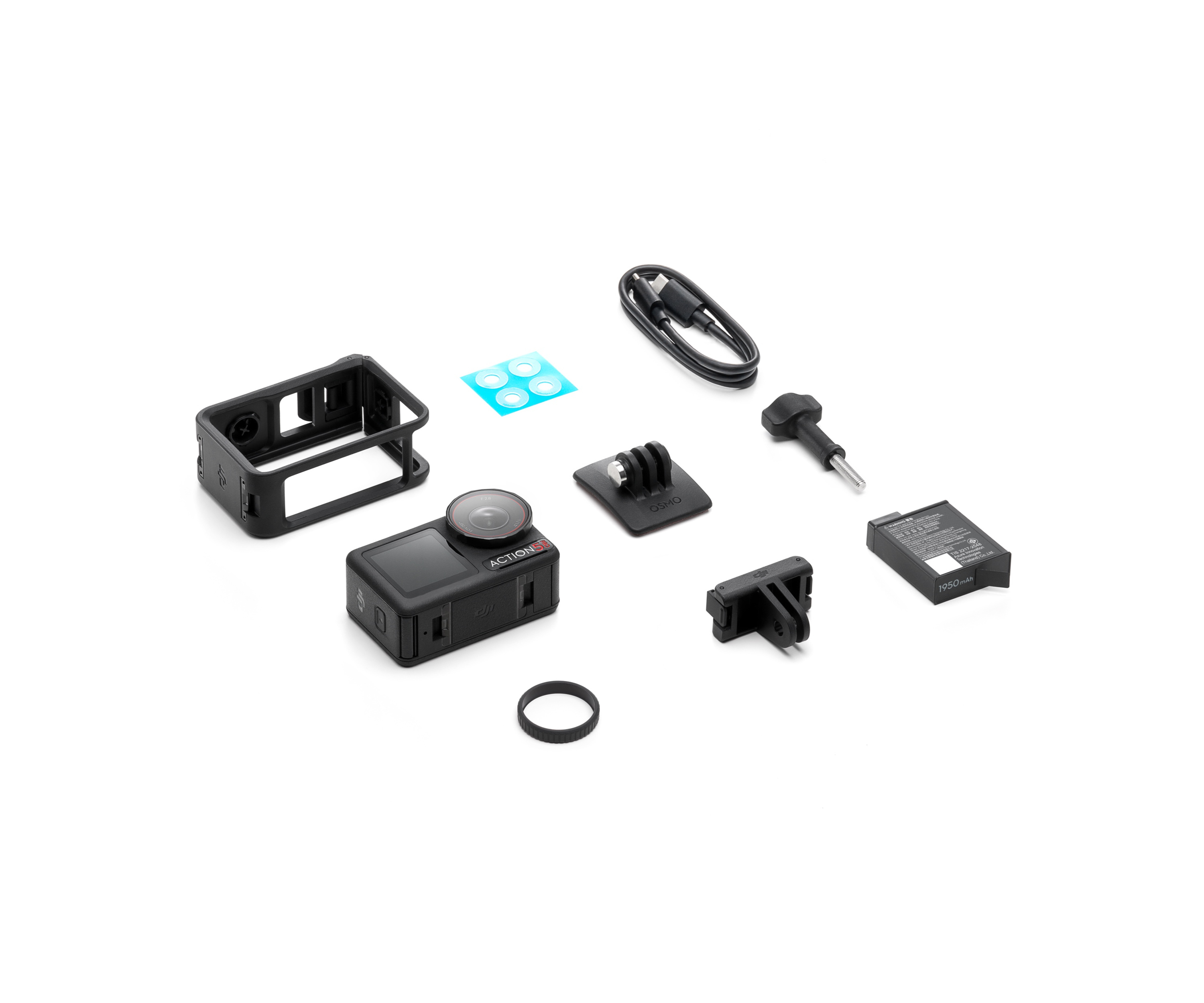

What's in the Box

• 1x Osmo Action 5 Pro
• 1x Osmo Action Extreme Battery Plus (1950 mAh)
• 1x Osmo Action Horizontal-Vertical Protective Frame
• 1x Osmo Action Quick-Release Adapter Mount
• 1x Osmo Action Curved Adhesive Base
• 1x Osmo Locking Screw
• 1x Type-C to Type-C PD Cable
• 1x Osmo Action 5 Pro Rubber Lens Protector
• 1x Osmo Action 5 Pro Glass Lens Cover
• 1x Osmo Action Anti-Slip Pad
