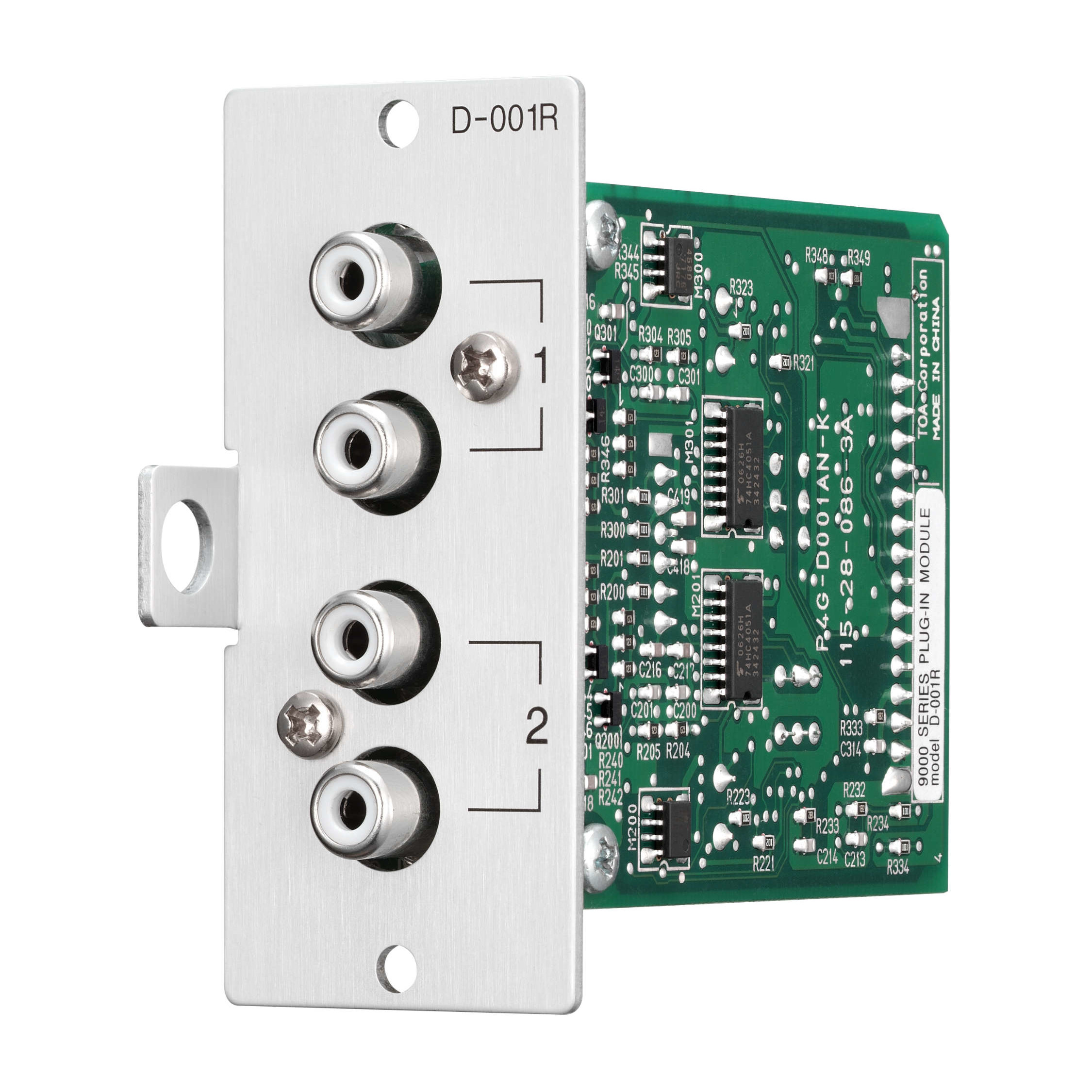

TOA D-001R Dual Unbalanced Line Input Module w/ RCA Connectors (Open Box)
Model: D-001R(OB)
About: TOA D-001R Dual Unbalanced Line Input Module w/ RCA Connectors (Open Box)
The D-001R is a line input plug-in module designed for use with the 9000 Series amplifiers. It has 2-channel unbalanced inputs of RCA jacks. Input signals to both channels are mixed together. The D-001R can process effect for TONE/EQ/COMPRESSOR to two inputs independently.
- Two RCA phone inputs per channel provides stereo summing
- Digital Signal Processing
- 10-band parametric EQ
- Bass / treble, loudness
- High pass / low pass filters, compressor
- Max. 4 modules / chassis
Specifications
- Power Supply: +24 V DC, -24 V DC, +6 V DC
- Current Consumption: 20 mA (at +24 V DC), 20 mA (at -24 V DC), 60 mA (at +6 V DC)
- Input: 2 channels, 2RCA/ch mixed, 10 kΩ, unbalanced, RCA pin jack
- Input Sensitivity: -60, -54, -48, -42, -36, -30, -24, -18, -10 dB* (selectable)
- A/D Converter: 24 bit ADC
- Sampling Frequency: 48 kHz
- Frequency Response: 20 Hz - 20 kHz, +1, -3 dB
- Total Harmonic Distortion: 0.008 % (at 1 kHz, 20 Hz - 20 kHz BPF, Input sensitivity: -10 dB)
- Signal to Noise Ratio: Over 70 dB (at 20 Hz - 20 kHz BPF, Input short, Input sensitivity: -10 dB)
- Crosstalk: Over 75 dB (at 20 kHz, Input sensitivity: -10 dB)
- Tone Control
- Bass: ±12 dB (at 100 Hz)
- Treble: ±12 dB (at 10 kHz)
- Parametric Equalizer: 10 bands, Frequency: 20 Hz - 20 kHz, 31 points, Variable range: ±12 dB, Q: 0.3 - 5
- High-Pass Filter: -12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
- Low-pass Filter: -12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
- Compressor: Depth: 1 - 5
- Operating Temperature: -10 ℃ to +40 ℃ (14 ℉ to 104 ℉)
- Finish: Panel: Aluminum, hair-line
- Dimensions (WxHxD): 1.38 x 3.07 x 3.6 inch (35 x 78 x 91.5mm)
- Weight: 82 g (0.18 lb)
- Included Accessories: 2x Module mounting screw
