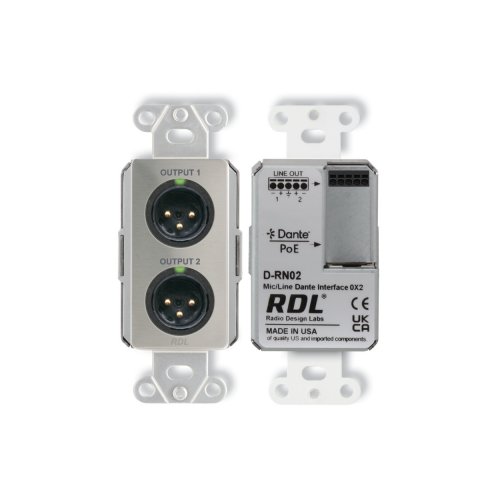

RDL RN02 Wall-Mounted Mic/Line Dante Interface 0x2 - Stainless Steel
Model: RDL DS-RN02
About: RDL RN02 Wall-Mounted Mic/Line Dante Interface 0x2 - Stainless Steel

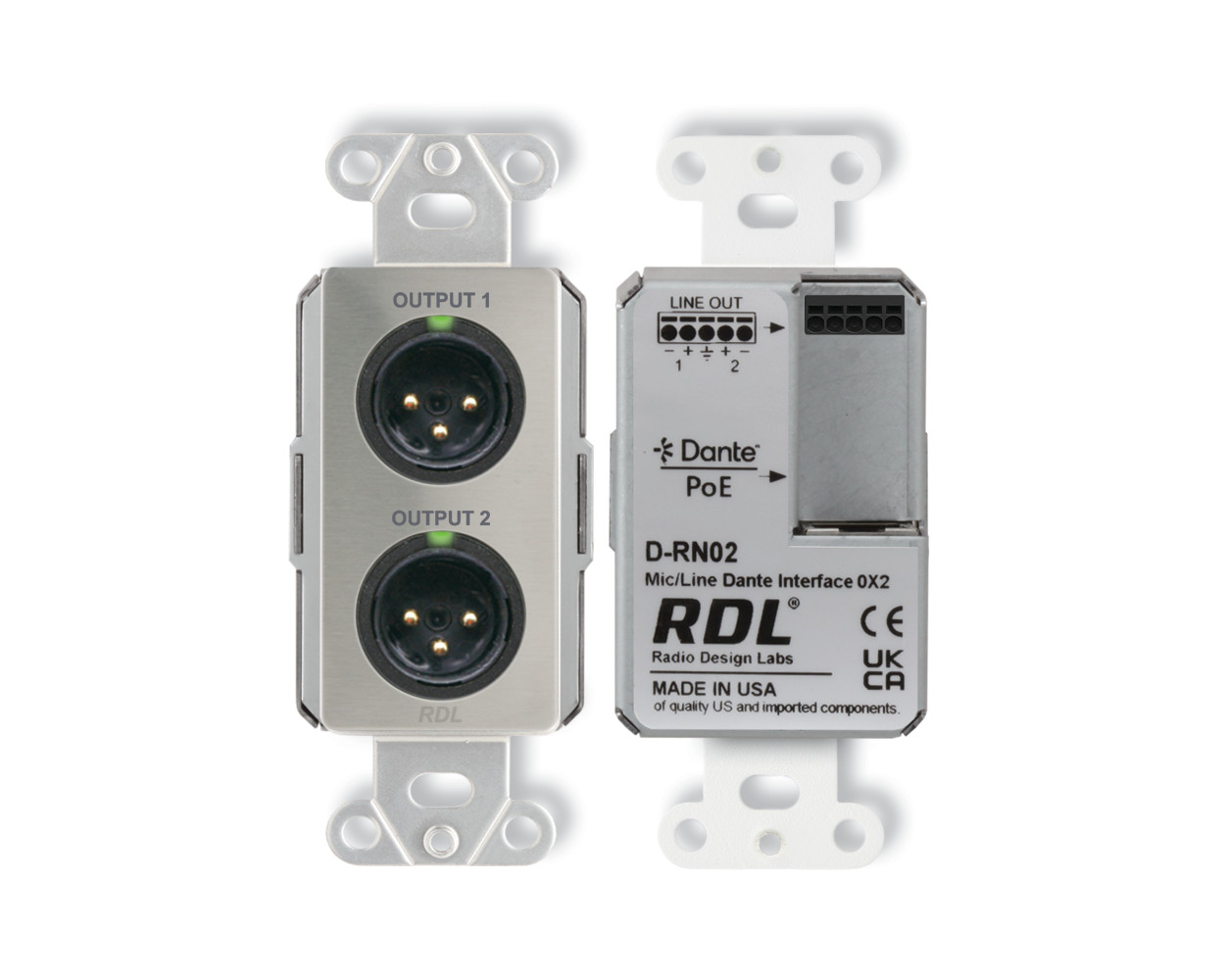

The D-SERIES RN02 is a complete wall-mounted Dante or AES67 audio network interface. It features two balanced XLR mic or line outputs on the front panel and on a rear-panel detachable wiring block. The module is configured and adjusted using RDL CONSOLE or other network control software. The RN02 fits a standard US single-gang electrical box or can be used with the RDL EP-1 adaptor for mounting in EU/UK square back boxes with 60 mm distance screw hole mounting centers. The RN02 is PoE powered and is available in multiple finishes with optional customized graphics.
- Single-Gang Dante or AES67 Network Interface for Two Audio Outputs
- Two Balanced Outputs on Front Panel XLRs and on Rear Panel Detachable Wiring Block
- Front-Panel XLR Outputs are Software-Selectable for Mic or Line Level
- Outputs Equipped with Software-Controlled Attenuator in 1 dB Steps
- Module is Configured and Adjusted Using RDL CONSOLE or Other Network Control Software
- Compatible with RDL Network Remote Controls
- High Resolution 24 Bit Digital to Analog Conversion
- Legendary RDL Studio Quality, Low-Noise Performance
Network to Mic/Line Outputs Section
Two Dante or AES67 audio channels are converted to balanced line level feeding front-panel XLR jacks and a rear-panel detachable wiring block. Each output provides balanced +4 dBu for a network digital audio level of -18 dBFS. Each output is equipped with a software- controlled attenuator adjustable in 1 dB steps to a maximum attenuation of 63 dB, then OFF. Each front-panel output is equipped with a software-controlled mic/line output attenuator pad. When an output is set to mic level, the step attenuator reduces the mic output in 1 dB steps to a maximum attenuation of 63 dB below mic level, then OFF.
Valid PoE power and synchronization to the Dante network are indicated by green LEDs visible from the front of the unit.
The RN02 is a professional grade product delivering studio-quality fidelity and low noise performance, coupled through XLR jacks housed in a steel chassis mounted with a powder-coated or stainless-steel Decora front plate.
The RN02’s superior performance specifications make it ideally suited to installations requiring network control and exceptional value in commercial networked audio systems. This full-featured product is engineered and manufactured in the U.S.A. for continuous duty in demanding installations. Designed to outperform. Built to last.
Specifications
- Typical Performance
- Network Connector: RJ45 with Link and Speed indicators
- Digital Audio Ethernet Protocol: Dante
- Transmission Rate: 100 Mbps
- Sample Rates Supported: 44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz
- Bit Depth Supported: 24 bits
- Audio Operating Level: -18 dBFS = +4 dBu
- Reference Level: 0 dBFS = +22 dBu
- Network to Mic/Line Outputs Section
- Outputs (2): Balanced, XLR and detachable wiring block (2)
- Output Level (operating): +4 dBu (nominal) balanced
- Output Level (maximum): +22 dBu balanced
- Output Attenuator: Software-controlled, 0 to -63 dB and OFF (analog output per received network channel)
- Output Impedance: 150 Ω balanced
- Frequency Response
- Mic: 20 Hz to 20 kHz (± 0.5 dB)
- Line: 20 Hz to 20 kHz (± 0.5 dB)
- THD+N: < 0.1%
- THD: < 0.01% (1 kHz)
- Noise: < -80 dB (below +4 dBu); < -100 dB (below +22 dBu)
- Crosstalk: Below Noise Floor (20 Hz to 20 kHz at operating level, output to output)
- Headroom above +4 dBu: > 18 dB
- Indicators (4): Ethernet Link and Speed (2, rear panel); Sync and Power (2, front panel)
- Ambient Operating Environment: 0° C to 50° C
- Power Requirement: PoE Class 0, IEEE 802.3af
- Specification Conditions: Gain/Level: ± 1 dB; Source termination: 150 Ω
- Dimensions (WxHxD): 1.80 x 4.11 x 2.09 in (4.57 x 10.44 x 5.31 cm)
- Weight: 0.43 lbs. (0.195 kg)
Videos: RDL RN02 Wall-Mounted Mic/Line Dante Interface 0x2 - Stainless Steel
Reviews: RDL RN02 Wall-Mounted Mic/Line Dante Interface 0x2 - Stainless Steel
Warranty: RDL RN02 Wall-Mounted Mic/Line Dante Interface 0x2 - Stainless Steel
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Radio Design Labs, Inc., also referred to as RDL®, warrants to the Purchaser that products manufactured by RDL are free from defects in material and workmanship. This warranty applies to the period of three years from the date of shipment, except for component parts or products purchased from other sources and supplied by RDL. Such component parts or products bear only the warranty of the manufacturer thereof in effect at the time of shipment to the Purchaser.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
