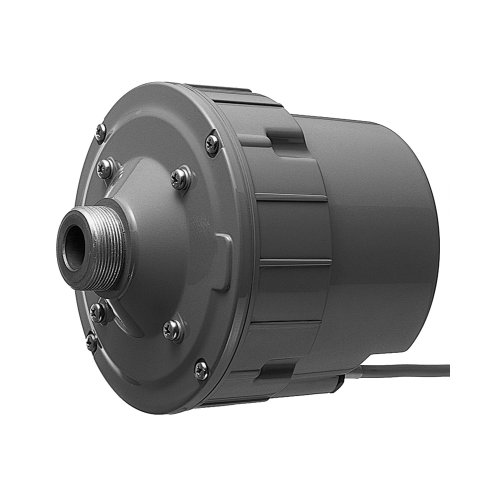

TOA Canada TU-651M 50W Driver Units for Horn Speakers (High Impedance)
Model: TU-651M
About: TOA Canada TU-651M 50W Driver Units for Horn Speakers (High Impedance)
The TU-651M is a highly intelligible driver unit suited to public address announcement applications. Use the driver unit in combination with a suitable horn (optional). Its powder-coated finish and stainless steel screws ensure the unit's weatherproof capability.
- High-impedance (70 V / 100 V lines) model
- Power rating: 50 W
- Frequency Response: 150 Hz – 6 kHz
- Input impedance selector on high-impedance models facilitates input impedance matching from the outside
- IP65 certified weatherproof construction
Specifications
- Compatible Horn - TH-650, TH-660
- Horn Coupling - 1 - 3/8 18 threads (inch screw)
- Rated Input - 50 W
- Rated Impedance
- 100 V line: 200 Ω (50 W), 330 Ω (30 W), 670 Ω (15 W)
- 70 V line: 100 Ω (50 W), 200 Ω (25 W), 330 Ω (15 W), 670 Ω (7.5 W)
- Sensitivity - 110 dB (1 W, 1 m) (When operated with JIS C 5504 standard horn.)
- Frequency Response - 150 Hz - 6 kHz (When operated with JIS C 5504 standard horn.)
- Polarity - Hot: Black, Com: White
- Dust/Water Protection - IP65 (When a driver is operated with a horn.)
- Operating Temperature - -20 ℃ to +55 ℃ (-4 ℉ to +131 ℉) (no condensation)
- Finish
- Flange: Aluminum, gray, powder coating
- Rear cover: ABS resin, gray
- Screws: Stainless steel
- Speaker cable: Polyvinyl chloride insulated cabtyre cable (6 mm (0.24) in diameter
- Dimensions - Φ139 x 149 (D) mm (Φ5.47 x 5.87")
- Weight - 2.7 kg (5.95 lb)
- Optional Accessories - Driver unit cover: UC-200A
