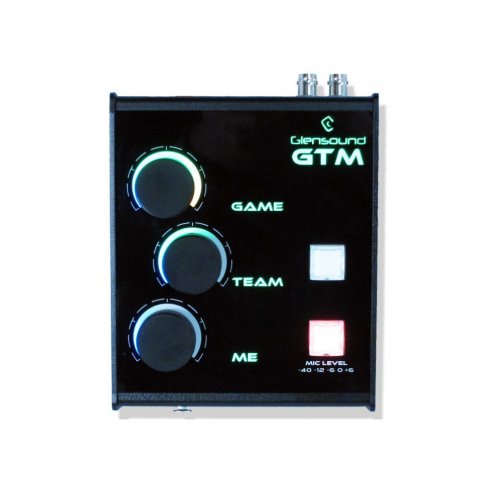

Glensound GTM SDI eSports Gamers Interface
Model: GTM SDI
About: Glensound GTM SDI eSports Gamers Interface
Glensound GTM SDI is an advanced single-user eSports interface designed for competitive gaming environments requiring video integration. It combines headset and microphone management, team intercom mixing, and full remote control with HD-SDI audio de-embedding/embedding, making it ideal for use by players, coaches, referees, and announcers.
Features
- Single-user eSports interface with HD-SDI audio embedder/de-embedder
- Multiple game audio inputs: SPDIF, AUX IN, USB-C, Dante, and HD-SDI

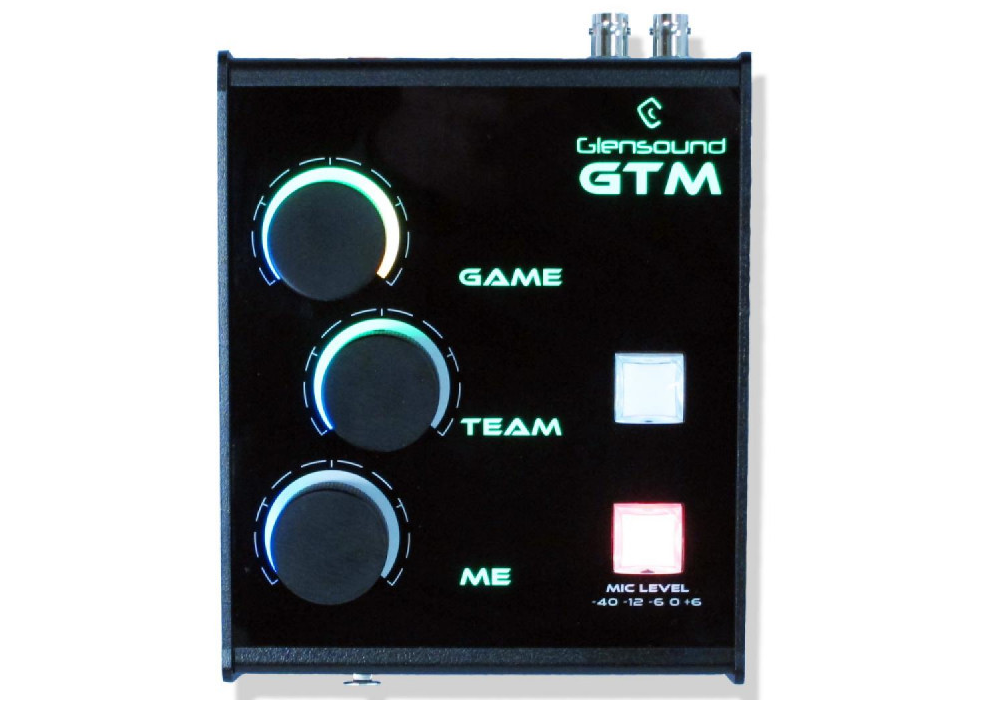

- Top panel mix controls: GAME, TEAM, and ME (own mic sidetone) with LED indicators
- Fully remote configurable using GlenController software (Windows 10/11)
- Team talkback mixer with 7-team configuration via Dante/AES67

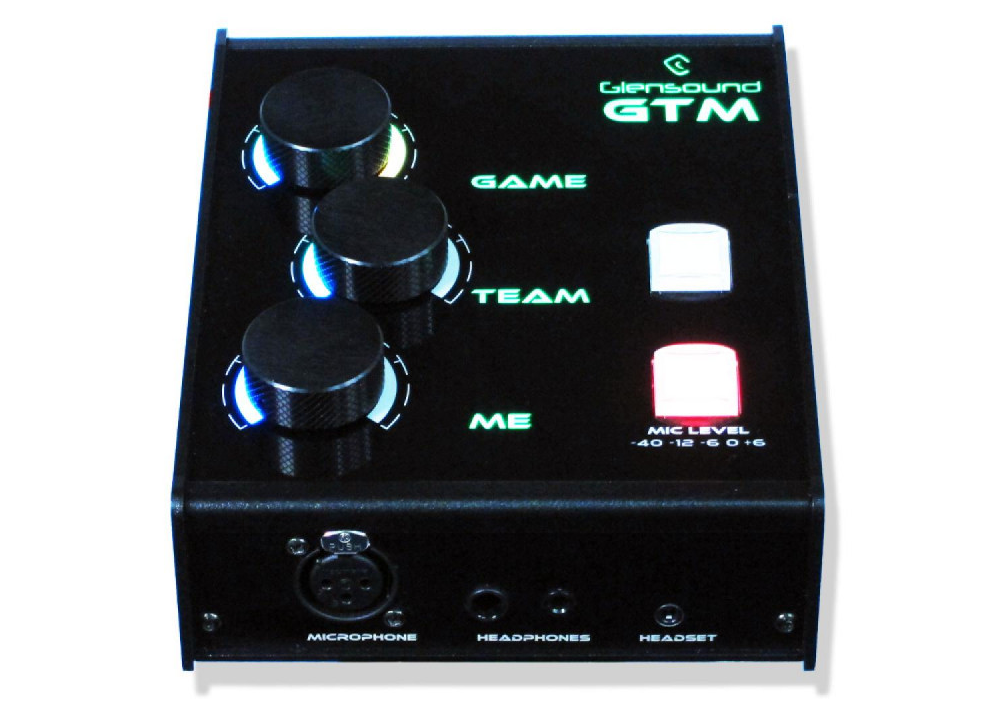

- Headset input: 3.5mm TRRS jack with selectable 2.5V or 5V bias
- Mic input: 3-pin XLR with dynamic or 48V phantom power and optional compressor
- Dual headphone outputs with independent gain and pink noise injection
- SDI loop-through for inline video signal use
- Background Audio Guard – 34-band gating system reduces ambient noise up to 40 dB
- Dual network ports for Dante/AES67 with redundancy
- Powered via PoE from switch or midspan injector
Specifications
| Game Audio Inputs | SPDIF (TOSLink), AUX (3.5mm stereo), USB-C, Dante, HD-SDI (4 stereo pairs) |
|---|---|
| Mic Inputs | 3.5mm TRRS with selectable bias; 3-pin XLR (dynamic or 48V phantom) |
| Headphone Outputs | 2 x independent headphone amps (6.35mm and 2.5mm) |
| Headset Connector | 3.5mm TRRS jack socket |
| Audio Mix Control | Top panel GAME, TEAM, and ME knobs with push functionality and LED rings |
| Remote Control | GlenController software (Windows 10/11) |

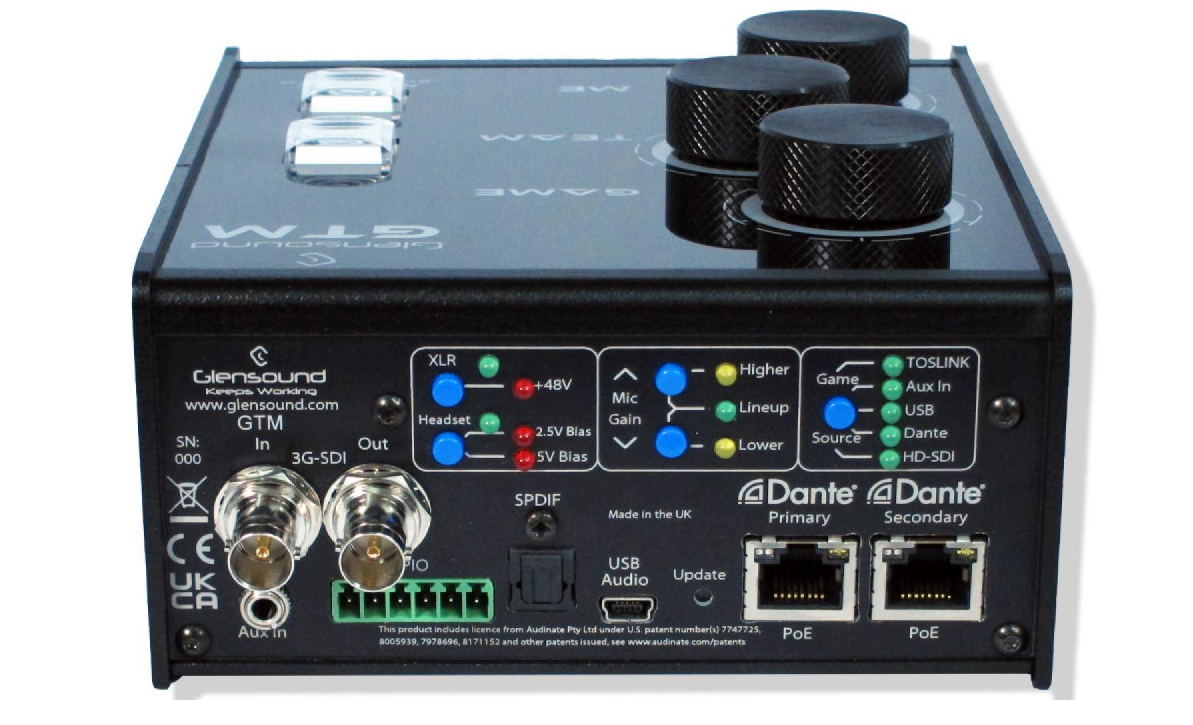

| Network | 2 x Ethernet ports (Dante/AES67 with redundancy) |
| Power | PoE via network switch or injector |
| Video | HD-SDI loop-through with de-embedded audio |
| Noise Control | Background Audio Guard: 34-band gating, up to 40 dB background noise reduction |
