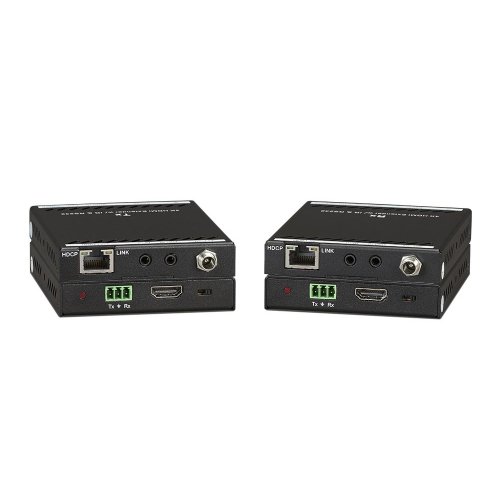

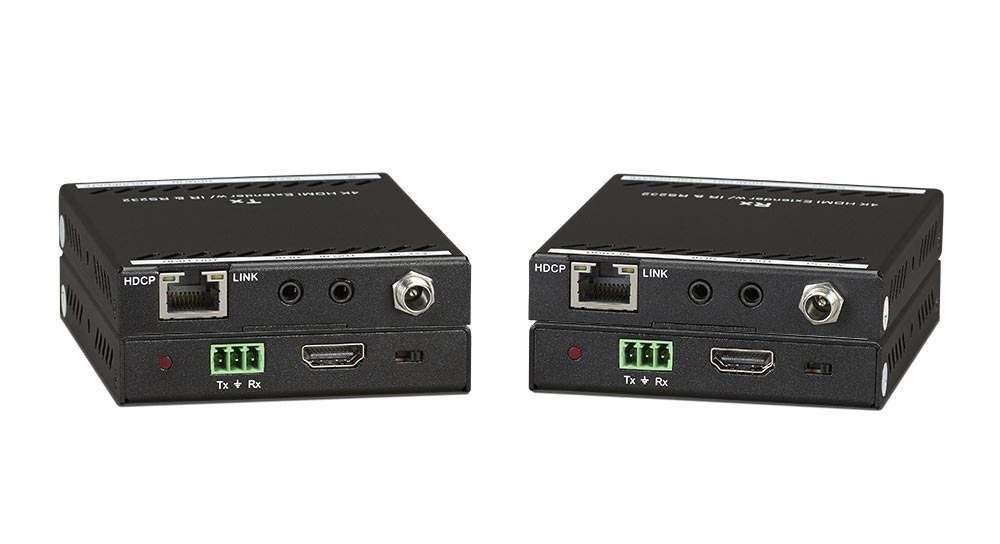

KanexPro 4K/30 HDMI Extender over HDBaseT
Model: EXT-HDBT70C
About: KanexPro 4K/30 HDMI Extender over HDBaseT
The KanexPro EXT-HDBT70C is an HDCP 2.2 compliant extender set consisting of a transmitter and receiver. It uses HDBaseT technology to transmit uncompressed, high-resolution 1080p/ 4K signals from transmitter to the receiver via a CAT5e/CAT6a cable at a distance of up to 70/40m. Moreover, the extender set supports PoC (power over cable) from either side of the sender or receiver, CEC, bi- directional RS232 & IR control.
Applications
Perfect for extending and routing digital signage applications, healthcare AV, control rooms, educational facilities, airports, commanding centers and home theater.
Please note: use a CAT5e/6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.
Features
- Basic point-to-point HDMI extender over HDBaseT
- Extend full HD 1080p up to 70m (230ft.)
- Extend 4K/30 up to 40m (131ft.)
- Supports Ultra HD 4K@30Hz resolutions &
- Video resolutions from 1080p/60@48bit
- Bi-directional PoC (power over cable)
- HDCP 2.2 & EDID compliant
- Bandwidth 10.2 Gbps
- Bi-directional RS-232 & IR control
- Supports CEC/IR/RS-232 pass-thru
- IR input/output - embedded over CATx extension
- Dolby TrueHD & DTS Master Audio ready
- Supports uncompressed audio - LPCM
- Includes separate mounting ears
- One locking power supply included
- Backed by KanexPro 3-year parts and labor warranty
UPC: 813982021624
Reviews: KanexPro 4K/30 HDMI Extender over HDBaseT
Warranty: KanexPro 4K/30 HDMI Extender over HDBaseT
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
3 Year Limited Warranty
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and KanexPro do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
