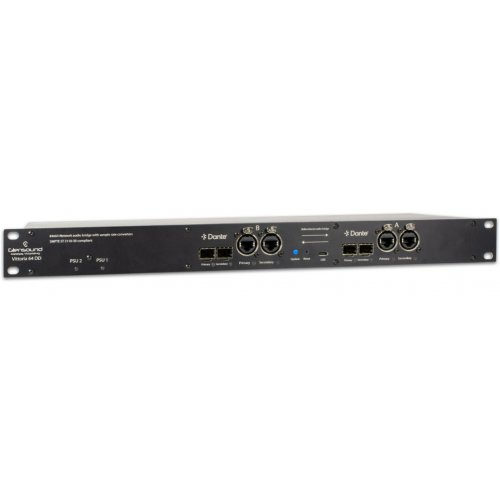

Glensound VITTORIA 64/DD 64-Channel Dante To Dante Network Bridge
Model: VITTORIA 64/DD
About: Glensound VITTORIA 64/DD 64-Channel Dante To Dante Network Bridge
Glensound Vittoria 64 DD is a professional-grade 64-channel Dante-to-Dante network bridge designed to securely connect and isolate two independent Dante networks. By providing a robust firewall between networks, it ensures complete isolation and security, making it ideal for professional audio environments requiring reliable and high-quality audio transmission.
Features
- Provides a firewall between two Dante network interfaces, ensuring complete isolation and security.
- Supports 64 input and output channels at sample rates up to 48kHz; 32 channels at sample rates up to 96kHz.
- Allows asynchronous operation, enabling each network to function independently at different sample rates ranging from 44.1kHz to 96kHz.
- Equipped with redundant power supplies operating on a load-sharing basis for enhanced reliability.
- Compatible with AES67 and SMPTE ST-2110-30 standards, ensuring interoperability with various networked audio systems.
Specifications
| Network Interfaces | 2 fully isolated Dante interfaces |
|---|---|
| Copper Ethernet Connections | 4 x Neutrik EtherCON connectors |
| Fibre Ethernet Connections | 4 x GBIC SFP slots (SFP modules not included) |
| Audio Sampling Frequencies | 44.1kHz to 96kHz |
| Transfer Rate | 1000 Mbps |
| Resolution | 24-bit |
| Power Inputs | 2 x IEC plugs |
| Voltage Range | 100-240VAC ±10% |
| Redundancy | Yes, with load sharing |
| Dimensions (W x D x H) | 450 x 310 x 50 mm |
| Weight | 3 kg |
