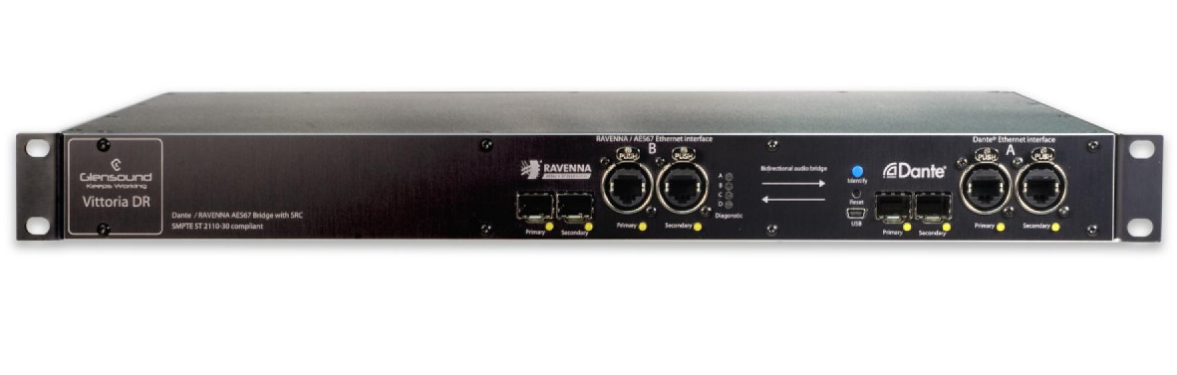

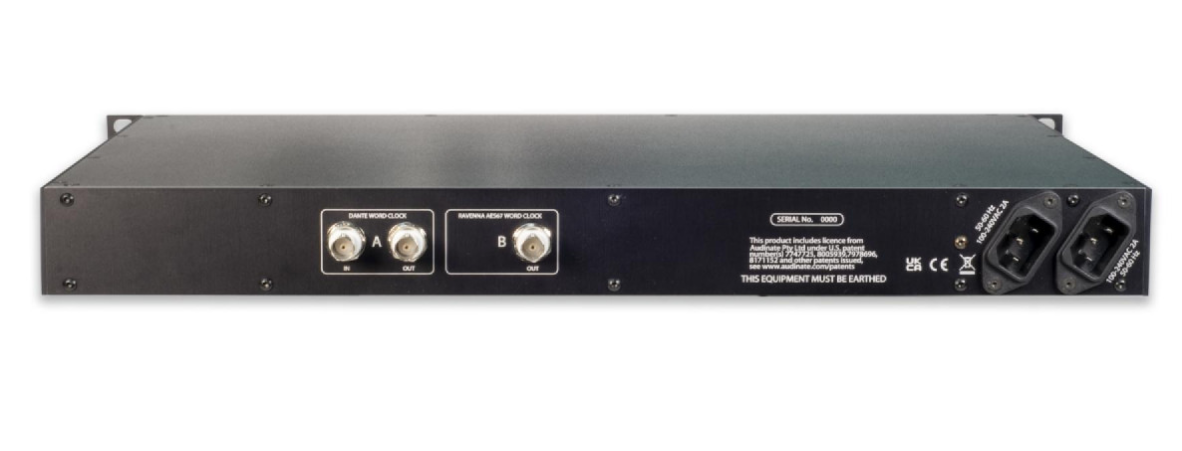

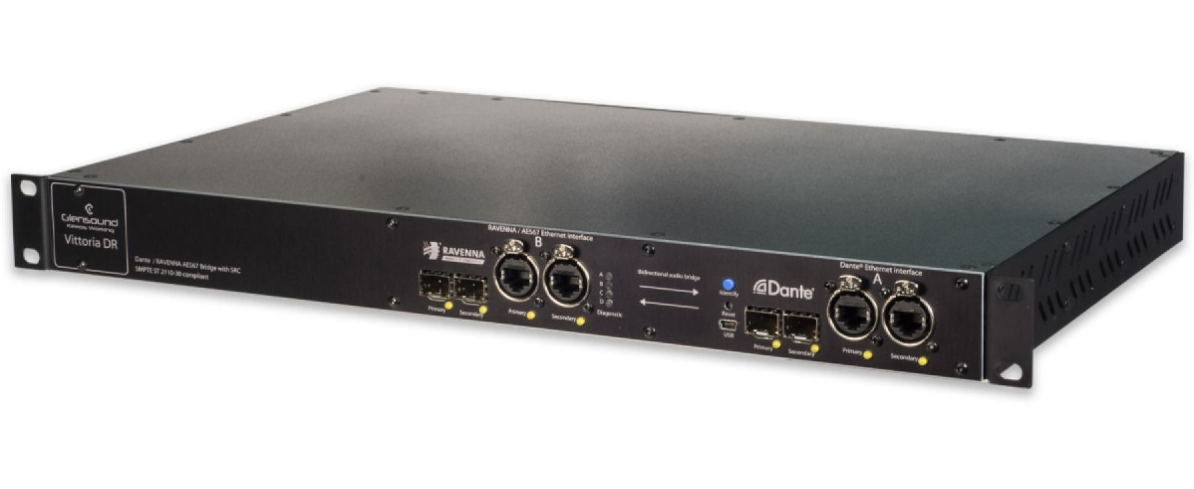

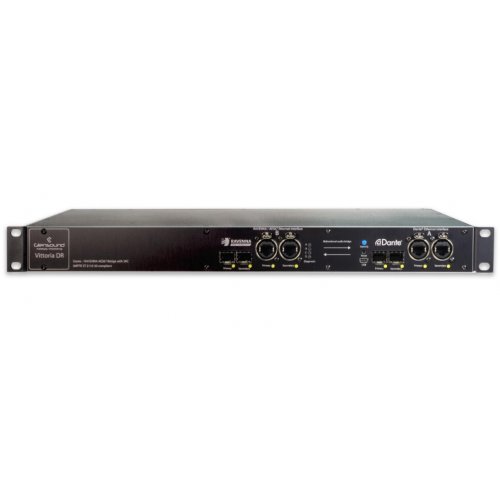

Glensound VITTORIA DR Dante To Ravenna Network Bridge
Model: VITTORIA DR
About: Glensound VITTORIA DR Dante To Ravenna Network Bridge
Glensound Vittoria DR is a versatile network bridge designed to securely connect and isolate two distinct audio networks, supporting configurations such as Dante to Dante, Dante to Ravenna, or Ravenna to Ravenna. This device ensures complete network isolation, providing a reliable firewall between interconnected networks, making it ideal for professional audio environments requiring secure and high-quality audio transmission.
Features
- Provides a firewall between two internal network interfaces, ensuring complete isolation and security.
- Supports configurations: Dante to Dante, Dante to Ravenna, or Ravenna to Ravenna.
- Handles 32 input and output channels at sample rates up to 96kHz; 16 channels at sample rates of 176.4 and 192kHz.
- Allows asynchronous operation, enabling each network to function independently at different sample rates ranging from 44.1kHz to 192kHz.
- Equipped with redundant power supplies operating on a load-sharing basis for enhanced reliability.
Specifications
| Network Interfaces | 2 fully isolated interfaces (Dante and/or Ravenna) |
|---|---|
| Copper Ethernet Connections | 4 x Neutrik EtherCON connectors |
| Fibre Ethernet Connections | 4 x GBIC SFP slots (SFP modules not included) |
| Audio Sampling Frequencies | 44.1kHz to 192kHz |
| Transfer Rate | 1000 Mbps |
| Resolution | 24-bit |
| Power Inputs | 2 x IEC plugs |
| Voltage Range | 100-240VAC ±10% |
| Redundancy | Yes, with load sharing |
| Dimensions (W x D x H) | 450 x 310 x 50 mm |
| Weight | 3 kg |
