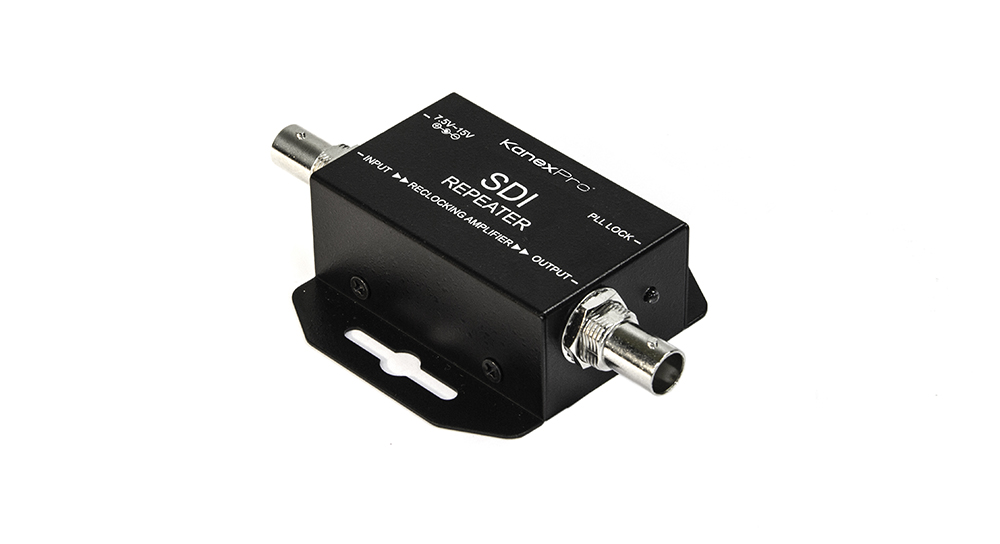

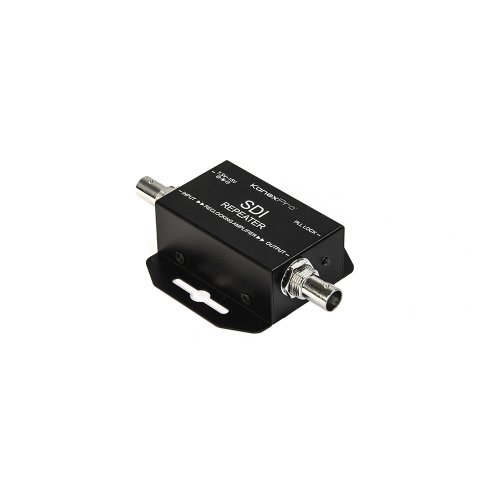

KanexPro HD-SDI Repeater
Model: SDI-HDRPTPRO
About: KanexPro HD-SDI Repeater
The KanexPro 3G/SDI/HD-SDI Repeater is designed for extending AV signals at longer runs up to 300 meters using single RG6 cable. It also embeds audio up to 7.1 channels passing ancillary data. Perfect for surveillance systems, rental & staging facilities, post-production, TV studio, digital cinema, or other A/V applications
Features
- Extend and repeat SDI signals up to 300 meters*
- Auto–input detection for 3G/HD/SD-SDI
- Supports full HD 1080p/60
- Built-in signal equalizer & re-clock function
- 3G mode length up to 130m
- HD mode length up to: 170m
- SD mode length up to 300m
- Audio format support up to 16-channel@24 bit, 48KHz
- Compact & rugged housing
- Locking power supply & mounting ears
- Micro-USB Port for firmware update
Note: * 300 meters will support standard SDI resolutions when used with RG-59 (75 ohms cable) & up to 200 meters support for HD-SDI and 3G-SDI signals when used with RG-6 cable.
