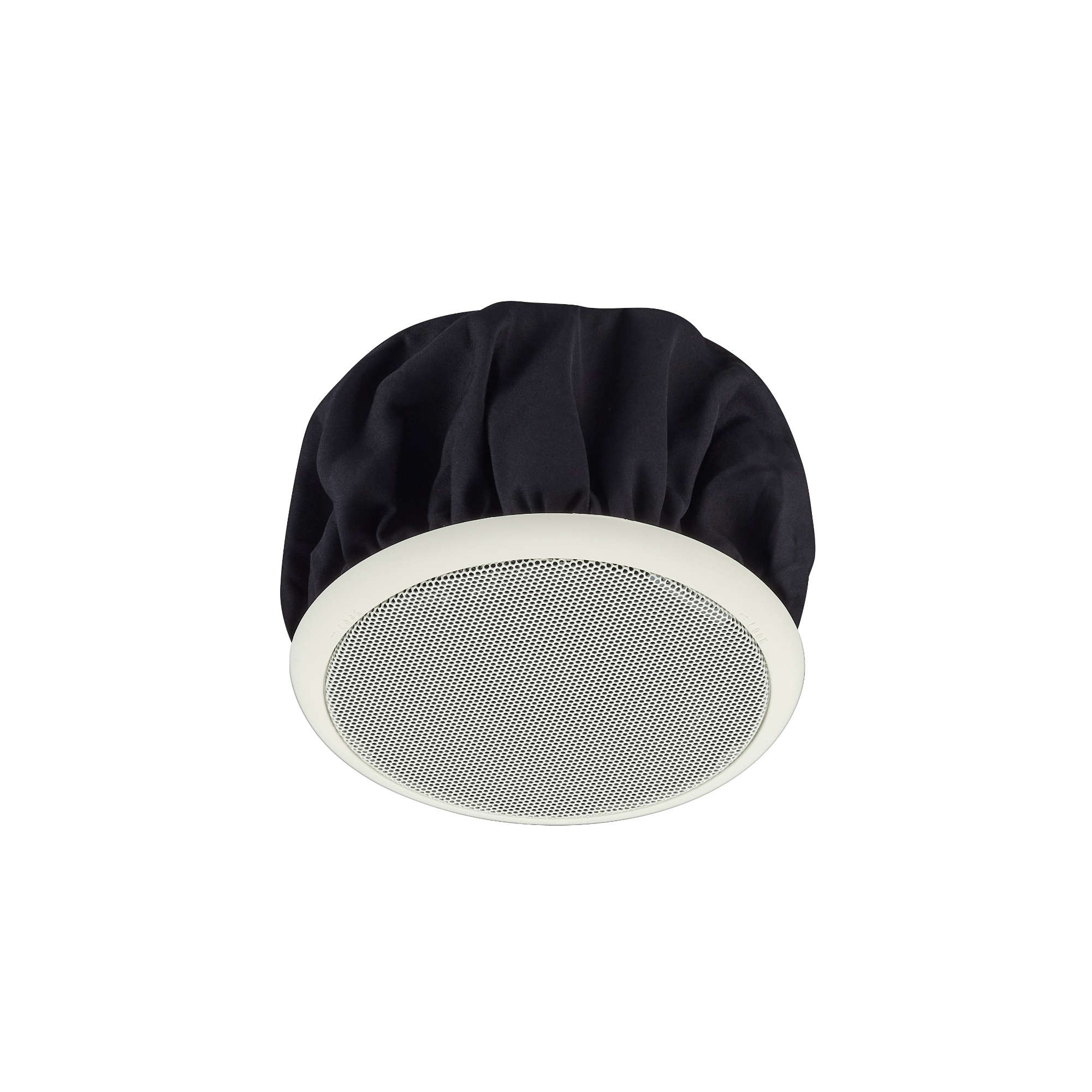

TOA Canada F-1522SC Wide-Dispersion Ceiling Speaker

About: TOA Canada F-1522SC Wide-Dispersion Ceiling Speaker

The F-1522SC ceiling and wall-mounted speaker covers an extremely wide area and can be used for 25, 70 and 100 V line applications. Well-balanced sound can be heard uniformly at any location.

• 4” full-range driver
• Flat front panel
• 117 mm mounting depth
• Easy installation
• Input selector switch permits easy verification and change of current impedance settings, even after installation
• For medium ceiling height (2 to 4 m)
• Especially for low profile ceilings with limited depth and applications with lower power requirement

Specifications

• Rated Input - 6 W (High Impedance)
• Power Handling
  • Continuous pink noise: 9 W (8 Ω)
  • Continuous program: 18 W (8 Ω)
• Impedance
  • 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W)
  • 70 V line: 830 Ω (6 W), 1.7 kΩ (3 W), 3.3 kΩ (1.5 W)
  • 25 V line: 830 Ω (0.75 W), 1.7 kΩ (0.4 W), 3.3 kΩ (0.2 W)
  • 8 Ω
• Sensitivity - 88 dB (1 W, 1 m)
• Frequency Response - 65 Hz - 18 kHz (-10 dB), 45 Hz - 20 kHz (-20 dB)
  • At installation in 1/2 free sound field (Measured by installing the unit in the center of a ceiling.)
• Speaker Component - 10 cm cone-type
• Mounting Hole - Ø135 mm (Maximum ceiling thickness: 37 mm)
• Input Terminal - Push-in connector (Bridging terminal-2 branch type)
• Cable Requirements
  • 600 V Vinyl-insulated cable (IV wire or HIV wire)
  • Solid copper wire: Ø0.8 - Ø1.6 mm (equivalent to AWG No. 20 - 15)
  • 7-core twisted copper wire: 0.75 - 1.25 mm² (equivalent to AWG No. 18 - 17)
• Finish
  • Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black
  • Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint
  • Punched net: Steel plate, white, paint
  • Dust-proof bag: Artificial fiber, black
• Dimensions - Ø155 x 117 (D) mm
• Weight - 1 kg (including panel)
• Included Accessories
  • 1x Panel
  • 1x Paper pattern
