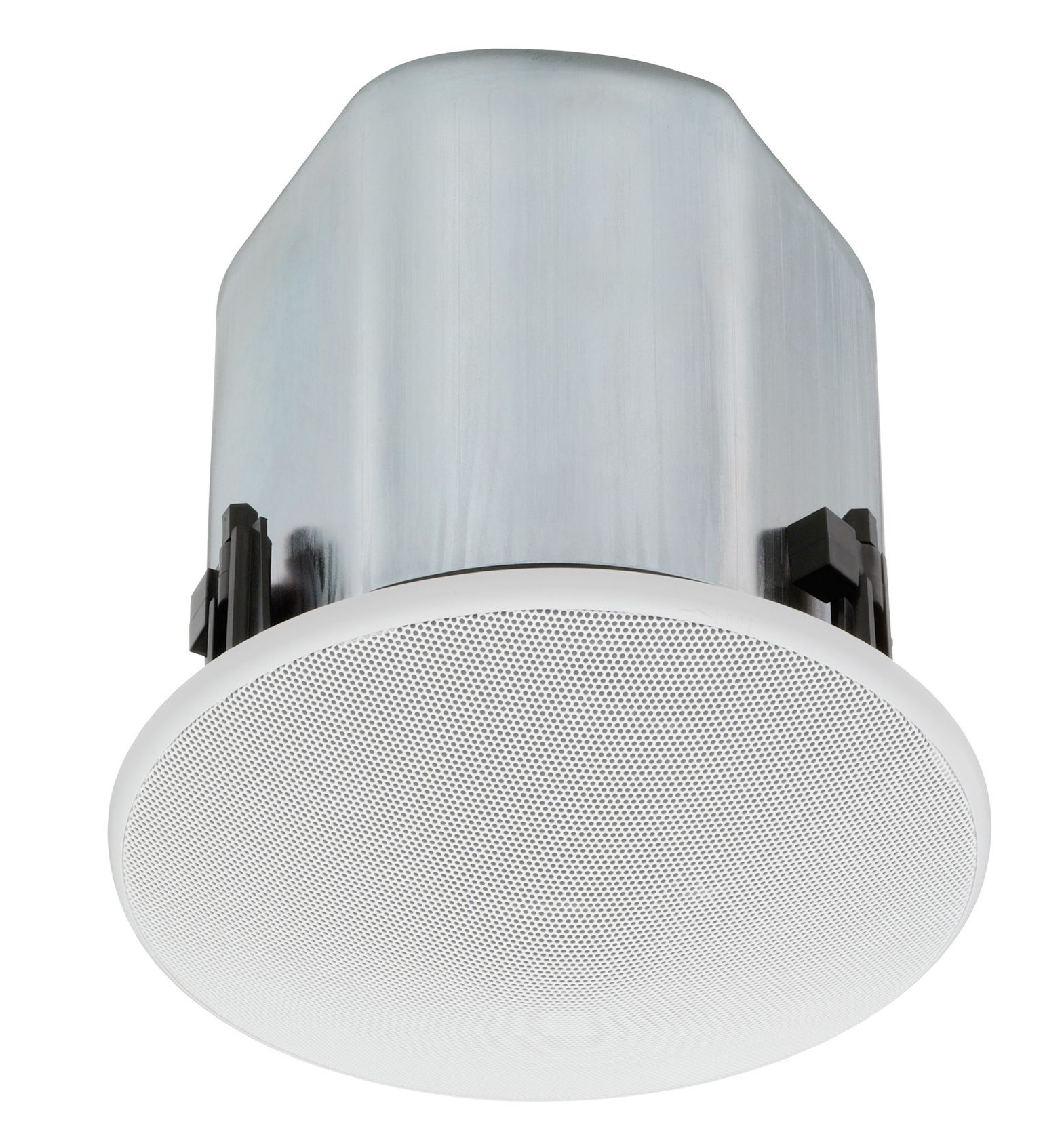

TOA Canada F-122C UL-Certified Wide-Dispersion Ceiling Speaker (Pair)
Model: F-122CU2
About: TOA Canada F-122C UL-Certified Wide-Dispersion Ceiling Speaker (Pair)
The F-122CU2 ceiling-mounted speaker covers an extremely wide area and can be used for25 and 70 V line applications. Well-balanced sound can be heard uniformly at any location.
- 5” full-range driver
- Wide-dispersion: 180º (1-4k Hz avg.)
- Special diffuser provides wide off-axis high frequency response
- UL-Listed for Fire Protective, General Purpose Signaling and Air-Handling Spaces (UL1480 UUMW/UEAY, UL2043)
- Integral metal back-can and safety cable
- Removable terminal block with loop-through terminations
- Overload protection circuitry
Specifications
- Enclosure - Bass reflex type
- Rated Input - 30 W (High Impedance)
- Power Handling
- Continuous pink noise: 60 W (8 Ω)
- Continuous program: 120 W (8 Ω)
- Impedance
- 70 V line: 170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
- 25 V line: 170 Ω (3.7 W), 330 Ω (1.9 W), 1 kΩ (0.6 W), 3.3 kΩ (0.2 W), 10 kΩ (0.06 W)
- 8 Ω
- Sensitivity - 90 dB (1 W, 1 m)
- Frequency Response - 70 Hz - 20 kHz (-10 dB), 50 Hz - 20 kHz (-20 dB)
- At installation in 1/2 free sound field (Measured by installing the unit in the center of a ceiling.)
- Speaker Component - 12 cm cone-type
- Mounting Hole - Ø200 mm (Maximum ceiling thickness: 37 mm)
- Input Terminal - Removable locking connector with screw-down terminals
- (2 input terminals and 2 bridge terminals)
- Cable Requirements
- Solid copper wire: Ø1.0 - Ø1.6 mm (equivalent to AWG No. 18 - 14)
- Stranded copper wire: 0.75 - 2.5 mm² (equivalent to AWG No. 18 - 14)
- Compliance/Certifications - UL1480 (UUMW/UEAY), UL2043, CAN/CSA C22.2 No.205 (UEAY7)
- Finish
- Enclosure: Steel plate, plating
- Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black
- Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint
- Punched net: Steel plate, white, paint
- Dimensions - Ø230 x 229 (D) mm
- Weight - 4.4 kg (including mounting accessories)
- Included Accessories
- 1x Panel
- 1x Tile bridge
- 1x Safety wire
- 1x Paper pattern
