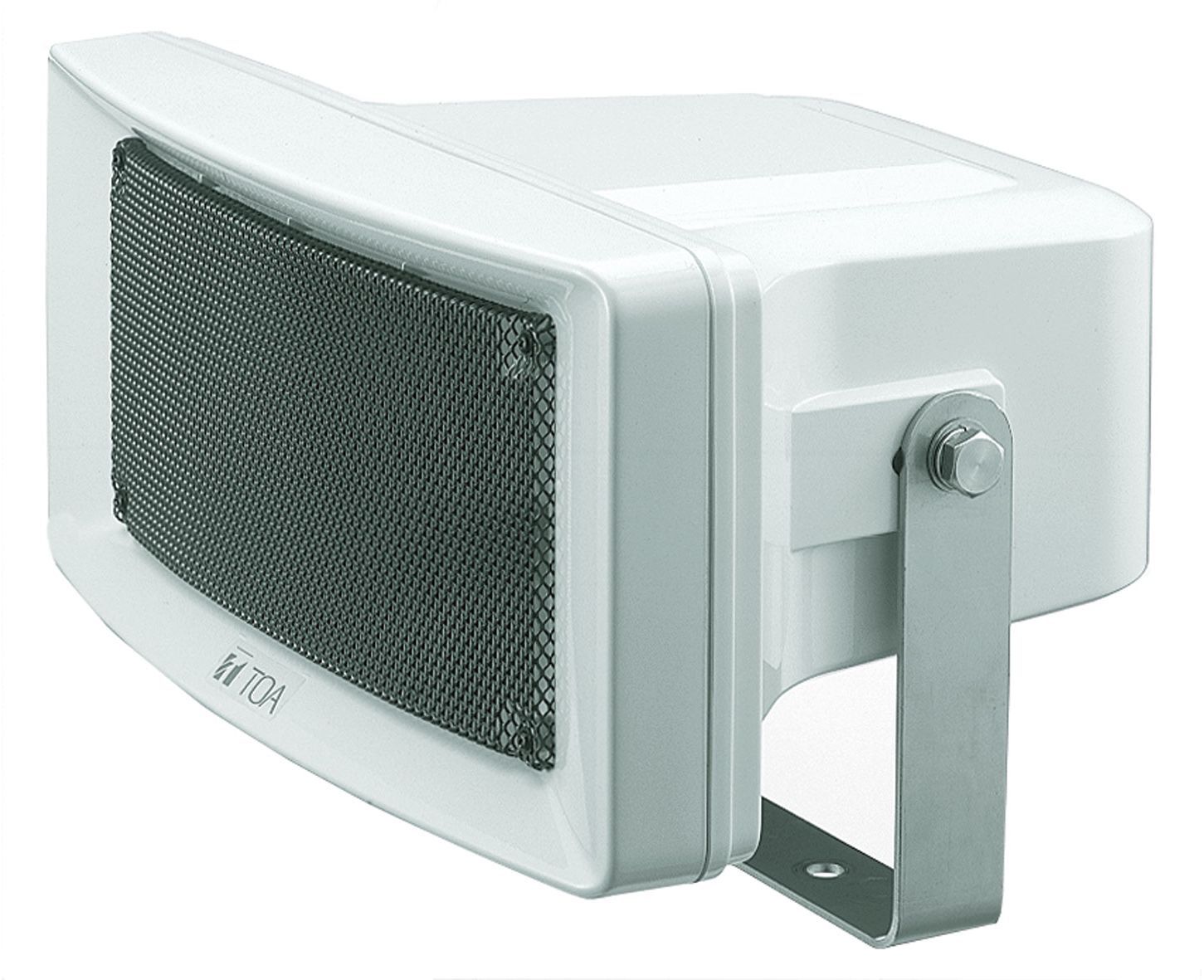

TOA CS-304 30W Wide Range Weatherproof Horn Speaker
Model: CS-304
About: TOA CS-304 30W Wide Range Weatherproof Horn Speaker
The CS-304 outdoor speaker features stainless steel hardware for all-weather durability. It is designed to offer the high intelligibility of weather-resistant horns combined with the high sound quality of dynamic speakers. The CS-304 employs the rotary switch that facilitates impedance changes. It also employs a constant directivity horn for clear sound output over its horizontal range of 90°operation.
- Rectangular wide-range speaker for voice paging, background music and tone signaling distribution
- Constant directivity horn improves directivity characteristics and ensure uniform and clear sound dispersion
- Wide temperature range: -20 to +55 °C
- Weatherproof polyurethane resin paint and impact-proof lightweight ABS resin enclosure
- Stainless steel hardware protects the speaker from corrosion
- IP65
Specifications
- Rated Input - 30 W
- Rated Impedance
- 100 V line: 330 Ω (30 W), 500 Ω (20 W), 1 kΩ (10 W)
- 70 V line: 170 Ω (30 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W)
- Sensitivity - 98 dB (1 W, 1 m)
- Frequency Response - 120 - 15,000 Hz
- Horizontal Directivity
- Constant directivity horn 90° (±45° horizontal from front axis)
- 93 dB or more (1 W, 1 m), 3 kHz at ±45°
- Speaker Component - 12 cm cone-type
- Speaker Cable - 2-core cabtyre cord with diameter of 6 mm
- Dust/Water Protection - IP65
- Operating Temperature - -20℃ to +55℃
- Finish
- Horn, cover: ABS resin, off-white, paint
- Bracket: Stainless steel
- Net: Aluminum, gray, paint
- Screw: Stainless steel
- Dimensions - 366 (W) x 230 (H) x 272 (D) mm
- Weight - 3.1 kg
