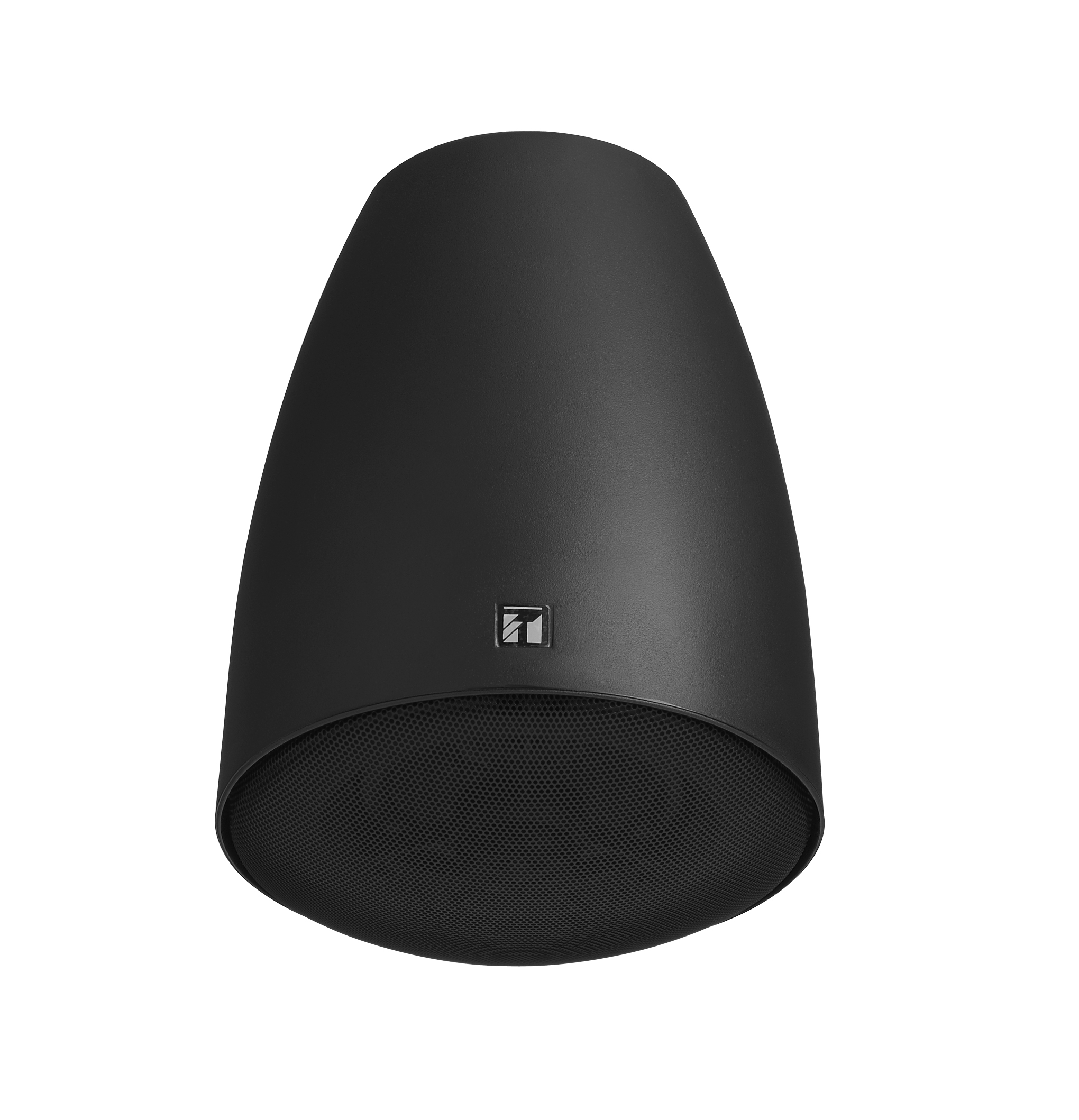

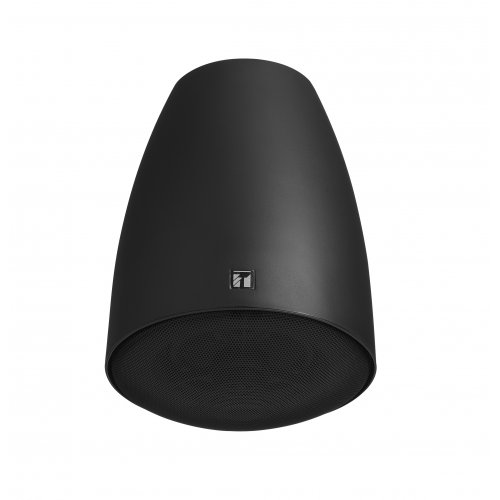

TOA PE-604BU Pendant Speaker 60W

Model: PE-604BU

TOA PE-604BU Pendant Speaker 60W
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed




About: TOA PE-604BU Pendant Speaker 60W

The PE-604BU is a pendant speaker designed for the installations suspended from a ceiling. A directly-attached 5 m (16.4 ft) hanging wire allows the speaker to be suspended from high ceilings. The PE-604BU is driven on both high-impedance (100 V, 70 V and 25 V) and low-impedance (8 Ω) lines. The input power (impedance) can be easily changed at the upper side of the speaker. The PE-604BU is certified to UL 1480 UUMW and ULC-S541 standards. Using the supplied GRIPPLE(R) hangers will facilitate the speaker mounting height adjustment.

Specification

  • Enclosure Bass-reflex type
  • Rated Input 60 W (100 V, 70 V line, 8 Ω), 7.5 W (25 V line)
  • Rated Impedance
    • 100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 3.3 kΩ (3 W)
    • 70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 3.3 kΩ (1.5 W)
    • 25 V line: 83 Ω (7.5 W), 170 Ω (3.7 W), 330 Ω (1.9 W), 670 Ω (0.9 W), 3.3 kΩ (0.2 W)
    • Low impedance: 8 Ω
  • Sensitivity 90 dB (1 W, 1 m) (330 Hz - 3.3 kHz, pink noise)
  • Frequency Response 110 Hz - 20 kHz (-10 dB)
  • Speaker Component 12 cm (5") cone-type + balanced dome-tweeter (coaxial)
  • UL Code UL 1480 UUMW, ULC-S541
  • Operating Temperature -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)
  • Finish Enclosure: ABS resin, black, Grille: Surface-treated steel plate mesh, black, paint
  • Dimensions φ186 × 275 (H) mm (φ7.32" × 10.83") (unit only)
  • Weight 2.9 kg (6.39 lb) (unit only)
  • Accessory GRIPPLE No.1 …1, GRIPPLE No.2 …1, Release key (for GRIPPLE )…1,
  • Safety wire (φ1.5 mm (φ0.06")) …1, Hanging wire (φ2 mm (φ0.08")) …1, Speaker Cable (4-core FPL listed cable 4.6 m (15.09 ft)) …1
  • ※ GRIPPLE No.1 and No.2 are hangers for suspending the speaker.

Reviews: TOA PE-604BU Pendant Speaker 60W

There are currently no product reviews.


Warranty: TOA PE-604BU Pendant Speaker 60W

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

Audio - 5 Years

With the exception of Microphones (Headset, Lavaliere, etc., 5000 Series and Trantec Series) which are warranted for 90-days from the invoice date. All Batteries have a 1 year warranty

Intercom - 5 Years

All Batteries have a 1 year warranty

Parts

All parts have a 90-day warranty. All Batteries have a 1 year warranty.
