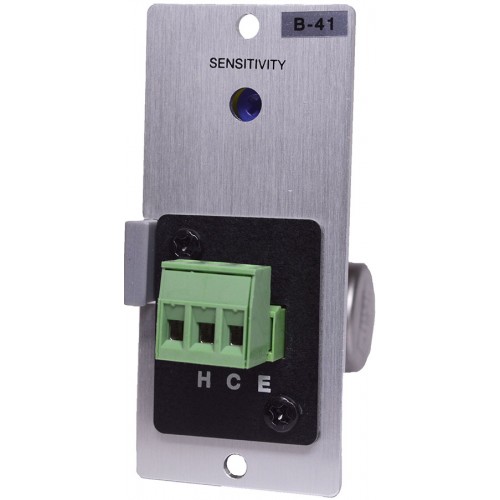

TOA B-41S Bridging Transform for 900 Series Amps
Model: B-41S
About: TOA B-41S Bridging Transform for 900 Series Amps
The B-41S is a line module to be used in conjunction with the 900 series and AX-1000 amplifier. It has a voice-activated muting control output and a balanced input.
- Power Source 24 VDC
- Current Consumption Less than 9 mA
- Input Sensitivity (Rated Output 1 V ) 0.7 - 1.4 V
- Frequency Response 20 Hz - 20 kHz
- Signal-Activated Muting 8 - 15 mV
- Input Connector 3P terminal block
- Output Connector 6P card edge-connector
- Dimensions 35 (W) × 78 (H) × 88 (D) mm
- Weight 80 g
