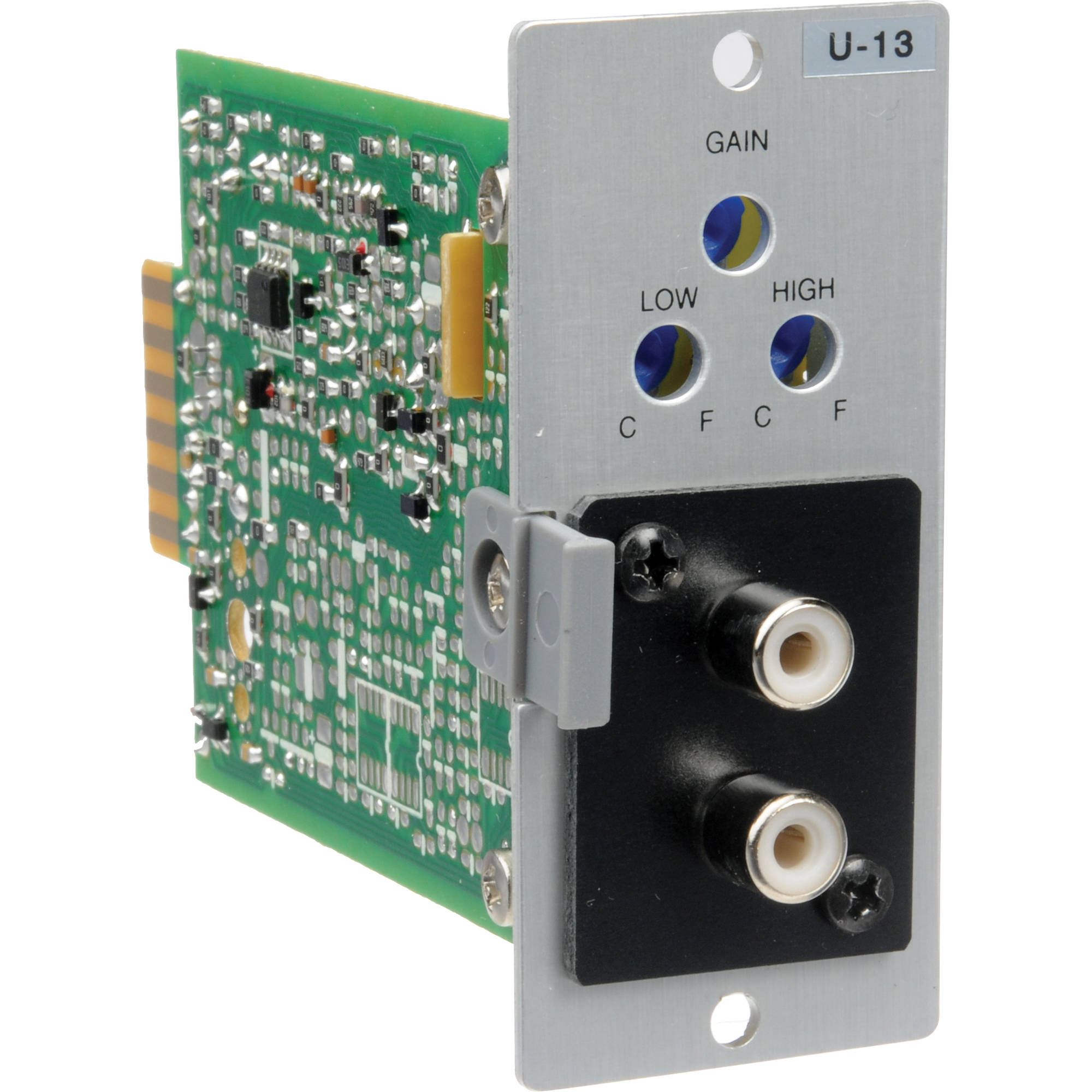

TOA U-13R Unbalanced Line Input for 900 Series Amps
Model: U-13R
About: TOA U-13R Unbalanced Line Input for 900 Series Amps
The U-13R is an AUX module to be used in conjunction with the 900 series or AX-1000 amplifier. It has an input that can control muting operations of a signal output.
- Power Source 24 V DC
- Current Consumption Under 11 mA
- Input Sensitivity (Rated Output 100 mV ) 100 - 3,600 mV (adjustable)
- Low Cut Filter (100 Hz ) -5 to -15 dB
- High Cut Filter (10 kHz ) -7 to -13 dB
- Noise Output (20 Hz - 20 kHz BPF) Under 10 μV
- Distortion Under 0.05 %
- Frequency Response 20 Hz - 20 kHz
- Signal Muting Level Over 50 dB
- Input Connector RCA pin jacks
- Output Connector 6P card edge-connector
- Dimensions 35 (W) × 78 (H) × 88 (D) mm
- Weight 50 g
