TOA M-01M Microphone Input for 900 Series Amps
Model: M-01M
About: TOA M-01M Microphone Input for 900 Series Amps

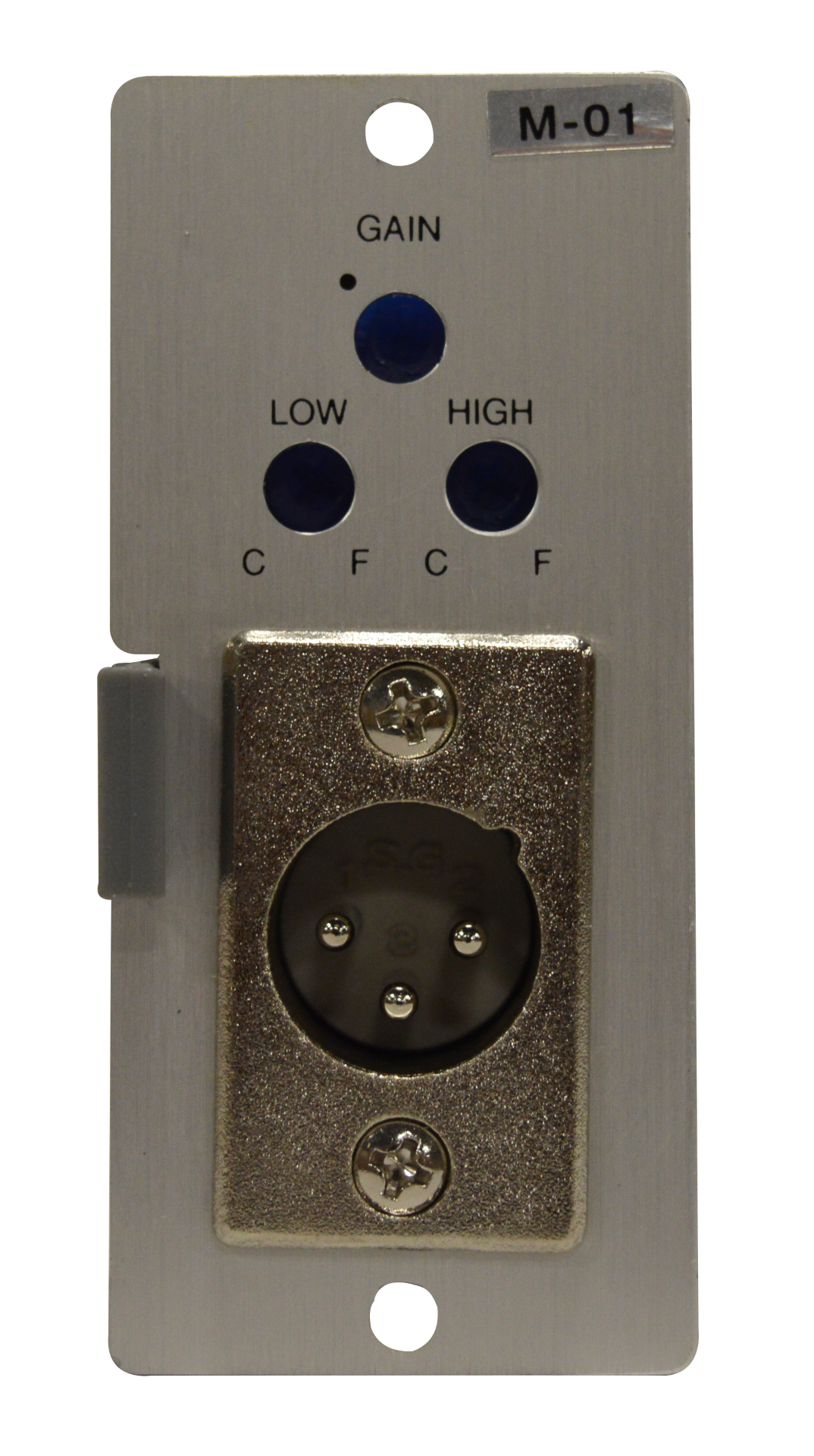

The M-01M is a microphone input module to be used in conjunction with the 900 series components and other TOA's equipment. It has a transformer balanced microphone input with male XLR type connector, phantom power supply function, and gain and tone controls.
- Power Source 24 V DC (supplied from the main frame)
- Current Consumption 9 mA
- Input Sensitivity -60 dB* (rated output: -20 dB*), adjustable: -72 to -52 dB*
- Input Impedance 600 Ω, balanced transformer-isolated
- Frequency Response 25 Hz - 20 kHz ±2.0 dB
- Distortion 0.05 % or less (1 kHz, output: 0 dB*)
- Noise Level -86 dB* (20 Hz - 20 kHz BPF), input equivalent noise: -126 dB*
- Gain 32 - 52 dB
- Phantom Power +22 V DC (active or disable selectable)
- Tone Control 100 Hz: 0 to -10 dB, 10 kHz: 0 to -10 dB
- Connector Male XLR connector (XLR-3-32 equivalent)
- Dimensions 35 (W) × 78 (H) × 88 (D) mm (1.38 × 3.07" × 3.46")"
- Weight Max. 110 g (0.24 lb)
