Bose DM10S DesignMax 10in Surface-Mount Subwoofer (Each) - White

About: Bose DM10S DesignMax 10in Surface-Mount Subwoofer (Each) - White

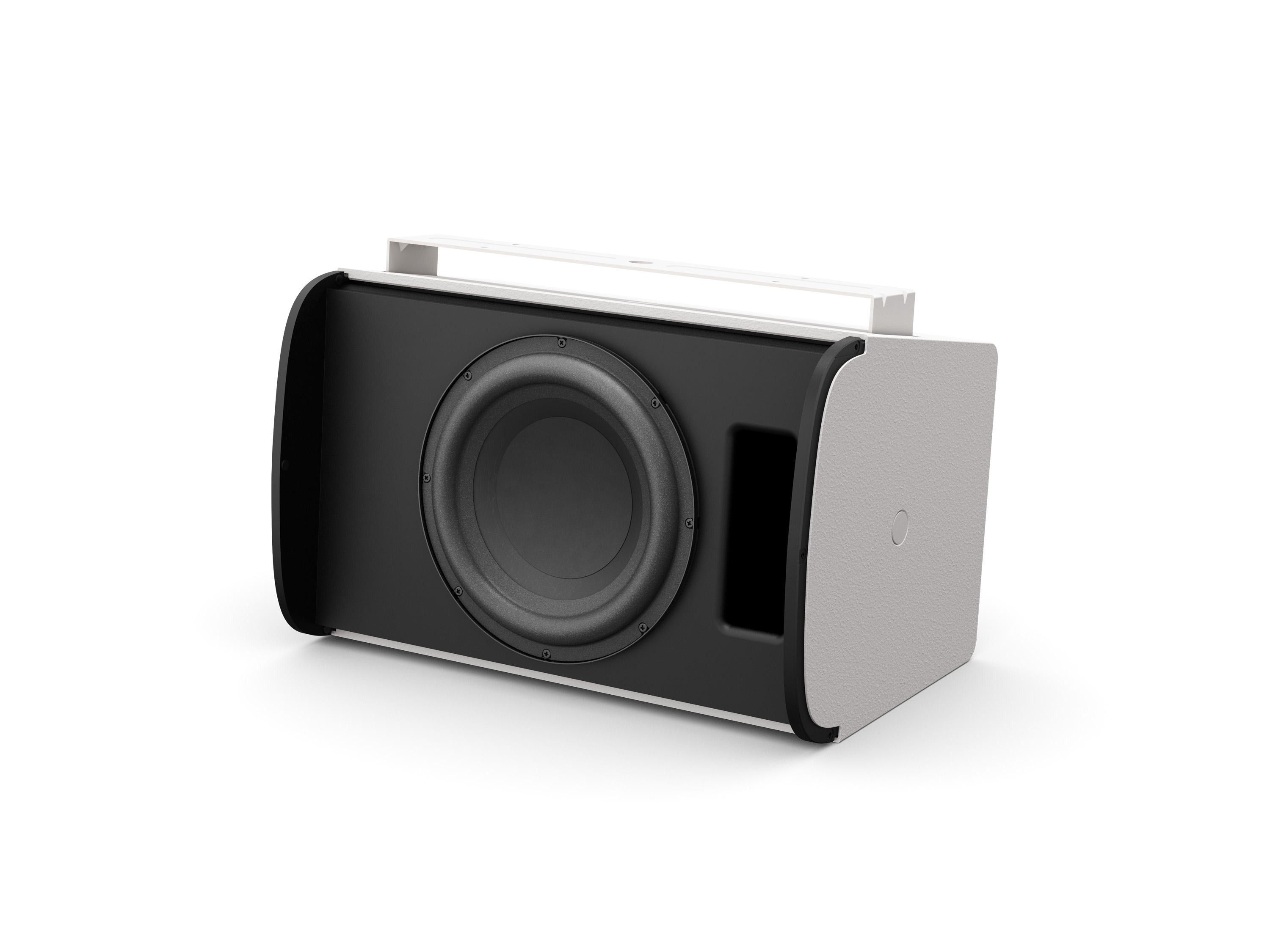

Delivering rich low-end performance, 300-watt Bose Professional DM10S-SUB subwoofer brings instantly impressive bass to any commercial sound installation. The surface-mounted DM10S-SUB has a 10-inch woofer, 35 Hz – 125 Hz frequency range, and locks onto a hidden QuickHold U-bracket. DesignMax subwoofers complement and enhance any DesignMax installation.  ​

• Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
• Deliver rich bass performance with custom Bose Professional drivers; for optimal performance use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
• Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
• Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
• Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

Specifications

• PERFORMANCE
  • Frequency Range (-10 dB): 35 Hz – 125 Hz
  • Coverage, Horizontal: Omnidirectional below 200 Hz
  • Calculated Maximum SPL @ 1 m: 115 dB
  • Nominal Impedance: 8 Ω (transformer bypass)
  • Power Handling, long-term continuous: 300 W
  • Power Handling, Peak: 1200 W
  • Recommended Signal Processing: Not required, Bose Professional EQ voicing and SmartBass processing available
  • Sensitivity (SPL/1 W at 1 m): 90 dB
  • Transformer Taps, 100V: 40, 80, 150 W, bypass
  • Transformer Taps, 70V: 20 W, 40 W, 80 W, 150 W, bypass
  • Coverage, Vertical: Omnidirectional below 200 Hz
• TRANSDUCERS
  • Crossover: 80 Hz – 200 Hz via active crossover in DSP
  • Driver Protection: Recommended high-pass protection 40 Hz with recommended 18 dB/octave filter
  • Low-Frequency: 1 x 10 in (254 mm) woofer
• COMPLIANCE
  • Safety Agency Ratings: UL-1480A, S5591/ UL Listed, NFPA70, CE compliant
• PHYSICAL
  • Colors: White, paintable
  • Enclosure Material: High-density wood composite with solid color laminate, UV fade-resistant
  • Environmental: Indoor only
  • Grille: Perforated steel, powder-coated finish, paintable, tamper-resistant design
  • Logo: Rotatable, removable

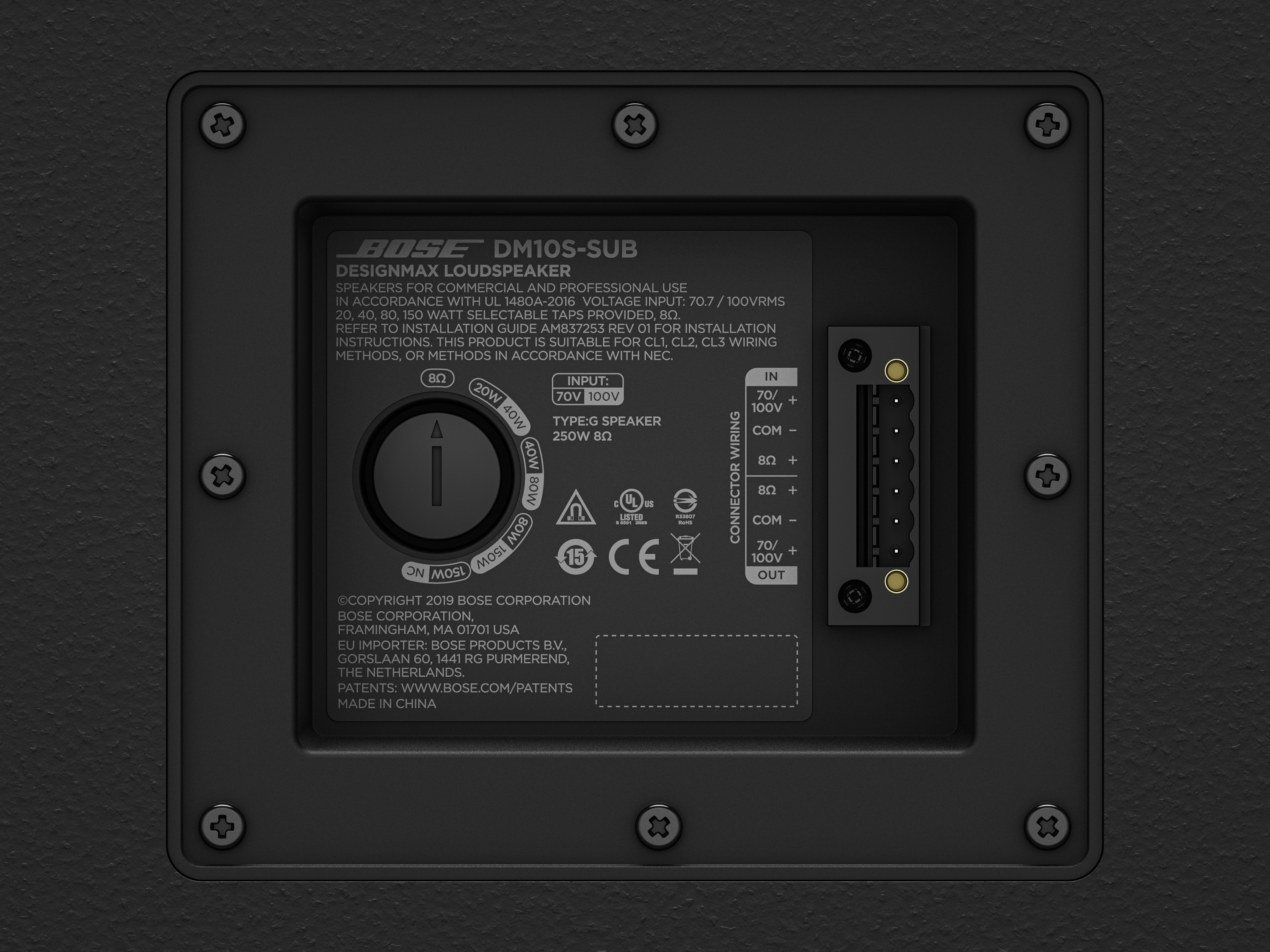

  • Connector: Euroblock 6-pin connector with loop-through, mounted on rear.
    • Accepts 18 AWG (0.8 mm) to 14 AWG (2.5 mm) size wire
  • Suspension/Mounting: QuickHold mounting system with included U-Bracket, (1) M8 safety cable attachment insert
  • Operating Temperature Range: 0 °C to 50 °C (32 °F to 122 °F)
  • Product Dimensions (HxWxD): 19.8 in x 12.5 in x 12.7 in (502 mm x 316 mm x 323 mm)
    • with bracket​: 19.8 x 12.5 x 13.6 in (502 x 316 x 346 mm)
  • Weight (w/ grille & bracket): 35.5 lb (16.1 kg)

What's in the Box

• 1x DesignMax DM10S-SUB subwoofer
• 1x U-bracket
• 1x Installation guide
• 2x rubber caps
• 2x M8 screws
