JBL Control 419CS/T 8in Ceiling Subwoofer (Pair)

About: JBL Control 419CS/T 8in Ceiling Subwoofer (Pair)

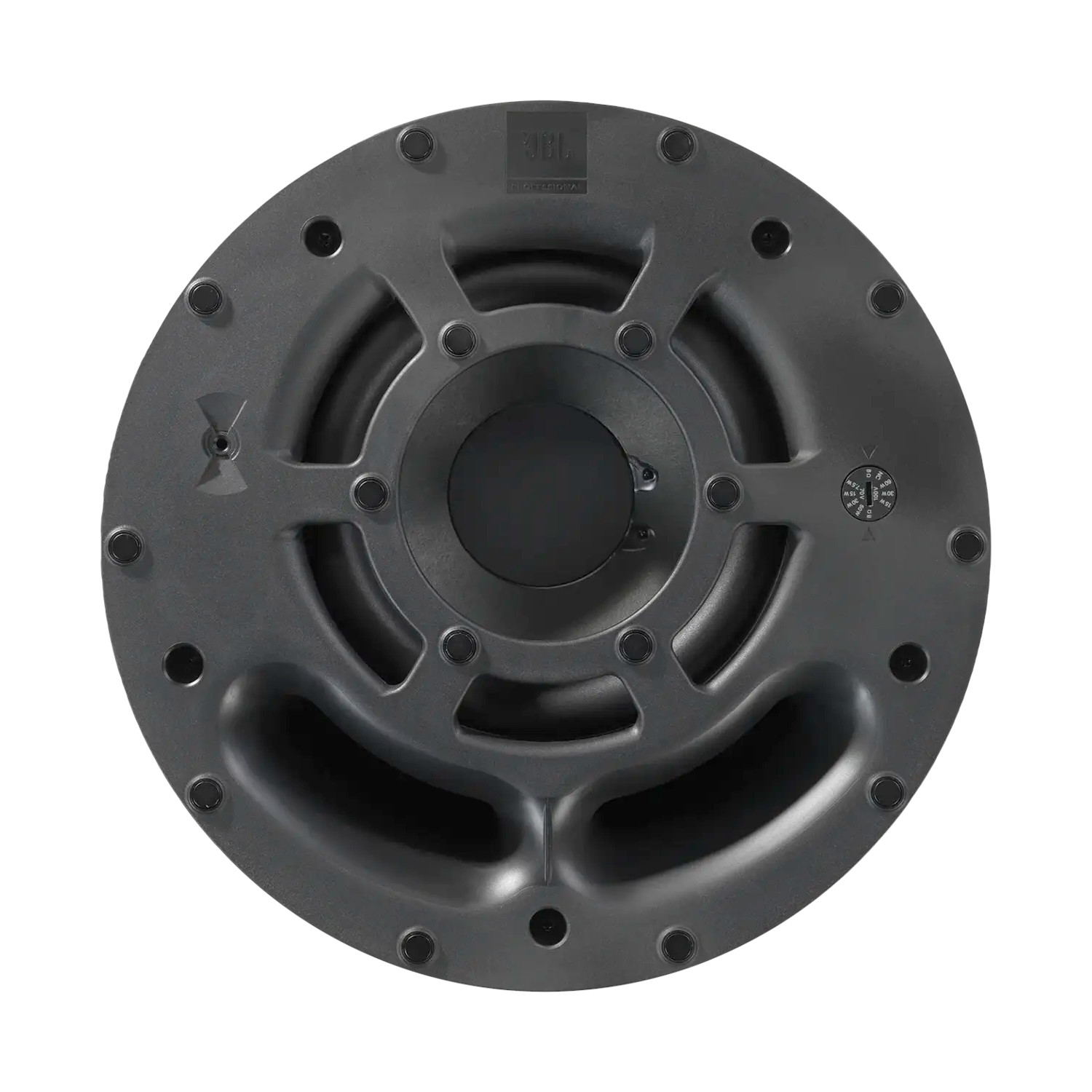

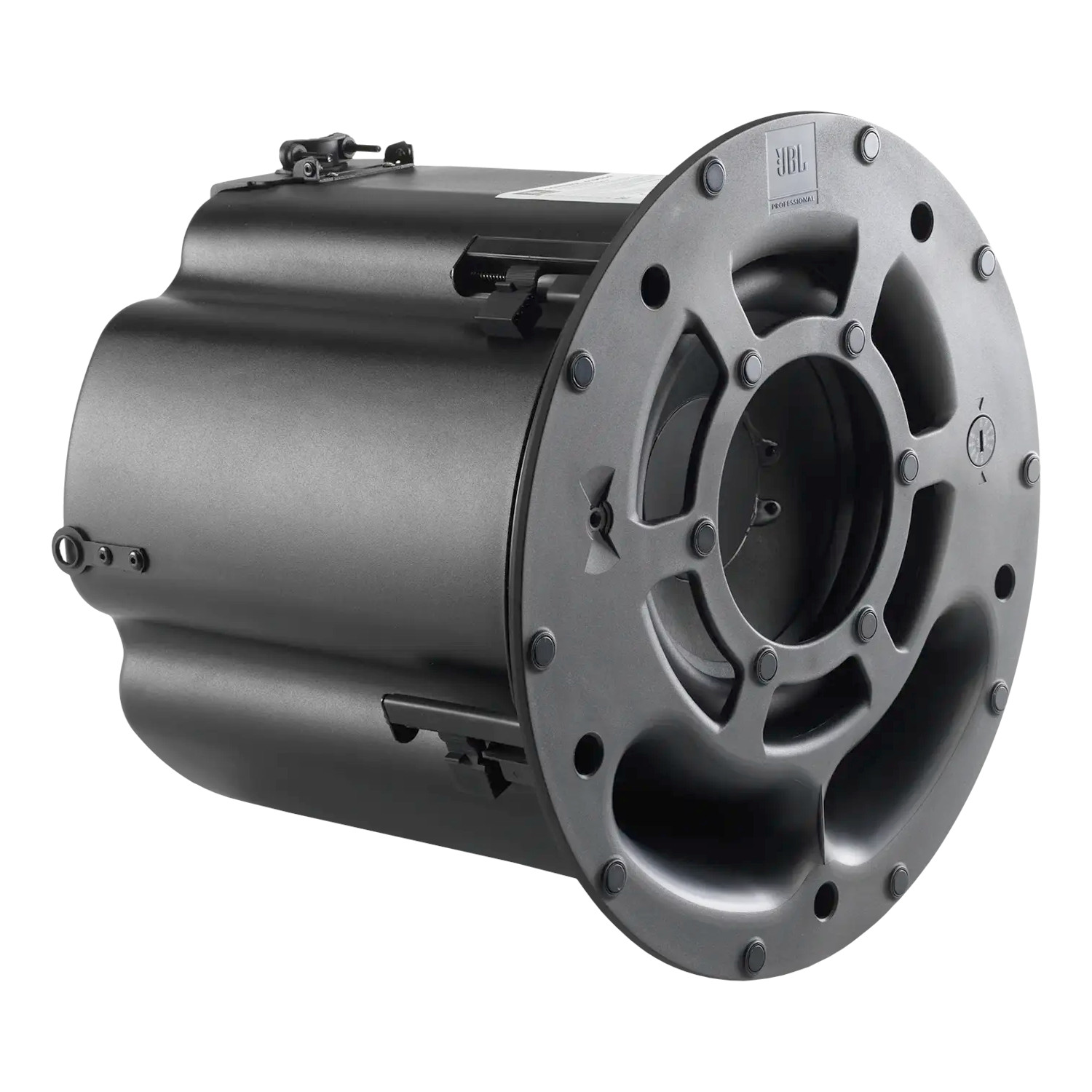

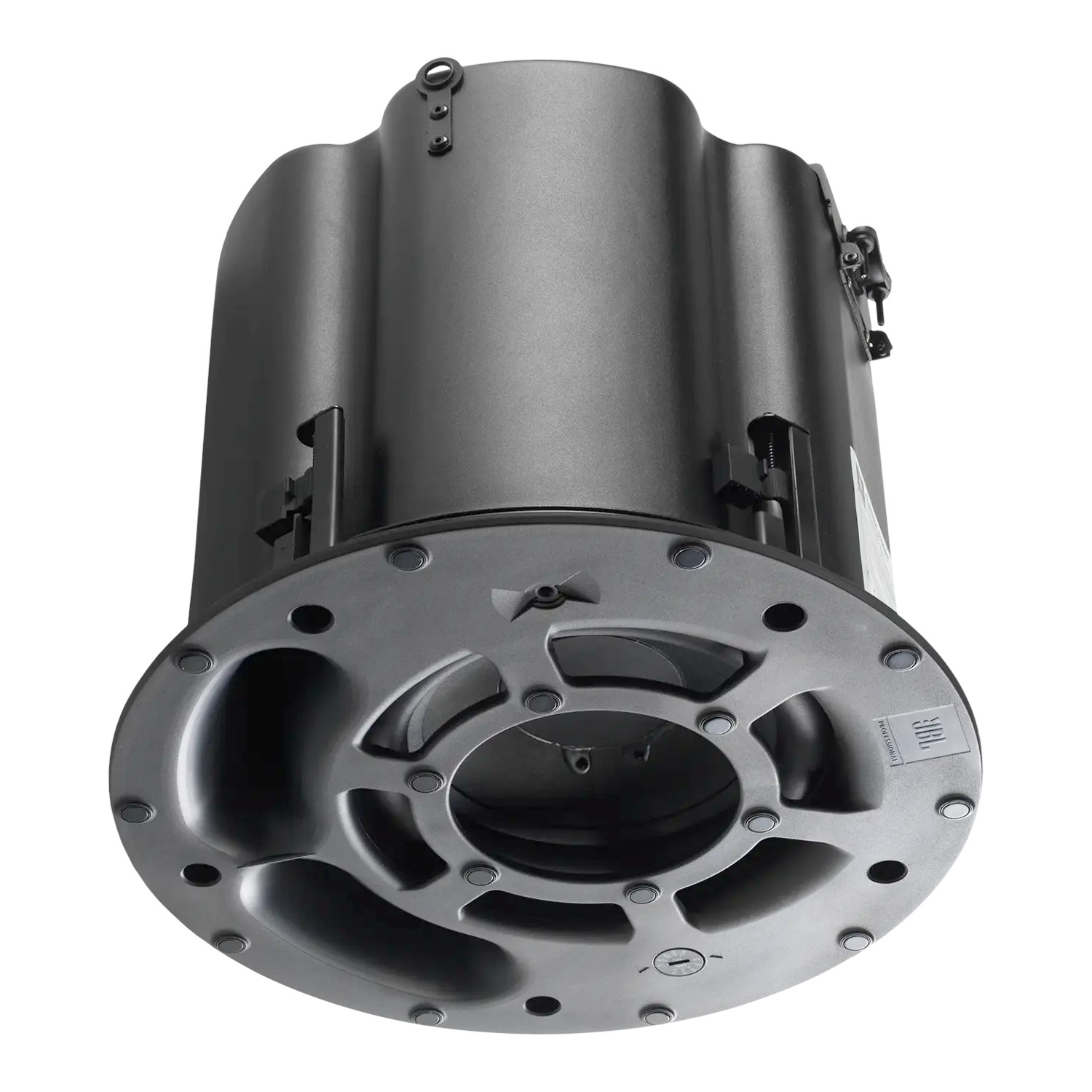

The Control 419CS/T is a high power, low distortion in-ceiling subwoofer, with an 200 mm (8 in) driver, built-in low-pass filter, dual ports, 8-ohm direct mode, and 60 Watt transformer for use in 70 V or 100 V distributed systems.

• Extended bass and maximum impact via dual large-area cross-section port design.
• Stylish Full-face grille with Bezel-less design blends elegantly into any room decor.
• 160 W (640 W peak) 2-hour power handling (at 8 ohm setting) with 60 W low-saturation subwoofer-band transformer for use in 70 V or 100 V distributed systems.
• Bass extension to 47 Hz with built-in low-pass filter.

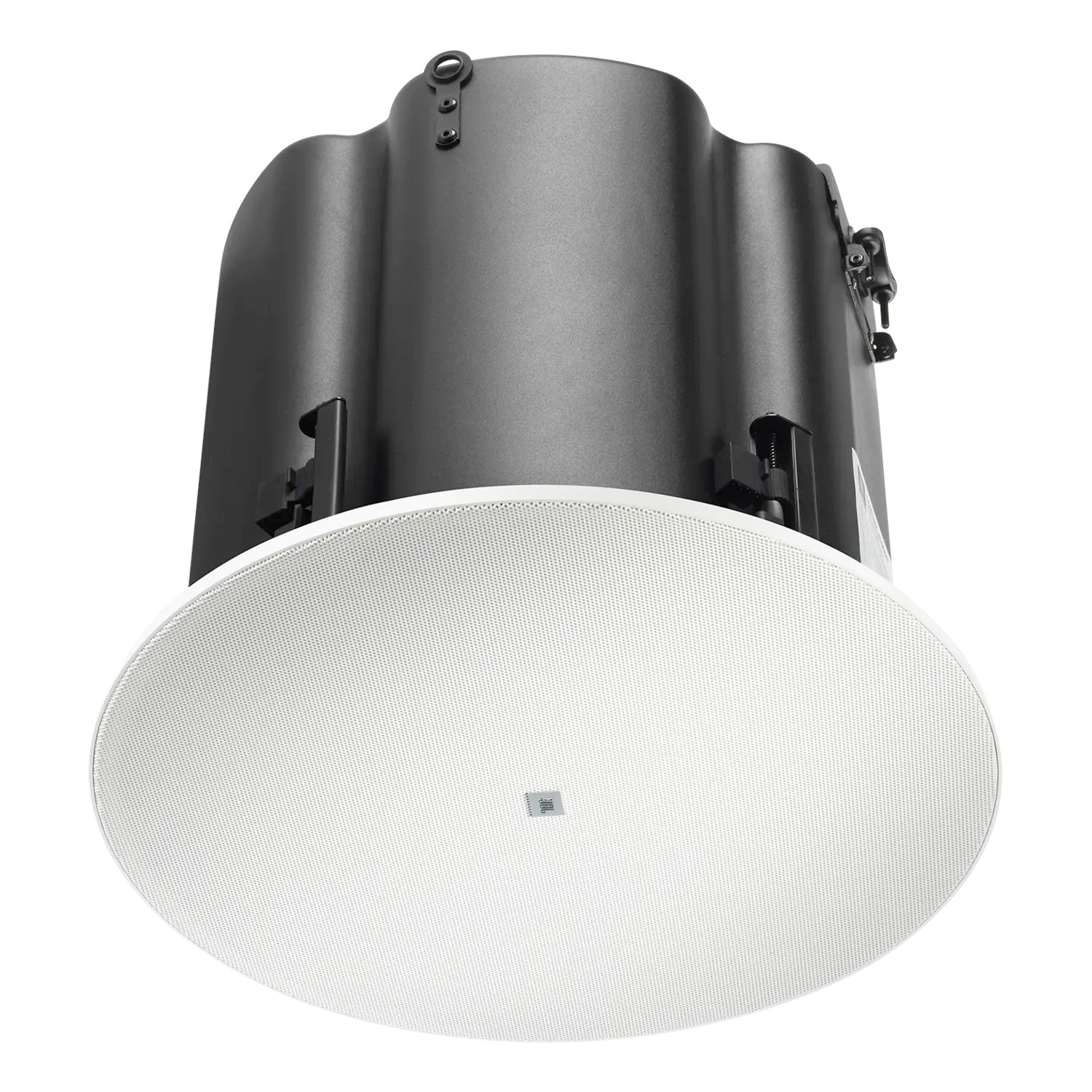

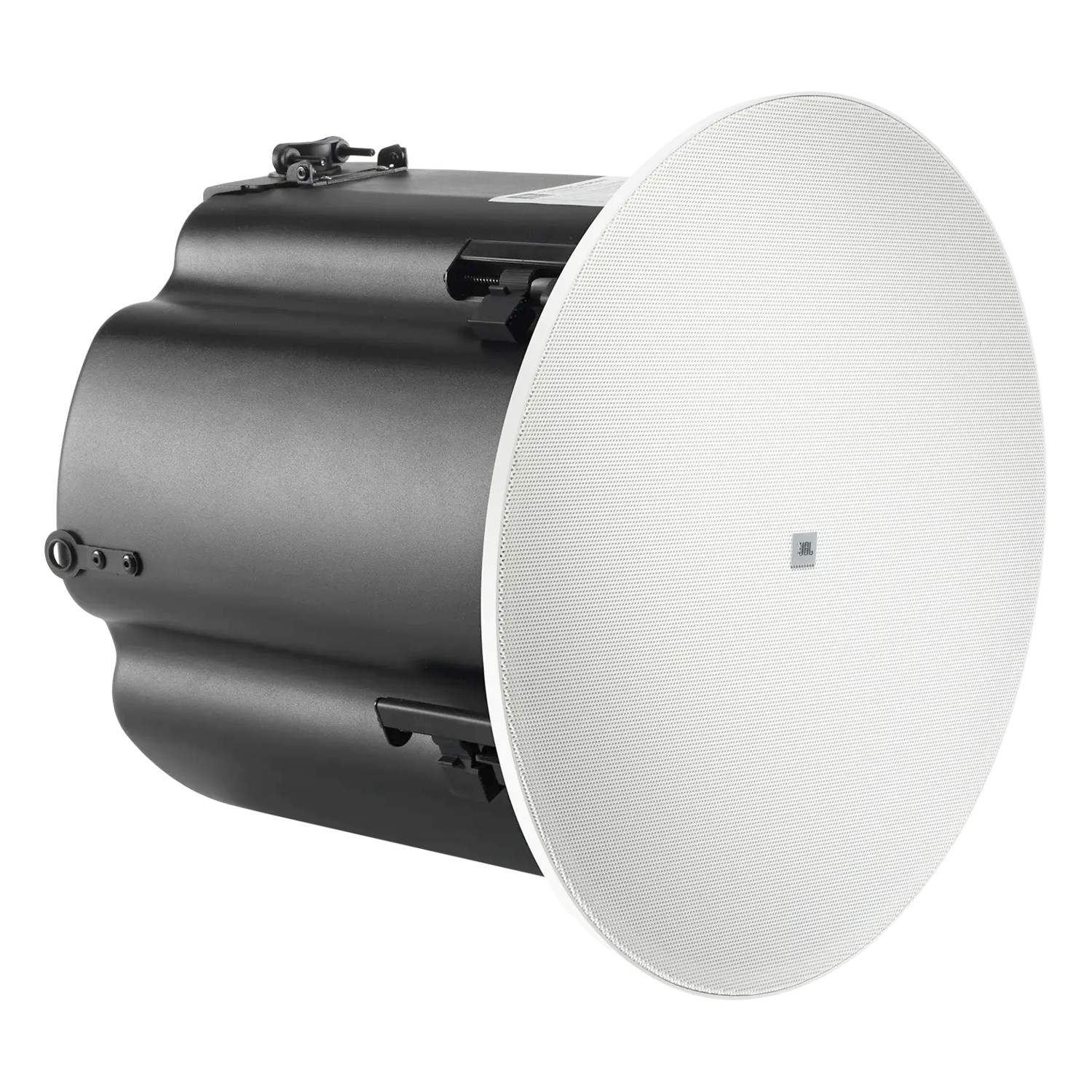

The full-face bezel-less grille blends beautifully into room décor, and the magnetic attachment of the grille is supplemented with an easy-to-apply safety tether. The Control 419CS/T is ideal for sound systems requiring a wide bandwidth, higher fidelity sound quality from ceiling loudspeakers.

The direct input’s 8-ohm impedance allows paralleling of up to 2 speakers on a 4-ohm rated amplifier channel (at the 8-ohm impedance setting), for maximum low-frequency extension and output. For contribute systems, the special subwoofer-band transformer is designed for exceptionally low-saturation even at high drive levels, providing top quality, low distortion sound character. Two large, tapered ports contributed to warm, smooth bass response and minimal distortion at maximum output levels. Control 419CS/T can be utilized to augment the full-range Enhanced Coverage Series ceiling speakers or any other JBL full-range or satellite speakers, where an in-ceiling form factor is desired.

The 200 mm (8 in) driver features a large 38 mm (1.5 in) copper voice coil on an fiberglass voice coil former for high power handling, low distortion, and long-term reliability. The driver is designed for durability, and built-in protection circuitry helps to prevent damage from occasional overload.

The Control 419CS/T can be connected into a system in a number of configurations: in parallel with full-range speakers to take advantage of the subwoofer’s built-in passive low-pass filter, resulting in a bass overlap configuration (which is often acceptable); or with an external DSP low-passing the subwoofer and driving the subwoofers from a separate amplifier channel; or with adding an external high-pass filter to the full-range speakers, resulting in a full 2-way active crossover.

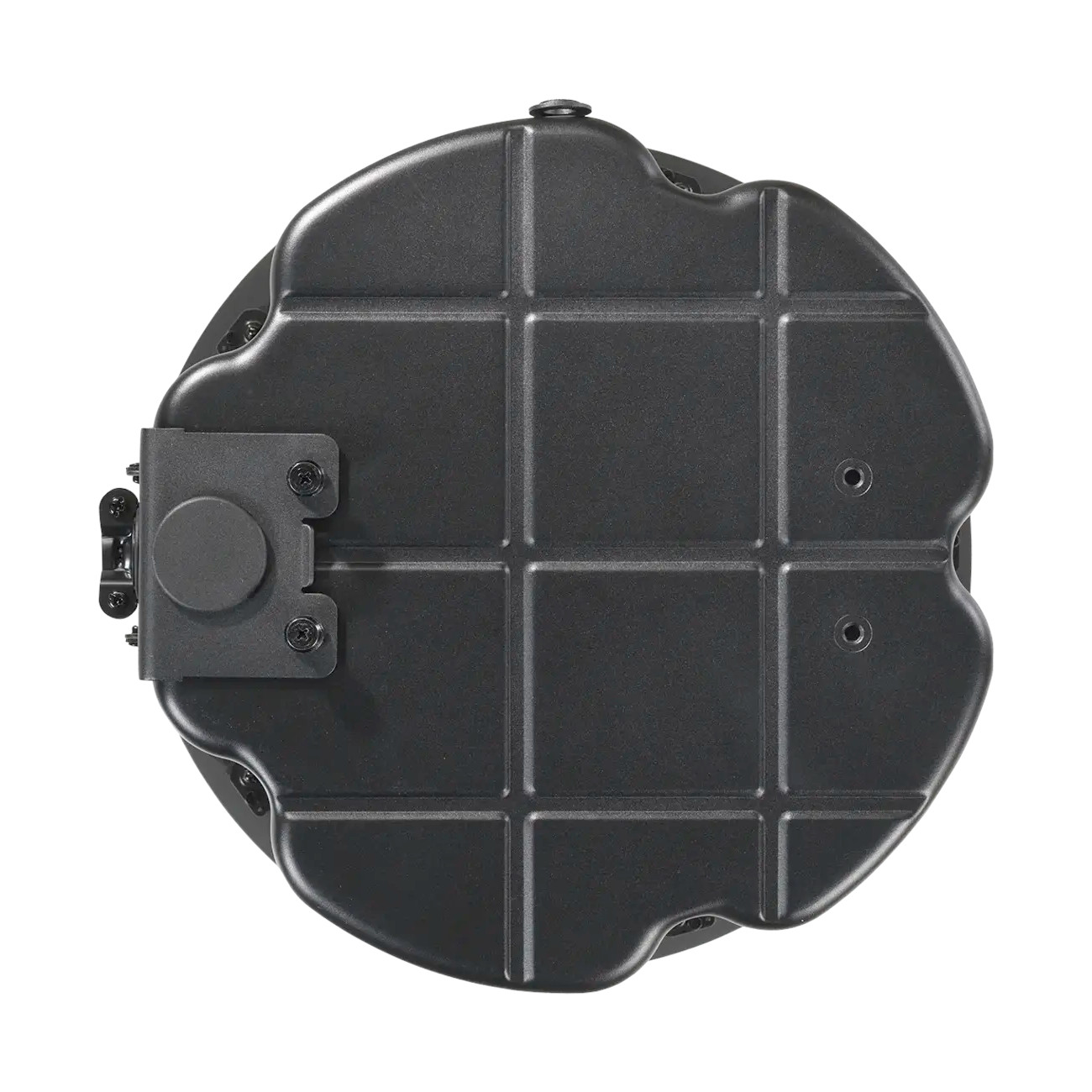

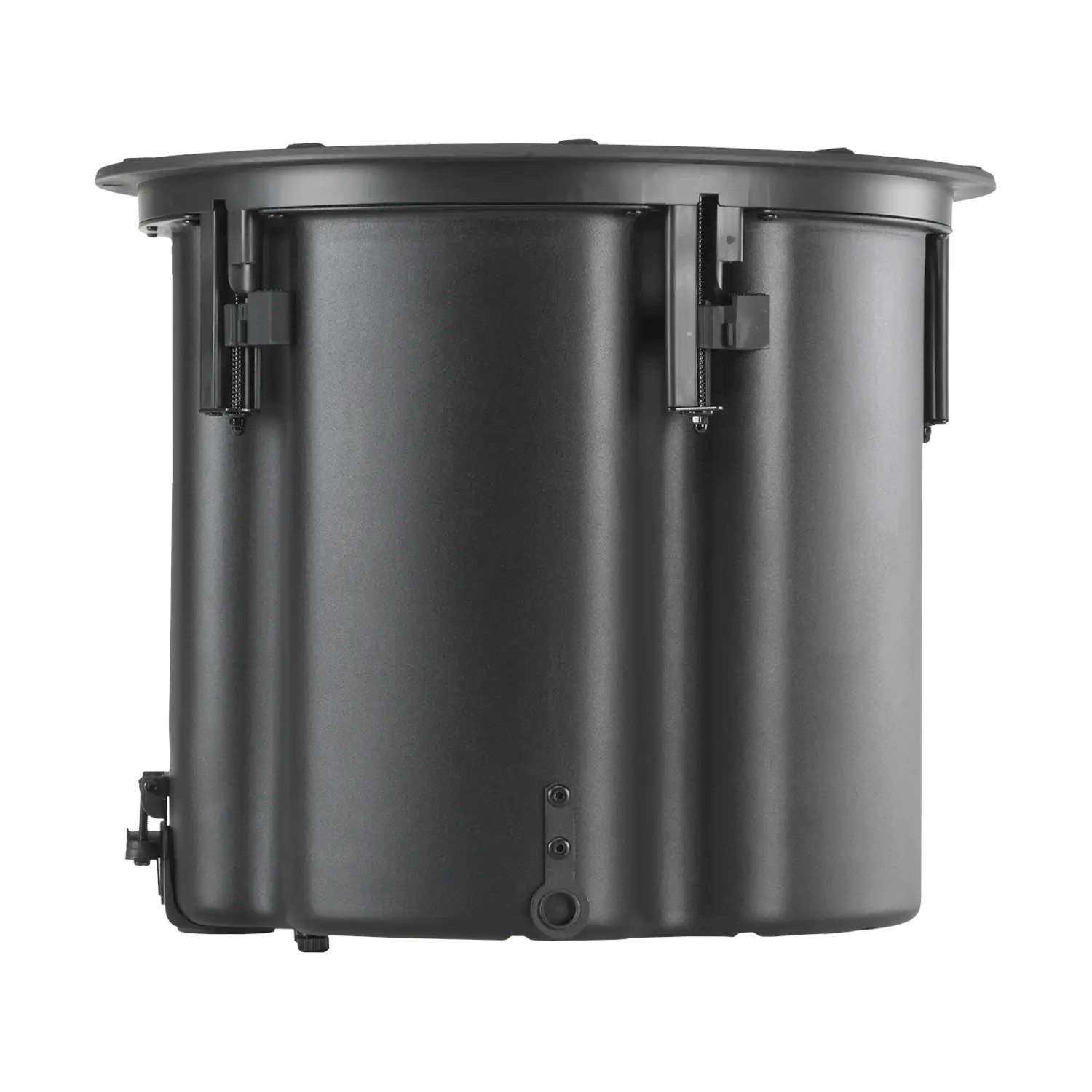

The speaker is packaged with grille, integral backcan, c-ring, and tile rails for fast installation. The included white grille is paintable (grille backing is removeable and re-applicable for painting), and optional accessory grilles are available in black (JBL-MTC-419BG) and in square (JBL-MTC-419SG, white only).

Specifications

• Frequency Range (-10 dB): 47 Hz – 320 Hz
• Frequency Response (±3 dB): 55 Hz – 150 Hz
• Power Capacity
  • 320 W Continuous Program (2 hrs)
  • 160 W (640 W Peak), Continuous IEC shaped Pink Noise (2 hrs)
  • 80 Watts (320 W Peak) Continuous IEC shaped Pink Noise Power (100 hrs)
• Sensitivity (1m/1W): 90dB
• Coverage Angle: 180° conical
• Maximum SPL (1m): 112dB continuous pink noise (118 dB peak)
• Nominal Impedance: 8Ω
• Transformer Taps
  • 70 V: 60 W, 30 W, 15 W & 7.5 W
  • 100 V: 60 W, 30 W, 15 W
• Drivers: 200 mm (8 in) with treated paper cone and high-performance magnet
• Ceiling Cutout Size: 308 mm (12.2 in)
• Safety Agency Rating: Suitable for use in air handling spaces per UL2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 and S7232/UL1480A Listed.
• Environmental
  • IP rating: IP33 per EN/IEC 60529.
  • Operating temperature: 0° C to 45 °C.
• Color: Stock grille is white, paintable
• Dimensions (HxDia.): 11.4 x 13.6 in (289 x 346 mm)
  • Bottom of ceiling tile to top of backcan: 11 in (280 mm)
• Weight (each): 19.4 lbs (8.8 kg)

What's Included

• 2x Grille (White round bezel-less grille for magnetic attachment with pre-attached safety tether and tether clip)
• 2x C-ring
• 4x Rubber boot
• 2x Cable strain relief
• 2x C-ring/tile-rail screws
• 2x Cutout template
• 2x Tile rail (fits both 2 x 4 ft and 600 x 1200 mm tiles)
• 2x Connector (2-pin removable locking euroblock)
