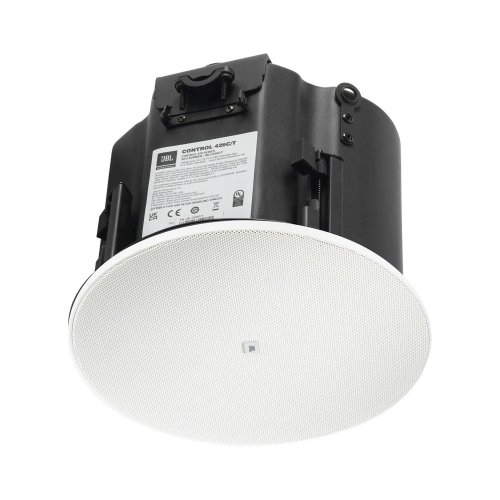

JBL Control 426C/T 6.5in CRBI Two-Way Coax Ceiling Loudspeaker (Pair)

About: JBL Control 426C/T 6.5in CRBI Two-Way Coax Ceiling Loudspeaker (Pair)

The Control 426C/T is a compact, premium-performance ceiling speaker, with a 165 mm (6.5 in) woofer, featuring the JBL-exclusive CRBI Coplanar Radiation Boundary Integrator technology, which delivers extremely consistent coverage of the listening space. CRBI technology results in an especially smooth sound character that remains consistent, clear, and pleasant, even in the off-axis coverage areas. It reduces on-axis hot spots and off-axis cold spots, and it can allow for the use of fewer speakers, reducing the cost of the sound system without sacrificing performance.

• Coaxially mounted 165 mm (6.5 in) woofer and 25 mm (1.0 in) soft-dome tweeter.
• Stylish bezel-less grille blends elegantly into room design.
• JBL-exclusive CRBI Coplanar Radiation Boundary Integrator technology provides consistent coverage throughout the listening space.
• Wide 72 Hz – 19 kHz frequency range.
• 110 W (440 W peak) power handling (at 12-ohm setting) with 60 W multi-tap transformer for use in 70 V or 100 V distributed systems.

The full-face bezel-less grille blends beautifully into room décor, and the magnetic attachment of the grille is supplemented with an easy-to-apply safety tether. High power handling, wide frequency response and low distortion make the Control 426C/T ideal for sound systems requiring a higher fidelity sound. The premium performance capability ensures excellent sound character, providing pleasant, enveloping sound throughout the listening space. The Control 426C/T is well-suited for a wide variety of applications from conference rooms and learning spaces to restaurants and retail stores.

The direct input’s high 12-ohm impedance allows connecting up to 3 speakers in parallel on a 4-ohm rated amplifier channel. For distributed systems, the transformer is designed for exceptionally low-saturation, even at high drive levels, providing top quality, low distortion distributed sound character. The optimized ported enclosure delivers warm, smooth bass response. Low frequency output can be further augmented with the addition of Control 419CS/T or another of the Control Contractor subwoofer models.

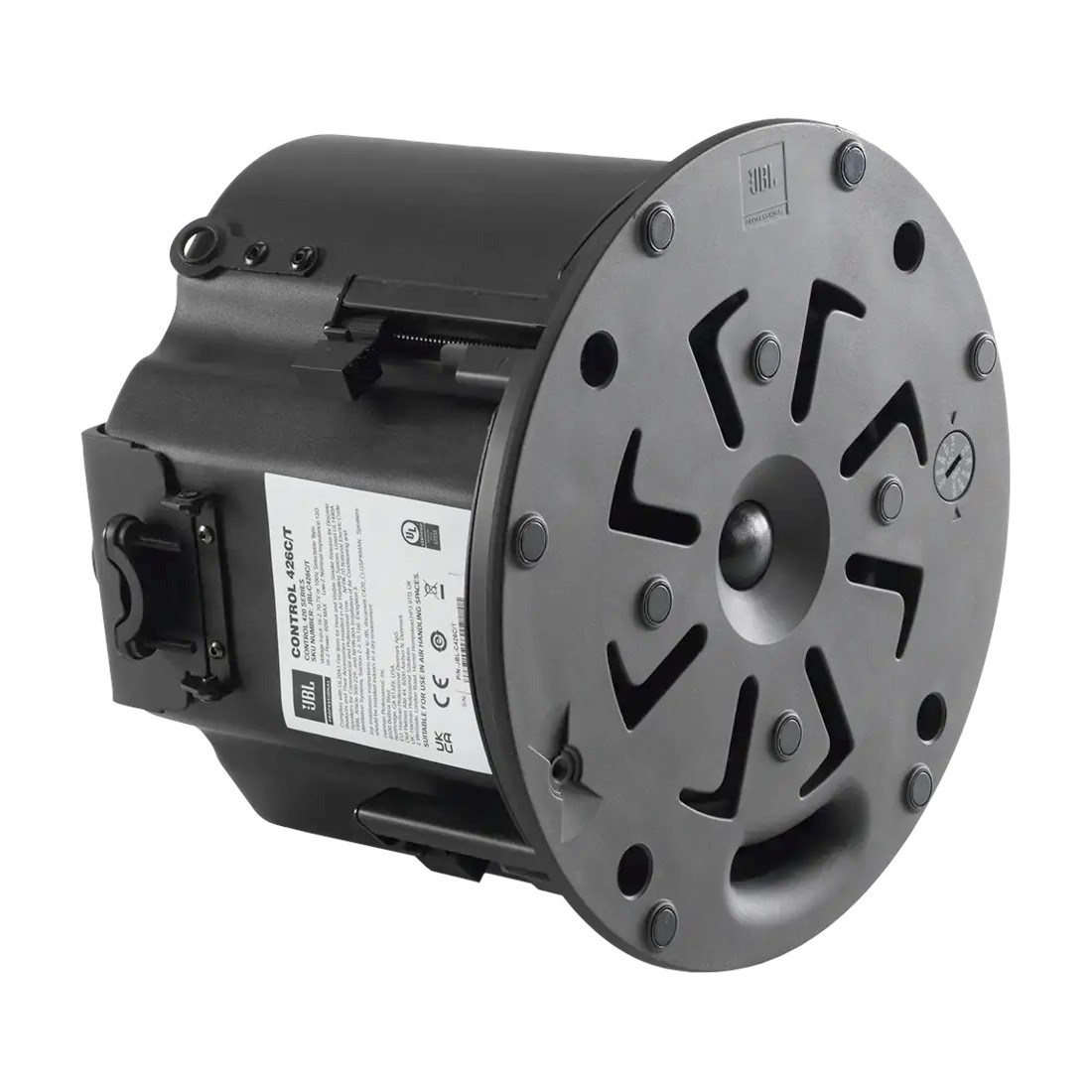

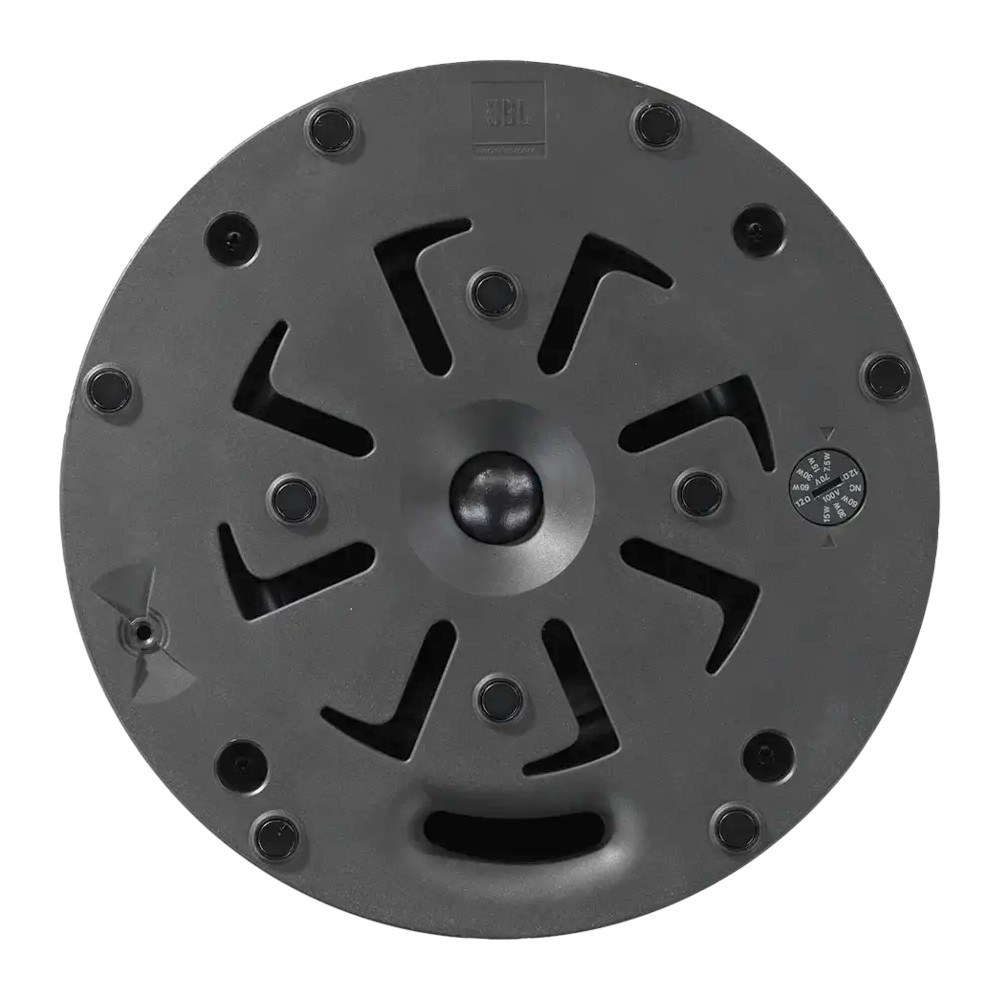

The 165 mm (6.5 in) low-frequency driver is acoustically loaded via the JBL-exclusive CRBI loading plate, increasing both efficiency and sensitivity, for higher output. The CRBI’s unique L-shaped radial apertures provide smooth LF frequency response and a tight, impactful sound.

A coaxially mounted 25 mm (1.0 in) soft-dome tweeter provides high fidelity sound character and the neodymium magnet assembly and Kapton voice coil former provide durability. The drivers are designed for long-term reliability, and built-in protection circuitry helps to prevent damage from occasional overload.

The uniform 110° coverage angle, along with CRBI provides consistent coverage throughout the listening area. It allows for the use of fewer speakers, making installations much simpler and less expensive without sacrificing quality.

The speaker is packaged with grille, integral backcan, c-ring, and tile rails for fast installation. The included white grille is paintable (grille backing is removeable and re-applicable for painting), and optional accessory grilles are available in black (JBL-MTC-426BG) and in square (JBL-MTC-426SG, white only).

Specifications

• Frequency Range (-10 dB): 72 Hz – 19 kHz
• Frequency Response (±3 dB): 95 Hz – 17 kHz
• Power Capacity
  • 220 W Continuous Program (2 hrs)
  • 110 W (440 W Peak), Continuous Pink Noise (2 hrs)
  • 75 W (300 W Peak) Continuous Pink Noise Power (100 hrs)
• Sensitivity (1m/1W): 89dB
• Coverage Angle: 110° conical
• Maximum SPL (1m): 109 dB continuous pink noise (115 dB peak)
• Nominal Impedance: 12Ω
• Transformer Taps
  • 70 V: 60 W, 30 W, 15 W & 7.5 W
  • 100 V: 60 W, 30 W, 15 W
• Drivers
  • LF: 165 mm (6.5 in) with treated paper cone and high-performance magnet
  • HF: 25 mm (1.0 in) textile soft-dome with Neodymium magnet assembly
• Ceiling Cutout Size: 223 mm (8.8 in)
• Safety Agency Rating: Suitable for use in air handling spaces per UL2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 and S7232/UL1480A Listed.
• Environmental
  • IP rating: IP33 per EN/IEC 60529.
  • Operating temperature: 0° C to 45 °C.
• Color: Stock grille is white, paintable
• Dimensions (HxDia.): 7.4 x 9.9 in (190 x 253 mm)
  • Bottom of ceiling tile to top of backcan: 7.1 in (181 mm)
• Weight (each): 9.3 lbs (4.2 kg)

What's Included

• 2x Grille (White round bezel-less grille for magnetic attachment with pre-attached safety tether and tether clip)
• 2x C-ring
• 4x Rubber boot
• 2x Cable strain relief
• 2x C-ring/tile-rail screws
• 2x Cutout template
• 2x Tile rail (fits both 2 x 4 ft and 600 x 1200 mm tiles)
• 2x Connector (2-pin removable locking euroblock)
