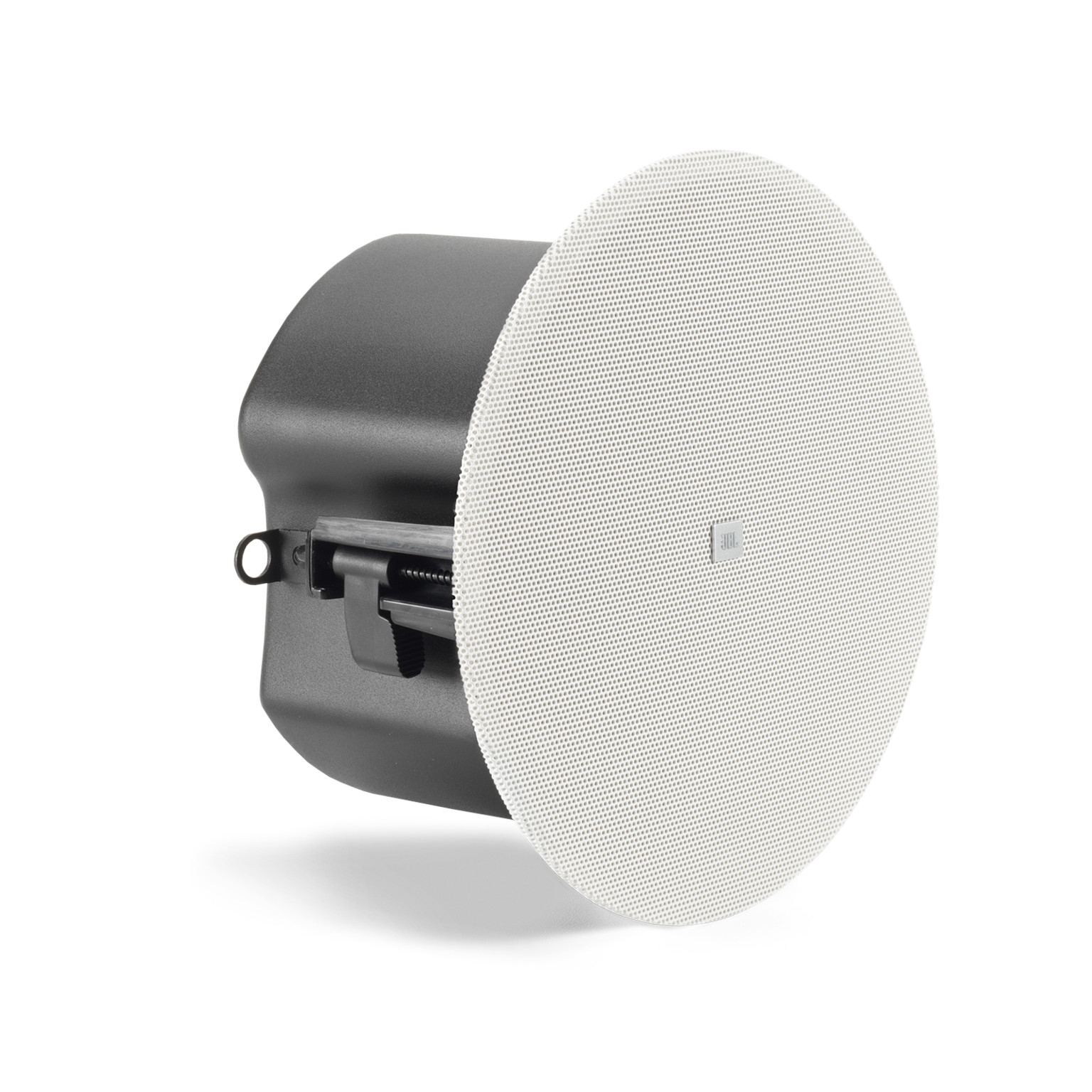

JBL Control 414C/T Micro 4in Two-Way Low-Profile Ceiling Loudspeaker (Pair)

About: JBL Control 414C/T Micro 4in Two-Way Low-Profile Ceiling Loudspeaker (Pair)

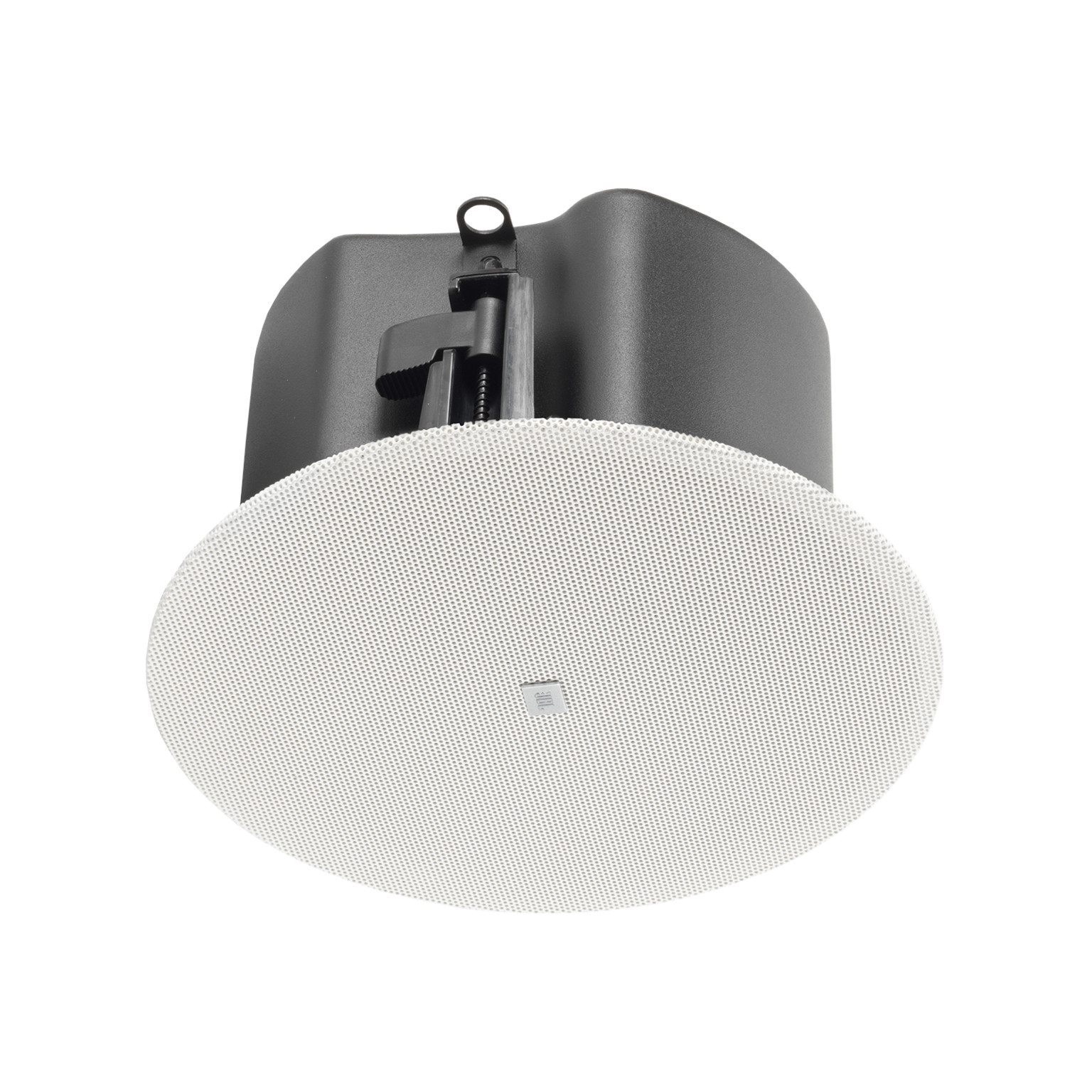

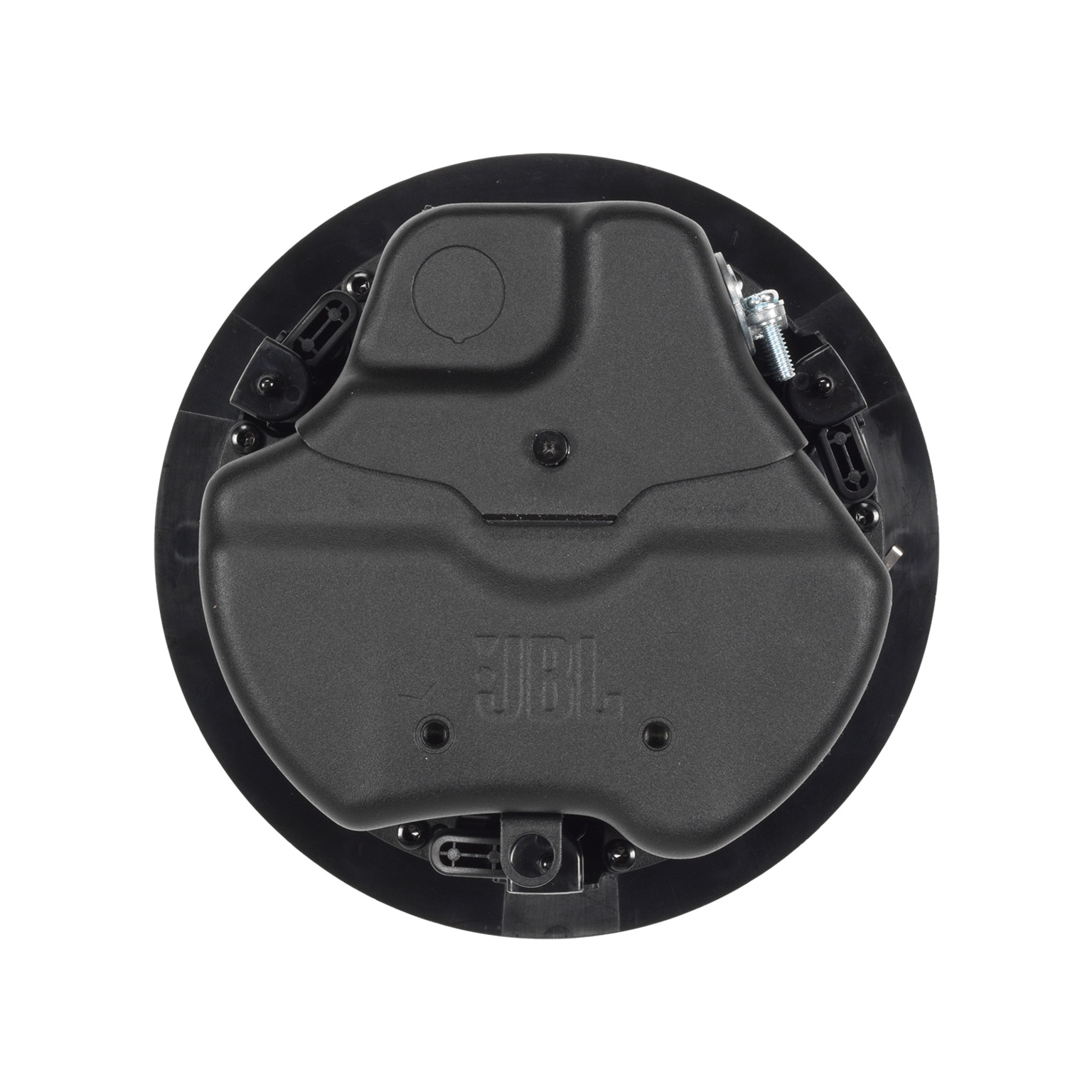

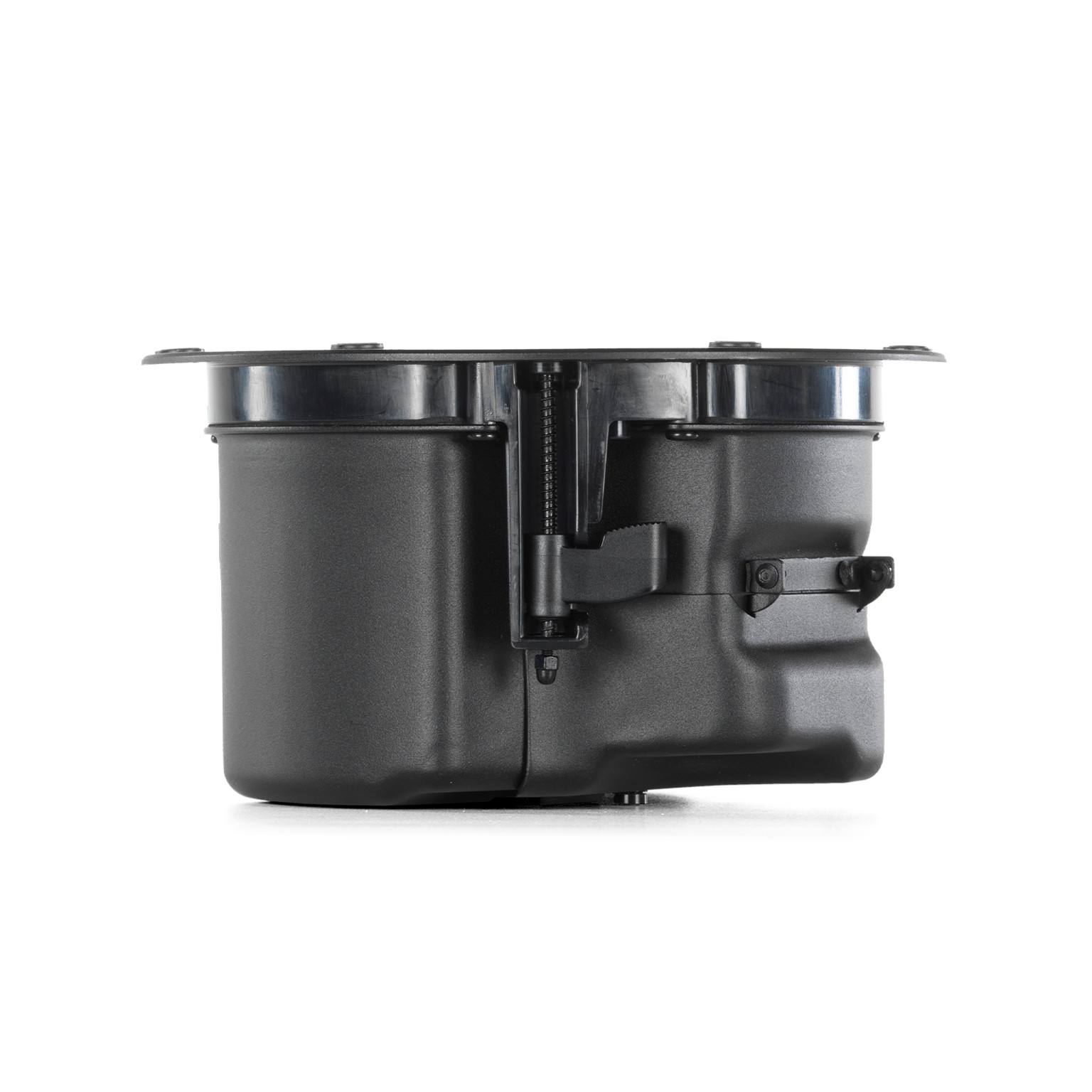

Part of the Control 400 collection’s Standard Coverage Series, the Control 414C/T Micro is a two-way ceiling speaker with a 103 mm (4 inch) woofer and 13 mm (0.5 inch) soft￾dome tweeter. The drivers are mounted in a ported baffle, with a pre-attached backcan for quick and easy installation. The Control 414C/T Micro is designed to provide exceptional sound quality for background music and music-plus-paging systems. These speakers are ideally suited for a wide range of low to medium volume applications such as music café’s, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more.

• Two-way design with 103 mm (4 in) woofer and 13 mm (0.5 in) tweeter
• Stylish bezel-less grille blends elegantly into room designs
• Extremely wide 160° coverage
• Wide 69 Hz - 25 kHz Frequency Range
• Combined 70V/100V and low impedance direct operation
  • 15 W (60 W peak) at 8 ohm nominal setting
  • 10 W multi-tap Transformer

The 160° coverage is especially wide, delivering consistent sound quality for listeners located both off and on axis.

Wide frequency response and low distortion make the Control 414C/T Micro ideal for sound systems requiring a higher fidelity sound. For applications where more bass is desired, the Control 414C/T Micro is tuned to pair well with the Enhanced Coverage Series Control 419CS/T subwoofer.

The direct input’s 8-ohm impedance allows paralleling of up to 2 speakers on a 4-ohm rated amplifier channel. For distributed systems, the UL-registered transformer is designed for exceptionally low-saturation, even at high drive levels, providing top quality, low distortion distributed sound character.

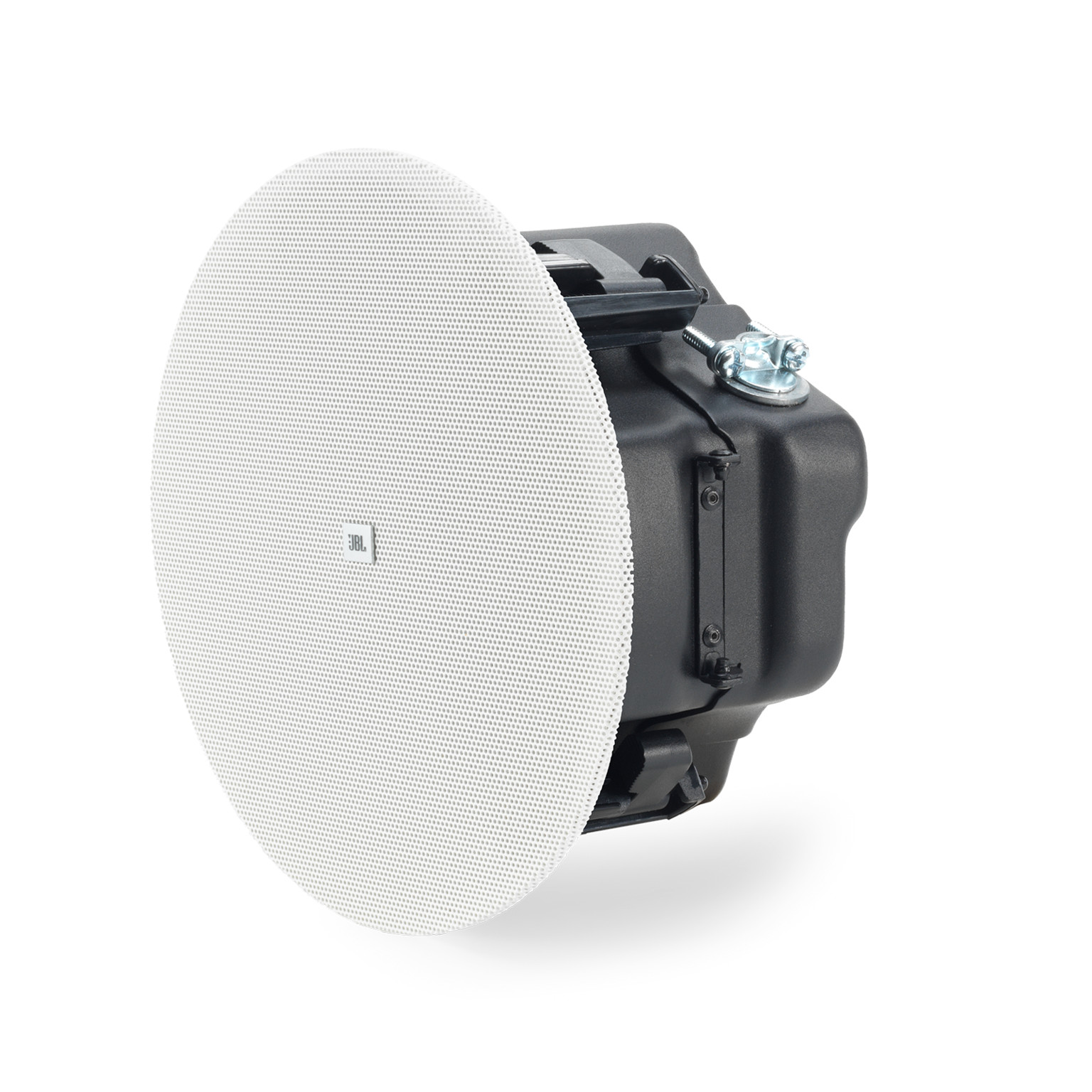

The full-face bezel-less grille blends beautifully into room décor, and the magnetic attachment of the grille is supplemented with an easy-to-apply safety tether. The speaker is packaged with grille, integral backcan, C-ring, and tile rails for fast installation. The included white grille is paintable (grille backing is removeable and re-applicable for painting), and optional accessory grilles are available in black (JBL-MTC-414BG) and in square (JBL-MTC-414SG, white only).

Specifications

• Frequency Range (-10 dB): 69Hz - 25kHz
• Frequency Response (±3 dB): 93 Hz – 21 kHz
• Power Capacity
  • 45 W Continuous Program (2 hrs)
  • 22.5 W (90 W Peak), Continuous Pink Noise (2 hrs)
  • 15 W (60 W Peak), Continuous Pink Noise (100 hrs)
• Sensitivity (1m/1W): 86dB
• Coverage Angle: 160° conical
• Maximum SPL (1m): 98 dB continuous pink noise (104 dB peak)
• Nominal Impedance: 8Ω

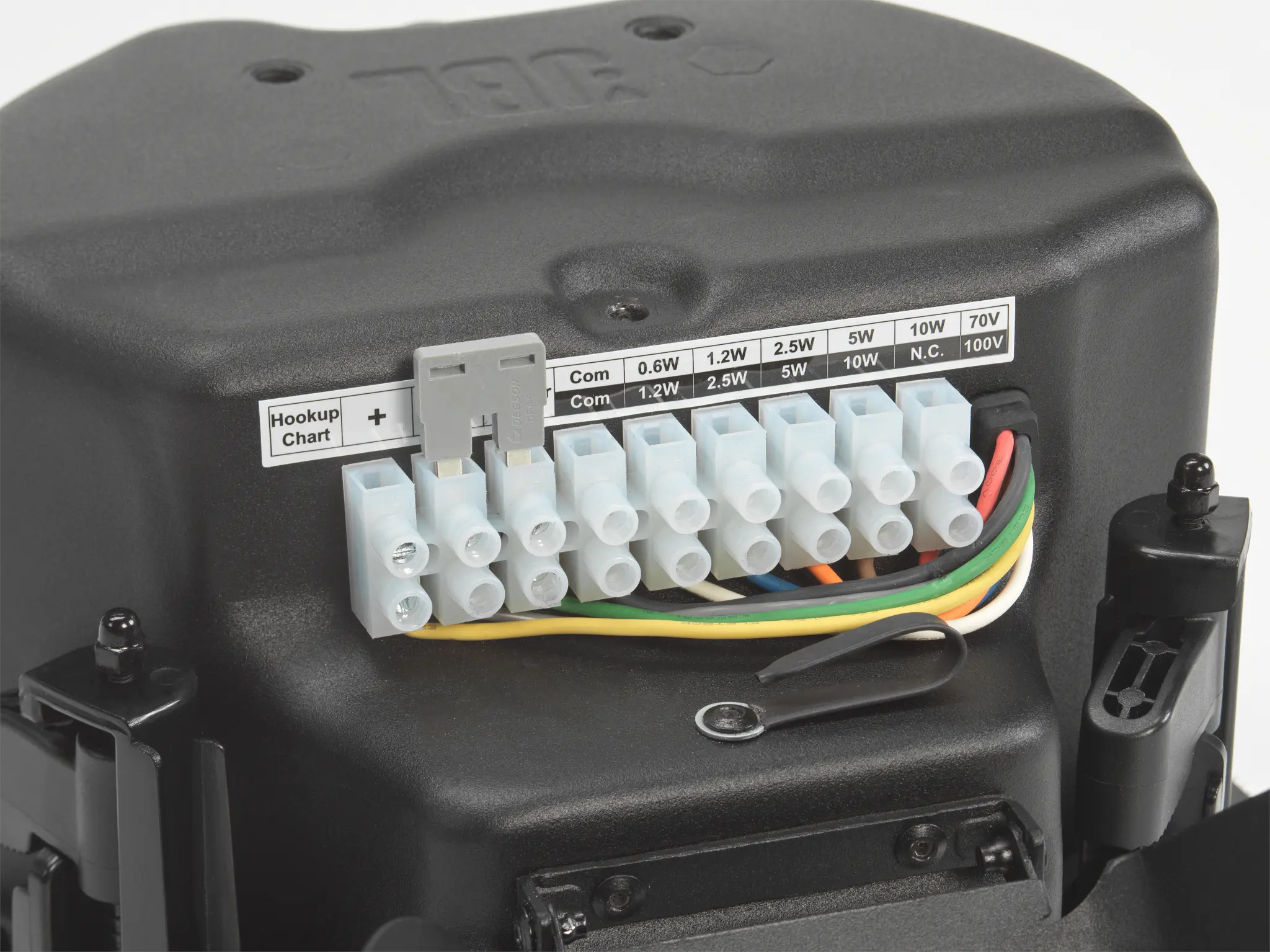

• Transformer Taps
  • 70 V: 10 W, 5 W, 2.5 W, 1.2 W & 0.6 W
  • 100 V: 10 W, 5 W, 2.5 W & 1.2 W

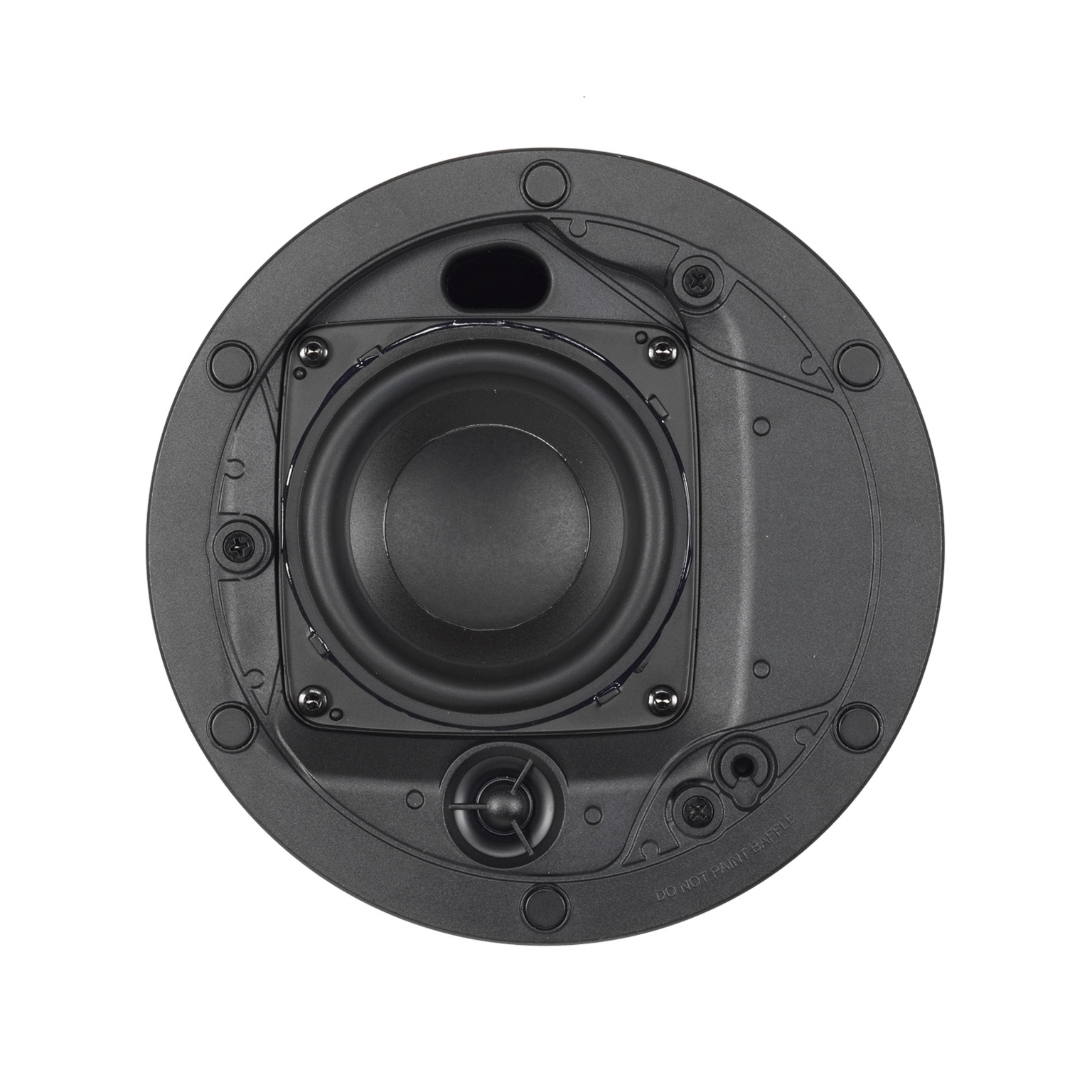

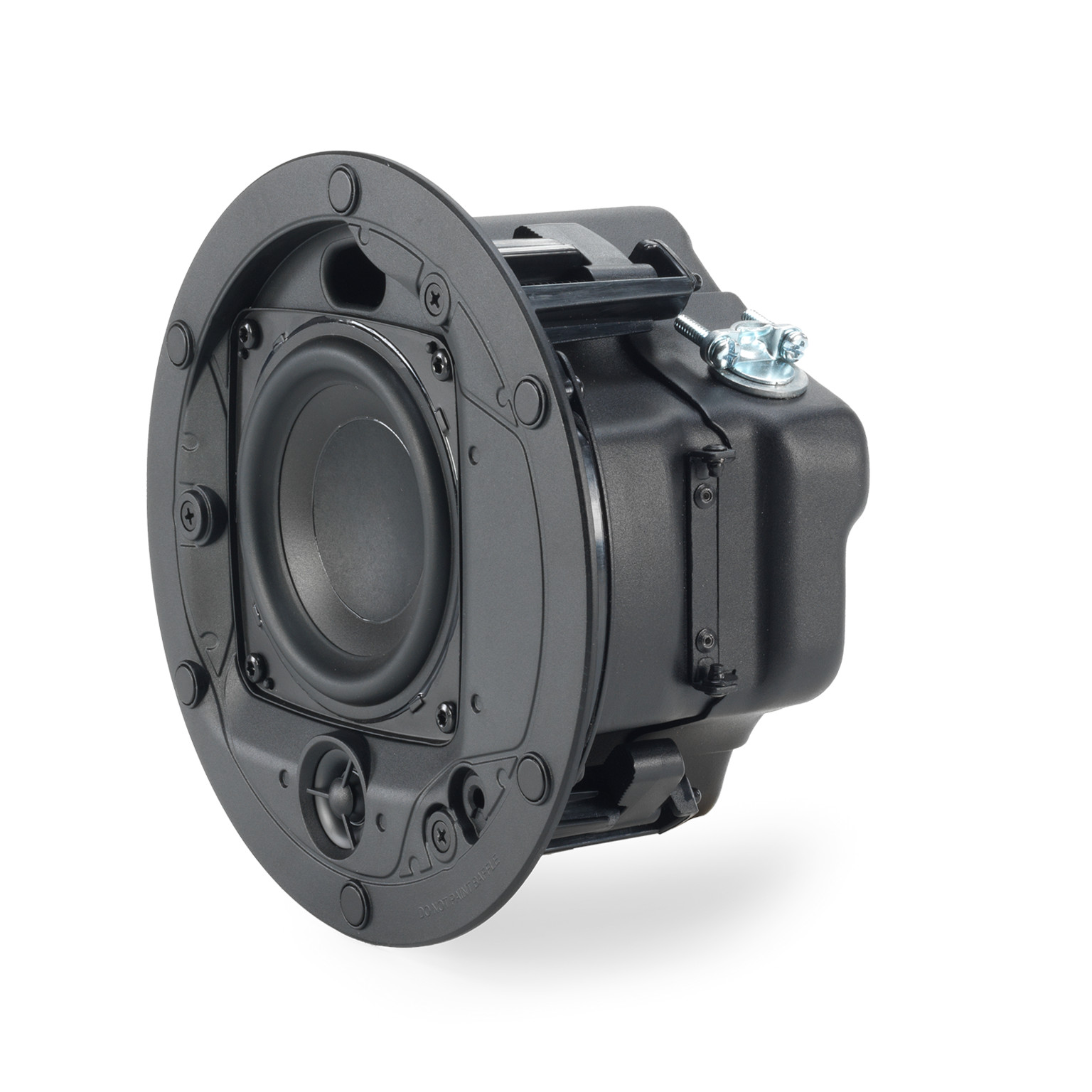

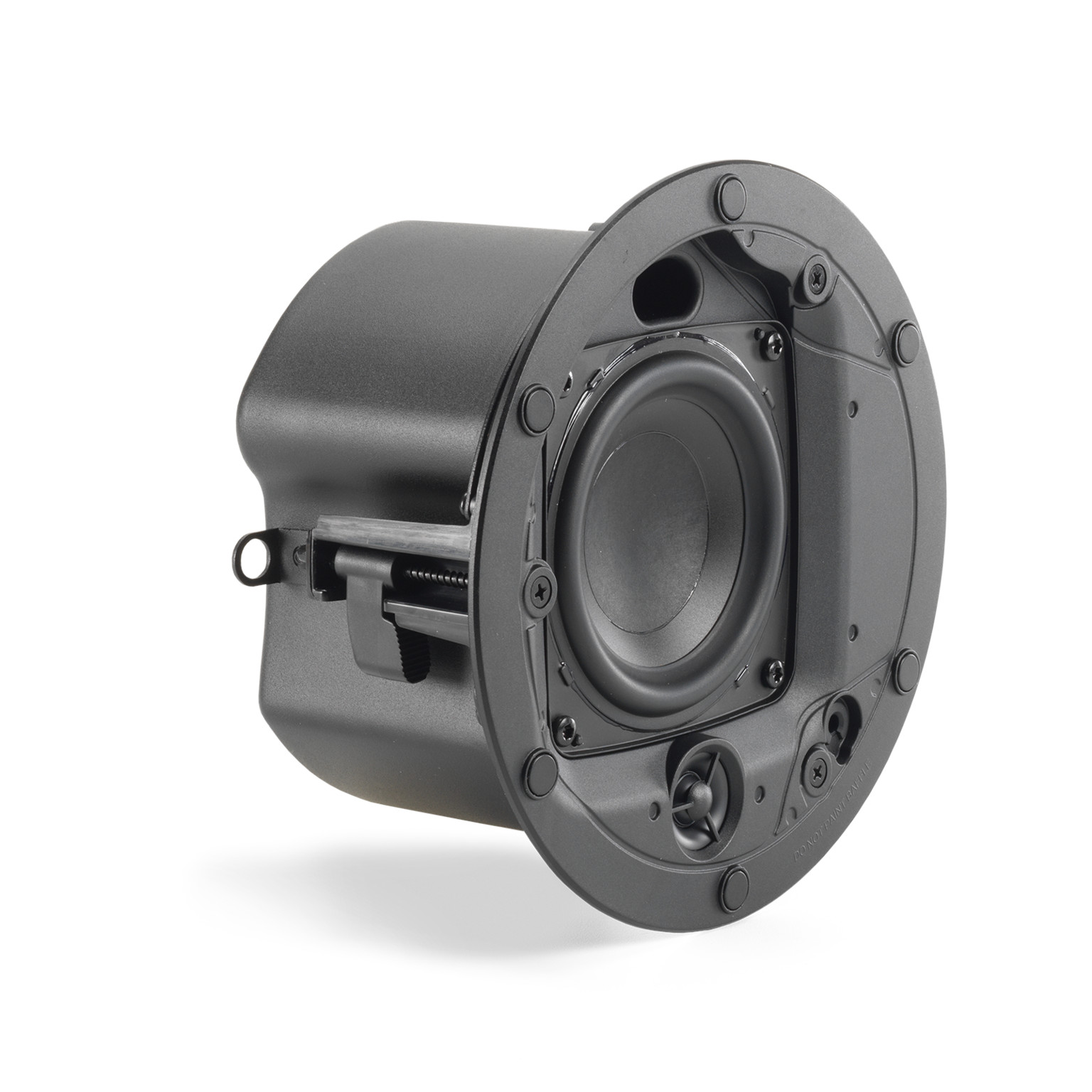

• Drivers
  • LF: 103 mm (4 in) with PP cone and paper cup, SBR surround
  • HF: 13 mm (0.5 in) PEI dome
• Ceiling Cutout Size: 168 mm (6.6 in)
• Safety Agency Rating: Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
• Environmental
  • IP rating: IP33 per EN/IEC 60529.
  • Operating temperature: 0° C to 45 °C.
• Color: Stock grille is white, paintable
• Dimensions (HxDia.): 4.6 x 8.1 in (114 x 203 mm)
  • Bottom of ceiling tile to top of backcan: 4.2 in (105 mm)
• Weight (each): 4.65 lbs (2.11 kg)

What's Included

• 2x Jumper
• 2x Cable Strain Relief
• 2x White Round Bezel-less Grille (with pre-attached safety tether and tether clip)
• 2x Cutout Template
• 2x C-Ring
• 4x Tile Rails (fits both 2 x 4 ft and 600 x 1200 mm tiles)
• 2x C-Ring / Tile-Rail Screws
• 2x Seal Cover
