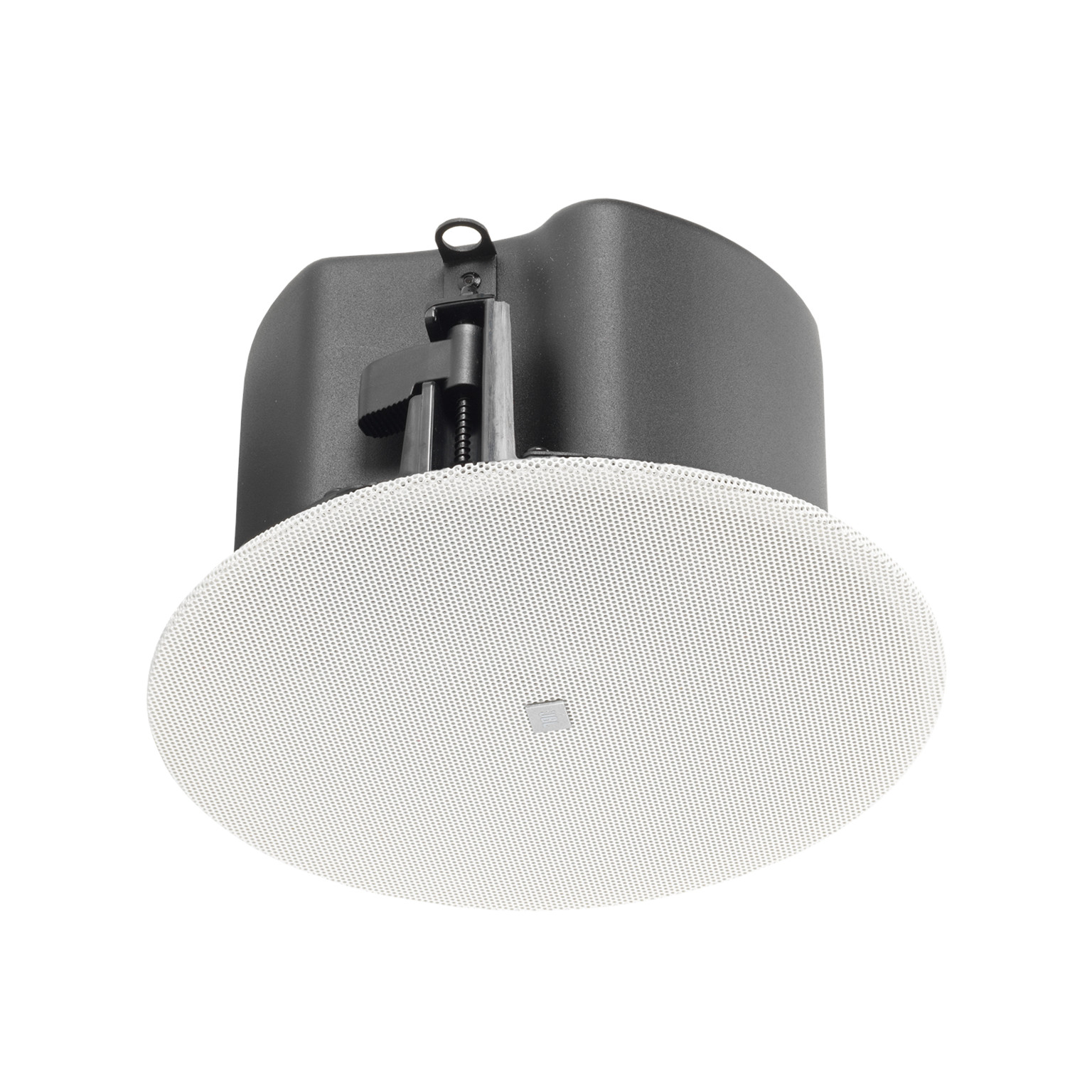

JBL Control 414C/T MicroPlus 4in Two-Way Low-Profile Ceiling Loudspeaker (Pair)

About: JBL Control 414C/T MicroPlus 4in Two-Way Low-Profile Ceiling Loudspeaker (Pair)

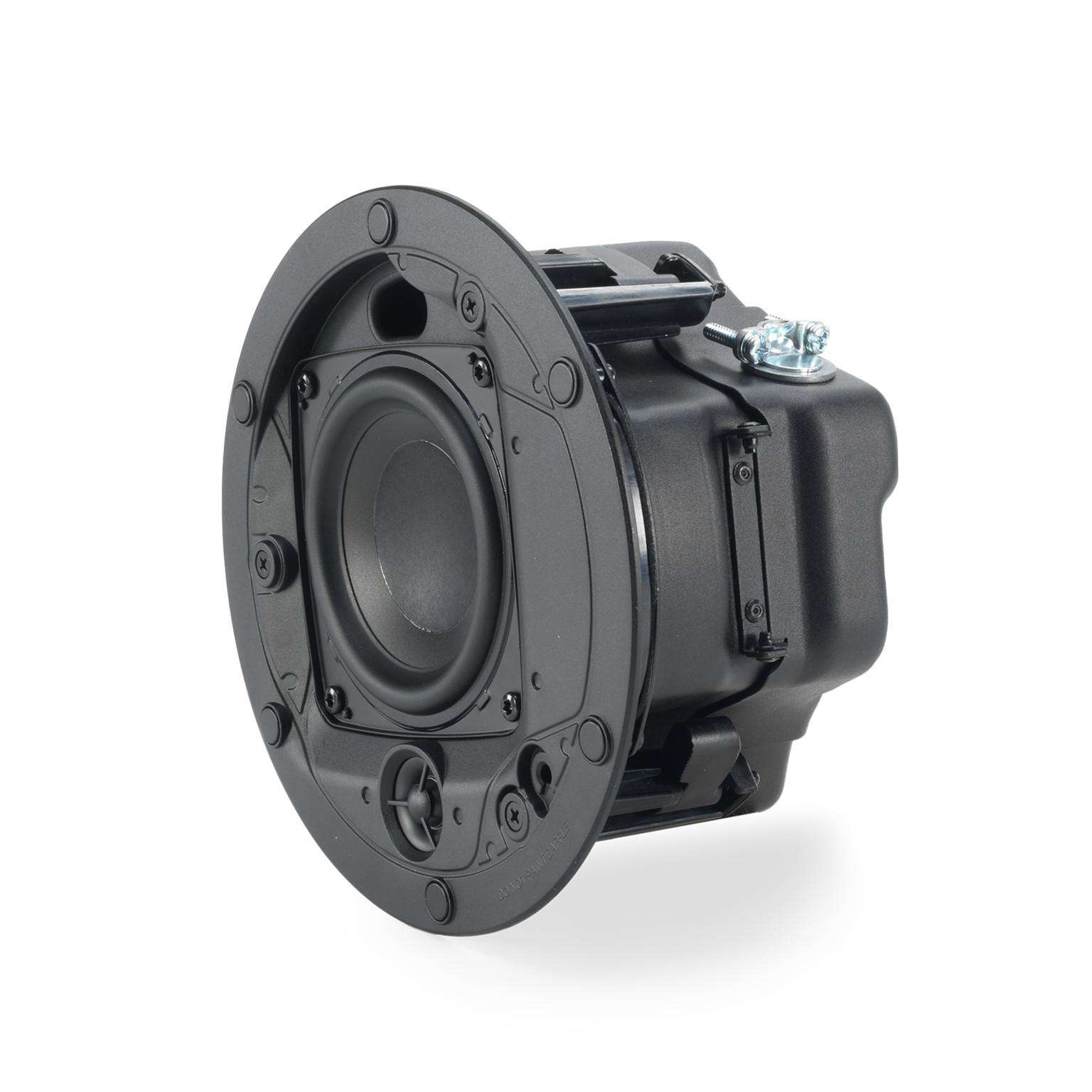

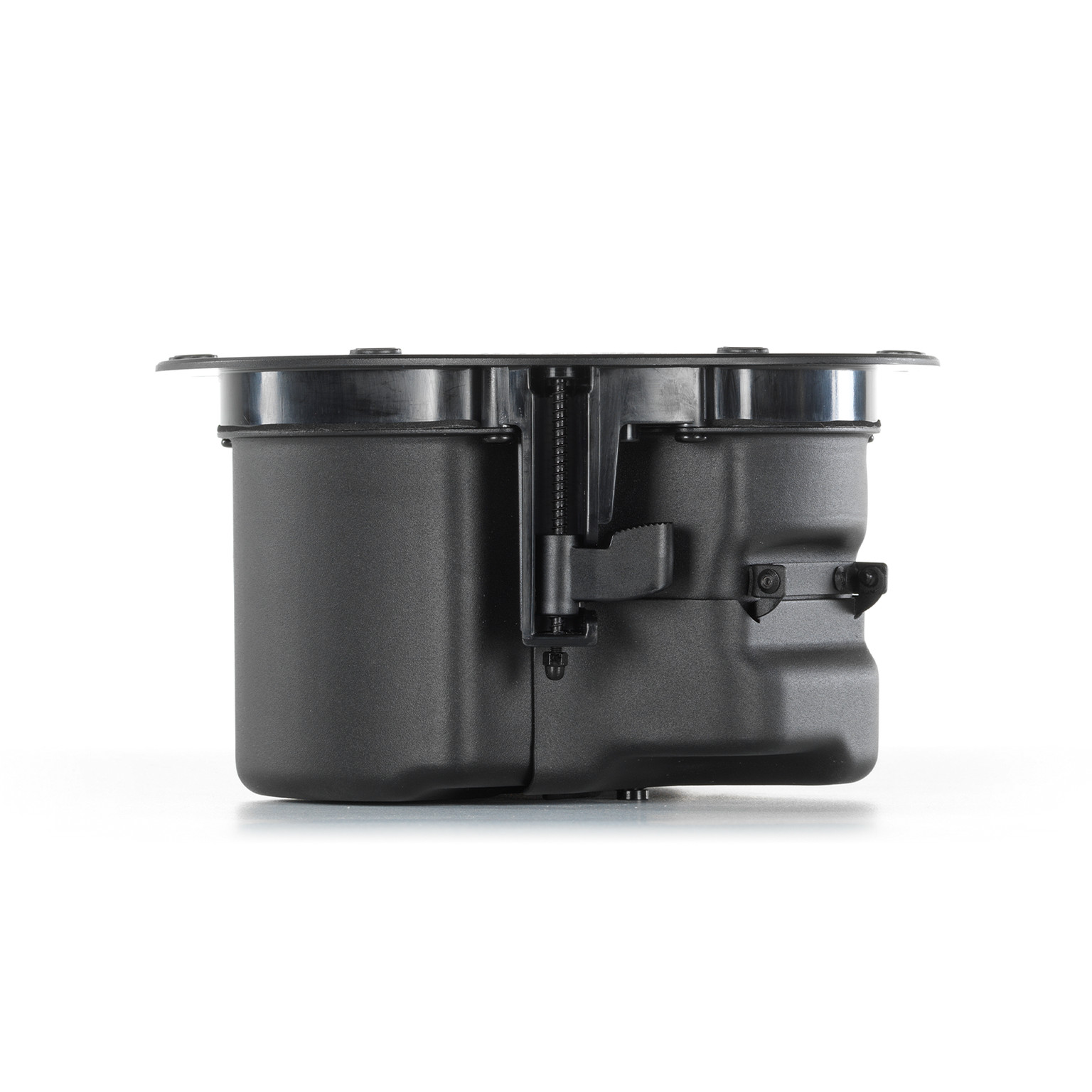

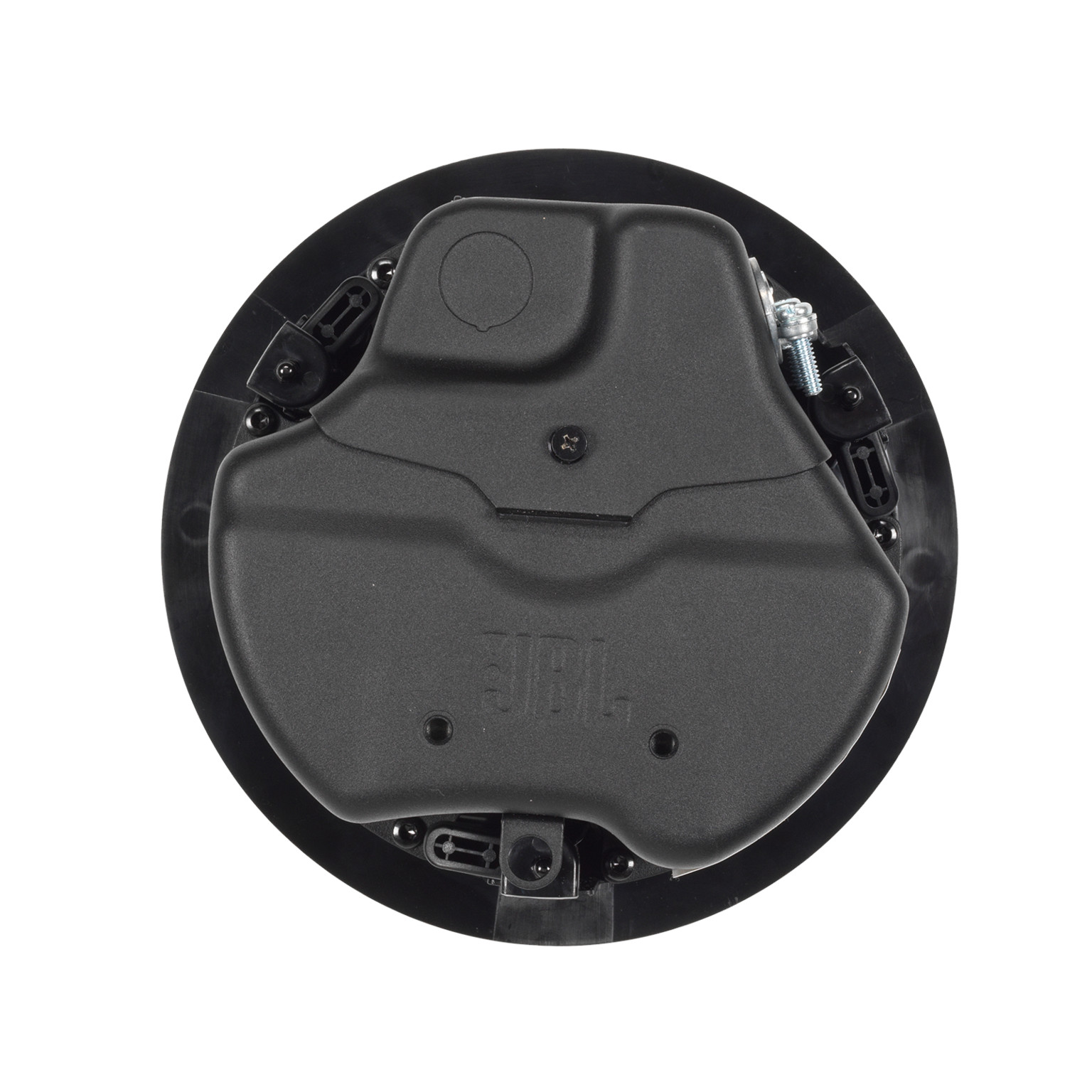

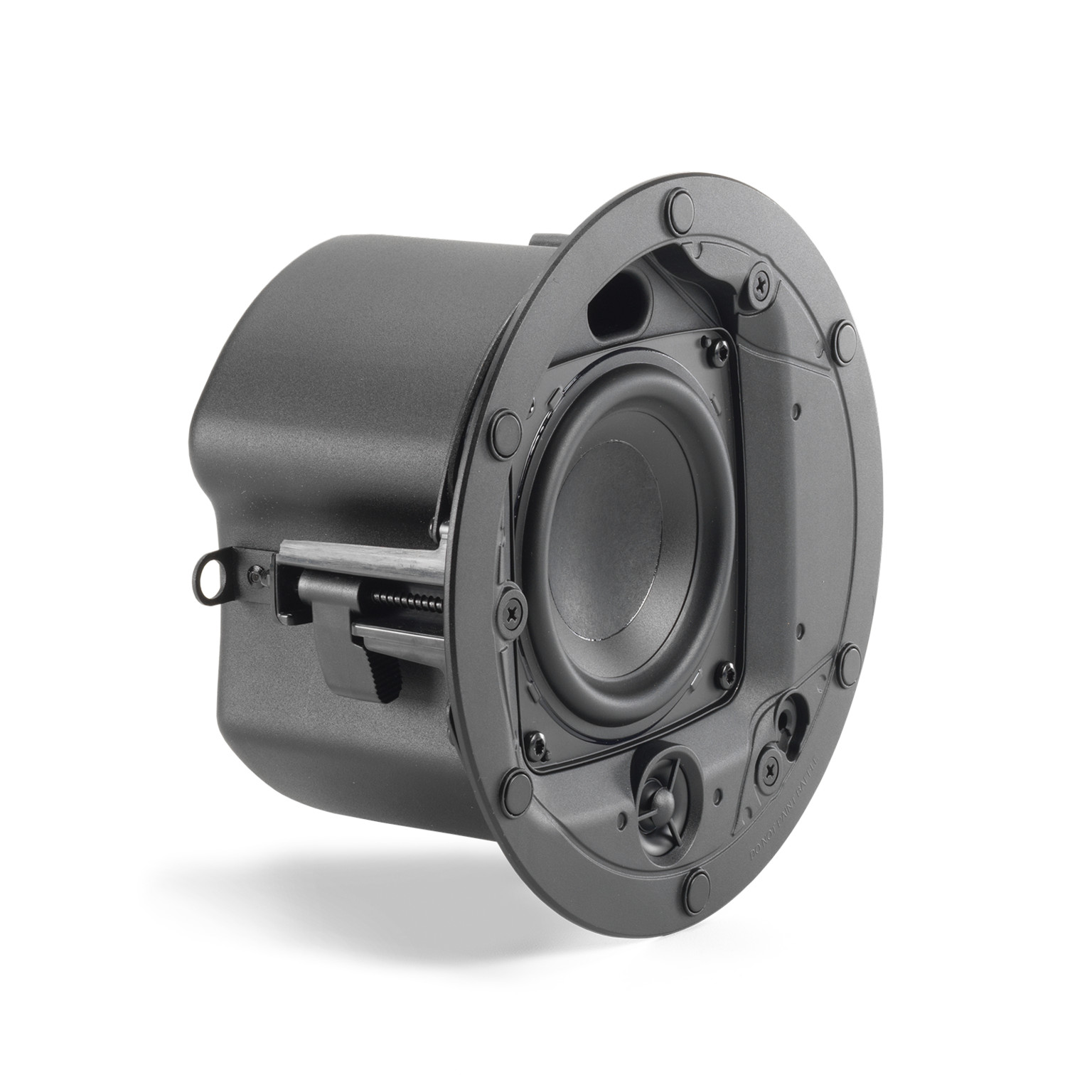

Part of the Control 400 collection’s Standard Coverage Series, the Control 414CT MicroPlus is a two-way ceiling speaker with a 103mm (4 inch) woofer and 13mm (0.5 inch) soft-dome tweeter. The drivers are mounted in a ported baffle, with a pre-attached backcan for quick and easy installation. The Control 414CT MicroPlus is designed to provide exceptional sound quality for background music and music-plus-paging systems. These speakers are ideally suited for a wide range of low to medium volume applications such as music café’s, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more.

• Two-way speaker with 103 mm (4 in) woofer and 13 mm (0.5 in) tweeter
• Stylish bezel-less grille blends elegantly into room design.
• Extremely wide 160° coverage
• Wide 69 Hz - 25 kHz Frequency Range
• Included 25W transformers for use with 70V/100V distributed audio systems

The 160° coverage is especially wide, delivering consistent sound quality for listeners located both off and on axis.

Wide frequency response and low distortion make the Control 414CT MicroPlus ideal for sound systems requiring a higher fidelity sound. For applications where more bass is desired, the Control 414CT MicroPlus is tuned to pair well with the Enhanced Coverage Series Control 419CS/T subwoofer.

The built-in 25W UL-registered transformer is designed for exceptionally low-saturation, even at high drive levels, providing top quality, low distortion distributed sound character.

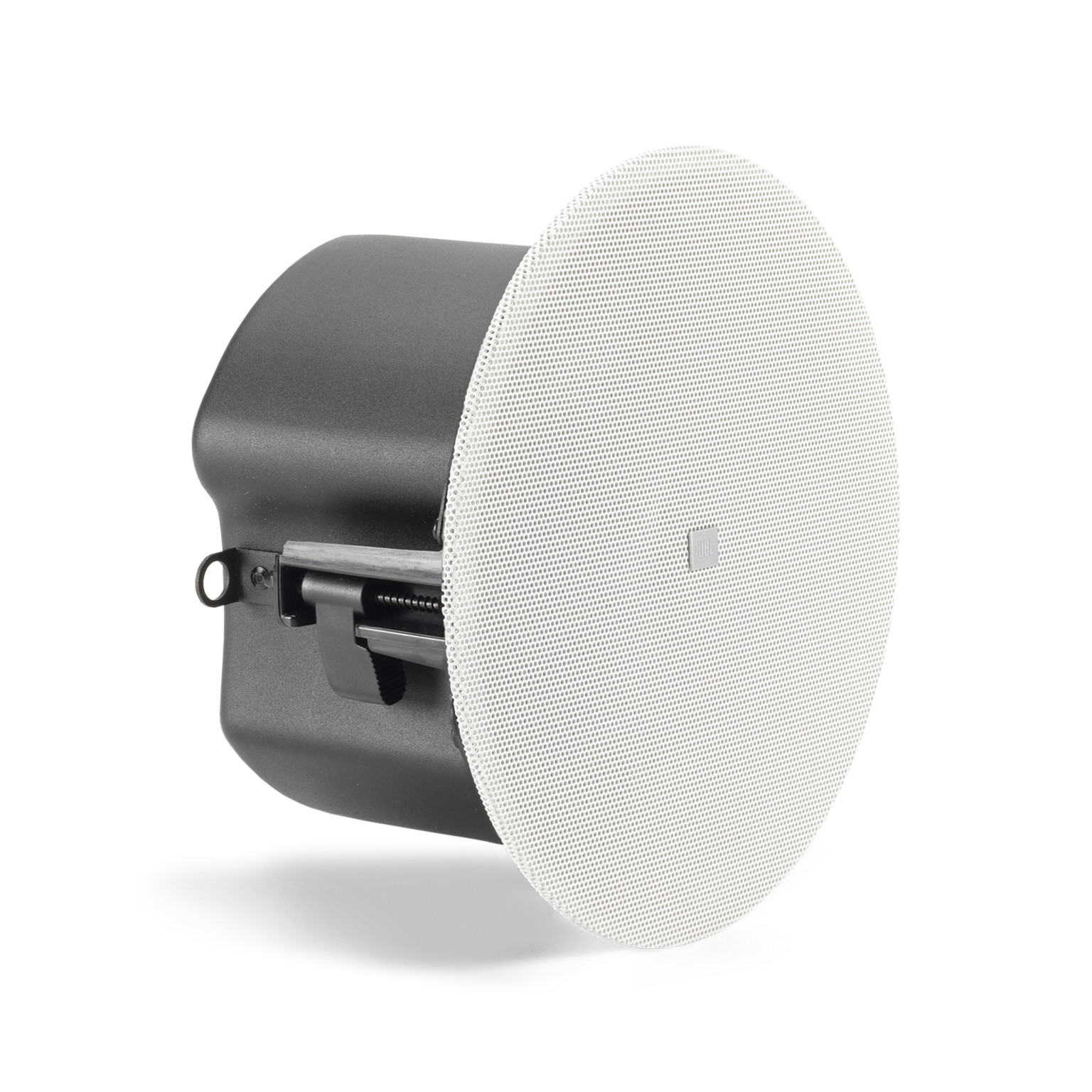

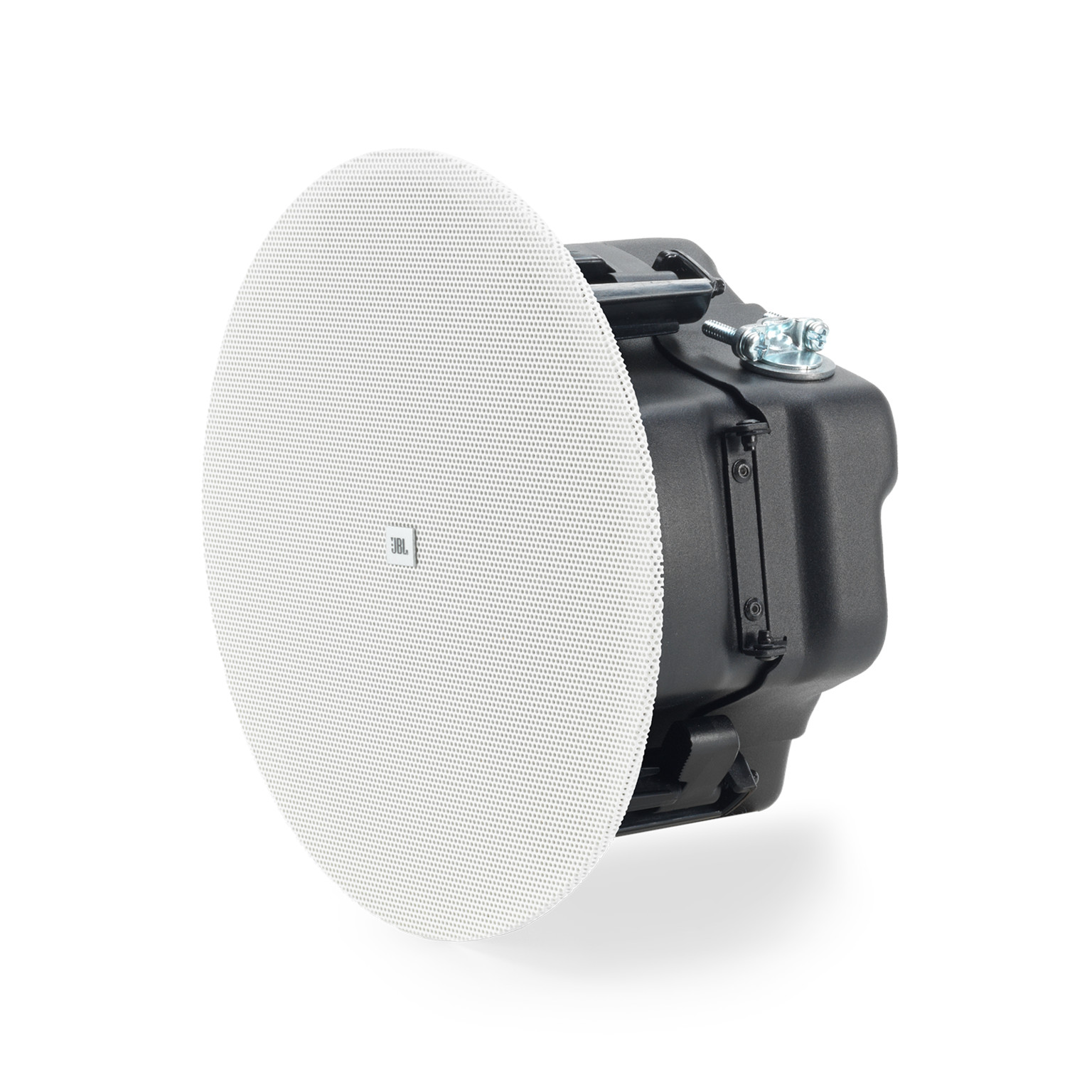

The full-face bezel-less grille blends beautifully into room décor, and the magnetic attachment of the grille is supplemented with an easy-to-apply safety tether. The speaker is packaged with grille, integral backcan, C-ring, and tile rails for fast installation. The included white grille is paintable (grille backing is removeable and re-applicable for painting), and optional accessory grilles are available in black (JBL-MTC-414BG) and in square (JBL-MTC-414SG, white only).

Specifications

• Frequency Range (-10 dB): 69Hz - 25kHz
• Frequency Response (±3 dB): 93 Hz – 21 kHz
• Power Capacity: 25 W (100 W Peak) Cont. Pink Noise Power (100 hrs)
• Sensitivity (1m/1W): 85dB
• Coverage Angle: 160° conical
• Maximum SPL (1m): 99 dB continuous pink noise (105 dB peak)
• Nominal Impedance: n/a

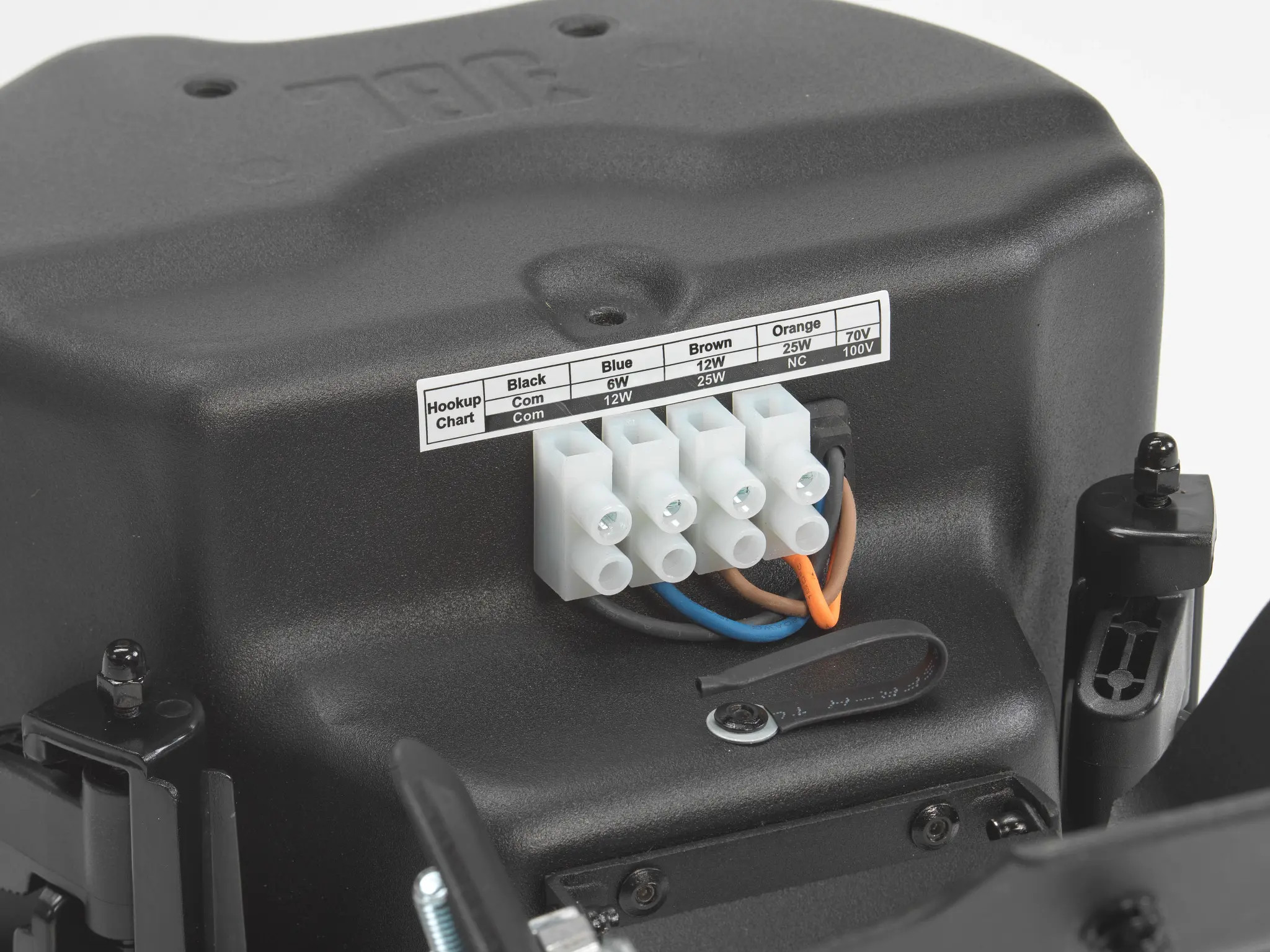

• Transformer Taps
  • 70 V: 25 W, 12 W & 6 W
  • 100 V: 25 W, 12 W

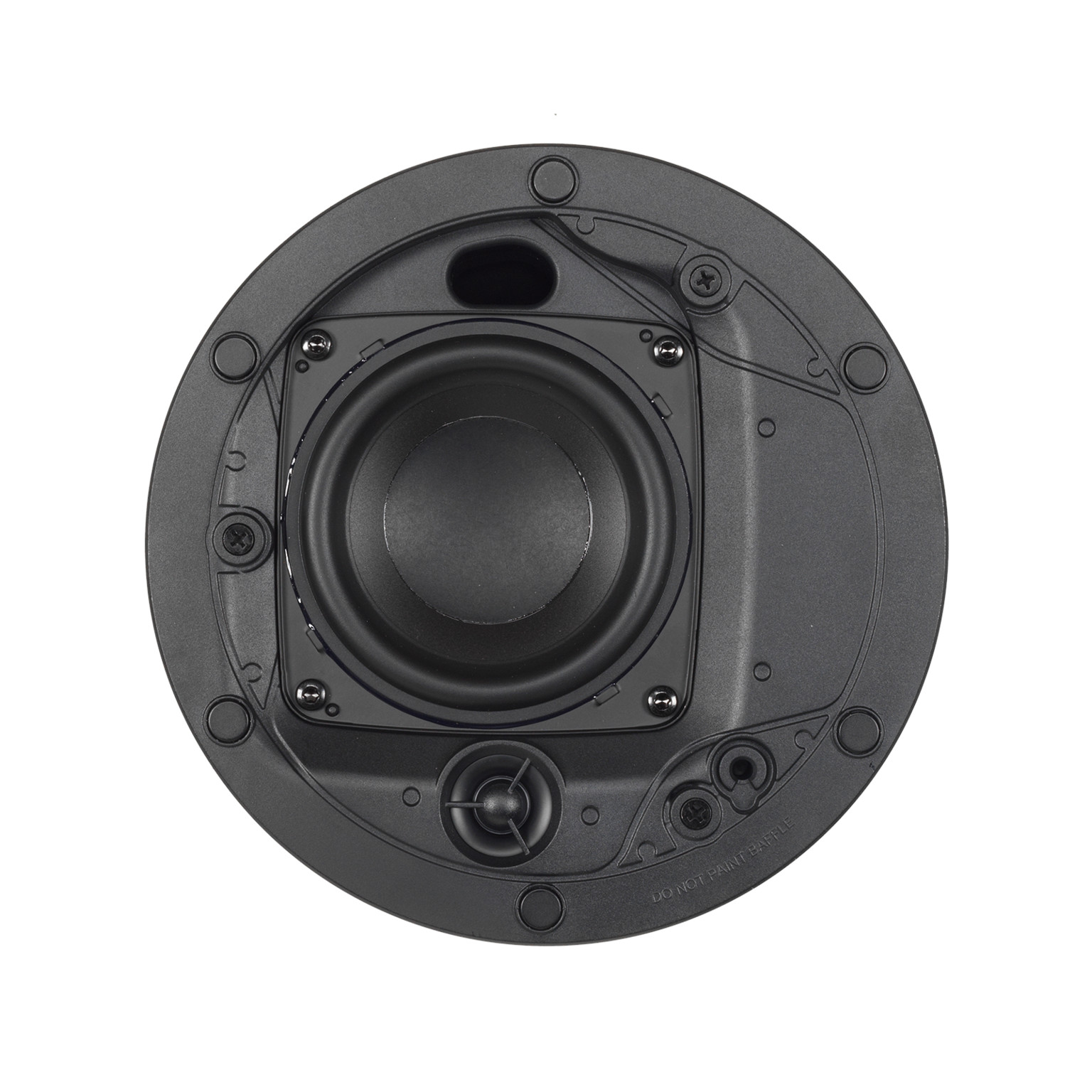

• Drivers
  • LF: 103 mm (4 in) with PP cone and paper cup, SBR surround
  • HF: 13 mm (0.5 in) PEI dome
• Ceiling Cutout Size: 168 mm (6.6 in)
• Safety Agency Rating: Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
• Environmental
  • IP rating: IP32 per EN/IEC 60529.
  • Operating temperature: 0° C to 45 °C.
• Color: Stock grille is white, paintable
• Dimensions (HxDia.): 4.6 x 8.1 in (114 x 203 mm)
  • Bottom of ceiling tile to top of backcan: 4.2 in (105 mm)
• Weight (each): 4.67 lbs (2.12 kg)

What's Included

• 2x Jumper
• 2x Cable Strain Relief
• 2x White Round Bezel-less Grille (with pre-attached safety tether and tether clip)
• 2x Cutout Template
• 2x C-Ring
• 4x Tile Rails (fits both 2 x 4 ft and 600 x 1200 mm tiles)
• 2x C-Ring / Tile-Rail Screws
• 2x Seal Cover
