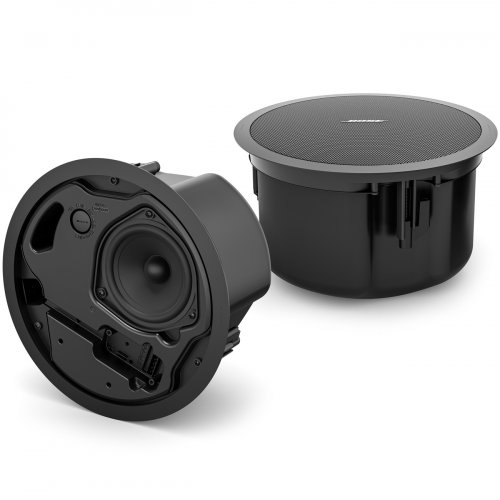

Bose FreeSpace FS4CE In-Ceiling loudspeaker (Pair) - Black

Model: 841156-0110

Bose FreeSpace FS4CE In-Ceiling loudspeaker (Pair) - Black
Call for Price
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed
Call for details



About: Bose FreeSpace FS4CE In-Ceiling loudspeaker (Pair) - Black

The Bose sound quality you expect. The improvements you need. FreeSpace FS loudspeakers are the next step of our widely trusted line of in-ceiling and surface-mount loudspeakers, offering significant upgrades in durability, design, and ease of installation — all with remarkably consistent tonality. Engineered for high-quality performance in both background music and voice announcement applications, FS loudspeakers are ideal for almost any commercial space. The line includes five loudspeakers, two distinct levels of sound, new mounting options, and a modern aesthetic to match. For those seeking consistent, quality installed sound, FreeSpace FS loudspeakers are the perfect mix of performance and value.

Features

  • Full-range 4.5-inch transducer, low-frequency range down to 70 Hz, 8-ohm and 70/100V operation
  • Front baffle-mounted tap settings and front-baffle audio connections
  • Handles the weather, designed for outdoor wet installation
  • Maintain consistent tonal quality with shared voicing across all FS models
  • Hear the best of both — music and voice — with transducers that offer clear voice reproduction and smooth response for background music
  • Blend with more room designs with updated enclosures — available in black and white — that pair modern aesthetics with practical features, including removable logos
  • Tackle site-specific challenges with the support of a full suite of accessories, designed to handle a wide range of applications and mounting options
  • Install with ease — all models feature Euroblock inputs and front-baffle input location on in-ceiling models
  • Support public safety — all models are UL 1480 ULC-S541-listed for use in fire alarm and signaling systems in life safety applications

Specifications:

  • Frequency Response (-3 dB) 80 - 16,000 Hz
  • Frequency Range (-10 dB) 70 – 17,000 Hz
  • Nominal Coverage Angle 145°
  • Nominal Coverage (1 - 10 kHz) 115°
  • Transformer Taps
    • 70V: 2.5, 5, 10, 20, 40W, bypass
    • 100V: 5, 10, 20, 40W, bypass
  • Full-Range Driver 1 x 4.5-inch woofer (114 mm)
  • Nominal Impedance 8 ohms (transformer bypass)
  • Enclosure Material Engineered-plastics front baffle, highly UV fade resistant, with integrated steel formed back can
  • Grille Perforated steel, powder-coated finish
  • Logo Rotatable, removable
  • Color Black: similar to Ral 9005
  • Environmental/Ingress-Protection Outdoor iP55 (suitable for use outdoors in wet locations), includes weather resistant input cover
  • Safety Agency Certification: UL 1480, ULC-S541 for Fire Alarm and Signaling Systems
  • Installation: NFPA 70, NFPA 72, CSA C22.1 Section 32, in accordance with IEC60268-5, CE RoHS
  • Operating Temperature Range -25 °C to 70 °C (-13 °F to 158 °F)
  • Connectors Euro block 6-pin connector with loop-through, front-baffle mounted. Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire
  • Suspension/Mounting Suspension/Mounting Three (3) standard mounting arms plus one (1) safety cable tab
  • Wire/Conduit Entry Wire/Conduit Entry Top and side wire entry point 1/2-inch knockouts allow for 9.5 mm (3/8 in) conduit and fittings
  • Optional Accessories Adjustable Tile-Bridge 6-Pack, DesignMax DM5CRI Rough-in kit 6-pack, Retrofit Kit, Ceramic terminal w/ Fuse kit, Aluminum Grille Kit which prevents red corrosion
  • Maximum Ceiling Thickness 1.5" (38 mm)
  • Ceiling Cutout 9.84" (250 mm)
  • Backcan Dimensions (Dia x D) 9.1" (231 mm) x 6.42" (163 mm)
  • Dimensions (Baffle Dia x D) 10.71" (272 mm) x 6.8" (172 mm)
  • Net Weight 7.65 lbs (3.47 kg)
  • Shipping Weight (Pair) 19.95 lbs (9.05 kg)

UPC: 017817818926

Reviews: Bose FreeSpace FS4CE In-Ceiling loudspeaker (Pair) - Black

There are currently no product reviews.


Warranty: Bose FreeSpace FS4CE In-Ceiling loudspeaker (Pair) - Black

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

  • The Bose® Limited Warranty for Professional Systems products that are designated weather rated or environmental lasts two years from the purchase date for exterior finish or appearance of speaker enclosures and speaker brackets and five years for the speaker components

  • The Bose® Limited Warranty for Professional Systems products lasts five years from the purchase date for speaker components that are not self-powered (amplified)

  • The Bose® Warranty for Professional Systems products lasts two years from the date of purchase for electronic products, and accessories

  • The Bose® Limited Warranty for Professional Systems products lasts five years from the date of purchase for the PowerMatch® amplifiers, the ControlSpace® SP-24 / ESP-00 II / ESP-880 / ESP-1240 / ESP-4120 / ESP-1600 sound processors, and the FreeSpace® IZA / ZA amplifiers

  • The Bose® Limited Warranty for Professional Systems products lasts two years from the date of purchase for powered component speakers for the electronics and five years for the speaker components
