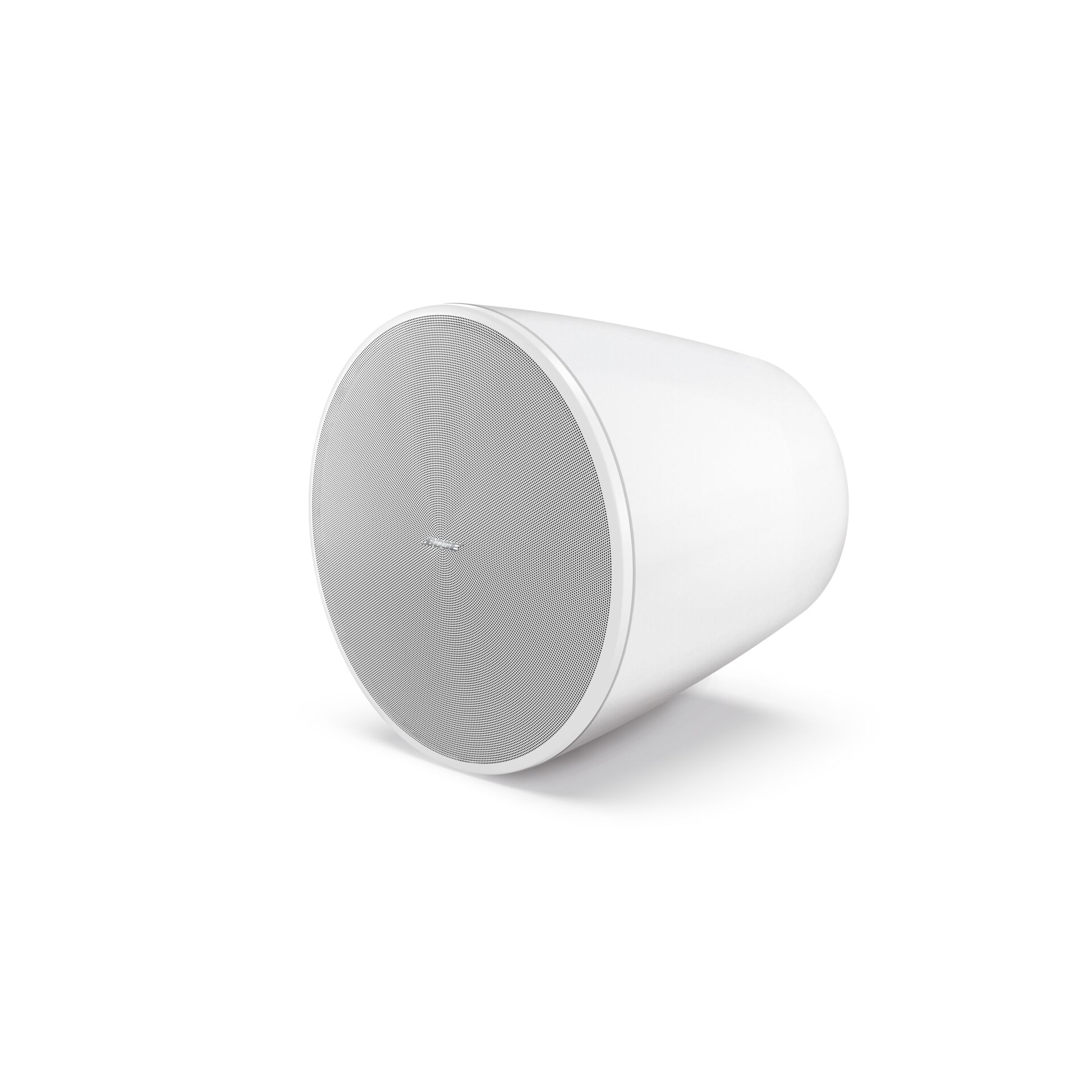

Bose DM10P DesignMax 10in Pendant Subwoofer (Each) - White

About: Bose DM10P DesignMax 10in Pendant Subwoofer (Each) - White

Delivering rich low-end performance, the DesignMax subwoofers bring instantly impressive bass to any commercial sound installation. The 300-watt Bose Professional DM10P-SUB is a 10-inch pendant subwoofer with a 40–125 Hz frequency range and has a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.

• Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
• Choose from three DesignMax subwoofer models — the 180-watt in-ceiling DM8C-SUB, the 300-watt surface-mounted DM10S-SUB, and the sleek 300-watt DM10P-SUB pendant subwoofer
• Deliver rich bass performance with custom drivers; for optimal performance, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
• Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
• Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
• Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access

Specifications

• PERFORMANCE
  • Frequency Range (-10 dB): 40 Hz – 125 Hz
  • Coverage, Horizontal: Omnidirectional below 200 Hz
  • Calculated Maximum SPL @ 1 m: 110 dB
  • Nominal Impedance: 8 Ω (transformer bypass)
  • Power Handling, long-term continuous: 250 W
  • Power Handling, Peak: 1000 W
  • Recommended Signal Processing: Not required, Bose Professional EQ voicing and SmartBass processing available
  • Sensitivity (SPL/1 W at 1 m): 85 dB
  • Transformer Taps, 100V: 40, 80, 150 W, bypass
  • Transformer Taps, 70V: 20 W, 40 W, 80 W, 150 W, bypass
  • Coverage, Vertical: Omnidirectional below 200 Hz
• TRANSDUCERS
  • Crossover: 80 Hz – 200 Hz via active crossover in DSP
  • Driver Protection: Recommended high-pass protection 45 Hz with recommended 24 dB/octave filter
  • Low-Frequency: 1 x 10 in (254 mm) woofer
• COMPLIANCE
  • Safety Agency Ratings: UL 1480A, UL 2239 for suspension cable, NFPA 70 & NFPA 90A, CE-compliant
• PHYSICAL
  • Colors: White, paintable
  • Enclosure Material: Engineered plastics
  • Environmental: Indoor only
  • Grille: Perforated steel, powder-coated finish
  • Logo: Rotatable, removable
  • Connector: Euroblock 6-pin connector with loop-through, mounted on top
    • Accepts 18 AWG (0.8 mm) to 14 AWG (2.5 mm) size wire.
  • Suspension/Mounting: 1x suspension attachment point, 1x safety cable attachment point
  • Operating Temperature Range: 0 °C to 50 °C (32 °F to 122 °F)
  • Product Dimensions (Enclosure Diameter × Depth): 15.7 in x 15.1 in (400 x 383 mm)
  • Weight: 19.7 lb (8.9 kg)

What's in the Box

• 1x DesignMax DM10P-SUB subwoofer
• 4x Cable ties
• 1x Suspension cable, 15.0 ft (4.5 m)
• 1x Installation guide
• 1x Cable fastener
• 1x Cable fastener tool
