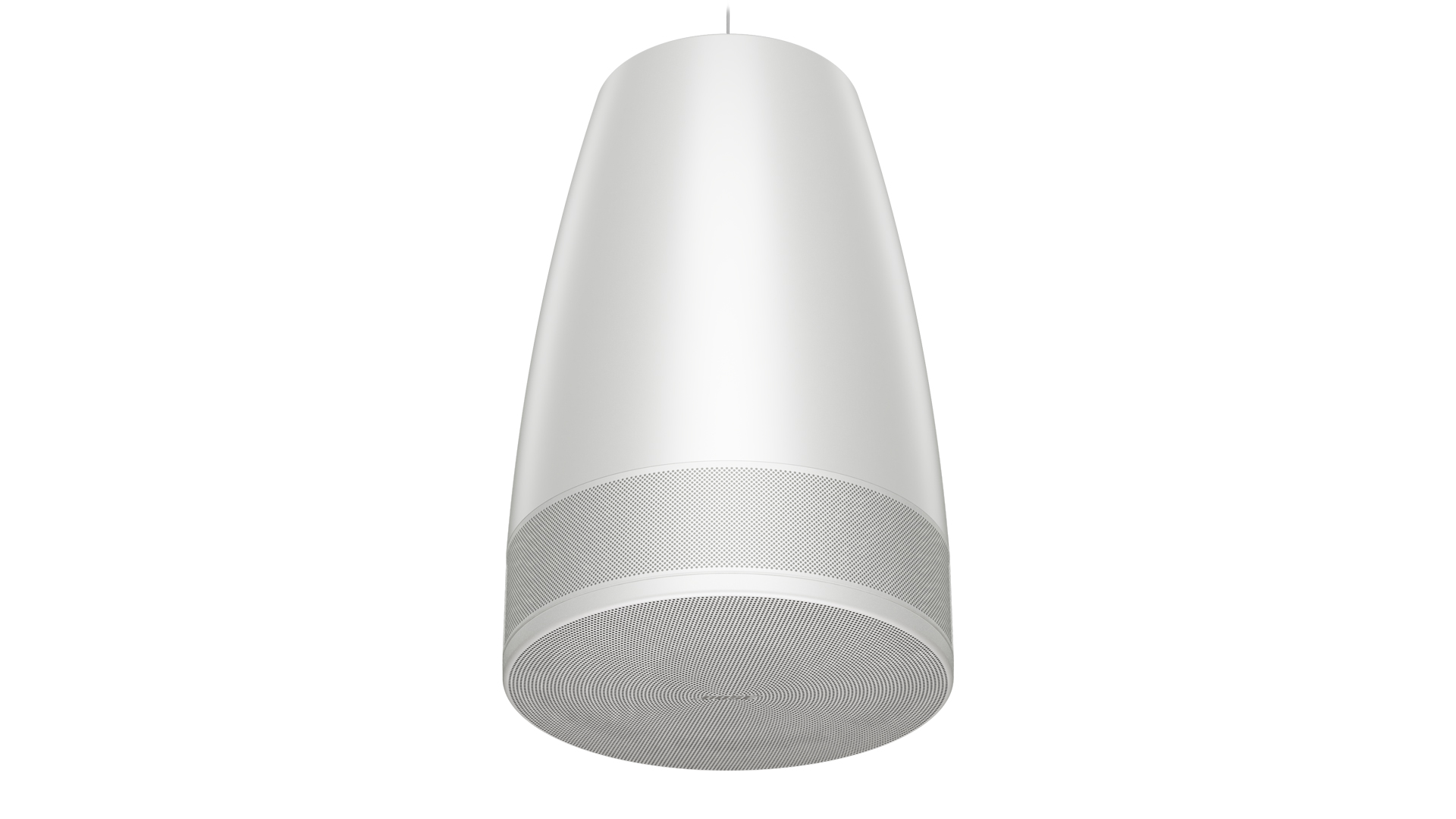

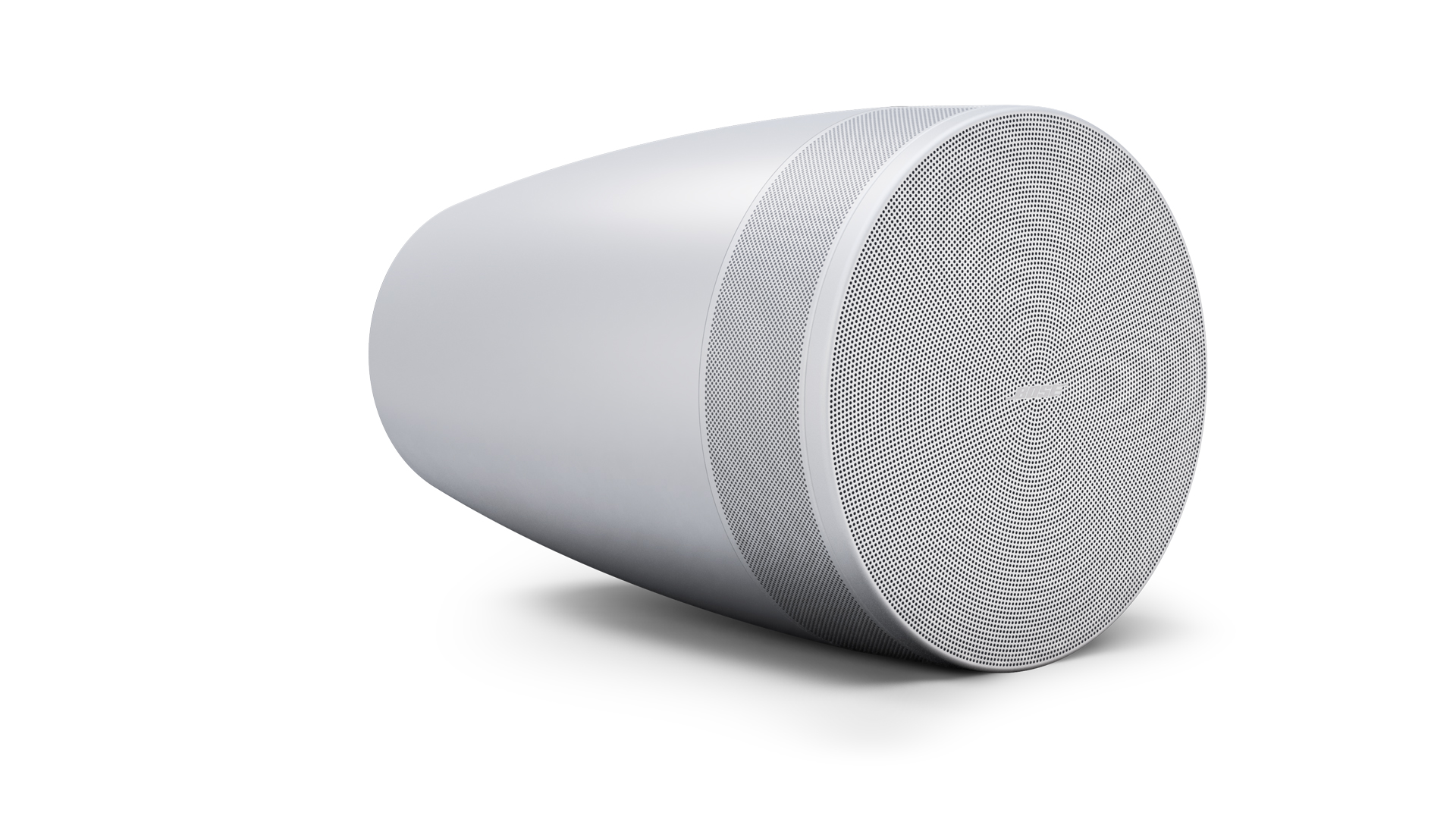

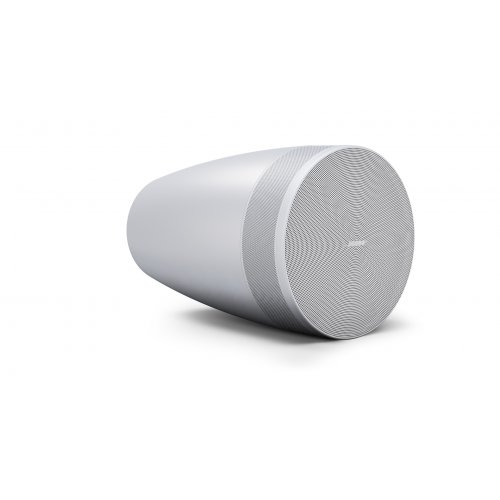

Bose DML88P DesignMax Luna Pendant Loudspeaker (Each) - White

About: Bose DML88P DesignMax Luna Pendant Loudspeaker (Each) - White

The DesignMax Luna pendant loudspeaker offers full-range performance from a sleek, modern design—making it easy to get great sound in open-ceiling spaces. The proprietary Ring Array configuration combines eight 2-inch mid-high drivers with an integrated 8-inch woofer, delivering clear, balanced sound down to 40 Hz. With 111 dB max SPL and consistent 140° coverage, Luna reduces the number of speakers needed while preserving clarity, aesthetics, and design flexibility. Single- or two-point suspension allows for fast installs and perfectly balanced hangs—even in challenging ceiling conditions—while concealed wiring keeps everything looking clean. Luna marks a giant leap forward in pendant loudspeakers, raising the bar for what’s sonically possible in retail stores, restaurants, fitness studios, and other design-conscious spaces.

• Proprietary Ring Array configuration delivers precise, balanced sound with no hot spots or dead zones
• Integrated 8” woofer extends down to 40 Hz—no subs needed
• Wide-throw 140° coverage reduces speaker count and installation costs
• Flexible mounting lets you use a single cable—or two-point suspension—for fast installs and perfectly balanced hangs
• Streamlined design with concealed wiring and premium finish options
• Factory-optimized loudspeaker presets when combined with Bose Professional amplifiers and processors
• Compatible accessories include DesignMax Pendant Threaded Rod Adapter and Conduit Adapter

Specifications

• PERFORMANCE
  • Frequency Range (-10 dB): 40 Hz – 20,000 Hz
  • Coverage, Horizontal: 140° conical
  • Calculated Maximum SPL @ 1 m: 107 dB
  • Nominal Impedance: 8 Ω (transformer bypass)
  • Power Handling, long-term continuous: 140 W
  • Power Handling, Peak: 560 W
  • Recommended Signal Processing: Not required, Bose Professional EQ voicing and SmartBass processing available
  • Sensitivity (SPL/1 W at 1 m): 85 dB
  • Transformer Taps, 100V: 25 W, 50 W, 100 W, bypass
  • Transformer Taps, 70V: 12 W, 25 W, 50 W, 100 W, bypass
  • Coverage, Vertical: 140° conical
• TRANSDUCERS

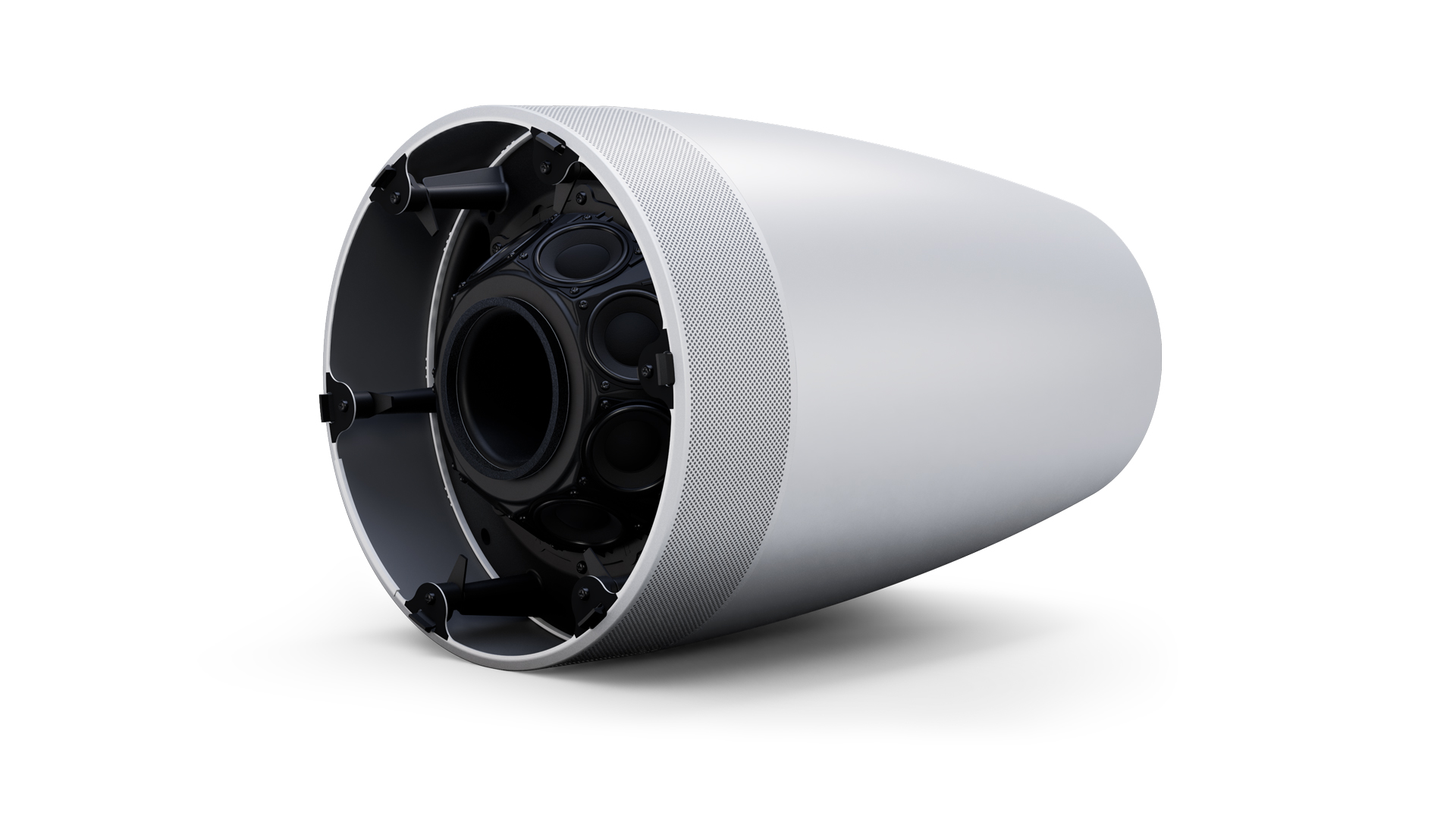

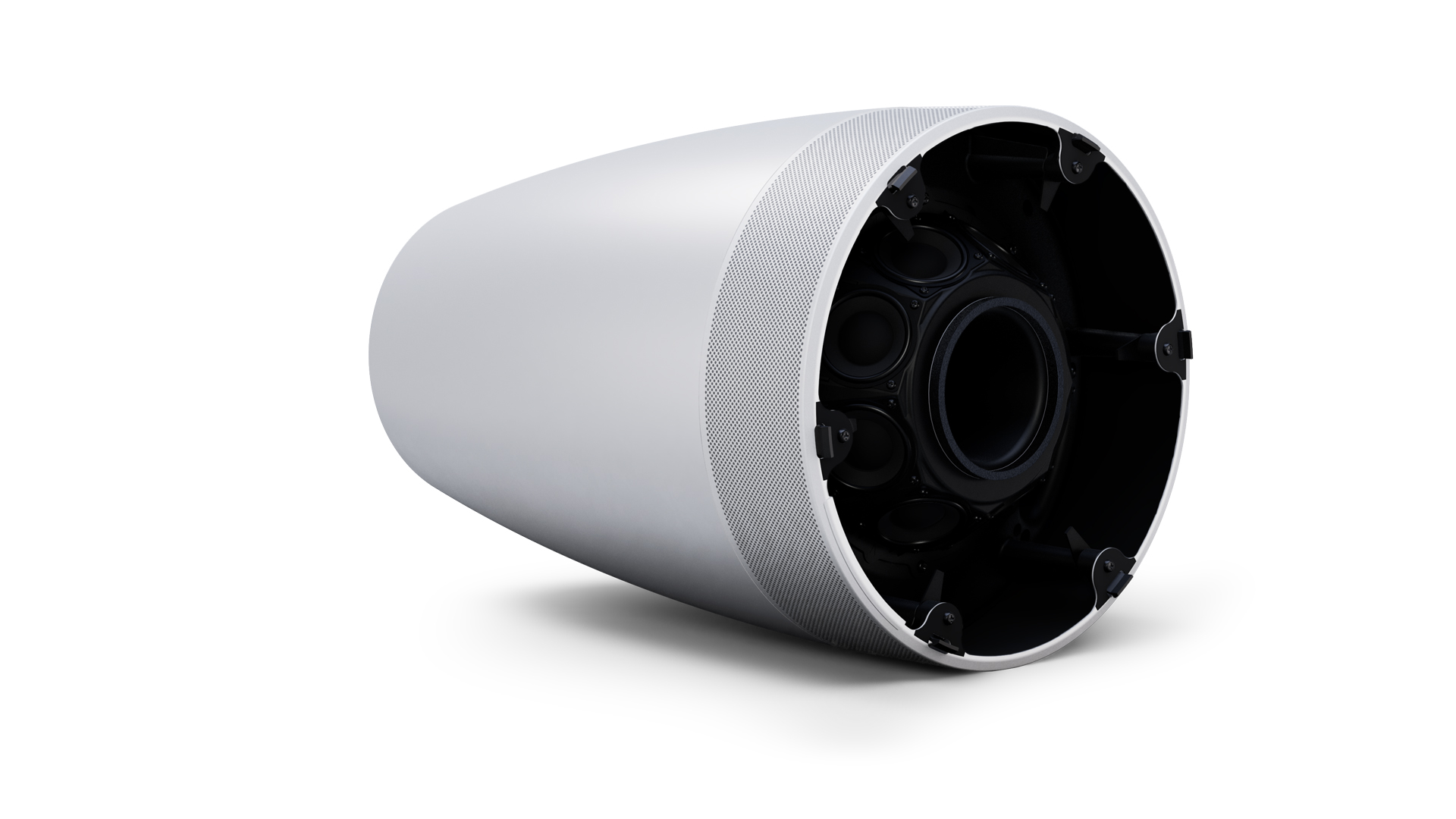

  • High-Frequency: 8 x 2.0-in (51 mm) drivers in circular array Low-Frequency
  • Low-Frequency: 1 x 8 in (203 mm) woofer
• COMPLIANCE
  • Safety Agency Ratings: UL Listed, UL 1480A, NFPA 70 & NFPA 90A, CE-compliant
• PHYSICAL
  • Colors: White, paintable
  • Enclosure Material: Engineered plastics
  • Environmental: Indoors only; UL Listed, UL 1480A, NFPA 70 & NFPA 90A, CE-compliant
  • Grille: Perforated steel, powder-coated finish, paintable
  • Logo: Rotatable, removable

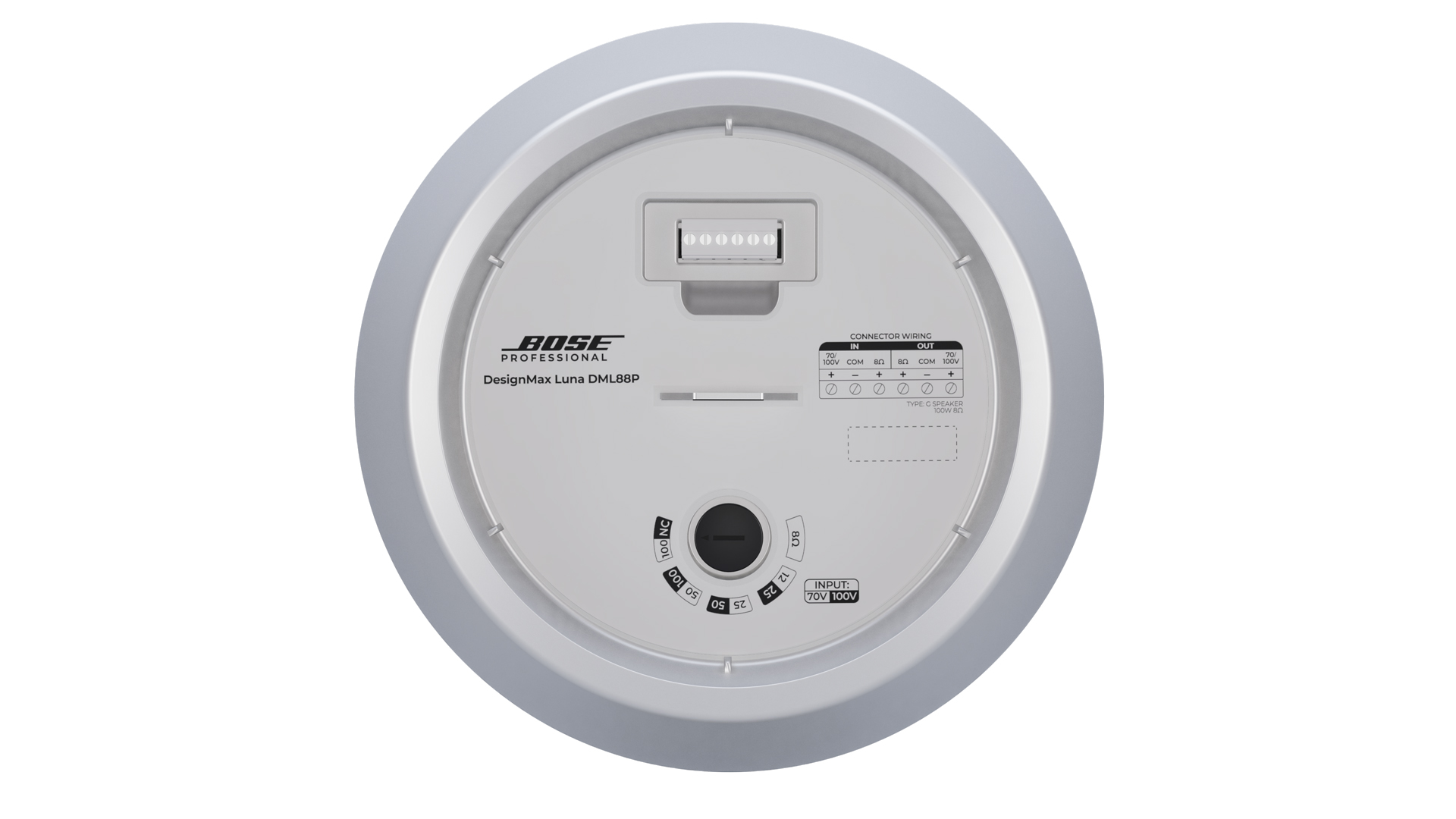

  • Connector: Euroblock 6-pin connector with loop-through, mounted on top
    • Accepts 18 AWG (0.8 mm) to 14 AWG (2.5 mm) size wire.

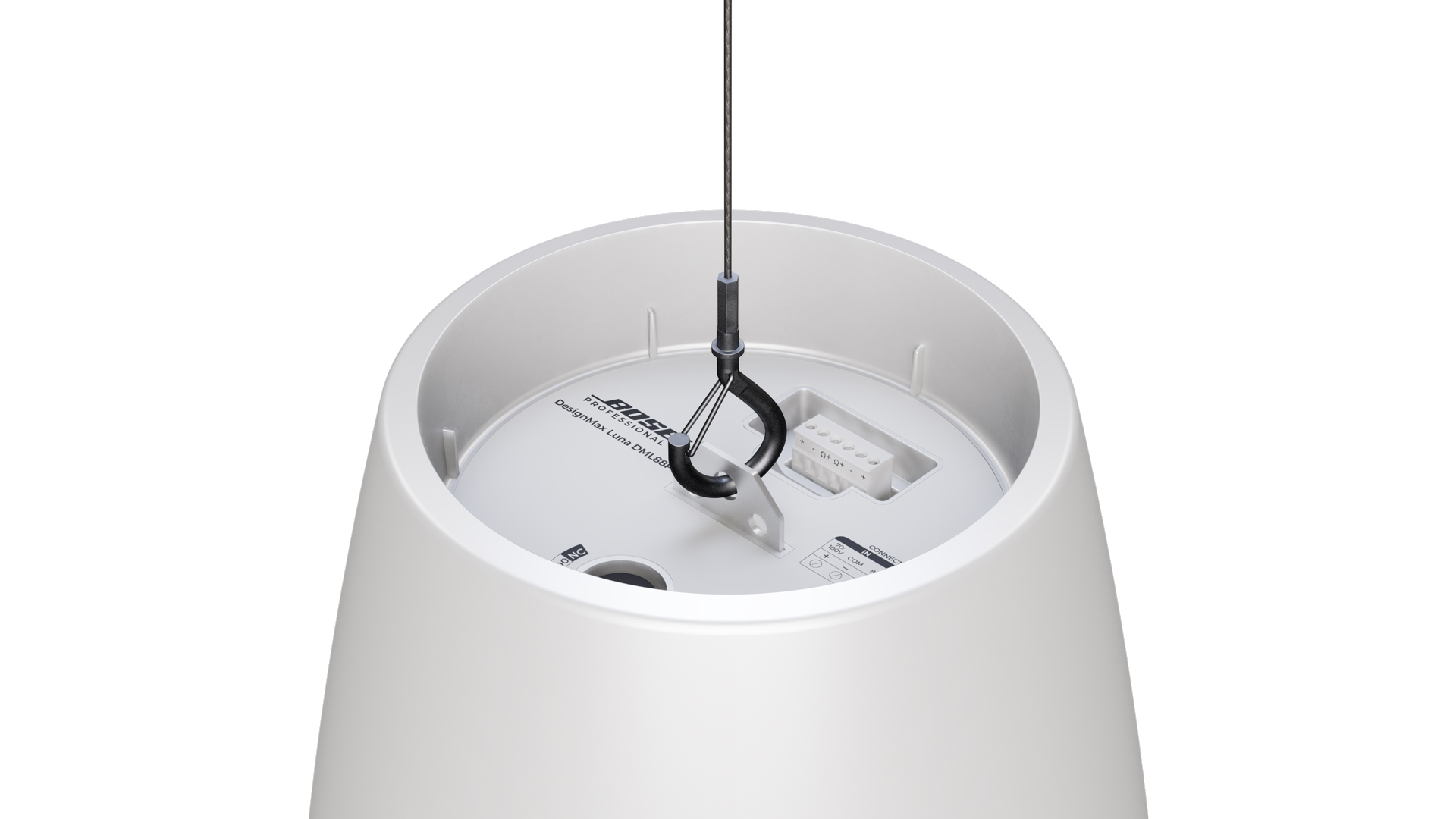

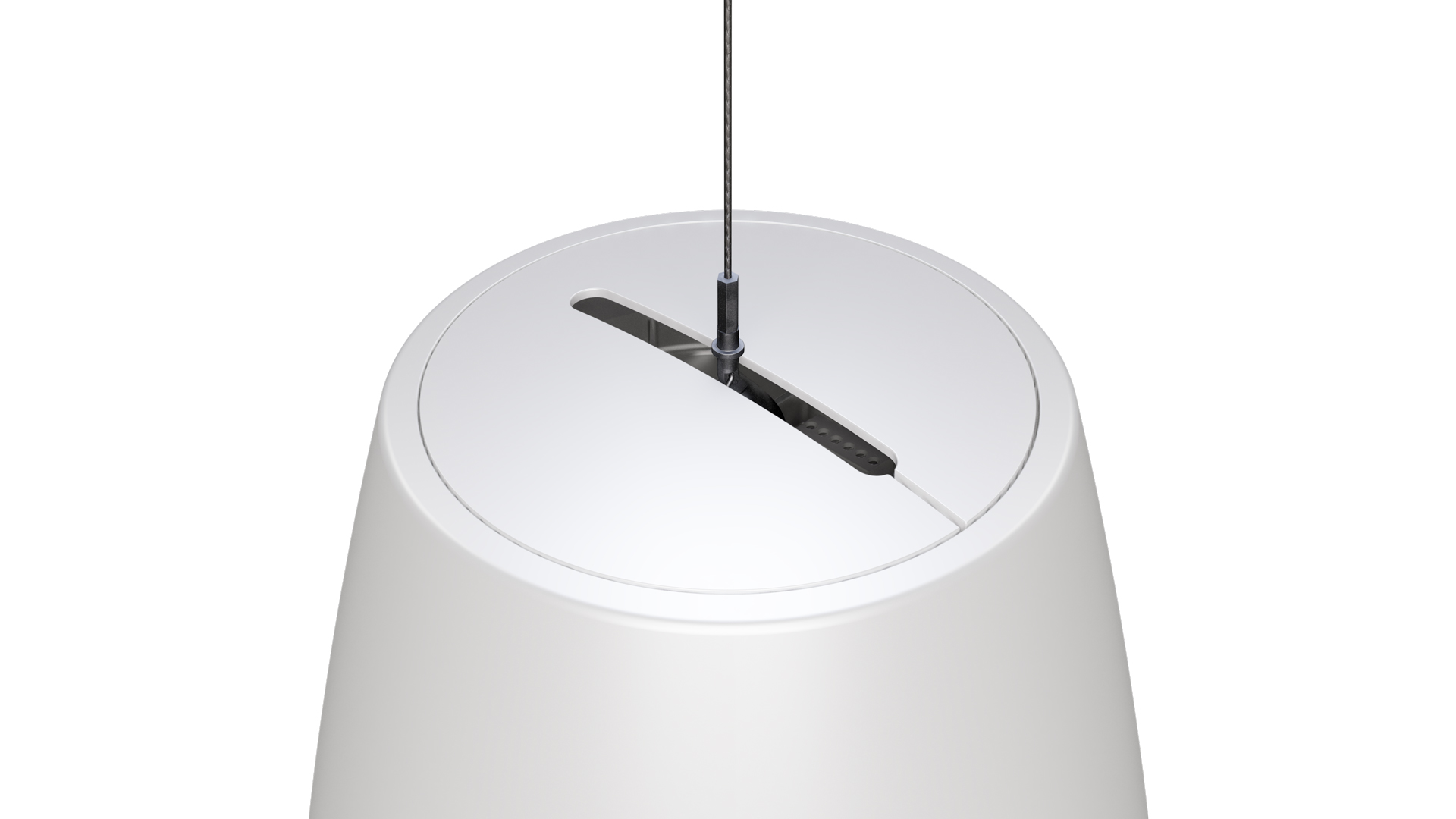

  • Suspension/Mounting: 1x 3-hole suspension cable attachment point
  • Operating Temperature Range: 0 °C to 50 °C (32 °F to 122 °F)
  • Product Dimensions (Enclosure Diameter x Depth): 12.1 x 19.4 in (308 x 492 mm)
  • Weight (each): 22 lb (10kg)

What's in the Box

• 1x DesignMax Luna DML88P

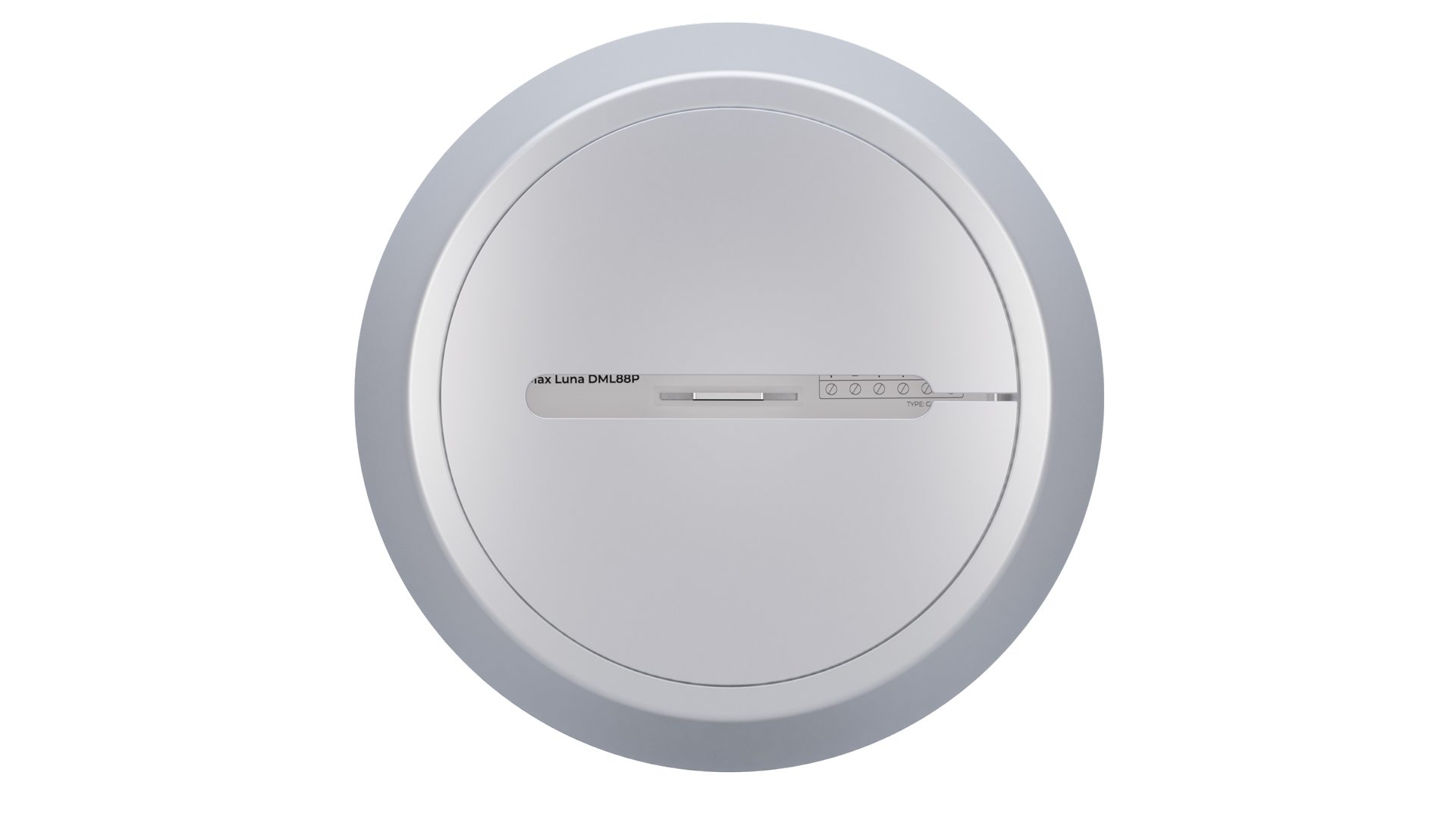

• 1x Connection panel cover
• 1x Adjustable suspension cable system
• 4x Cable ties
• 1x Installation guide
