Bose DM6PE DesignMax 125W Pendant Loudspeakers (Pair) - White

About: Bose DM6PE DesignMax 125W Pendant Loudspeakers (Pair) - White

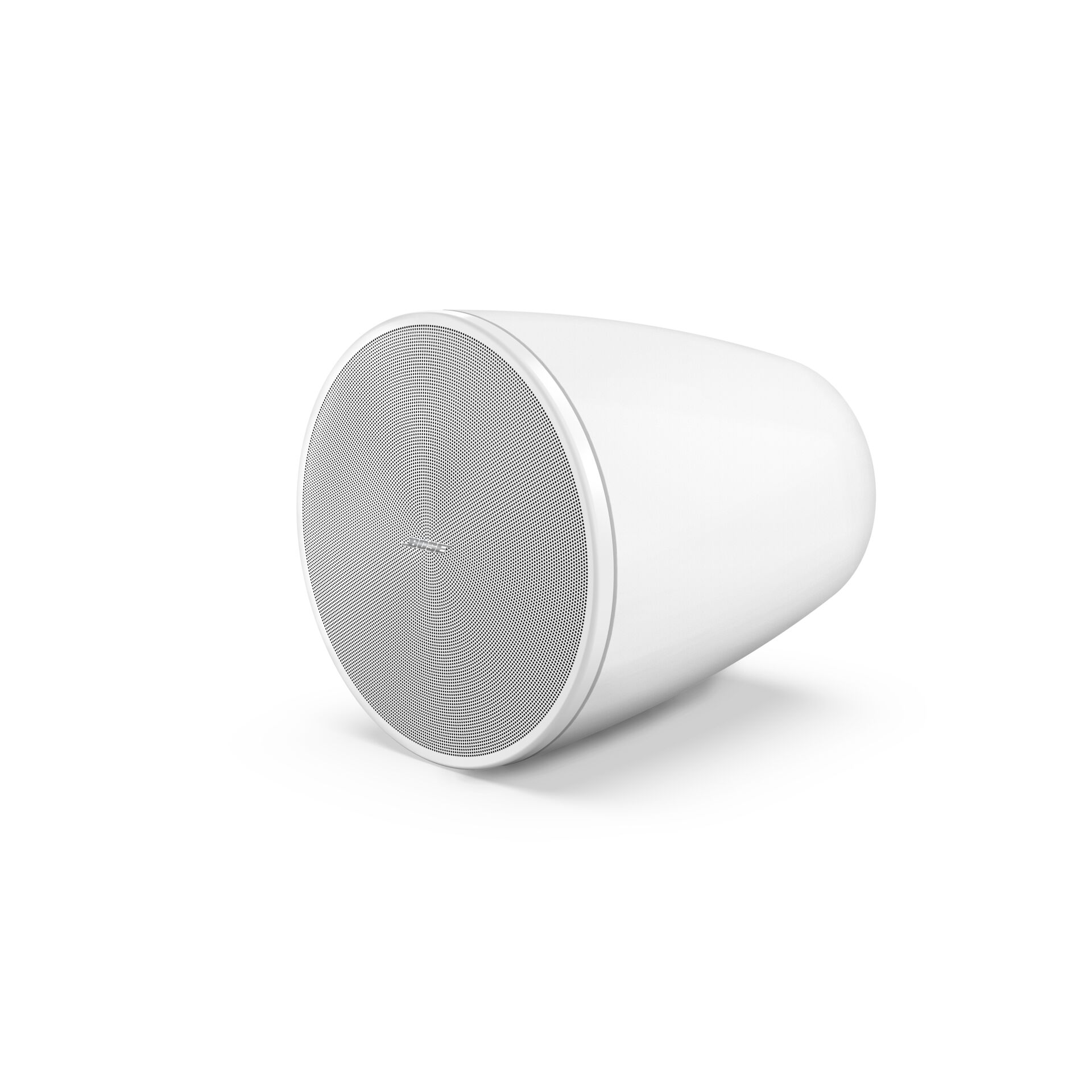

With a coaxial two-way design, the 125-watt Bose Professional DesignMax DM6PE loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. It features a coaxial 6.5-inch woofer and a 1.25-inch tweeter mounted within the Dispersion Alignment system and the DM6PE pendant loudspeaker delivers 62 Hz – 20 kHz. The DM6PE is an IP55 outdoor-rated pendant loudspeaker featuring a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.

• Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
• Choose from three DM6 models — the in-ceiling DM6C, the surface-mounted and outdoor-rated DM6SE, and the sleek, outdoor-rated DM6PE pendant loudspeaker
• Deliver rich lows and clear, intelligible highs with a coaxial two-way design — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
• Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the acoustic pattern of the woofer to the pattern of the tweeter
• Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
• Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
• Install DM6PE outside — IP55 rating with powder-coated steel grille for outdoor

Specifications

• PERFORMANCE
  • Frequency Range (-10 dB): 62 Hz – 20,000 Hz
  • Coverage, Horizontal: 115° conical
  • Calculated Maximum SPL @ 1 m: 110 dB
  • Nominal Impedance: 8 Ω (transformer bypass)
  • Power Handling, long-term continuous: 100 W
  • Power Handling, Peak: 400 W
  • Recommended Signal Processing: Not required, Bose Professional EQ voicing and SmartBass processing available
  • Sensitivity (SPL/1 W at 1 m): 89 dB
  • Transformer Taps, 100V: 5, 10, 20, 40, 80 W, bypass
  • Transformer Taps, 70V: 2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass
  • Coverage, Vertical: 115° conical
• TRANSDUCERS
  • Crossover: 1.7 kHz, passive 2-way crossover
  • Driver Protection: Recommended high-pass protection 60 Hz with recommended 24 dB/octave filter
  • High-Frequency: 1 x 1.25 in (32 mm) neodymium dome tweeter, coaxially mounted, weather-treated
  • Low-Frequency: 1 x 6.5 in (165 mm) woofer, weather-treated
• COMPLIANCE
  • Safety Agency Ratings: UL 1480A, UL 2239 for suspension cable, NFPA 70 & NFPA 90A, CE-compliant
• PHYSICAL
  • Colors: White, paintable
  • Enclosure Material: Engineered plastics, highly UV fade-resistant
  • Environmental: Outdoor per IEC 529 IP55 (suitable for use outdoors in wet locations)
    • Includes aluminum grille to prevent red corrosion and weather resistant input cover
  • Ingress Protection: IP55
  • Grille: Perforated steel, powder-coated finish
  • Logo: Rotatable, removable

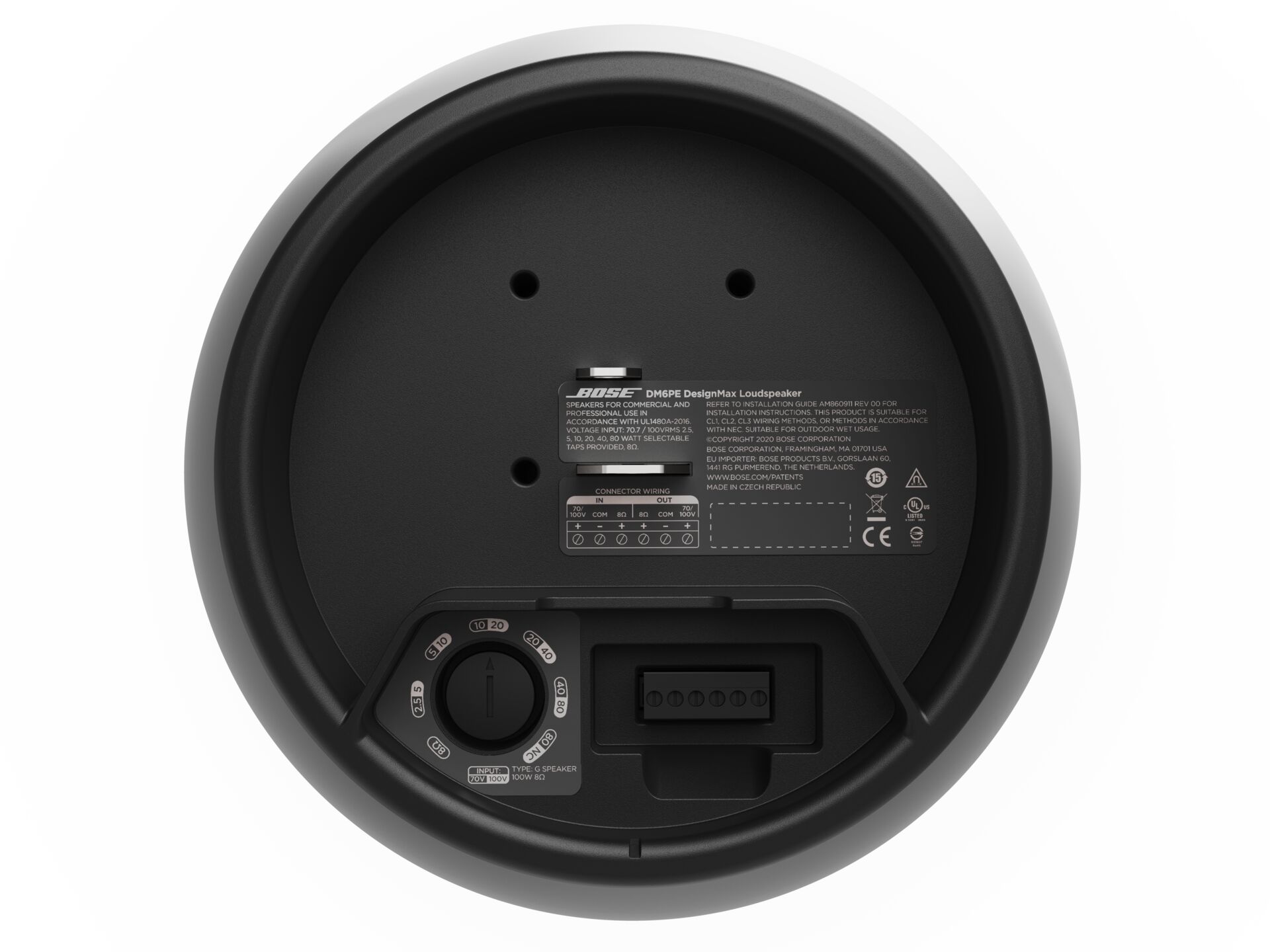

  • Connector: Euroblock 6-pin connector with loop-through, mounted on top
    • Accepts 18 AWG (0.8 mm) to 14 AWG (2.5 mm) size wire.
  • Suspension/Mounting: 1x suspension attachment point, 1x safety cable attachment point
  • Operating Temperature Range: -25 °C to 65 °C (-13 °F to 149 °F)
  • Product Dimensions (Enclosure Diameter x Depth): 12.1 x 14.8 in (308 x 375 mm)
  • Weight (each): 12.5 lb (5.7kg)

What's in the Box

• 2x DesignMax DM6PE loudspeakers
• 2x Suspension cables, 15.0 ft (4.5 m) each
• 8x Cable ties
• 2x Weather-resistant input cover
• 1x Installation guide
