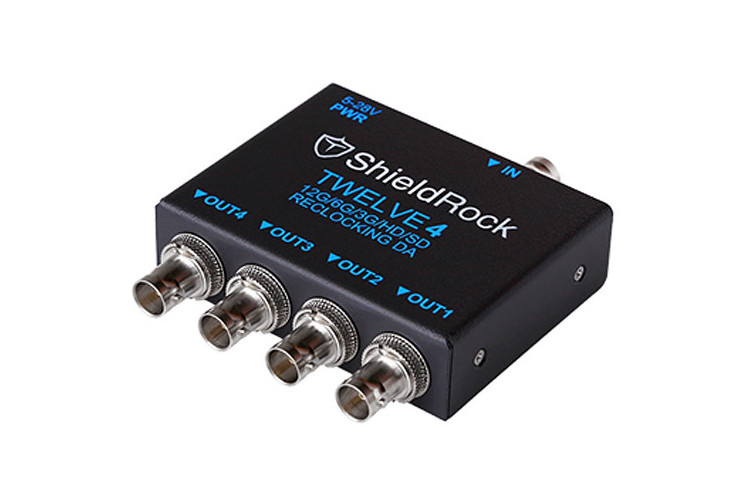

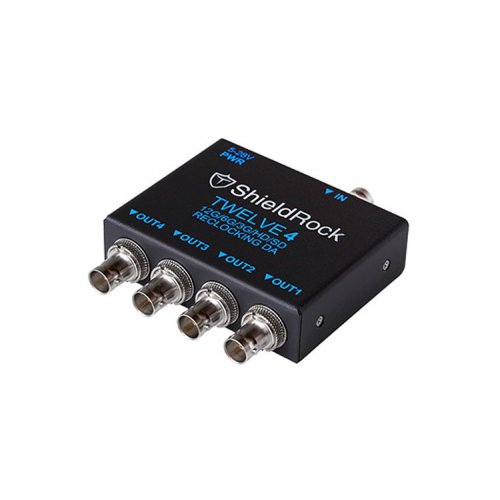

ShieldRock TWELVE4 12G-SDI 4x Distribution Amplifier
Model: SRBMC-TWLV4
About: ShieldRock TWELVE4 12G-SDI 4x Distribution Amplifier
Split a 12G-SDI signal 4 ways. This 4x DA will reclock the signal and send out quad outputs. The wide voltage input, and minimal power consumption allows for ease of integration and ability to lock the barrel connector in place. This small and lightweight module features rugged powder coated aluminum construction.
Specifications
- Video Interface
- 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI (auto switching)
- SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M
- Supports AES10 multi-channel (MADI) audio
- Video Format
- 4K/UHD 2160p - 23.98/24/25/29.97/30/48/50/59.94/60
- 2K/HD 1080p - 23.98/24/25/29.97/30/48/50/59.94/60
- 1080i - 50/59.94/60
- 1080PsF - 23.98/24/25/29.97/30
- 720p - 23.98/24/25/29.97/30/48/50/59.94/60
- SD - 525i29.97 NTSC, 625i25 PAL
- Electrical
- Input - 5-28 VDC
- Power - 1W max
- Mechanical
- Dimensions - 3.77 x 3.23 x 0.86in (95.9 x 82.0 x 21.9mm)
- Weight - 130g
- Includes
- TWELVE4
- Universal AC/DC 12V wall adapter
