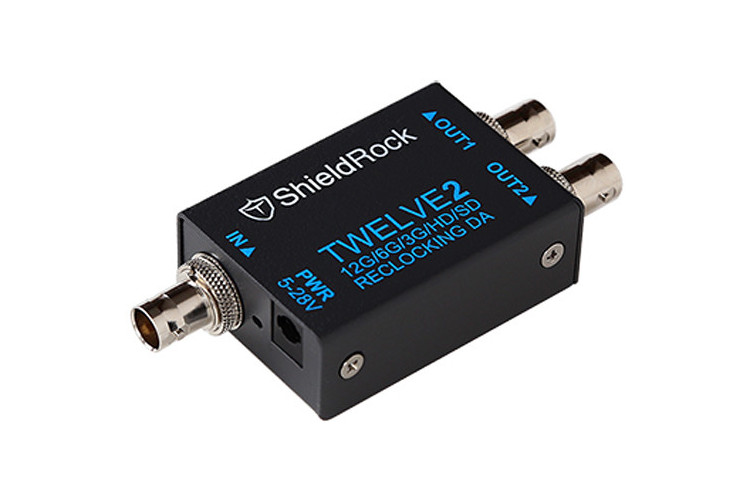

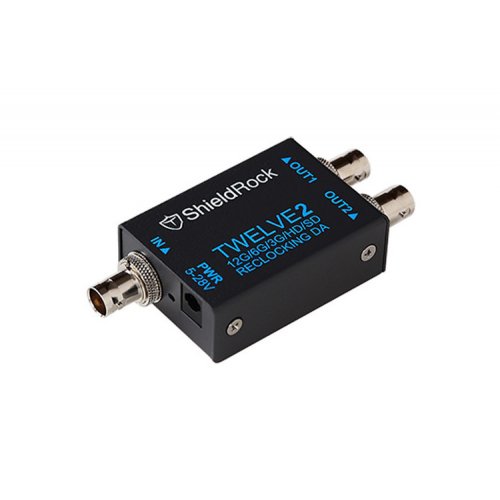

ShieldRock TWELVE2 12G-SDI 2x Distribution Amplifier

Model: SRBMC-TWLV2

ShieldRock TWELVE2 12G-SDI 2x Distribution Amplifier
$448.00 CAD
Find it for Less? Let us Know.
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed

More models to choose from:

2x Output$448.00
4x Output$504.00


About: ShieldRock TWELVE2 12G-SDI 2x Distribution Amplifier

Split a 12G-SDI signal in 2. This 2x DA will reclock the signal and send out dual outputs. The wide voltage input, and minimal power consumption allows for ease of integration and ability to lock the barrel connector in place. This small and lightweight module features rugged powder coated aluminum construction.

Specifications

  • Video Interface
    • 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI (auto switching)
    • SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M
    • Supports AES10 multi-channel (MADI) audio
  • Video Format
    • 4K/UHD 2160p - 23.98/24/25/29.97/30/48/50/59.94/60
    • 2K/HD 1080p - 23.98/24/25/29.97/30/48/50/59.94/60
      • 1080i - 50/59.94/60
      • 1080PsF - 23.98/24/25/29.97/30
      • 720p - 23.98/24/25/29.97/30/48/50/59.94/60
    • SD - 525i29.97 NTSC, 625i25 PAL
  • Electrical
    • Input - 5-28 VDC
    • Power - 1W max
  • Mechanical
    • Dimensions - 3.77 x 1.75 x 0.86 inch (95.9 x 44.4 x 21.9 mm)
    • Weight - 75g
  • Includes
    • TWELVE2
    • Universal AC/DC 12V wall adapter

UPC: 685239811803
