AVMatrix FE1121 20km 3G-SDI Fiber Optic Extender
Model: FE1121
About: AVMatrix FE1121 20km 3G-SDI Fiber Optic Extender

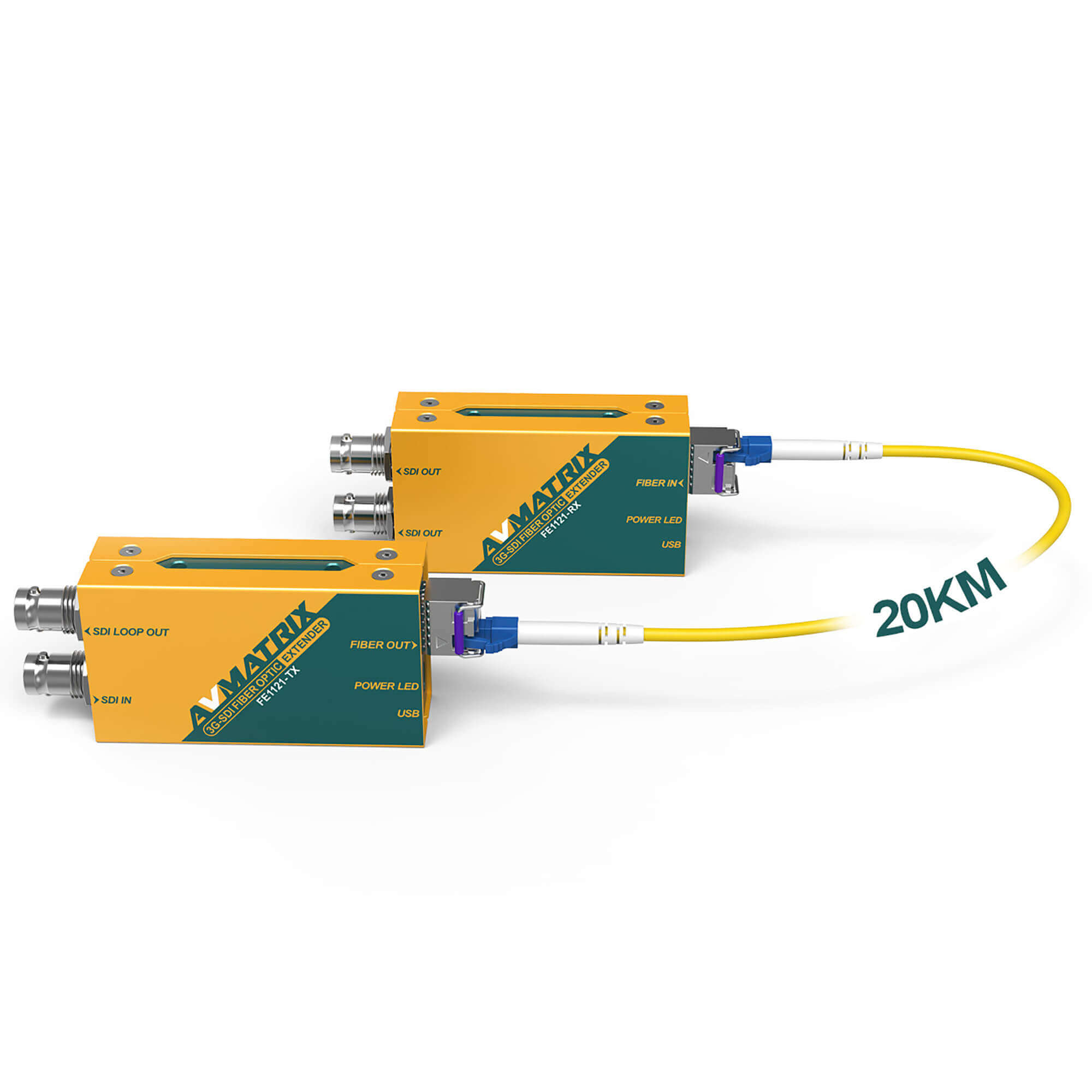

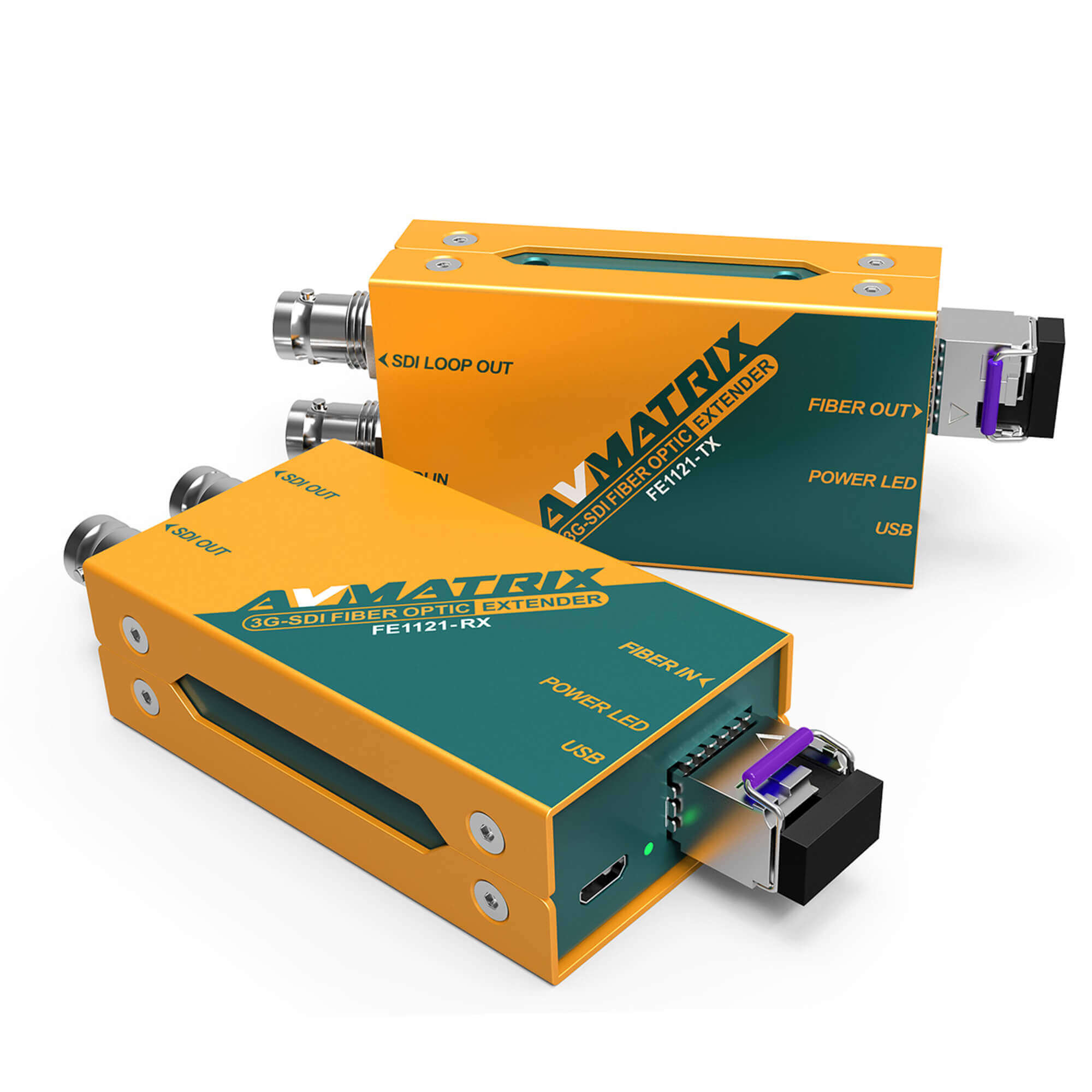

The FE1121 3G-SDI Fiber Optic Extender is a transmitter/receiver kit supporting single-mode LC simplex fiber extensions up to 20km. It is a miniature-style extension solution that supports all SDI formats resolutions up to 1080p with audio and metadata, also supports level A and level B. It features a local SDI loop out and dual SDI outputs and supports 3G/HD/SD SDI signals. Multimode fiber can also be used but at shorter distances.
Features
- 20km transmission distance
- Support 3Gbit Level A and Level B (all formats)
- SFP/ LC Fiber transmitter & receiver
- SDI equalization and re-clocking

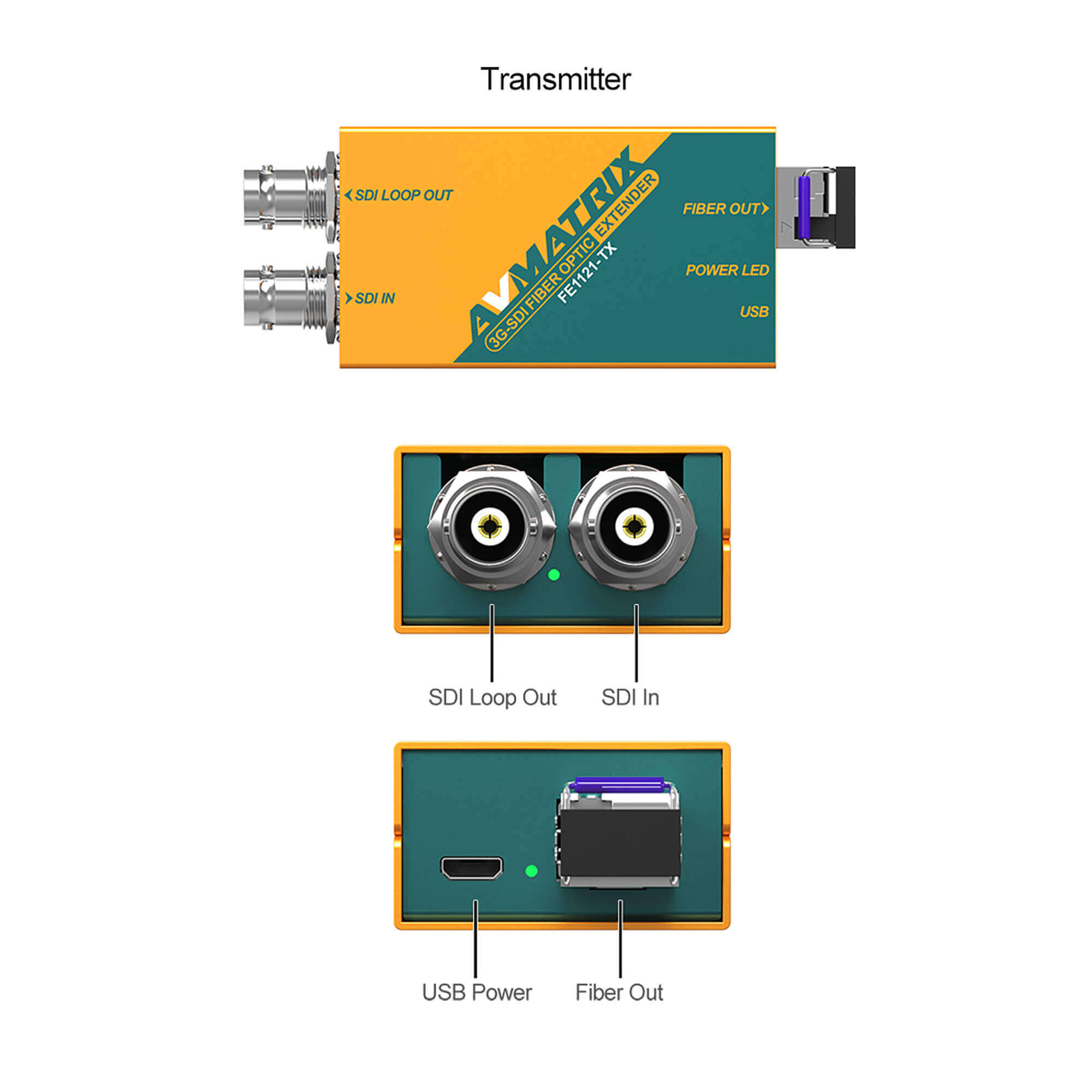

- 3G-SDI input & loopout on transmitter

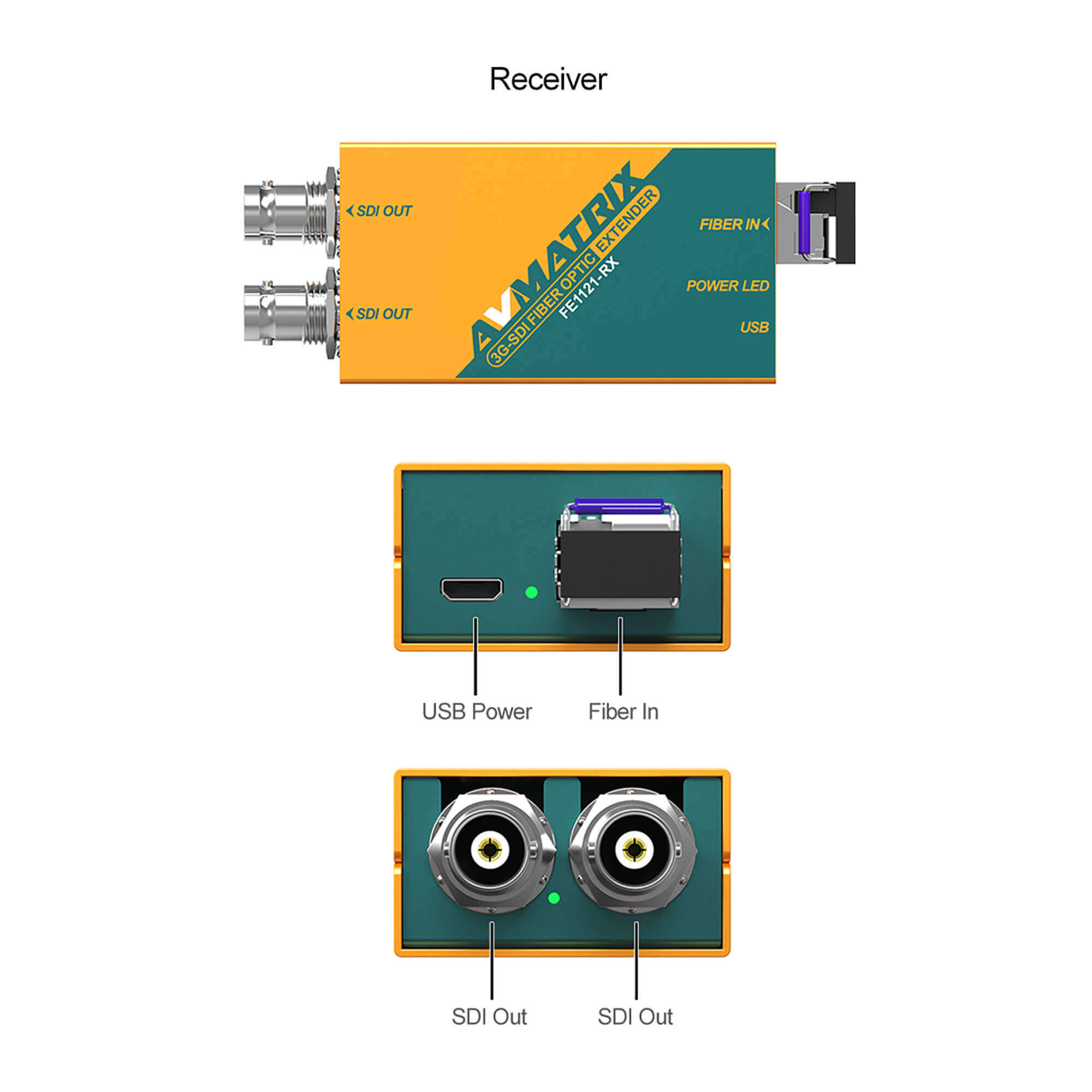

- Dual 3G-SDI outputs on receiver
- SDI input automatic switching SD, HD & 3G
- USB power supply
UPC: 6971118000050
