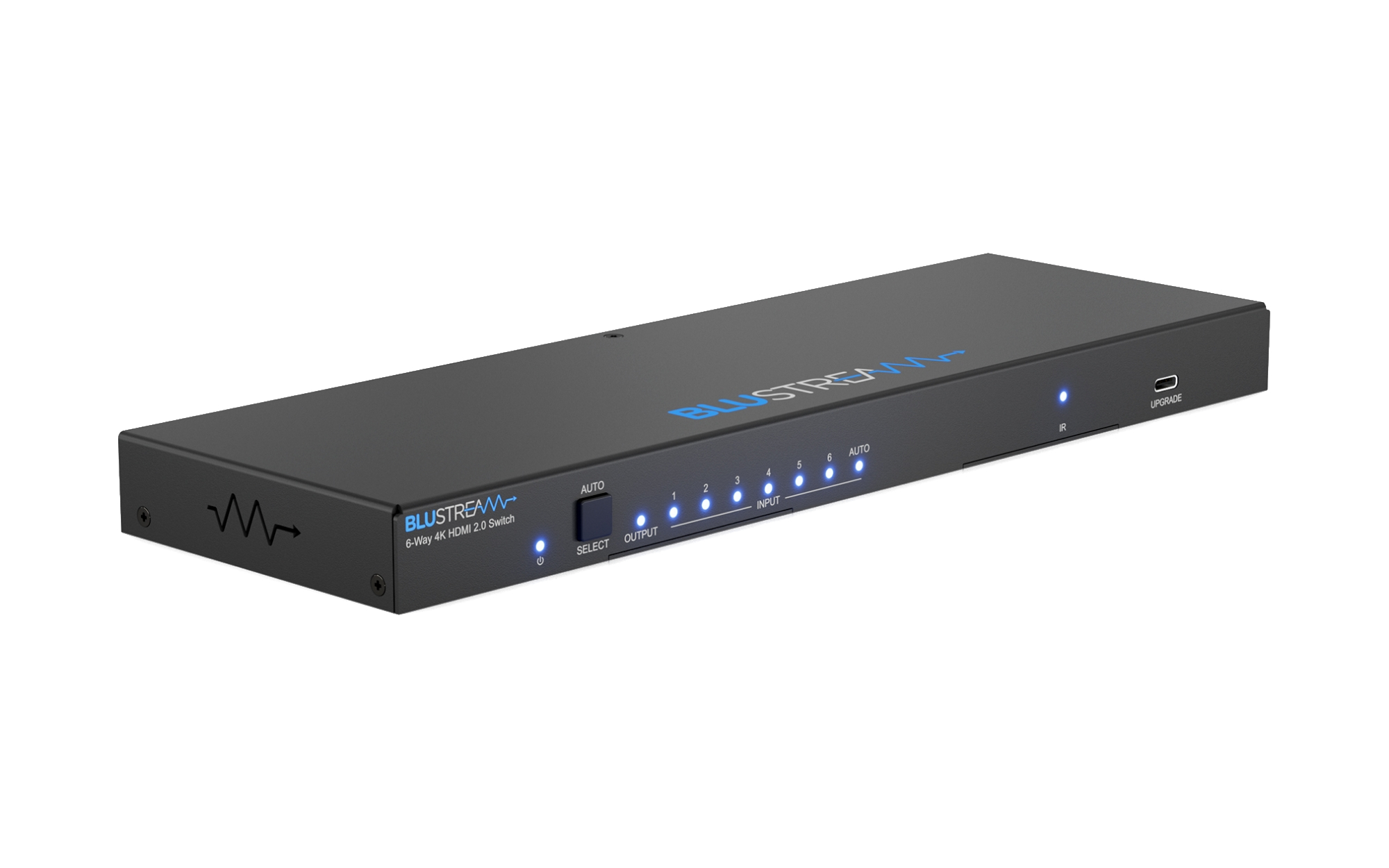

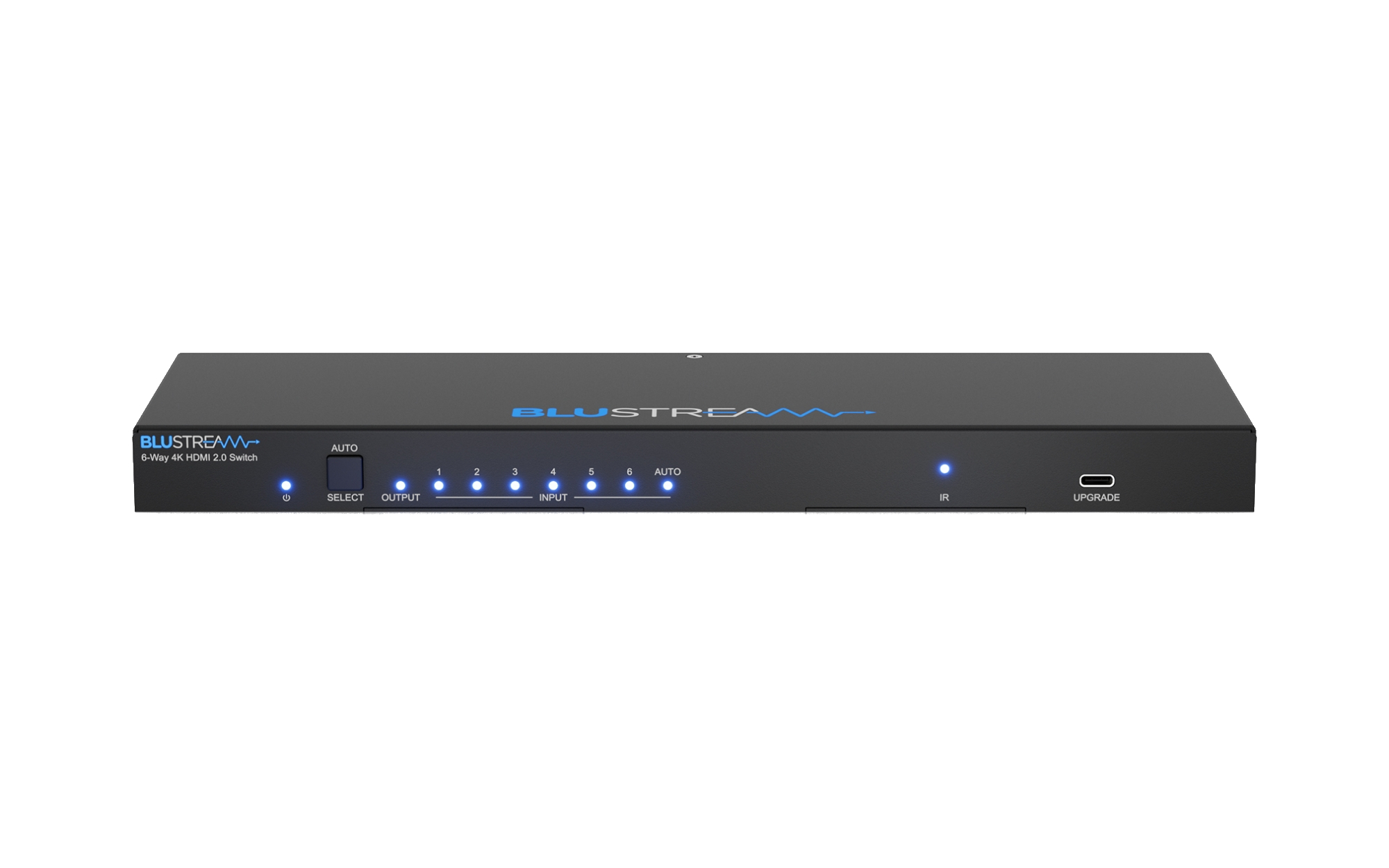

BLUSTREAM 6-Way 4K 18Gbps HDMI Switch w/ Audio Breakout

About: BLUSTREAM 6-Way 4K 18Gbps HDMI Switch w/ Audio Breakout

The SW61AB is a 6-way HDMI 2.0 switch featuring integrated optical (S/PDIF) and analogue audio breakout, along with intelligent optional auto-switching for effortless source selection, or via IP, RS-232, front panel buttons, or infrared where manual selection is required.

Fully compliant with HDMI 2.0 and HDCP 2.2 standards, the switch supports video resolutions up to 4K 60Hz 4:4:4, ensuring reliable, high-quality performance across modern AV installations.

• Features 6 x HDMI inputs which can be switched to single HDMI output
• Supports full HDMI2.0 specification 4K UHD video (4K 60Hz 4:4:4) with HDR
• HDCP 2.2 compliant
• Supports 3D signal display
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Auto, manual or priority switching capabilities. Auto switching from TMDS or 5V HPD
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• HDMI audio breakout to balanced / unbalanced analogue audio and optical digital outputs concurrently
• Control via IP, RS-232, web GUI, front panel, and IR
• Advanced EDID management
• Auto-standby mode

Specifications

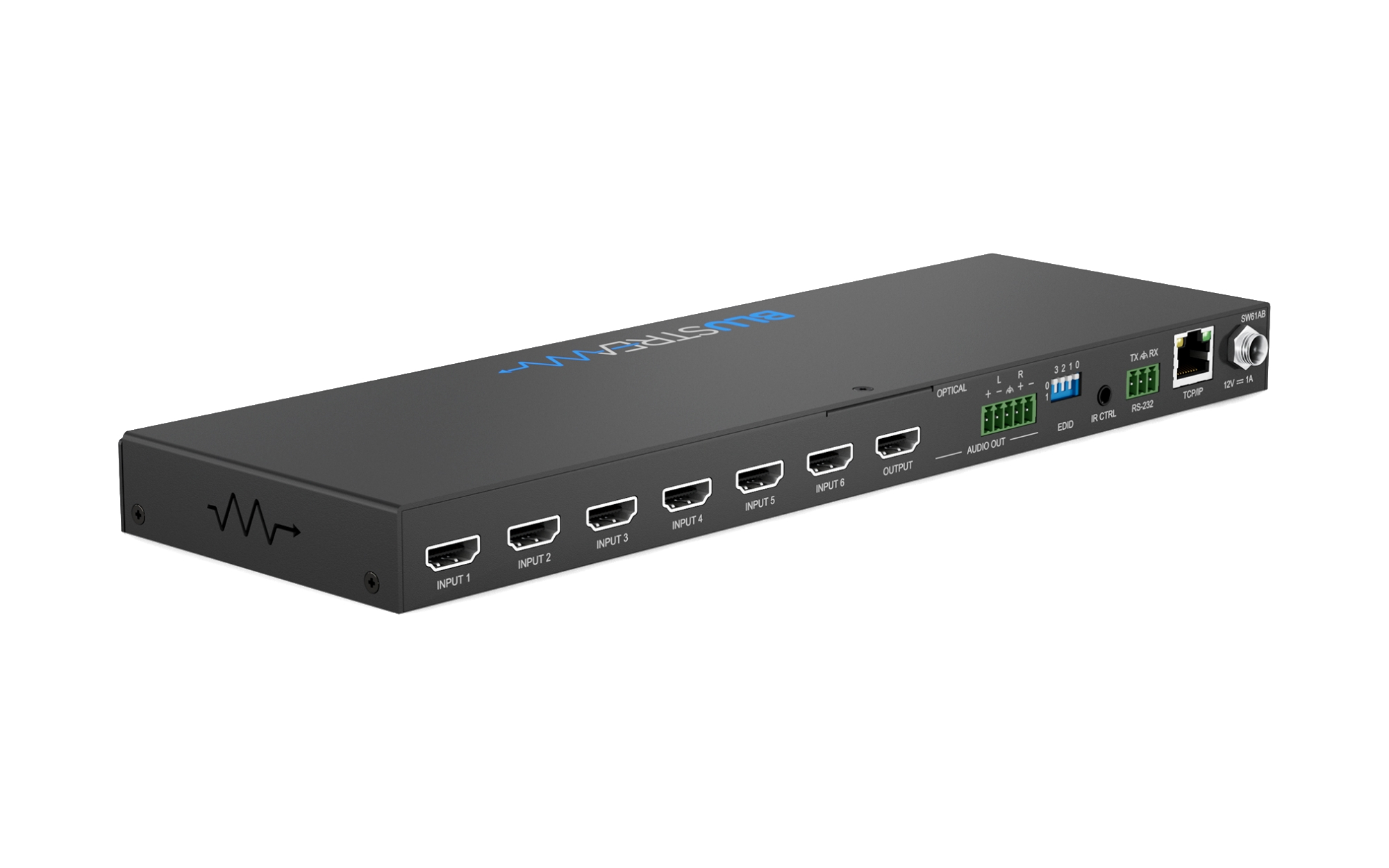

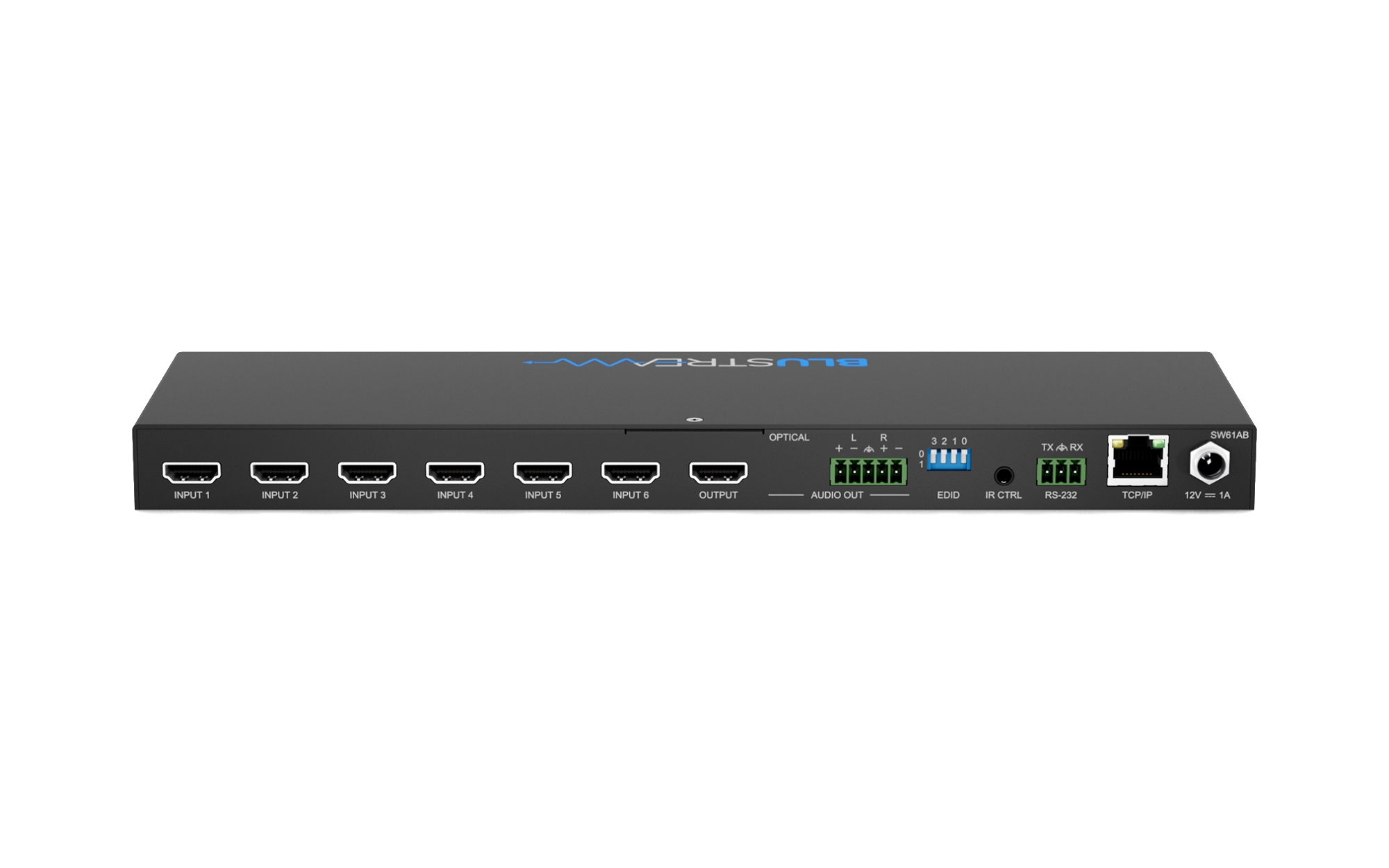

• Video Input Connectors: 6 x HDMI Type A, female
• Video Output Connectors: 1 x HDMI Type A, female
• Audio Output Connectors: 1 x Optical (S/PDIF) & 1x 5-pin Phoenix analogue audio
• TCP/IP Input Ports: 1 x RJ45 (female)
• IR Input Ports: 1 x 3.5mm stereo jack (5V)
• Operating temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 12V/1A DC, screw barrell
• Dimensions (WxHxD)
  • Casing: 11.58 x 0.91 x 3.7 inch (294 x 23 x 94 mm)
  • w/ Connections: 7.72 x 1.26 x 3.9 inch (196 x 32 x 99 mm)

What's in the Box

• 1x SW61AB
• 1x REMSW61 (no battery)
• 1x 12V/1A DC power supply
• 1x IRR - IR receiver (5V)
• 1x Quick Reference Card
• 1x Mounting Brackets
