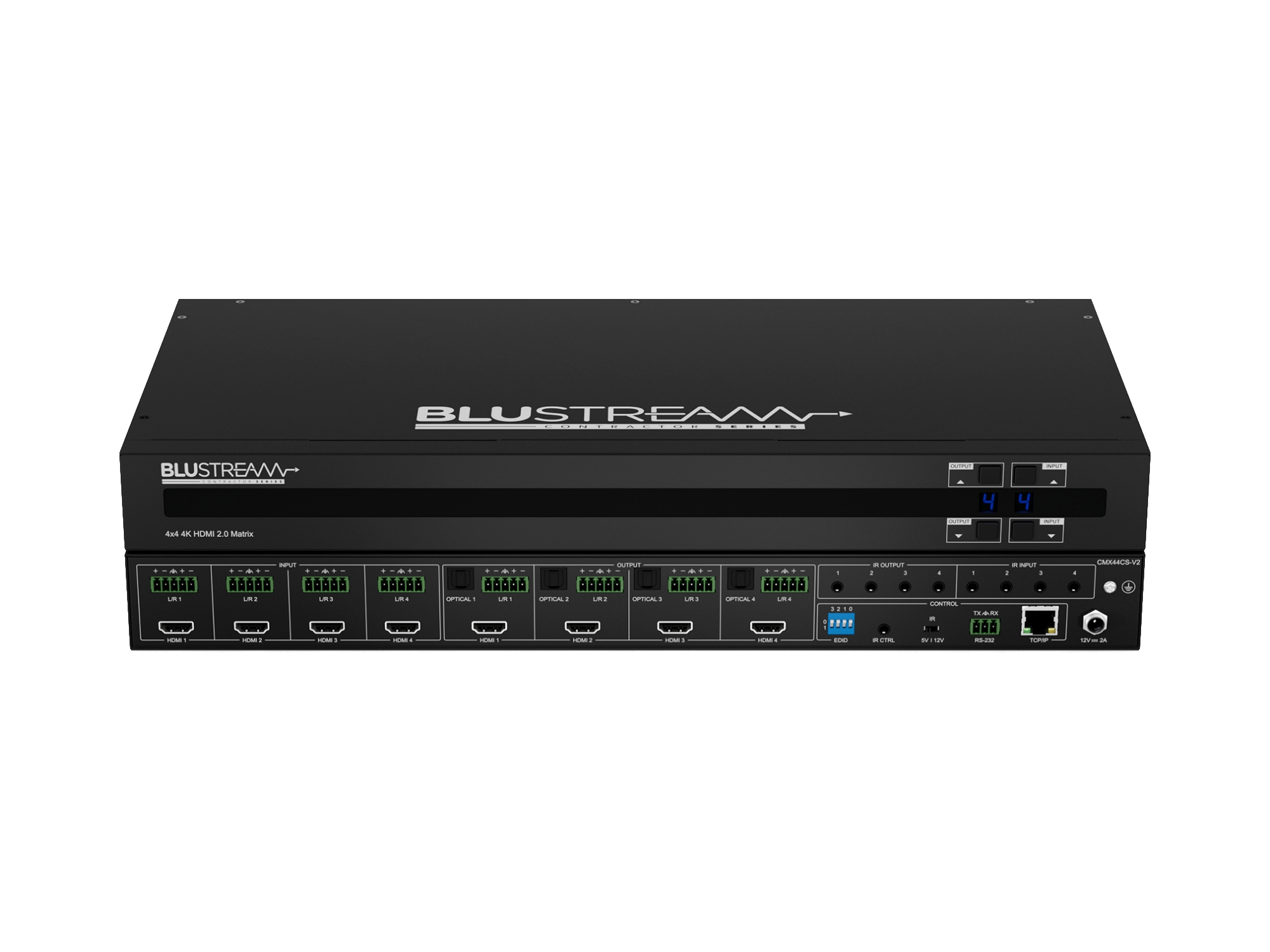

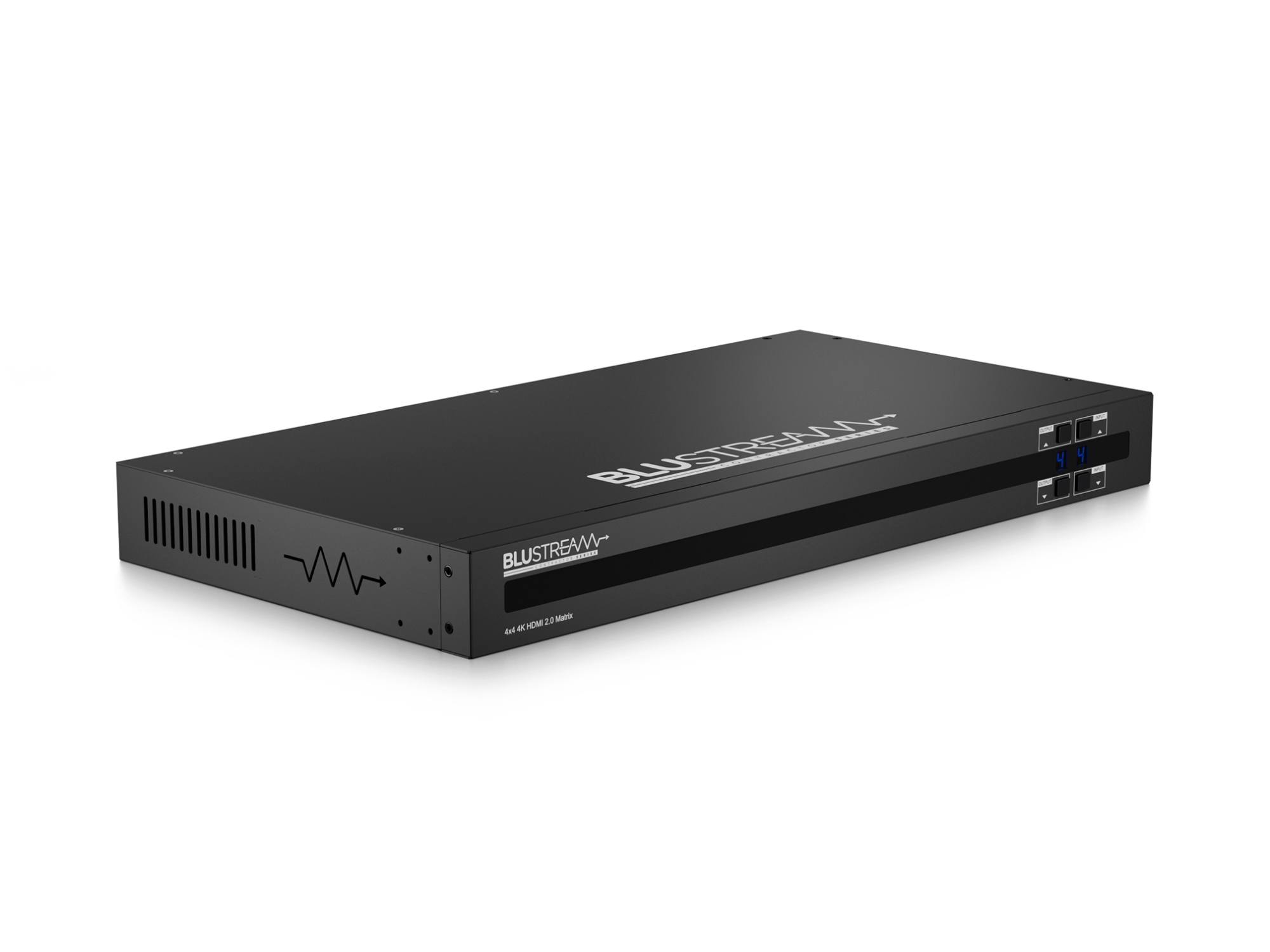

BLUSTREAM CMX44CS-V2 4x4 4K HDMI 2.0 Matrix

About: BLUSTREAM CMX44CS-V2 4x4 4K HDMI 2.0 Matrix

Our Contractor CMX44CS-V2 4K HDMI Matrix offers unprecedented performance and value for the custom installation market.

The CMX44CS-V2 supports HDMI2.0 with HDCP2.2, allowing distribution of four HDMI sources to four displays. This enables all sources to be viewed as required within a matrix configuration.

The unit transmits all HDMI resolutions up to and including 4K 60Hz 4:4:4 with automatic video down conversion. The 4-way matrix also includes audio breakout and advanced EDID management.

• Features 4x HDMI inputs which can be independently routed to 4x HDMI outputs
• Supports HDMI2.0 18Gbps specification including HDR
• Supports up to 4K UHD 60Hz 4:4:4
• Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• HDMI audio breakout to balanced/unbalanced analogue L/R audio and optical digital outputs concurrently

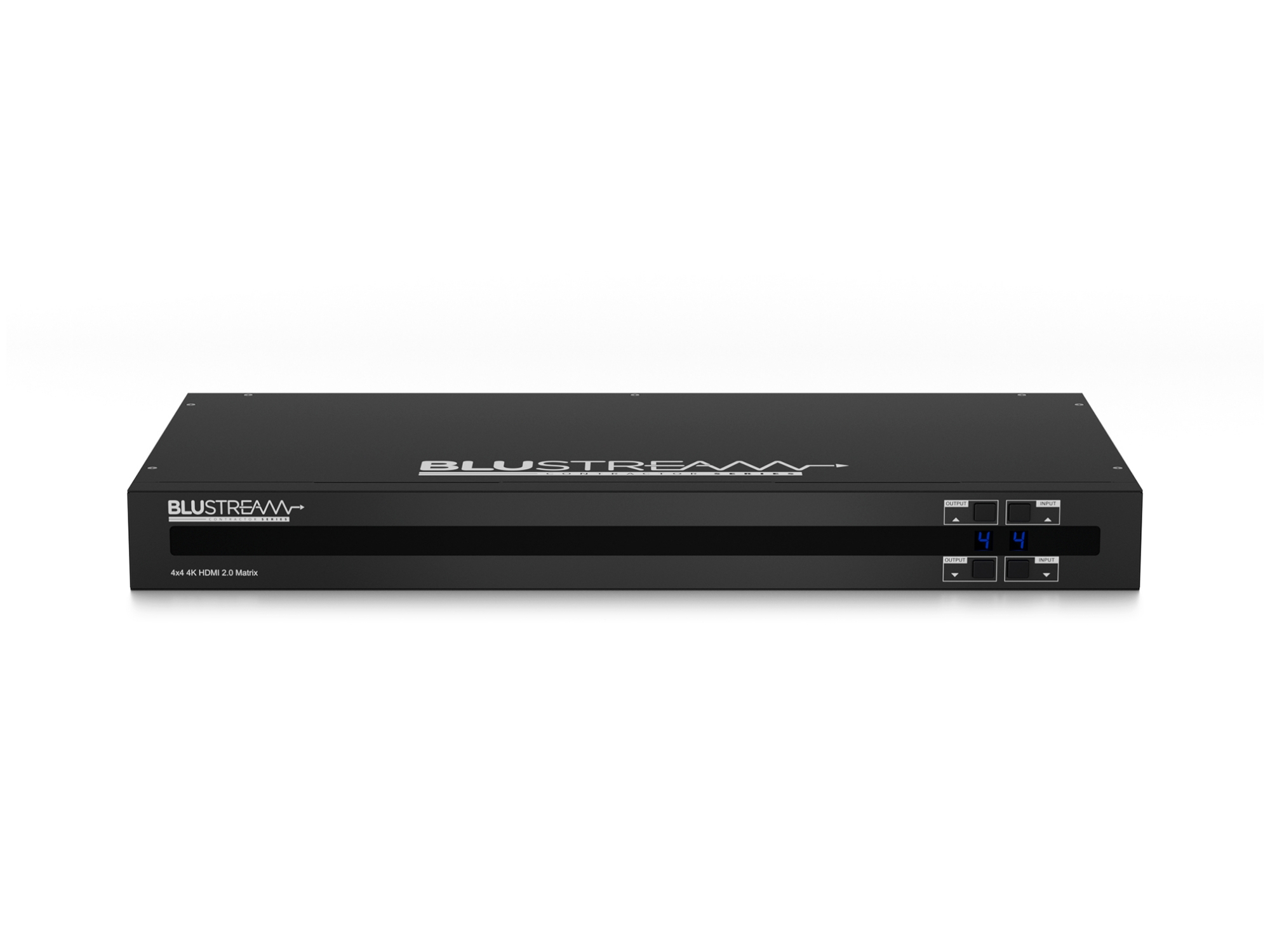

• Control via front panel, IR, RS-232, TCP/IP and Web GUI
• IR routing
• Supplied with Blustream 5V IR receivers and emitters
• 3rd party drivers available for all major control brands
• Advanced EDID management
• HDCP2.2 compliant
• 1U Design for 19” rack mount integration - Mounting kit included

Specifications

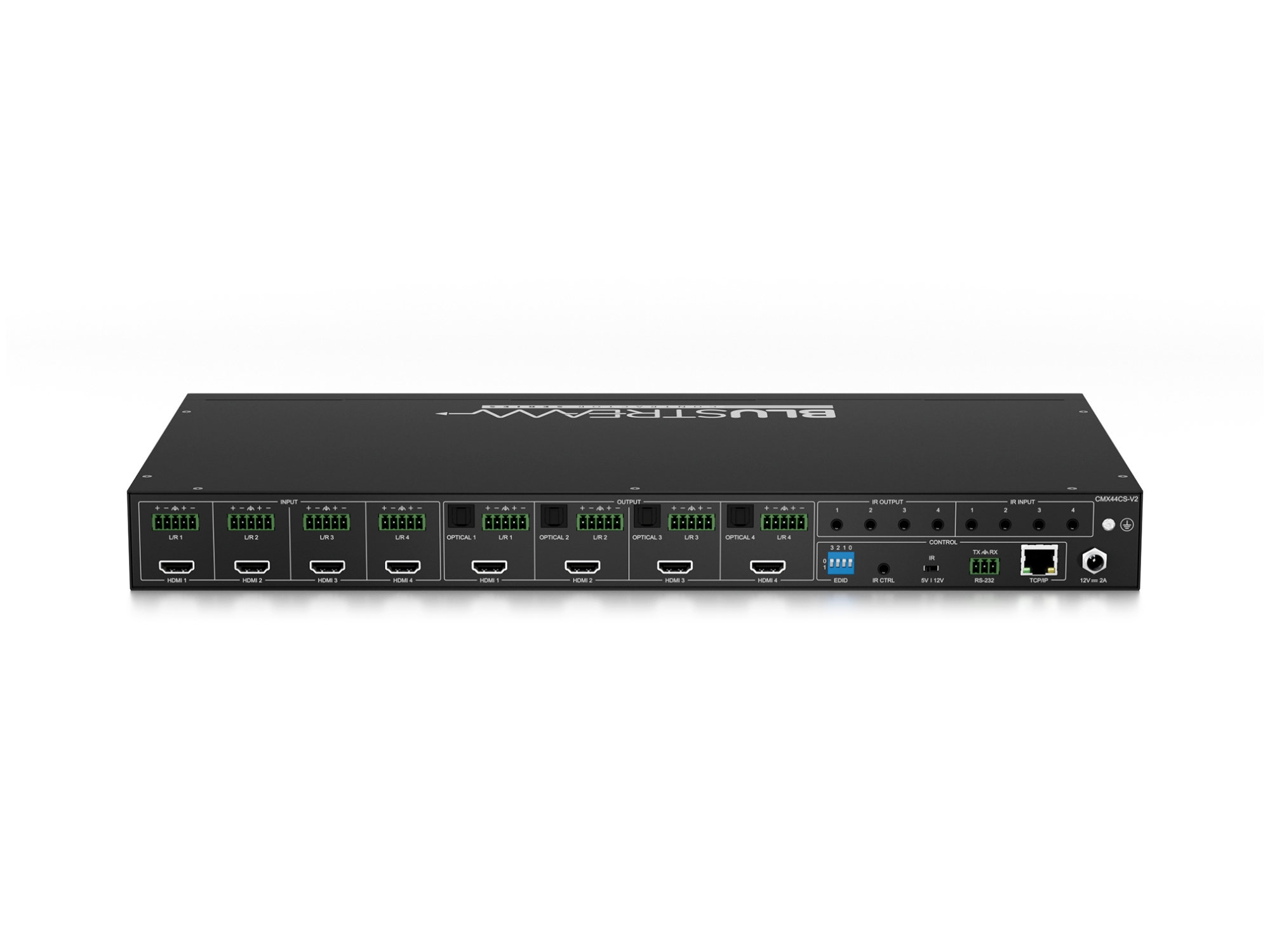

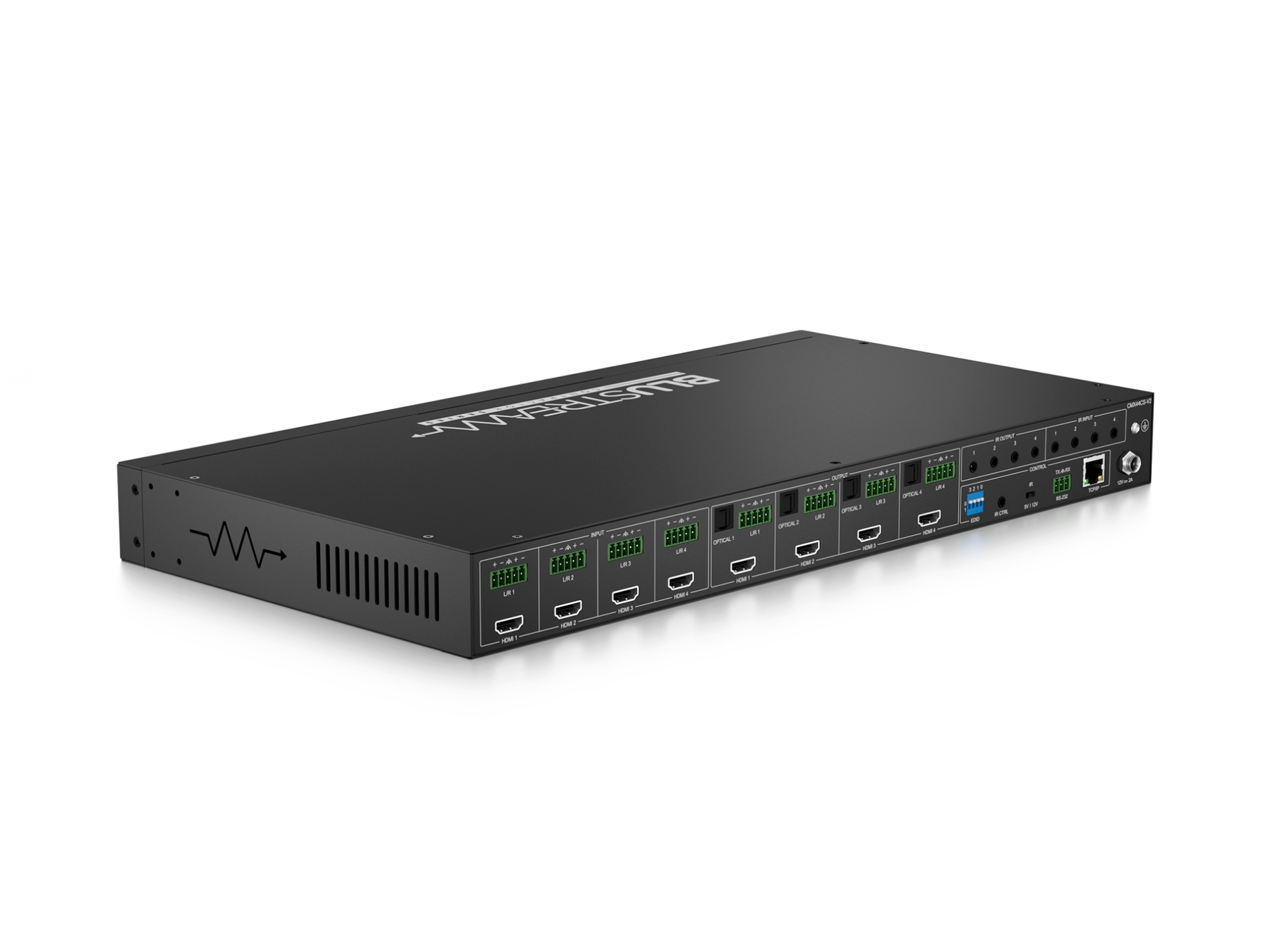

• Video Input Connectors: 4x HDMI Type A, 19-pin, female, locking
• Video Output Connectors: 4x HDMI Type A, 19-pin, female, locking
• Audio Output Connectors: 4x Digital (Optical), 4x 5-pin Phoenix connector (4x 2ch balanced/un-balanced analogue audio)
• Audio Input Connectors: 4x Analogue audio L/R (3.5mm stereo Jack)
• RS-232 serial port: 3-pin Phoenix connector
• IR Input ports: 5x 3.5mm stereo jack
• IR Output ports: 4x 3.5mm mono jack
• Power Supply: 12V/2A DC
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Dimensions (WxHxD): 17.2 x 1.7 x 8.9 inch (437 x 44 x 226mm)
  • w/Connections (WxHxD): 17.2 x 1.7 x 9.1 inch (437 x 44 x 231mm)

What's in the Box

• 1x CMX44CS-V2
• 1x 12V / 2A DC Power Supply
• 1x Remote Control
• 4x IR Emitter
• 5x IR Receiver
• 1x Rack Mounting Kit
• 1x Quick Reference Card
