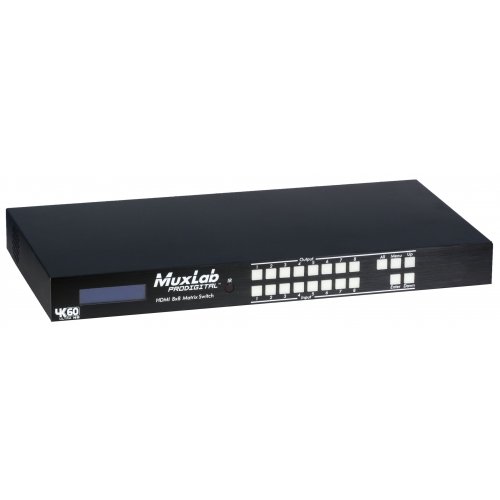

Muxlab HDMI 8x8 4K/60 Matrix Switch

Model: 500443

Muxlab HDMI 8x8 4K/60 Matrix Switch
Muxlab HDMI 8x8 4K/60 Matrix Switch
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed



About: Muxlab HDMI 8x8 4K/60 Matrix Switch

The HDMI 8×8 Matrix, 4K/60 (4:4:4) connects eight HDMI sources to eight displays. This 4K HDMIÿMatrixÿSwitch provides eight HDMI outputs and each HDMI output is supporting up to 4K/60 (4:4:4) plus all 3D formats and supporting independent EDID control, with scaling capability so that different displays each with different resolutions can be simultaneously supported. It works with Blu-Ray players, Media Players/Streamers, Cameras, Set-Top boxes, Home Theater systems, and game consoles that connect to an HDMI display. Any source is accessible at all times by any display by selecting it via the supplied IR Remote Control, RS-232, TCP/IP or by using the selection buttons on the front panel of theÿ4K HDMIÿMatrixÿSwitch.

Applications:

  • Commercial and residential AV systems
  • Classroom training systems
  • Digital signage
  • Boardroom systems
  • Collaborative PC systems
  • Medical information system

Features:

  • Supports HDMI 2.0 (4K/60, 4:4:4)
  • HDCP 2.2 compliant
  • Full HDR support
  • Powerful EDID management
  • Supports independent port scaling and displays with different resolutions
  • Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, DTS-HD Master Audio & DTS:X
  • Supports a Coax digital audio out (S/PDIF)
  • Available Window’s GUI control software
  • Controllable via front panel, IR, RS232 and Telnet
  • Fits on a standard 19″ rack

UPC: 627699014431

Reviews: Muxlab HDMI 8x8 4K/60 Matrix Switch

There are currently no product reviews.


Warranty: Muxlab HDMI 8x8 4K/60 Matrix Switch

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

PASSIVE PRODUCTS: LIFETIME WARRANTY*

ACTIVE PRODUCTS: 2 YEAR LIMITED WARRANTY

Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
