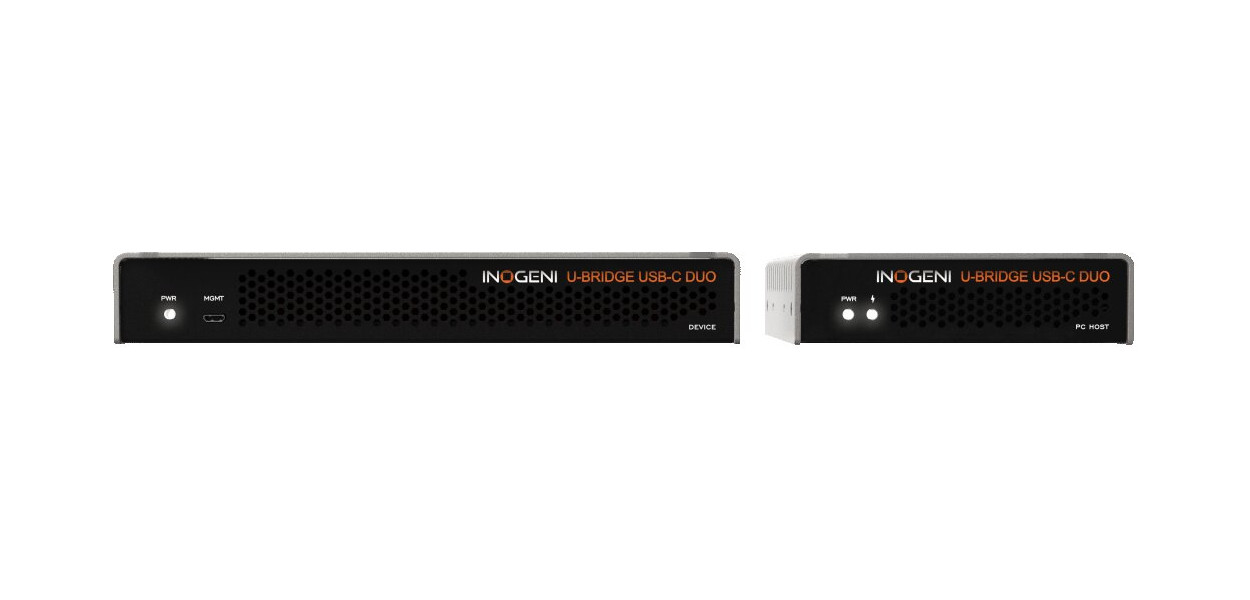

Inogeni U-BRIDGE USB-C DUO 4K60 Extender Over CAT6A

About: Inogeni U-BRIDGE USB-C DUO 4K60 Extender Over CAT6A

The new INOGENI U-BRIDGE USB-C is a purpose-built extender that extends full USB-C functionality—including USB 2.0, power, and DisplayPort Alternate Mode—up to 70 meters (230 feet) over a single CAT6A cable via HDBaseT proven technology, while also enabling Ethernet LAN connectivity for laptop connectivity, control and management. It is ideal for extending USB-C laptops to videoconferencing gear, room displays, and networks in modern meeting spaces. The extender can connect to an all-in-one videobar that supports BYOM.

• U-BRIDGE USB-C: Provides reliable long-distance extension while maintaining high-quality, uncompressed video. It extends the videobar’s UVC/UAC interface (camera and audio) and simultaneously sends video content to the in-room display.
• U-BRIDGE USB-C DUO: Delivers the same robust technical features as the standard single-display model, now enhanced with a second HDMI output for seamless dual-display and extended desktop functionality.

High-performance audio/video connectivity and 100W charging

• USB-C extension over CAT6A U/FTP cable up to 70 m (230 ft)
  • Uncompressed video signal via HDBaseT proven technology
  • Reach: 40 m (132 ft) at 4K60 and 70 m (230 ft) at 1080p
  • Supports USB 2.0 and DisplayPort Alternate Mode
  • PoE powers the PC host module from the device module
  • USB-C power supply included to enable 100W laptop charging
• 2x USB 3.0 device ports
  • USB 2.0 data rate: up to 480 Mbps when extending USB devices
    • Note: If USB 3.2 Gen 1 connectivity is required, users can link both units via the USB3-EXT ports and use the INOGENI U-BRIDGE 3 to extend SuperSpeed USB 3.2 Gen 1 signals.
• 4K60 HDMI output
  • Compatible with HDCP 2.3, HDMI 2.0b, and DVI 1.0
• Advanced video processing with 4:4:4 and 4:2:2 chroma subsampling

Versatile USB and video extension

• Supports all USB peripherals, including webcams, videobars, audio devices, and HID
• Ideal for systems with USB-C connectivity, such as Cisco Room Kit EQ or Logitech MeetUp 2
• Provides up to 1.8A of shared USB power
• IP interface with DHCP/static IP support for control and network bridging

Full-featured integration and simple deployment

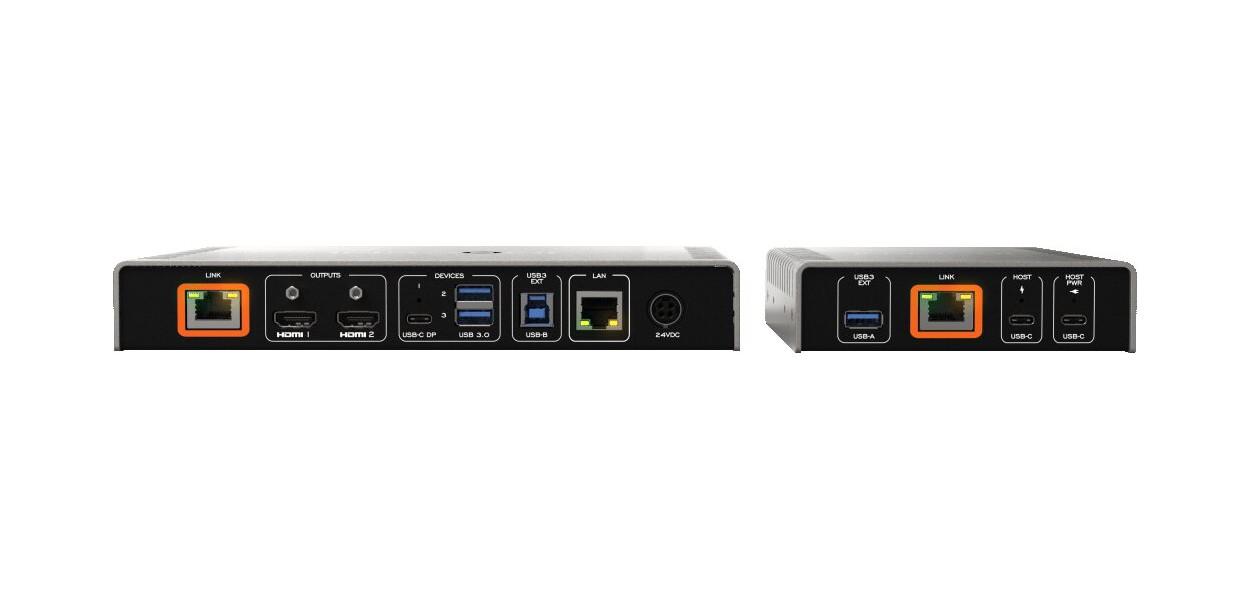

• DEVICE module includes
  • 1x USB-C port for DisplayPort, Alt Mode and USB 2.0 extension
  • 2x USB-A 3.0 for camera, videobar or speakerphone
  • 1x USB3-B for USB 3.0 extension (when necessary)
  • 1x 4K60 HDMI output
  • 2x RJ-45 for LAN and for CAT6A HDBaseT Link to the PC HOST module
  • Power 12V and PoE to the PC host module over CAT6A Link
• PC HOST module includes
  • 1x USB-C port for DisplayPort, Alt Mode and USB 2.0 extension
  • 1x USB-C ports for laptop charging up to 100W
  • 1x USB3-A for USB 3.0 extension
  • 1x RJ-45 for HDBaseT Link to the device module
• USB-C and HDMI connectors with lock screws for secure attachment
• Compact, professional-grade aluminum housing with mounting brackets
• Plug-and-play compatibility with Windows, macOS, and Linux—no drivers required

Reliable performance

• Direct connection up to 70 m (230 ft.) using CAT6A U/FTP cable
• LED indicators for power and charging status
• Backed by a 5-year warranty
• Made in Canada and TAA-compliant

Specifications

• Link
  • Technology: HDBaseT 3.0
  • Range: Direct connect up to 70 m (230 ft.) over CAT6A U/FTP
  • Medium: CAT6A U/FTP
    • NOTE: We do not recommend using a crimp tool for attaching terminations. Instead, we highly recommend utilizing toolless terminations to ensure the preservation of signal integrity.
• USB
  • Speeds: USB 2.0: up to 480 Mbps when USB devices are extended
    • * USB 3.2 Gen 1 if devices are extended with the use of our U-BRIDGE 3 extension
  • Transfers support
    • Bulk, isochronous, interrupt and control types
    • Built-in hardware acceleration for isochronous and bulk transfers
• Video – HDMI
  • HDCP compliance: Compliant with HDCP2.3, HDCP2.2 and HDCP1.4
  • HDMI compliance: Compliant with HDMI2.0b, HDMI1.4 and DVI1.0
  • Sampling frequency: 600MHz
  • Chroma subsampling
    • YUV/RGB
    • 4:4:4, 4:2:2
  • CEC: Ability to send CEC commands to connected HDMI display sink
• PC HOST extender
  • USB host connector: 1x USB Type-C receptacle with mounting screw hole for connection to the laptop.
    • USB 2.0
    • USB 3.2 Gen 1 (with the use of our U-BRIDGE 3 extension)
    • Video up to 3840x2160p60/4096x2160p60
    • Network connectivity
    • Charging through an optional USB-C power supply
  • USB power connector: 1x USB Type-C receptacle with mounting screw hole for USB-C power supply
  • Link connector: 1x RJ45
  • USB3-EXT connector: 1x USB-A connector for connection to our U-BRIDGE for USB3.2 Gen 1 support
  • LED
    • 1x power LED
    • 1x charging status LED
  • Mounting: Bracket provided
  • Enclosure material: Aluminum/metal case
  • Power: PC HOST is powered by the DEVICE module, except for charging the laptop.
  • Dimensions (WxLxH): 2.76 x 3.82 x 0.90 inch (7.0 x 9.7 x 2.3 cm)
  • Weight: 1.04 lb (470 g)
• DEVICE extender
  • USB connectors
    • 2x USB-A (USB3.2 Gen 1) receptacle
    • 1x USB-C (USB3.2 Gen 1) receptacle with mounting screw hole
  • Video outputs
    • 1x USB-C DisplayPort Alternate Mode – Source
    • 2x HDMI  2.0 receptacle with cable locking option
    • Up to 3840x2160p60/4096x2160p60
  • Link connector: 1x RJ45
  • USB3-EXT connector: 1x USB-B connector for connection to our U-BRIDGE 3, in case the user needs USB3.2 Gen 1 support
  • LED: 1x power LED
  • Available current: Up to 1.8A shared between ports
  • Mounting: Bracket provided
  • Enclosure material: Aluminum/metal case
  • IP interface
    • 10/100Mbps
    • Supports DHCP or static addressing
    • Used for control and USB-C network connectivity over the PC HOST module
  • Dimensions (WxLxH): 2.76 x 5.39 x 0.90 inch (7.0 x 13.7 x 2.3 cm
  • Weight: 1.76 lb (800 g)
• General
  • Power supply: 100-240V AC input, 24V 2.5A DC output
  • Operating temperature: 0°C to 50°C (32°F to 122°F)
  • Storage temperature: -20°C to 70°C (-4°F to 158°F)
  • Operating humidity: 20% to 80% relative humidity, non-condensing
  • Storage humidity: 10% to 90% relative humidity, non-condensing
  • Certifications
    • Device: FCC, CE, UKCA, RoHS, IEC62368, SoV, RCM, NOM
    • Power supply (60W): FCC, CE, UKCA, CB, UL, TUV, EMC
    • TAA-compliant: Yes
  • Warranty: 5 years

What's in the Box

• 1x PC HOST extender module
• 1x DEVICE extender module
• 1x USB Type-C to Type-C cable
• 1x installation guide
• 2x mounting brackets for the power supply
• 2x mounting brackets for the PC HOST module
• 2x mounting brackets for the DEVICE module.
• 12x black wooden screws
• 1x power supply 100-240V AC input, 24V 2.5A DC output
  • International power adapter with country-specific cord (North America, EU, UK, Australia/NZ, or Japan)
