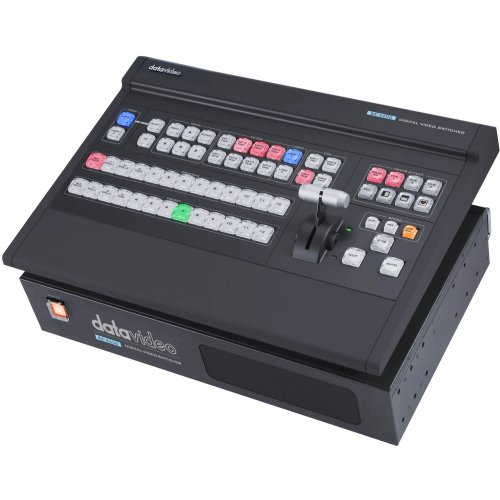

Datavideo HD 12-Channel Digital Video Switcher

Model: SE-3200

Datavideo HD 12-Channel Digital Video Switcher
Datavideo HD 12-Channel Digital Video Switcher
Datavideo HD 12-Channel Digital Video Switcher
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed




About: Datavideo HD 12-Channel Digital Video Switcher

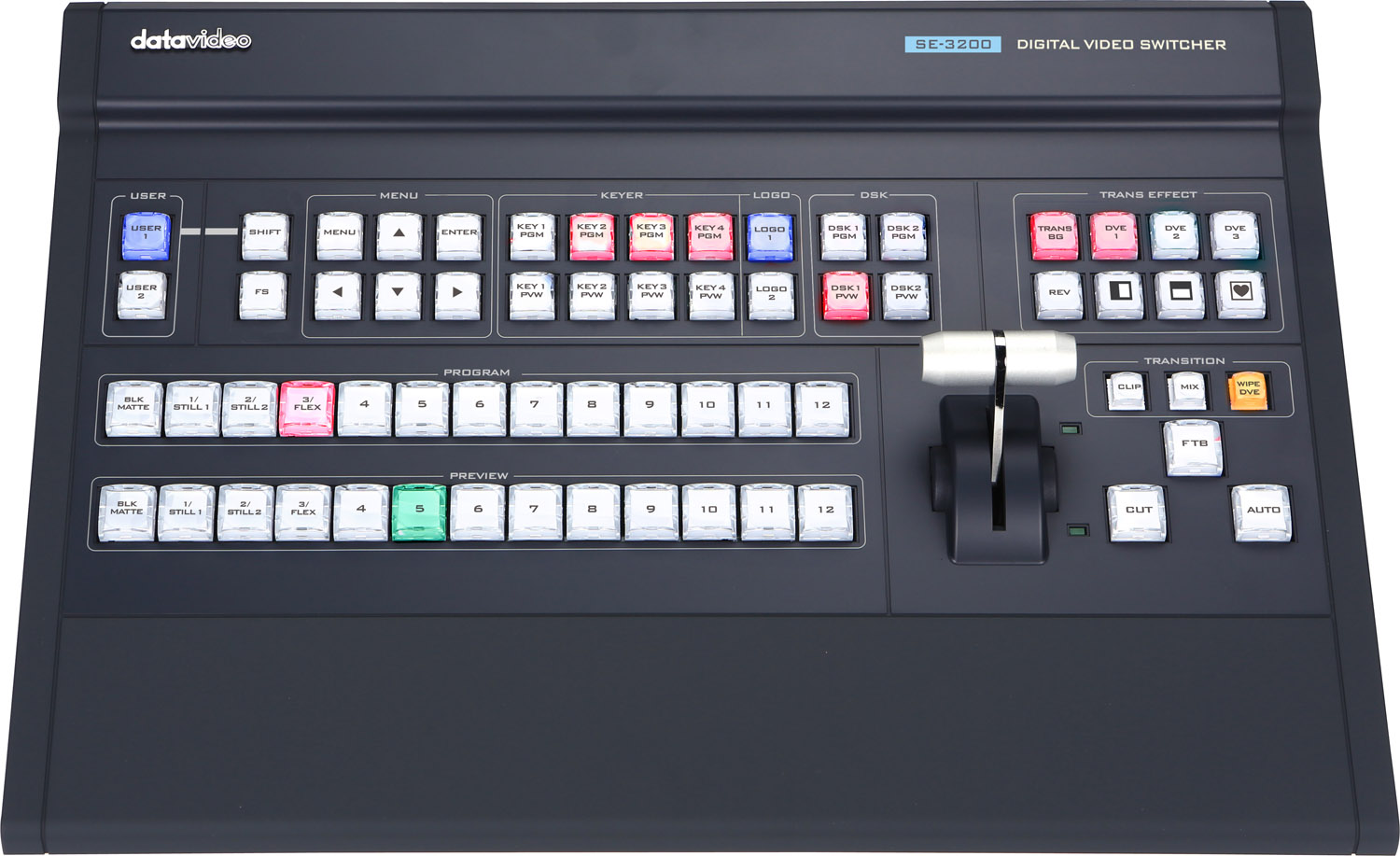

The SE-3200 is a 12 channel professional digital video switcher with real Full 1080p/60 (3G) High Definition support, featuring 12 digital inputs including 8 SDI and 4 HDMI inputs with embedded audio, 6 SDI and 3 HDMI outputs for connecting HD recorder, external monitors and etc. SE-3200 is a lightweight switcher solution with the main unit mountable on the 19 inch rack. The control keyboard panel can be placed on a flat surface or built inside an outdoor broadcast van. The SE-3200 also has powerful, easy-to-use effects, such as Chroma / Luma Key, DSK, PIP, DVE / Wipe Generator, still stores, and logo insertion.



Features

  • A total of 12 Video Input Interfaces (8 x SDI / 4 x HDMI)
  • 9 Video Outputs (6 x SDI / 3 x HDMI)
  • 4 Upstream Keyers, supporting Chroma key & Linear / Luma key
  • 4 PIP (assignable to any of keyers)
  • 2 DSK supporting Linear & Luma Key Modes
  • 2 Logo insertions (Animation logo with adjustable position and size / logo size is determined by the imported file)
  • Wipe, Mix, DVE, Cut and Stinger Transitions
  • 32 Wipe patterns including Circle & Heart, and Border & Softness Control
  • Clip player (150 Frames) for Stinger Transitions
  • Any Input (1-12) can be used as a Frame store (Stills Store)
  • Support XPT (Cross Point Assignment)
  • 4 x XLR Analogue Audio Inputs
  • 2 x XLR De-embedded Analogue Audio Outputs
  • Tally output
  • USB Port for FW upgrade

Videos: Datavideo HD 12-Channel Digital Video Switcher

Reviews: Datavideo HD 12-Channel Digital Video Switcher

There are currently no product reviews.


Warranty: Datavideo HD 12-Channel Digital Video Switcher

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

1 year warranty
