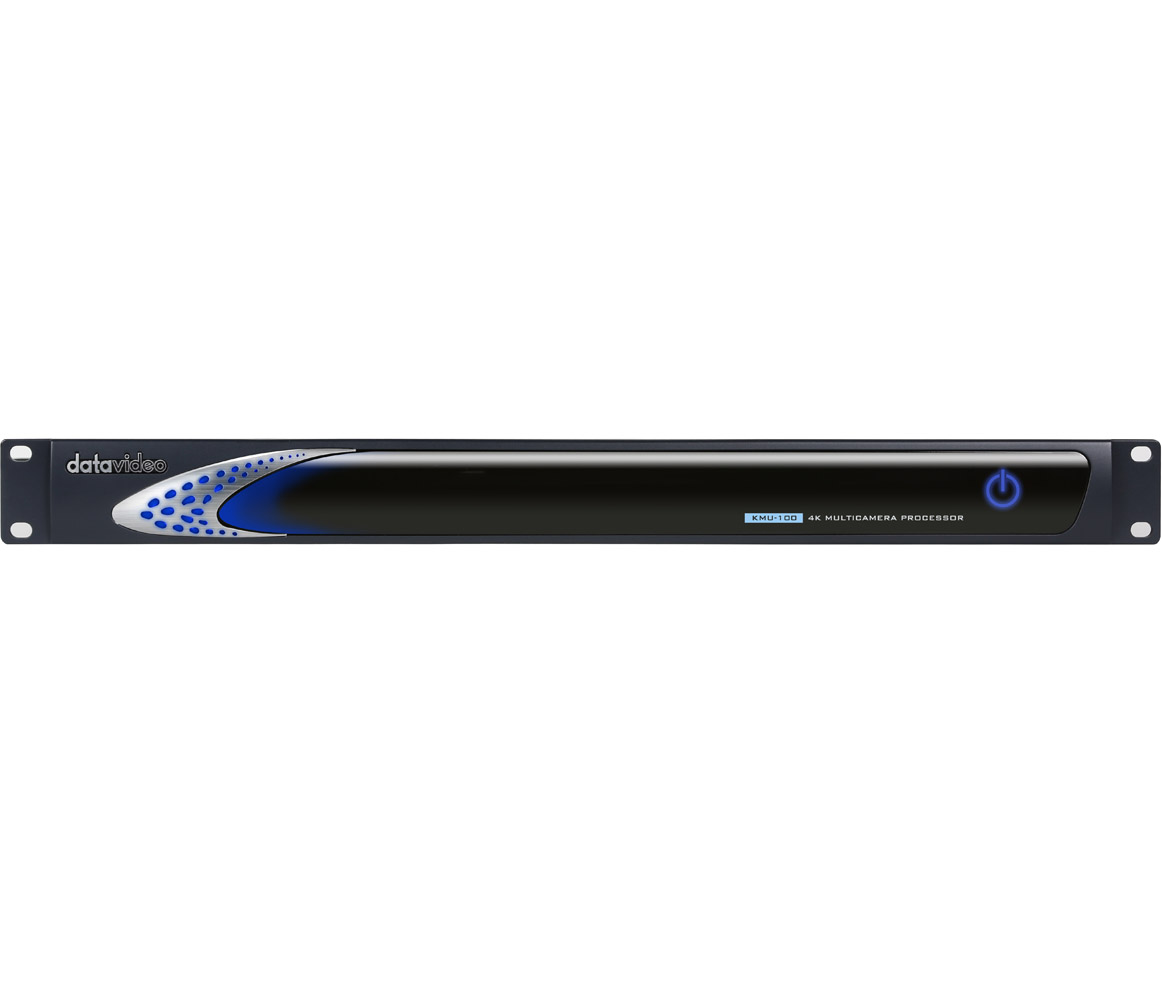

Datavideo 4K Multi-camera Processor
Model: KMU-100
About: Datavideo 4K Multi-camera Processor
Datavideo’s all new KMU-100 is a unique 4K multi-camera production solution that delivers multiple virtual full HD (up to 1080p) scaled camera angles with minimal installation cost and simple operation. The basic concept is straightforward: The output of a single 4K/UHD camera is connected to KMU-100, which then displays up to four 16x9 user-defined cropped windows that are sent out as four separate HD signals through HD-SDI. These user defined windows can be scaled to zoom in on a particular subject that you would like to highlight on the 4K signal. As an option, the Datavideo RMC-185 controller can be added to easily pan, tilt, and zoom to create the user defined windows on the 4K signal. You can set up these shots in advance and save them as presets, or you can do it in real-time.
Features
Video Inputs
- Quad SDI, 6G-SDI or 12G-SDI
- HDMI 2.0 Video Input with Support for 2160p60
SDI Video Output
- 4x 3G-SDI
- Monitoring
- 2x HDMI 1.4
Audio
- SDI Audio Input (16 Channels)
- SDI Audio Output (16 Channels)
Sync Input (Genlock)
- Blackburst or TriSync
Computer Interface
- Ethernet RJ45 for Control Configuration and Updates (for Laptop)
- RS-232 / RS-422 x 1
UPC: 672255007228
Videos: Datavideo 4K Multi-camera Processor
Reviews: Datavideo 4K Multi-camera Processor
Warranty: Datavideo 4K Multi-camera Processor
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
1 year warranty
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
