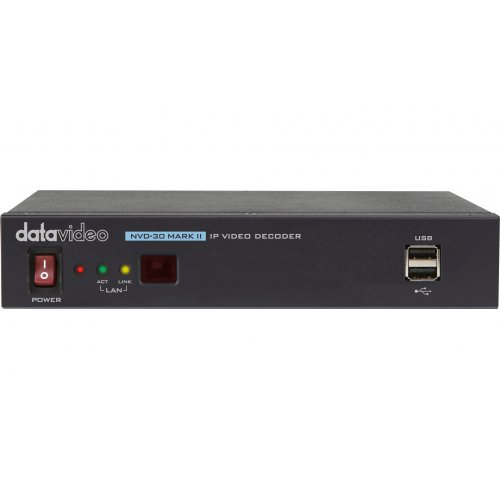

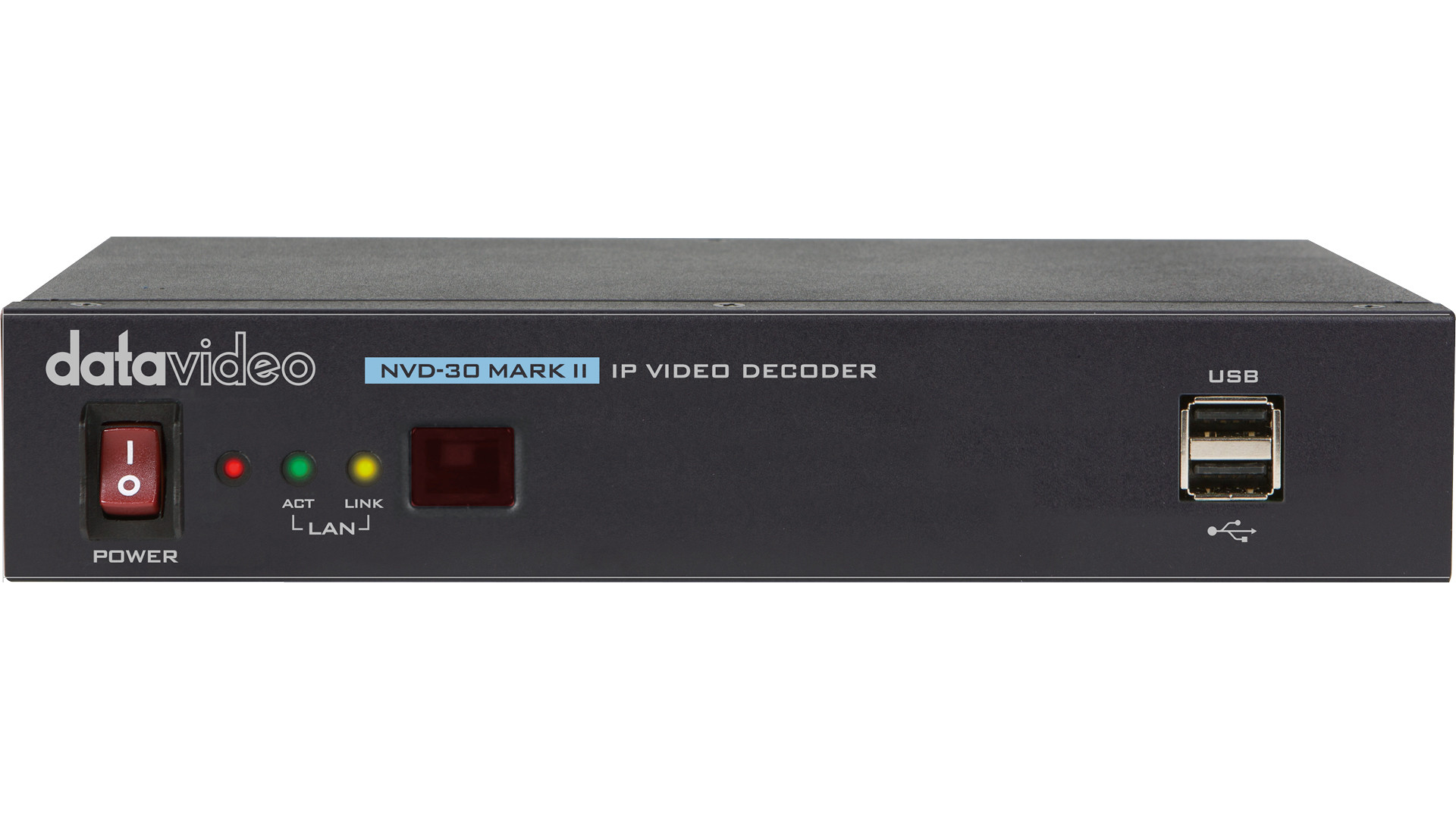

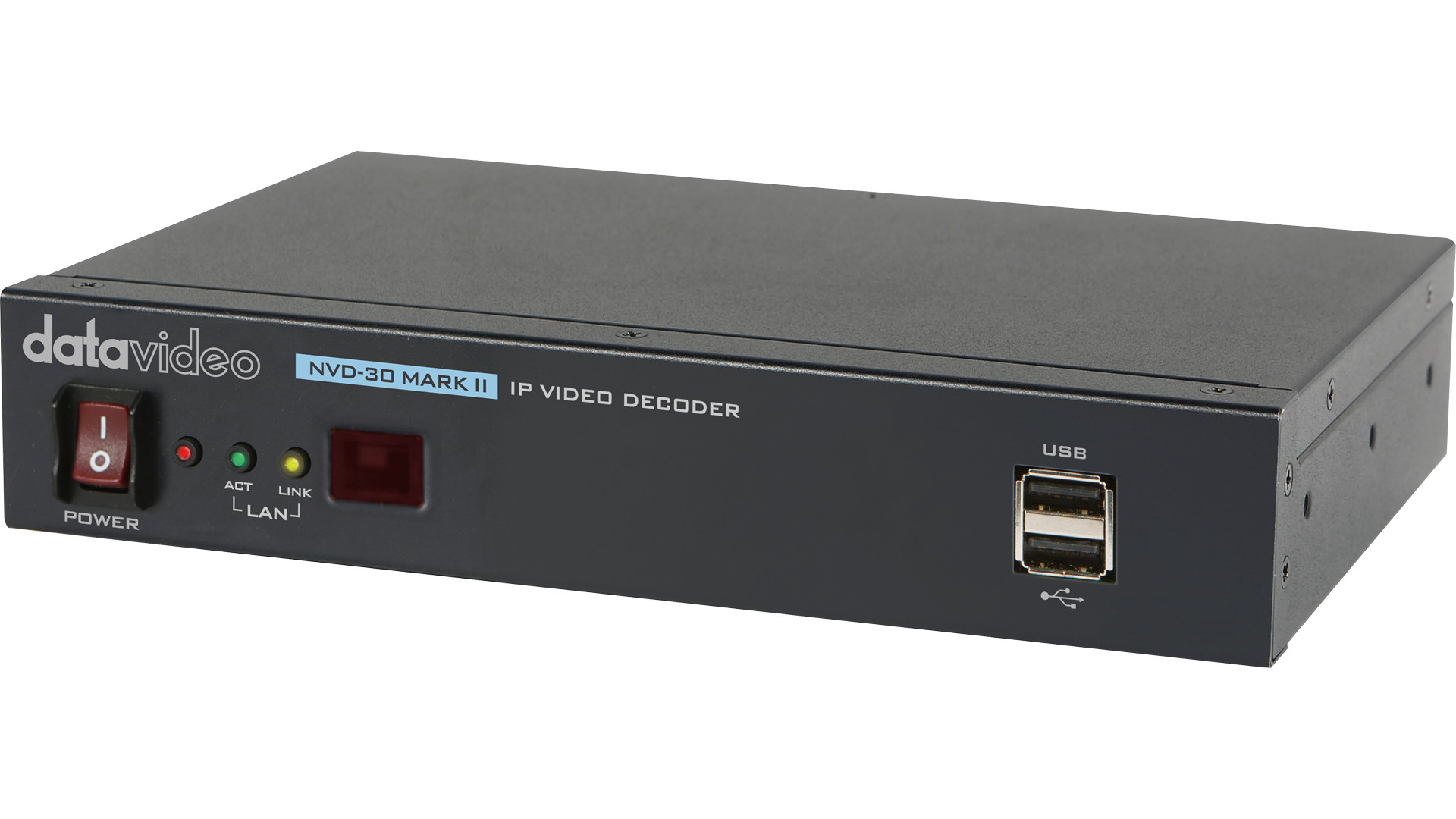

Datavideo NVD-30 MKII HDMI IP Video Decoder

About: Datavideo NVD-30 MKII HDMI IP Video Decoder

Decodes all common streaming protocols

Decode videos from Datavideo encoders, Youtube Live, UStream, and other major CDNs. The NVD-30 MARK II decodes all common streaming protocols, directly from YouTube Live, UStream, Dailymotion, Livestream, Twitch and other major CDNs, and skips all third-party ads.

Decodes all common streaming protocols including SRT

The NVD-30 MARK II decodes common streaming protocols including SRT, RTSP, RTMP, UDP, TCP, HTTP, HLS and MPEG-TS. The SRT streaming protocol now features security, reliability, and low latency, enabling high quality video streaming with ultra-low latency even in unstable network environments.

Output high quality video at 1080p 50/60 FPS

The NVD-30 MARK II  IP Video Decoder supports HDMI and Composite video output with resolutions up to 1080p 50/60 FPS. RCA audio output is also supported.

Easily connect encoders to decoders with dvCloud

The NVD-30 MARK II Decoder is seamlessly compatible with our dvCloud live streaming platform, when connected to dvCloud you can remotely control the decoder from anywhere in the world.

• Connect encoders to decoders anywhere in the world without firewall configuration,
• Connect encoders to decoder with a single click, no need to copy stream URLS or IP addresses.
• Connect multiple decoders to a single encoder without putting extra load on the internet connection at the encoder side. The video encoder sends a single stream to the cloud and the cloud distributes it to the multiple decoders via its high-speed connection to the internet backbone.
• Remotely monitor and control all connected decoders from a single dashboard,
• Detailed statistics allow you to make sure that every frame makes it all the way from encoder to decoder.

Perfectly Matched with Datavideo Webcast Encoders

The NVD-30 MARK II can be matched with Datavideo NVS-33/34/40 and other webcast encoders to create a Full HD video transmission architecture based on Ethernet, WiFi or the Internet.

Real-time Video Flip and Rotate

The NVD-30 MARK II adds real-time video flipping and rotating functions for more flexible video output options.

RMC-12 Remote Control

RMC-12 remote control is included for more convenient operation.

Specifications

• Audio/Video Input
  • Stream Input
    • RTSP over UDP (Unicast / Multicast)
    • RTSP over TCP
    • RTSP over HTTP
    • SRT (Secure Reliable Transport) caller
    • MPEG-TS over UDP
    • RTMP Pull
    • RTMP Push (Internal Server)
    • UDP raw (Unicast/Multicast)
    • HLS over HTTP
    • MPEG-TS over TCP Pull
    • Video sharing websites

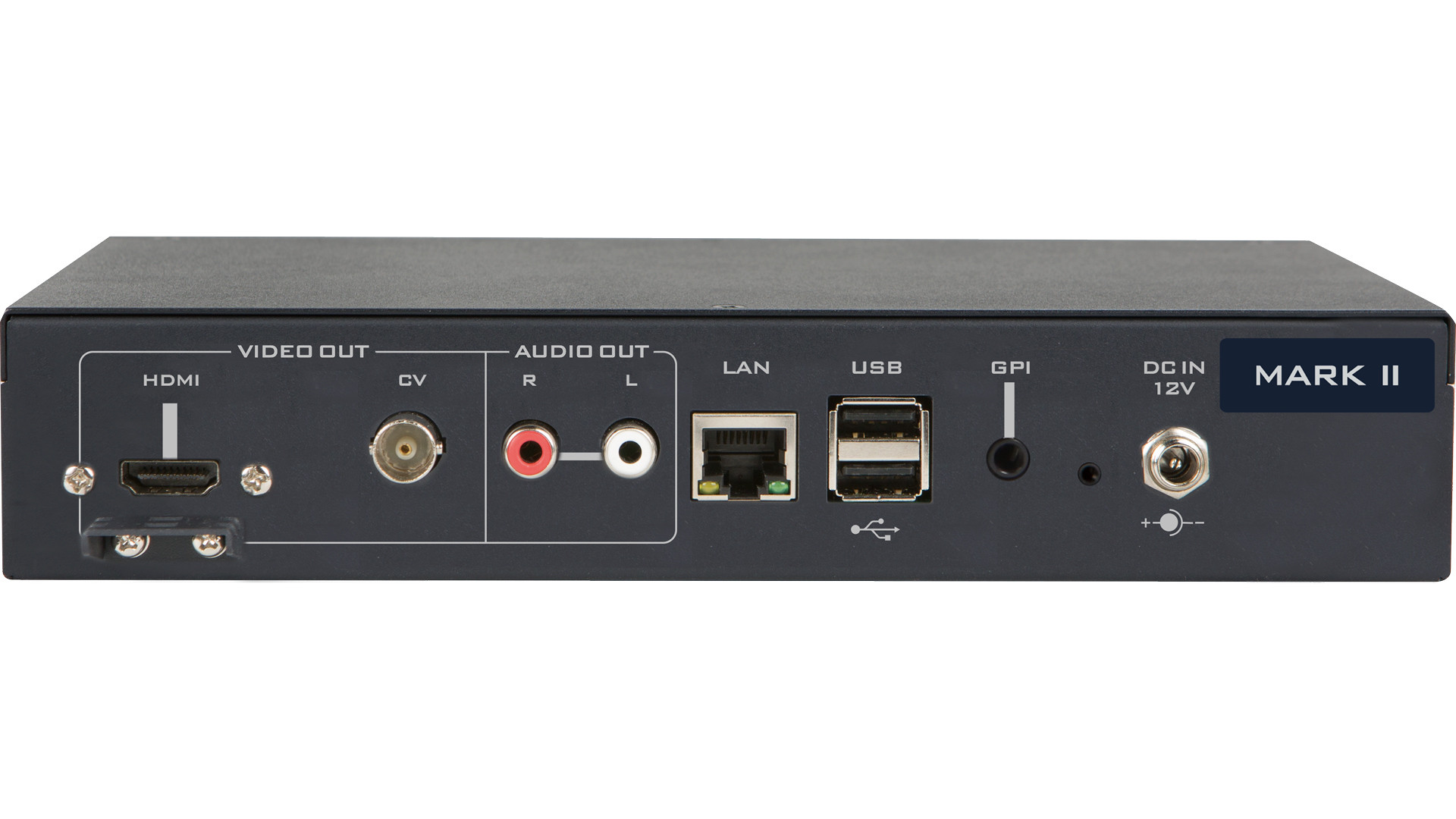

• Audio Output
  • 2x RCA(L/R)
  • HDMI embedded audio
• Video Output
  • Composite (analogue)
  • HDMI (digital)
• Network Feature -  1x RJ-45 Female (10/100M Ethernet) DHCP/Static IP
• Supported Video Resolution
  • 1080p 60/59.94/30/29.97/25/24
  • 1080i 60/59.94/50
  • 720p 60/59.94/50
  • 576i 50 (PAL)
  • 480i 60 (NTSC)
• Supported Decoding Resolution -  Up to 1080p60/50
• Control
  • Web browser UI for configuration and control.
  • TCP/IP Socket commands
• Update -  Automatic firmware upgrade
• Power
  • Input AC 100~240V Switching Adaptor
  • Output DC 12V / 0.5 A
• Environmental Conditions
  • Operating temperature: 0~40°C,
  • Storage temperature: -10~60°C
• Dimension (LxWxH) -  8.66 x 5.63 x 1.85 in (220 x 143 x 47 mm)
• Weight -  2.2 lb (1 kg)
• Power -  DC 12V, 0.5A

What's in the Box

• 1x NVD-30 MARK II product
• 1x AD Switch DC 12V
• 1x Remote Control
