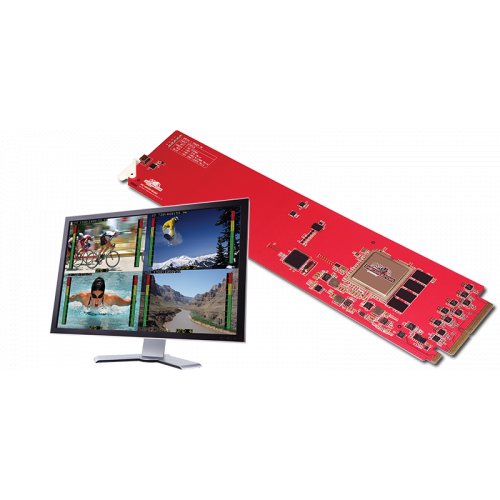

Decimator MC-DMON-QUAD openGear MultiViewer
Model: MC-DMON-QUAD
About: Decimator MC-DMON-QUAD openGear MultiViewer
1 to 4 Channel (3G/HD/SD)-SDI MultiViewer with Custom Layouts
- Supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B
- Low cost miniature (3G/HD/SD)-SDI 1 to 4 MultiViewer or 4 to 1 input multiplexer
- Custom Layouts with various standard layouts
- 16 Character UMD overlay per window with individual enables, custom positioning and size
- 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
- Audio ID overlay
- 3 pin connector on the DR1-10B1G rear module allows for Dynamic UMD and Tallies via RS422/485 using the industry standard TSL protocol
- Tallies can be applied to either Tally Boxes (Default) or Border
- Tally boxes allows for up to 4 Tallies per window
- Fast switching between inputs using Full-Screen scaling
- Selectable output format in both Full-Screen MultiViewer mode
- Low latency buffering for each input allowing non-synchronous inputs
- 4 x (3G/HD/SD)-SDI inputs with auto detection (29 Formats supported in total)
- Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
- Variable aspect ratios per quadrant
- In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI outputs
- USB Mini B port for control and firmware updates
- Supports openGear DashBoard for control
- The DR1-10B1G rear is sold separately and has 10 BNC connectors and a 3 pin connector for RS422/485
UPC: 5060417390175
Reviews: Decimator MC-DMON-QUAD openGear MultiViewer
Warranty: Decimator MC-DMON-QUAD openGear MultiViewer
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Decimator Design warrants that this product will be free from defects in materials and workmanship for a period of 36 months from the date of purchase. If this product proves to be defective within this warranty period, Decimator Design, at its discretion, will either repair the defective product without charge for parts and labour, or will provide a replacement product in exchange for the defective product.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
