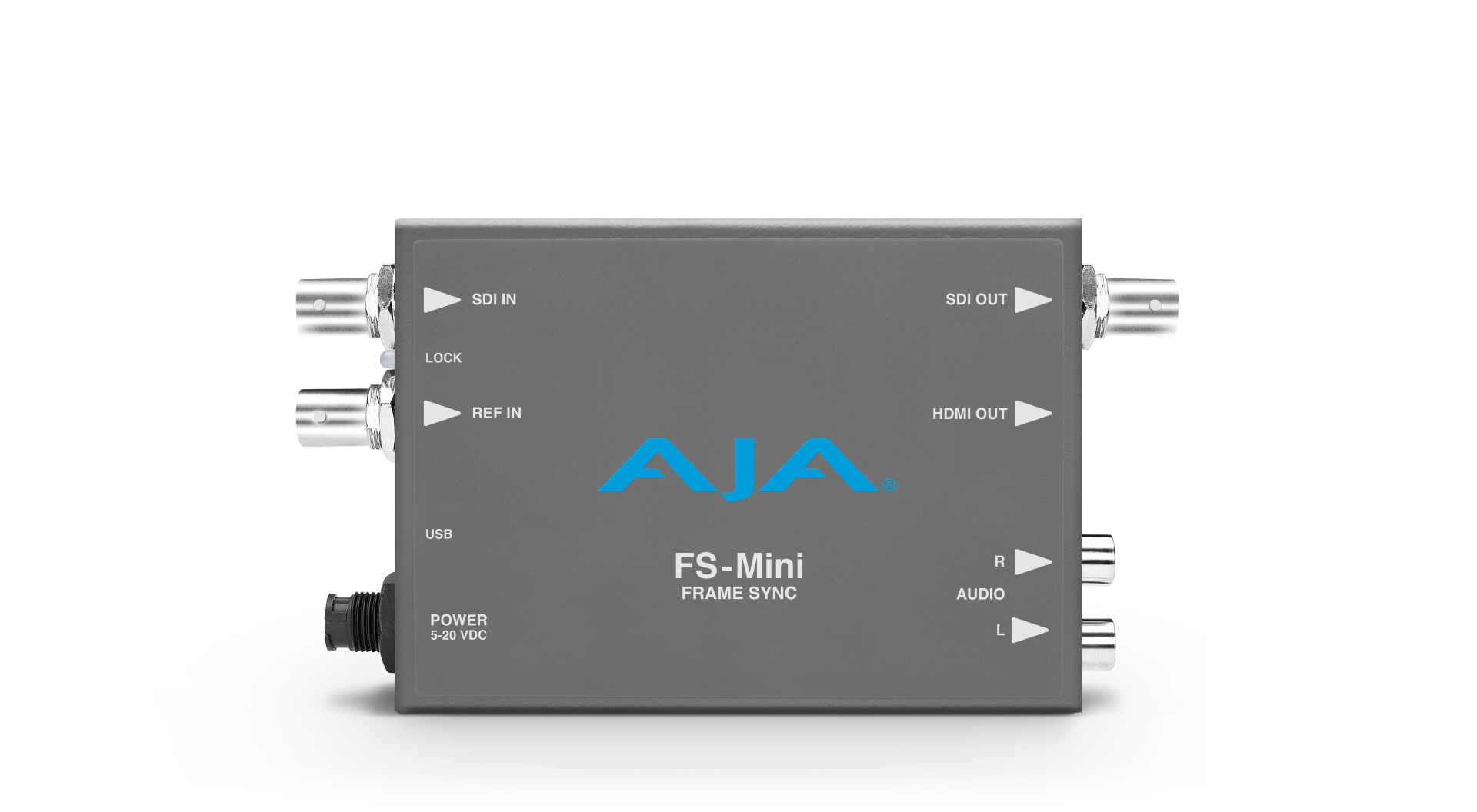

AJA FS-Mini Frame Synchronizer
Model: FS-MINI
About: AJA FS-Mini Frame Synchronizer
The FS-Mini is a broadcast quality utility frame sync that packs the production-proven reliability of AJA’s leading FS frame sync technology into a portable Mini-Converter supporting frame synchronization of untimed 3G-SDI, HD, and SD video signals at an affordable price.
FS-Mini allows users to synchronize and convert a wide range of video formats to their house standard with a 3G-SDI input and output, HDMI output, and a 2-channel RCA style audio output. The FS-Mini also provides high quality up, down, cross-conversion.
The device also features a reference input that can be used to lock to a local reference. It can be simply controlled via local DIP switches or USB with AJA's Mini-Config application.
Features
- Utility frame sync function, times input signals to an external reference
- Supports bi-level and tri-level references
- High quality 10-bit video processing
- Low latency processing, nominal video delay of 1 frame
- Synchronizes 3G, HD and SD video formats
- Loss of input management: Freeze, Black, or Mute
- Simultaneous SDI and HDMI outputs
- 16-channel embedded SDI audio I/O
- 8-channel HDMI output audio
- 2-channel RCA-style analog outputs at -10dBV (nominal)
- Utility frame rate conversion
- Supports 3:2 pulldown
- Up, down, cross conversion between 3G, HD and SD video formats
- AFD input detection, down-convert control
- Simple configuration via a DIP switch or USB port and Mini-Config software on PC/Mac
- Uses 5-20 VDC power (DWP-U-R1 universal power supply included)
- Five year warranty
NOTE:
FS-Mini supports 3G-SDI Level A only. 3G-SDI Level B is not supported.
FS-Mini passes-through embedded audio ancillary data only. It does not pass through other types of embedded ancillary data.
UPC: 812321031973
Reviews: AJA FS-Mini Frame Synchronizer
Warranty: AJA FS-Mini Frame Synchronizer
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
All AJA Mini-Converters are covered by a 5 year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
