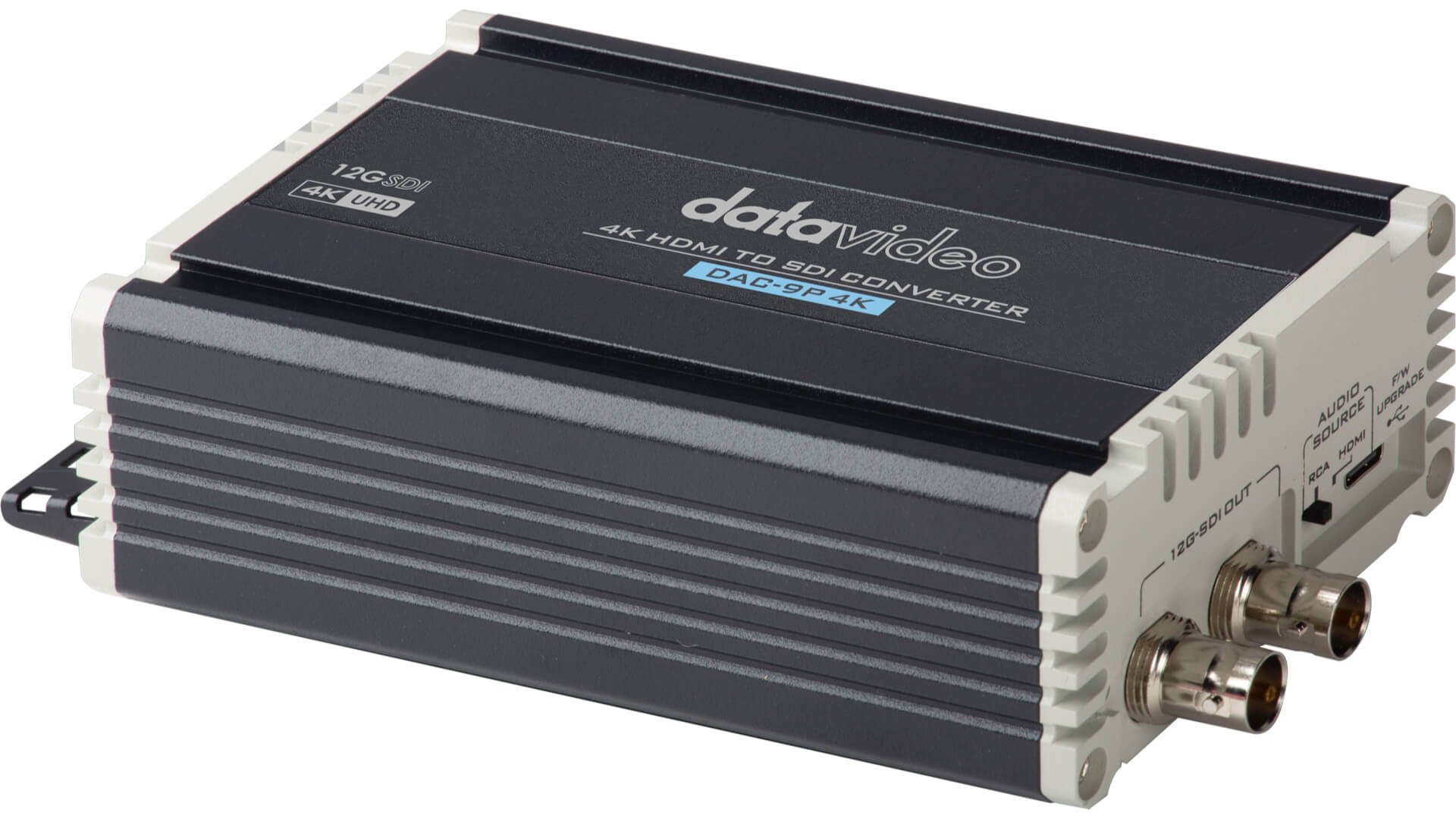

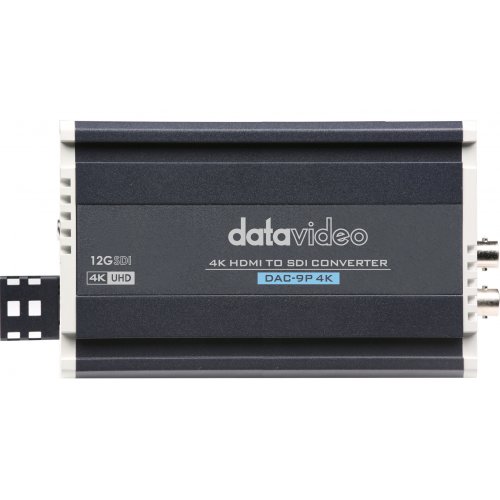

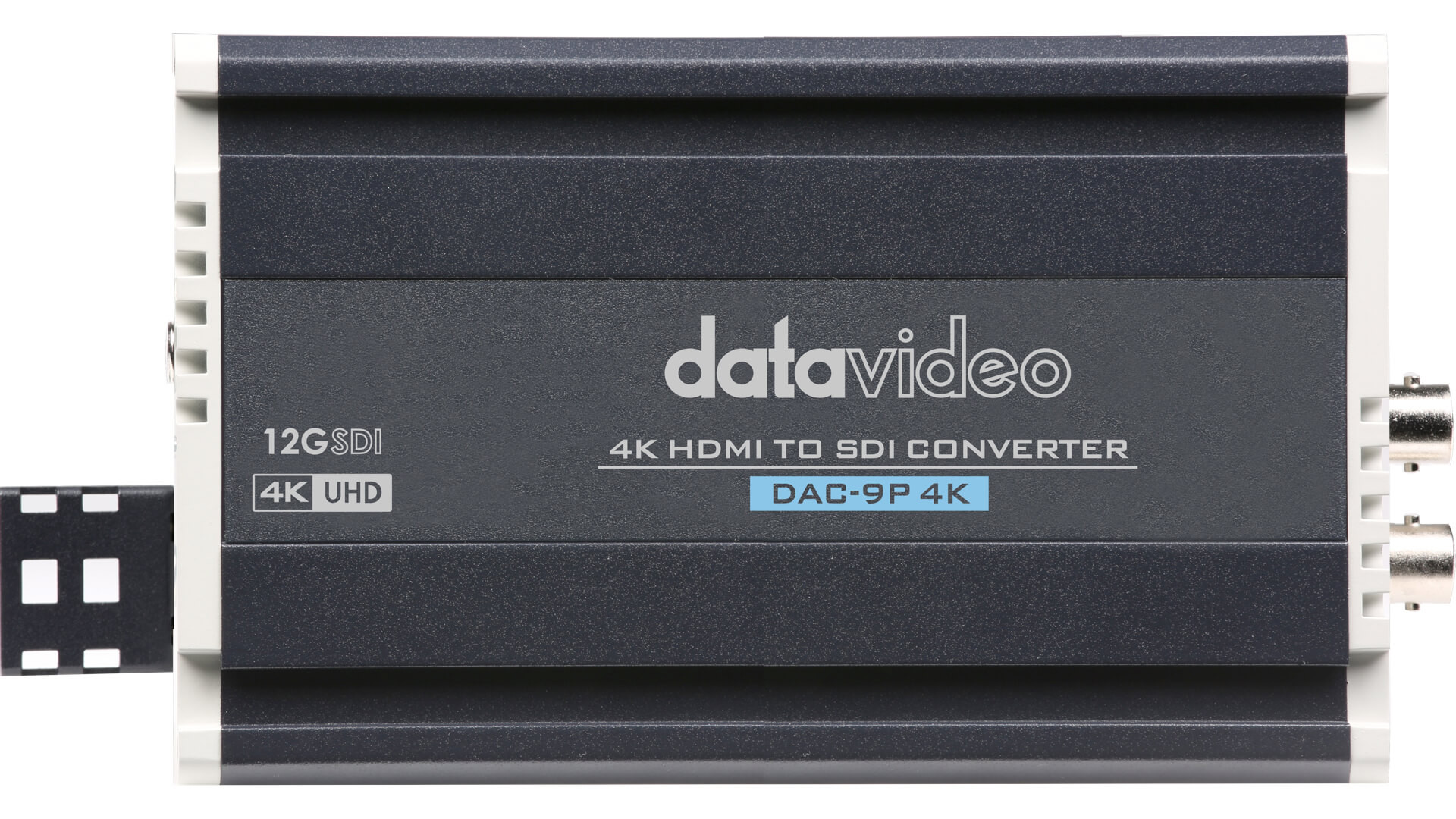

Datavideo DAC-9P 4K HDMI to 12G-SDI Converter

About: Datavideo DAC-9P 4K HDMI to 12G-SDI Converter

Broadcast Quality 4K HDMI to 12G-SDI Converter

The DAC-9P 4K Converter converts 4K HDMI in resolutions up to 4K50/60 to 12G-SDI, it is easy to connect the 4K HDMI signal devices and professional 12G-SDI video equipment.

Featuring HDMI input to SDI output, and with HDMI loop output, audio is selectable from the HDMI input or RCA analog input.

The DAC-9P 4K Converter is useful for a variety of broadcast and professional AV applications.

Supports up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160)

The DAC-9P 4K is broadcast quality converter, and it supports up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160).

The DAC-9P 4K is also very easy to use. It is a plug and play converter, so there is no need to use a laptop for adjusting any settings.

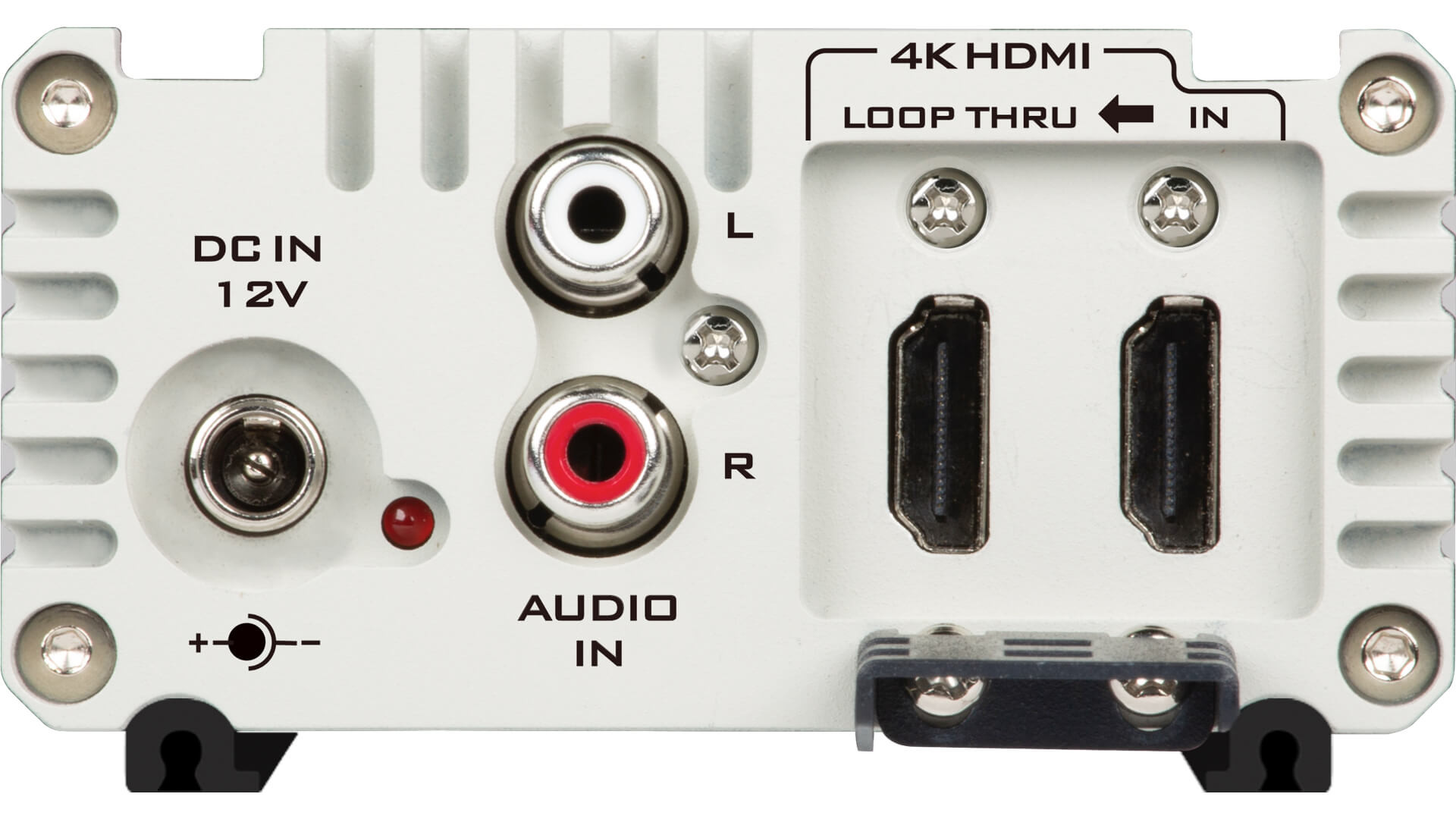

4K HDMI 2.0 input and Loop-Thru Output

In addition to the converted 12G-SDI output, there is a HDMI loop thru for sending a signal to other devices in your workflow.

Supports Re-Clocking

DAC-9P 4K will regenerate the video signal, and provide less jitter to improve output signal quality. DAC-9P 4K allows for a long distance transmission.

Not just a Video Converter, but also an Audio Embedder

DAC-9P 4K provides a video converter from HDMI to SDI, and it also provides you an additional audio embedded selectable from 2-channel RCA analog audio or input from HDMI video to your live production.

Plug-and-Play

No Dip switch or laptop adjustment needed, Just plug and play you will receive the perfect SDI video signal for your video production.

Aluminum Appearance Design, Rugged and Durable

Super sturdy and durable. The DAC series products have a rugged metal housing for use in the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.

Specifications

• Conversion -  4K HDMI to 12G/3G/HD/SD-SDI
• Video Inputs -  1x HDMI 2.0 Type A
• Loop Through -  1 x HDMI 2.0 Type A

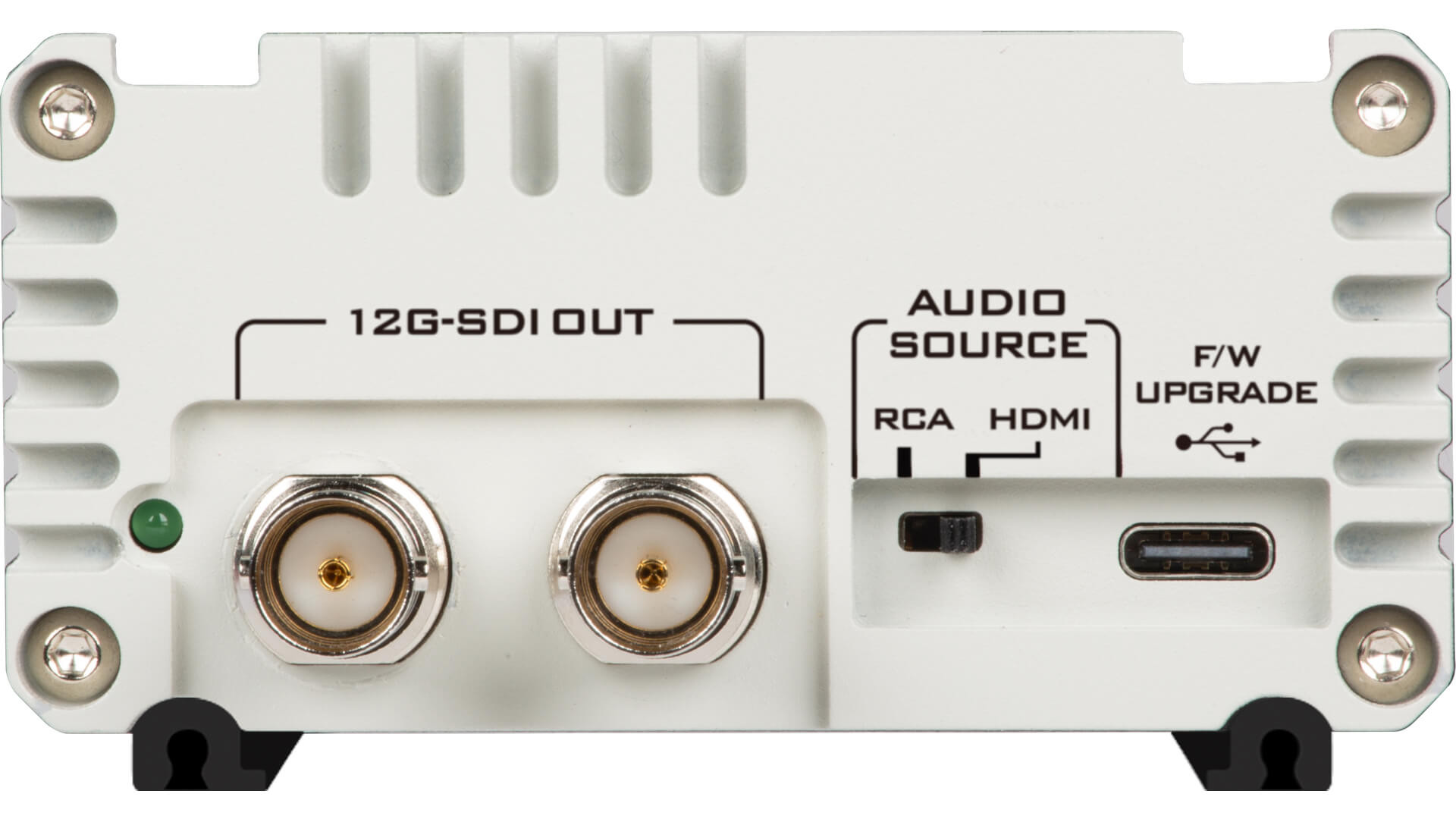

• Video Outputs -  2 x 12G-SDI (3G-SDI Level A)
• Audio Inputs -
  • 2 x RCA (Unbalanced Audio L/R)
  • HDMI embedded audio, 24-bit, 8-channel
• Audio Outputs -  SDI embedded audio, 24-bit, 8-channel
• Audio Format Selection -  N/A
• Audio Gain -  N/A
• Supported Video Input Formats
  • 4096x2160p: 60/50/30/25/24
  • 3840x2160p: 60/50/30/25/24
  • 1080p: 60/50/30/25/24
  • 1080i: 60/50, 720p: 60/50
• Output Resolutions -  Automatically matches the SD, HD and 4K HDMI video input
• Equalizer -  N/A
• Reclock -  Yes
• SDI Cable Drive -  Yes
• Updates and Configuration -  USB Type C
• Operating Temp. Range -  0~40 °C
• Power -  DC 12V, 9.4W
• Dimension (LxWxH) -  5.37 x 3.35 x 1.77 in (136.5 x 85 x 45 mm)
• Weight -  0.86 lb (0.39 kg)

What's in the Box

• 1x DAC-9P 4K
• 1x AD Switch DC 12V
