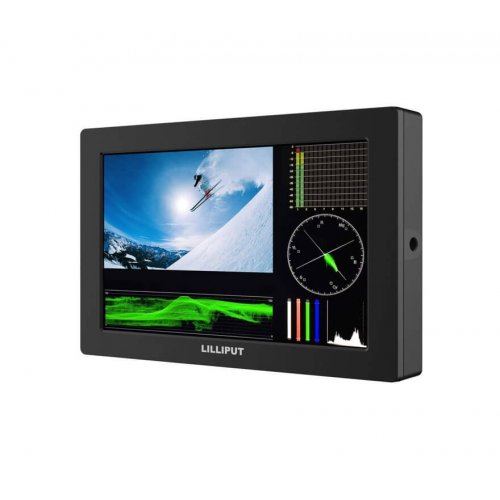

Lilliput Q7 7in Full HD-SDI Monitor
Model: Q7
About: Lilliput Q7 7in Full HD-SDI Monitor

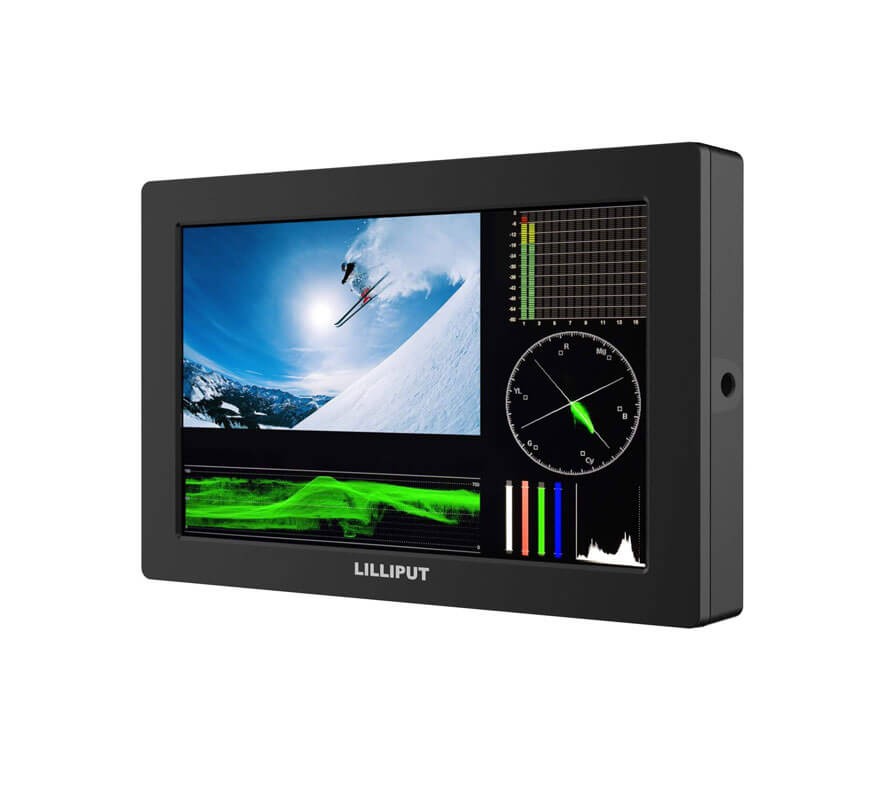

The Lilliput Q7 is a 7" FHD Camera Monitor with SDI and HDMI cross conversion
Precise Color
It features 7" 16:10 LCD panel with 1920x1200 Full HD resolution, 1000:1 high contrast, 165° wide viewing angles, 500cd/m² high brightness, which offers outstanding viewing experience.
4 times clear than standard definition display
Integrated New Advanced Functions
Lilliput creatively integrated column (YRGB peak), time code, waveform, vector scope & audio level meter into field monitor. And multiple modes for optional.
- Waveform PiP mode
- Waveform Y - enlarged horizontally mode
- Full screen mode
Metal Housing Design
Thinner (22mm) with a firm metal body, makes a better protection from vibration, drop & bad environment outside. Longer life time for the device.

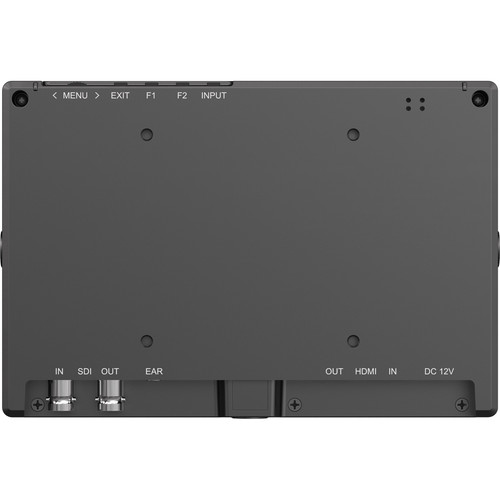

SDI and HDMI Cross Conversion
With high quality HDMI & 3G-SDI inputs, make sure that precise color can be controlled under multiple displays conveniently.
The HDMI output connector can actively transmit an HDMI input signal or output an HDMI signal that has been converted from an SDI signal. In short, signal transmits from SDI input to HDMI output and from HDMI input to SDI output.
More Auxiliary Functions
More professinal functions assist users to accurately monitor when shooting, making and playing movies/videos.
|
DISPLAY
|
Display Screen | 7" |
|---|---|---|
| Physical Resolution | 1920×1200 | |
| Aspect Ratio | 16:10 | |
| Brightness | 500cd/m2 | |
| Contrast | 1000:1 | |
| Viewing Angle | 170°/170°(H/V) | |
|
INPUT
|
3G-SDI | 1 |
| HDMI | 1 | |
|
OUTPUT
|
3G-SDI | 1 |
| HDMI | 1 | |
|
AUDIO
|
Speaker | 1 |
| Ear Phone Slot | 1 | |
|
SDI FORMAT
|
SMPTE-125M | 480i(59.94) 1080i(60/59.94/50) 1080p(30/29.97/25/24/24sF/23.98/23.98sF) |
| SMPTE-292M | 1080p(30/29.97/25/24/24sF/23.98/23.98sF) | |
| SMPTE-296M | 720p(60/59.94/50/30/29/25/24/23.98) | |
| SMPTE-372M | 720p(60/59.94/50) 1080i(29.97/25/24/23.98) 1080p(60/59.94/50/30/29.97/25/24/23.98) |
|
| SMPTE-425M-AB | 1080p(60/59.94/50) | |
| -Level A & Level B | 720p(60/59.94/50/30/29.97/25/24/23.98) | |
| Level B 2x | 1080i(60/59.94/50) | |
| ITU-R BT.656 | 576i(50) | |
|
HDMI FORMAT
|
Full HD ~ HD | 1080p, 1080i, 720p, 576p, 576i, 480p, 486i |
|
POWER
|
Current | 1A |
| Input Voltage | DC 7-24V | |
| Battery Plate | V-mount / Anton Bauer mount / F970 / QM91D / DU21 / LP-E6 |
|
| Power Consumption | ≤12W | |
|
ENVIRONMENT
|
Operating Temperature | -20℃～60℃ |
| Storage Temperature | -30℃～70℃ | |
|
DIMENSION
|
Dimension(LWD) | 182×124×22mm |
| Weight | 405g |
UPC: 6950821601143
