Atomos Shogun AV-19 4K Touchscreen Rack Monitor/Recorder/Switcher

About: Atomos Shogun AV-19 4K Touchscreen Rack Monitor/Recorder/Switcher

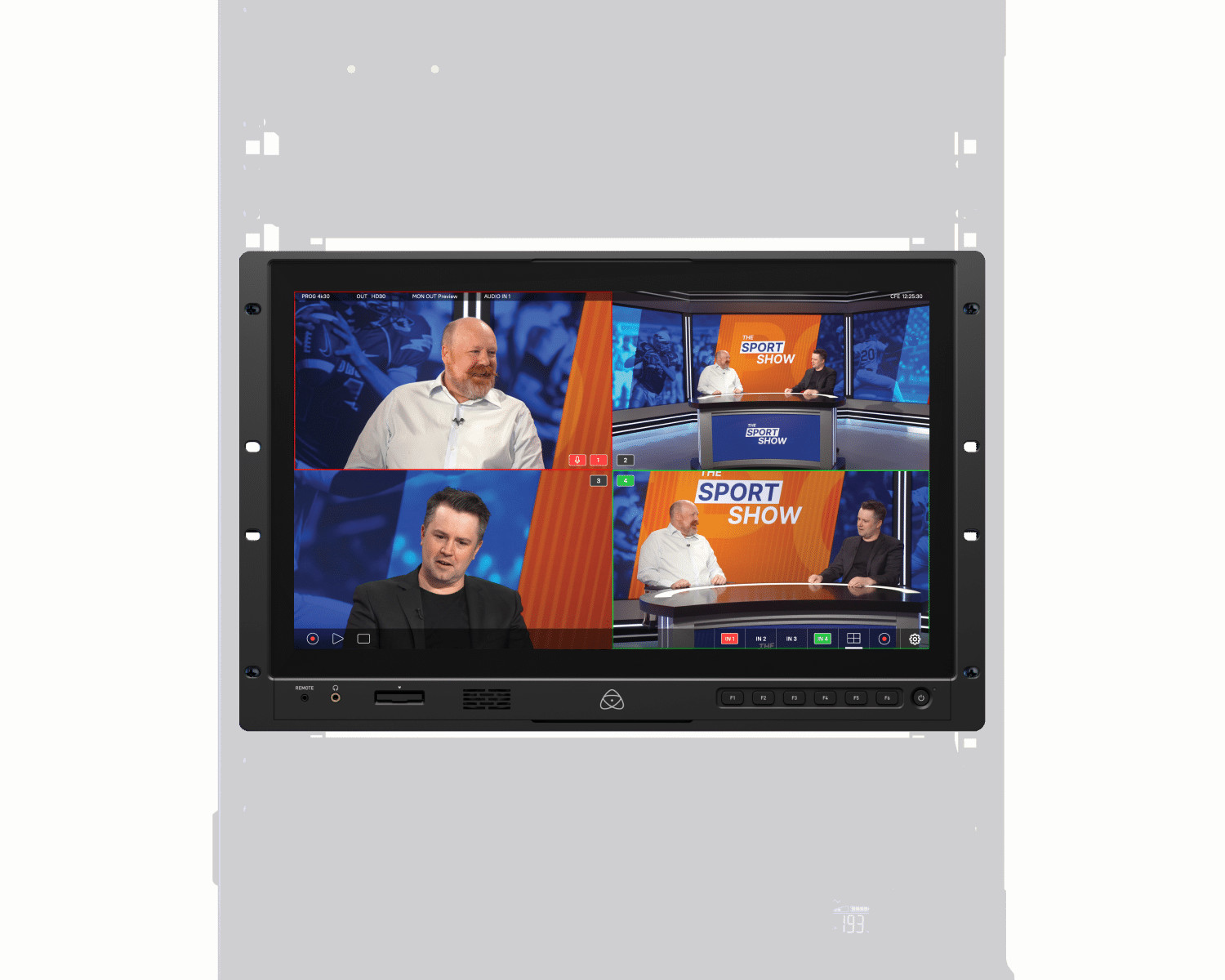

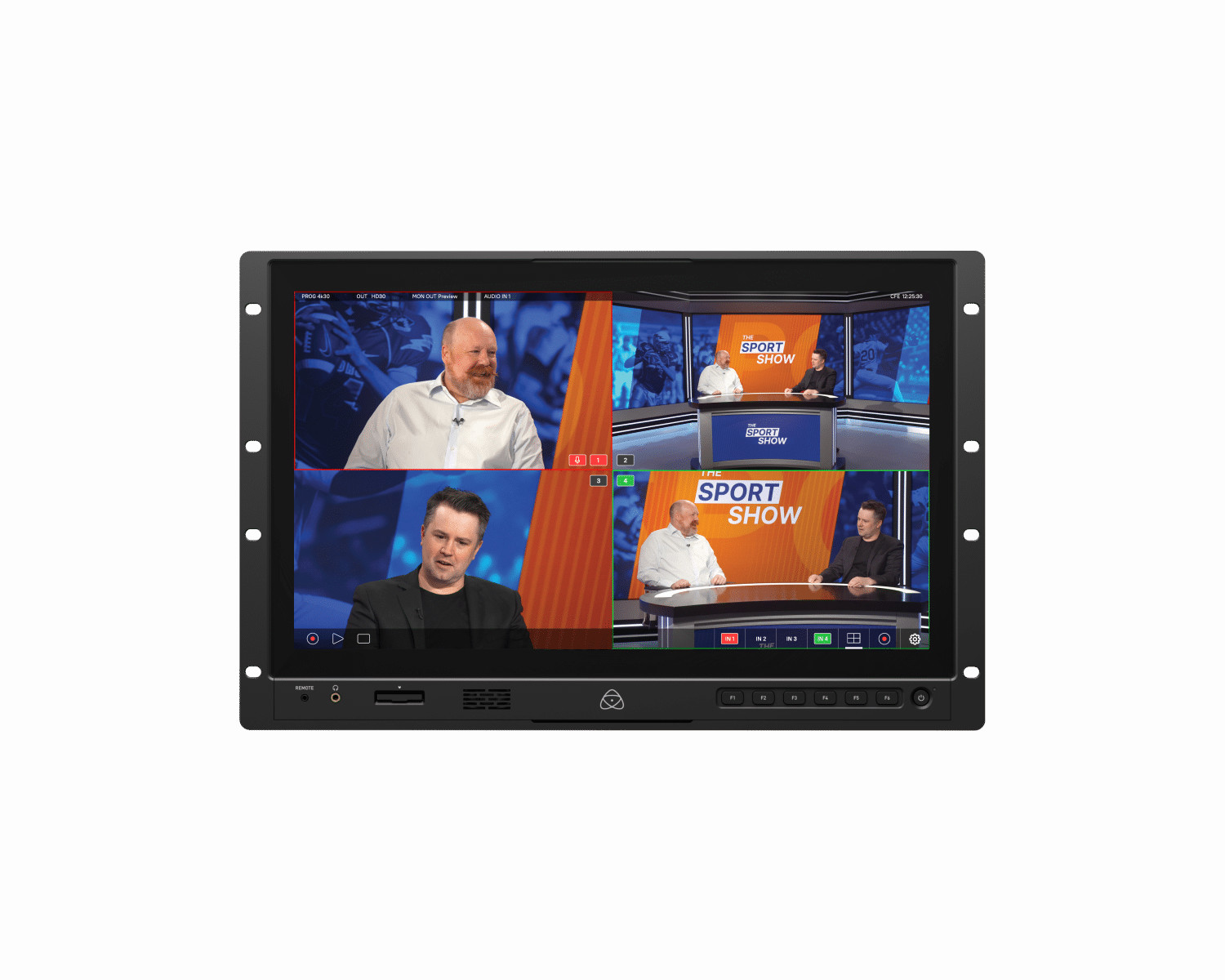

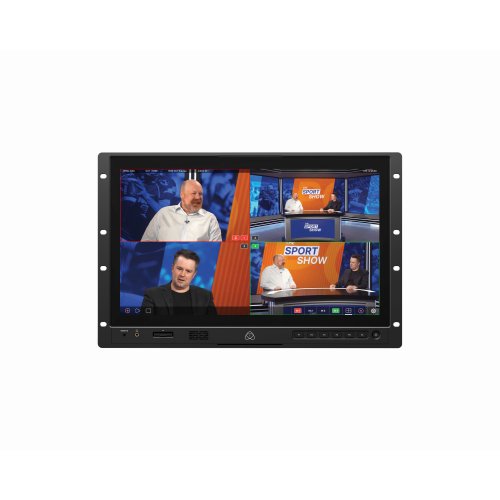

The Atomos Shogun AV-19 is a rack mountable 19-inch, 4K HDR DCI-P3 monitor-recorder-switcher for live production, video village and broadcast.

• 19-inch, 4K HDR DCI-P3 7RU rack-mounted monitor
• Record in ProRes, ProRes RAW, Avid DNx to CFexpress or external USB-C storage
• Record up to four isolated camera feeds (ISOs) plus a fifth program output
• Live multi-camera monitoring
• 2 x 12G-SDI + 2 x 3G-SDI in, 12G-SDI out, HDMI in/out with XLR audio
• Comprehensive technical monitoring tools including EL Zone false color, focus peaking, waveform & more
• Transmit and receive NDI HX3 over Ethernet
• User-definable function buttons
• Log to LUT viewing, supporting 3D & .cube

MULTI-CAM SWITCH - Live multi-camera monitoring, quad-channel switching & routing

Confidently manage complex productions with a large, color-accurate 4K HDR DCI-P3 display that’s ideal for directors, technical directors, and camera operators. It’s also a live switcher, capable of playing and recording up to four ISO camera feeds, plus a fifth program channel, all while cueing and switching in real-time.

MONITOR - Reliable 4K confidence monitoring

Bright, 19-inch display with comprehensive monitoring tools including EL Zone false color, focus peaking, waveform & more. Rugged build and 19‑inch rack-ready form factor make Shogun AV-19 the ideal production monitor for both studio and outside broadcasts. Provides directors, clients, and talent with an on-set viewing station for rapid decision-making.

RECORD - ​10-bit industry-standard codecs, CFexpress and more!

Record Apple ProRes, ProRes RAW or Avid DNx from SDI or HDMI sources, for immediate post-event turnaround. Record up to 10-bit, 4:2:2 in Apple ProRes, ProRes RAW or Avid DNx codecs. Choose to record to either CFexpress* card internally or to external USB-C media*.

• *Storage media purchased separately. Minimum performance / certification requirements apply.

User-definable function buttons

Get instant access to up to six frequently-used features – for example monitoring tools, playback modes, LUTs, anamorphic desqueeze – at the touch of a button. Turns the Shogun AV-19 into a professional control surface, optimized for speed, reliability, and personalized workflows in real production conditions.

Transmit and receive NDI HX3

NDI is the industry-leading IP video standard that delivers high-quality, ultra-low-latency, frame-accurate video and audio across standard networks. With built-in Ethernet and native NDI HX3 support, Shogun AV‑19 can send or receive broadcast-quality video, audio, and metadata over a single, standard RJ45 cable – simplifying workflows and enabling powerful, flexible IP-based production.

Professional monitoring tools

Shogun AV-19 offers a comprehensive suite of simple, one-touch monitoring tools for focus, framing, and exposure, including focus peaking, zoom (2:1, 1:1), zebras, false color (including ARRI and EL Zone), frame guides, SMPTE safe areas, grid markers, waveforms, an RGB parade, vectorscope, and flexible 3D/1D LUT support with profile and preset options (including .cube file uploads). Additionally, Shogun Av-19 provides anamorphic de-squeeze monitoring to correct the ratio for anamorphic lens setups.

Shogun AV-19 receives LOG signals from the camera and offers real-time LUT (Look-Up Table) preview to approximate what the final graded image will look like in Rec.709 — all while recording in high-quality ProRes, DNxHR, or ProRes RAW. Custom LUTs (.cube files) can be loaded from the CFexpress card or SSD and used in conjunction with the Shogun’s built-in monitoring tools for precise exposure control.

Complete solution for broadcast and events

• Events
  • Ideal for live events where multiple cameras, fast decisions, and reliable monitoring are vital. Switch live between cameras or graphics using the responsive touchscreen or physical function buttons, and deliver the perfect feed to stage or as a record of the event, all from a single compact, road-case-ready device.
• On set
  • On set, Shogun AV-19 provides a bright, color-accurate reference display for directors, DITs, and other crew combined with the additional power of quick and easy playback of recorded takes. With a full suite of Atomos monitoring tools, Shogun AV makes it easy to evaluate exposure, focus, color and framing with confidence.
• Control room
  • In control room environments, Shogun AV-19 provides a compact, reliable monitoring, recording, and switching solution. Oversee multiple camera inputs and make informed decisions during live or recorded productions. Its rack-mount form factor and easy calibration make it a practical choice for permanent installations.

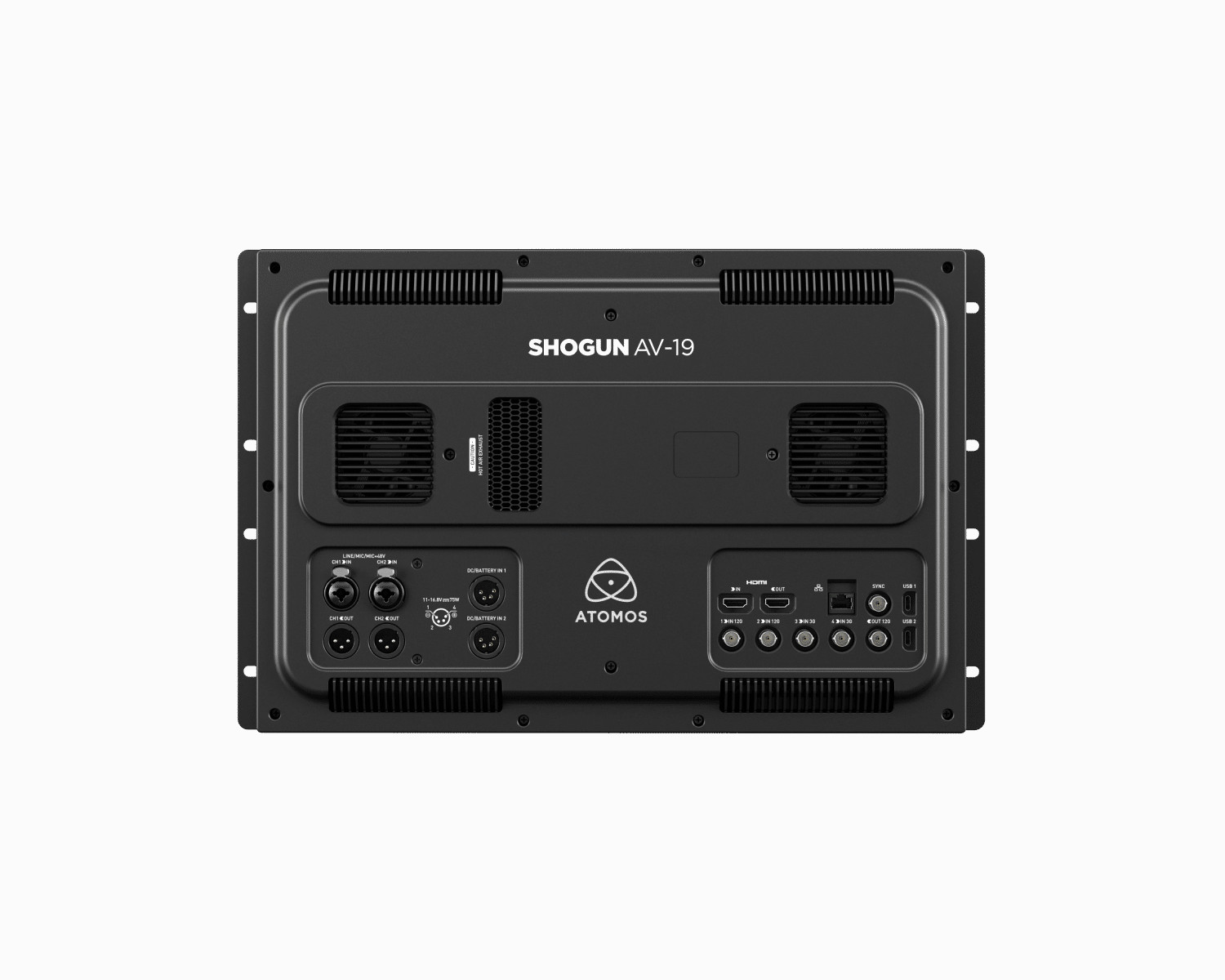

Ultimate connectivity

Shogun AV-19 supports demanding production workflows with comprehensive SDI and HDMI I/O, audio connectivity, timecode, and power options.

• Audio: XLR inputs for line-level or mic sources, with selectable 48 V phantom power for compatible mics. XLR outputs for monitoring.
• Power: 1 x 4-pin XLR for DC power supply included, or single battery (purchased separately).
• HDMI & SDI: 2 x 12G-SDI (6G/3G backwards compatible) + 2 x 3G‑SDI inputs. Level A & B supported. 1 x 12G-SDI out. 1 x HDMI in/out up to 4K60P.
• Networking: RJ45 Ethernet port unlocks powerful IP workflows with a single, standard network cable, including NDI and cloud connectivity.
• Sync: Supports reference signal input to lock to an external source. Can also be used as a LTC timecode input for multi-camera setups.
• USB: 2 x USB-C ports for attaching external storage media, camera control, and other accessories.
• Display
  • 19-inch 4K UHD 3840x2160px
  • 1200nit daylight viewable
• Record
  • ProRes RAW up to 8Kp30
  • ProRes / ProRes RAW / DNx / H.265 installed
• Switch
  • Up to 4 x 1080p60 SDI inputs (3G SDI Level A & B)
  • Record Program and ISO feeds to CFExpress

Camera control

Using intuitive, on-screen sliders you can tweak white balance, aperture, shutter speed/angle and ISO. A red edge display indicates when the camera is recording internally, whether triggered by the camera or from the Shogun AV-19. Control is available for most Canon, Fujifilm, Nikon, Panasonic, and Sony mirrorless cameras over USB-C, and all Z CAM E2 series models (cable required, purchased separately – ATOMCAB018).

Calibration you can trust

Shogun AV-19 supports professional calibration with Calibrite Display Pro HL and Plus HL probes via the Atomos Calibrator app, using the Atomos calibration cable (ATOMCAB018, sold separately). This ensures consistently accurate HDR and Rec.709 monitoring, so what you see on screen is exactly what you deliver.

Pro audio, fully integrated

Shogun AV-19 supports 24-bit/48 kHz PCM audio, accepts two balanced XLR inputs with 48V phantom power for external mics or line sources, and has gain controls, meters, and per-channel delay adjustment. You also get balanced XLR outputs, embedded HDMI/SDI audio, built-in speakers, and a headphone jack for direct monitoring and sync with video.

Specifications

• Physical
  • Dimensions (WxHxD): 18.98 x 12.21 x 2.36 inch (482 x 310 x 60mm)
  • Weight: 11.51 lbs (5.22 kg)
  • Mounting Points: 19-inch rack ears
  • Rack height: 7 RU
  • VESA Mount: No
• Environmental
  • Ambient Operating Temperature: Up to 40 degrees Celsius
• Construction
  • Body: Aluminium with ABS plastic
  • Cooling: Actively controlled fan and heat sink
  • Touchscreen: Capacitive touch
  • Tally Light: LED on front only
  • Multi-Function Buttons: Power + 6 assignable
• Power
  • Input voltage: DC 12V to 16.8V DC
  • Operating Power: 75W
  • Compatible Batteries: Connect to either/both DC 4-pin XLR input
  • Battery Voltage: 14.4V nominal
  • Battery Power: Single battery input via dedicated 4-pin XLR
  • DC-In Connector: 1 x 4-pin XLR for included DC power supply
  • D-Tap: Via third-party D-Tap to 4-pin XLR cable
• Display
  • Size: 19-inch
  • Resolution: 3840 x 2160 4K UHD
  • Bit Depth: 10-bit (8+2 FRC)
  • Backlight Type: Double Edge-Lit
  • Brightness (cd/m²/ nits): 1200
  • Aspect Ratio: 16:9
  • Color Gamut: 100% Rec.709, 99% DCI-P3, 99% NTSC, 87% BT.2020
  • Calibration Support: Calibrite Display Pro or Display Plus on PC/Mac with Atomos LANC cable (ATOMCAB018, sold separately)
• Color Pipeline
  • Gamma
    • Sony SLog / SLog2 / SLog3 / HLG, Canon C-Log / C-Log2 / C-Log3, ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320, / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic V-Log / HLG, JVC J-Log, Red RedLogFilm / Log3G10 / Log3G12, FujiFilm F-Log, PQ (HDR10), HLG, Nikon N-Log
  • Gamut
    • DCI P3, DCI P3+, DCI-P3 D65, Rec709. Sony: S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec.709. Canon Cinema / Panasonic V Gamut /ARRI Alexa Wide Gamut / JVC LS300. RED DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
  • 3D LUT Display: .Cube format (17 & 33 points supported)
  • 3D LUT Down Stream: Loop out
  • 3DLUT 50/50: Yes
  • Monitoring Modes: Native / HLG / PQ / 3D LUT
  • HDR Output Conversion: Log / HDR to HLG / PQ
• Video Input
  • HDMI: 1 x HDMI (2.0) up to 4K60P
  • Locking port: No
  • SDI: 2 x 12G-SDI (6G/3G backwards compatible) + 2 x 3G-SDI
  • Wi-Fi: No
  • Bit Depth: 8/10-bit for video / up to 12-bit for RAW
  • Video Chroma Subsampling: YCbCr 4:2:0 & 4:2:2
  • HDR Output Conversion: HDMI auto detection
• Video Output
  • HDMI: 1 x HDMI (2.0) up to 4K60P
  • Locking port: No
  • SDI loop through: 1 x 12G-SDI
  • Wi-Fi: No
  • USB: 2 x USB-C 2.0/3.0
  • Bit Depth: 8/10-bit video
  • Video Chroma Subsampling: 4:2:2
• Metadata
  • SDI: File name – ARRI & RED.RAW – white balance, exposure index, shutter speed/angle, iris/F-stop, ISO, gamma, gamut
  • File naming - standard: Scene / shot / take & rolling scene / shot / take
  • File naming - over SDI: Auto-matched filenames from supported ARRI & RED Cameras
• Network
  • Ethernet: 1 x RJ45
• Connectivity
  • USB: 2 x USB-C 2.0/3.0
  • Bluetooth: No
  • LANC: Yes
• Video Signal Conversion
  • HDMI to SDI: Yes
  • SDI to HDMI: Yes
• Audio In/Out
  • Audio Quality: 24-bit / 48kHz
  • Audio Codec: PCM
  • HDMI: 8-channel, 24-bit (input dependent)
  • SDI: 12-channel, 24-bit (input dependent)
  • Analog Audio In: 2 x 3-pin XLR (female)
  • Analog Audio Out: 2 x 3-pin XLR (male)
  • Speakers: Mono confidence up to 1.5W
  • Headphone Out: 3.5mm headphone jack, 2-channel
• Timecode
  • Embedded: HDMI & SDI
  • Time of Day: Yes
  • Reference / Genlock input: Yes (playback mode only)
  • LTC: LTC via dedicated BNC input (record mode only)
  • Wireless AirGlu RF Server and Client: No
  • Wireless AirGlu BT Server: No
• Resolution and Frame Rates (Record, Monitor & Playback)
  • 6K RAW: Up to 6Kp30 via SDI
  • 4K RAW: Up to 4Kp60 via SDI
  • 2K RAW: Up to 2Kp240 via SDI
  • 4K DCI: Up to 4Kp60
  • 4K UHD: Up to UHDp60
  • 2K DCI 2048 x 1080: Up to 2Kp60
  • 1080p: Up to 1080p120
  • 1080 PsF: Only via pulldown to progressive
  • 1080i: 1080i50 / 1080i60
  • 720p: Up to 720p60
• Supported Media
  • CF Express: Atomos certified CF Express Type B media
  • USB: Atomos certified USB 3.0 media
  • File System: ExFAT
• Codecs
  • Apple ProRes RAW: ProRes RAW, ProRes RAW HQ
  • Apple ProRes: LT, 422, 422 HQ
  • Avid DNxHD: DNxHD 220x, 220, 145, 36
  • Avid DNxHR: LB, SQ, HQ, HQX
  • H.265: LQ, MQ, HQ, XQ in 8/10-bit, 4:2:2 and 4:2:0
  • H.264: Not supported
• Playback
  • Playlist: Yes - create customer playlists from full or sub-clips
  • Loop: Yes, with user-customizable in/out markers
  • Apple ProRes Raw: Yes - recorded clips
  • Apple ProRes: HQ, 422, LT (linear PCM audio only)
  • Avid DNx: DNxHD: 220x, 220, 145, 36 – DNxHR HQX, HQ, SQ, LB (linear PCM audio only)
  • H.265: Yes
• Recording
  • Pre-roll: 8s HD / 2s 4K - ProRes, DNxHD only
  • Timelapse: Yes
  • ISO recording: 4 x ISO up to 1080p60 (3G SDI Level A & B)
  • Switched program record: Yes
• Multi-input Switching
  • Dual Input Display: Via multi ISO input mode
  • Multiple SDI Input: Up to 4 x 1080p60 (3G SDI Level A & B)
  • Multiview Display: Via multi ISO input mode
  • Input Switching: Yes
• On-screen Monitoring Tools
  • Waveform: 3 sizes – adjustable opacity & brightness
  • RGB parade: 3 sizes – adjustable opacity & brightness
  • Vectorscope: 2 sizes – adjustable opacity & brightness
  • 1 x Zoom: Yes. 1:1 pixel mapping for 4K
  • 2 x Zoom: Yes
  • Focus Peaking: Color selected / threshold setting / color / mono / edges only
  • Atomos False Color: Yes, with scale
  • ARRI False Color: Yes
  • EL Zone False Color: Yes
  • Zebra: Yes, adjustable
  • Isolate Color Channel: Blue Only
  • Cine Frame Guides: Presets for 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3
  • Social Frame guides: Presets for 9:16, 1:1, 191:1, 4:5
  • Onion Skin: Yes
  • Safe Areas: Action and graphic
  • Grid Markers: 9 grid
  • Anamorphic Desqueeze: 1.25x, 1.33x, 1.5x, 1.6x, 1.65x, 1.79x, 1.8x, 2x
  • Display Flip: Vertical only
• Onboard Signal Processing
  • 4K UHD downscale for HD: Loop out - 4K UHD to FHD
  • DCI Crop: Loop out - 17:9 to 16:9 crop
  • Pulldown removal: 24 / 25 / 30 pSF > 24 / 25 / 30p (2:2 pulldown), 60i > 24p (3:2 pulldown)
• Remote Control
  • HDMI: Auto HDMI trigger, supported protocols - Canon, Sony, Atomos
  • SDI: SDI trigger camera selectable
  • Serial 2.5mm Jack: Calibration via optional USB to serial cable
• Camera to Cloud
  • ATOMOSphere: Direct progressive upload supported (20GB free storage) over Ethernet
  • Adobe Frame.io: Direct progressive upload supported (separate purchase) over Ethernet
  • Dropbox: Direct progressive upload supported (separate purchase) over Ethernet

What’s in the box

• Shogun AV-19 monitor-recorder-switcher
• 4-pin XLR power supply
• International IEC power cables
• Rack nuts and bolts (x10)
• Screen cloth
• Quick Start Guide
