Lilliput FA1019H/T 10.1in 1500 Nits High Brightness HDMI Touchscreen Monitor

About: Lilliput FA1019H/T 10.1in 1500 Nits High Brightness HDMI Touchscreen Monitor

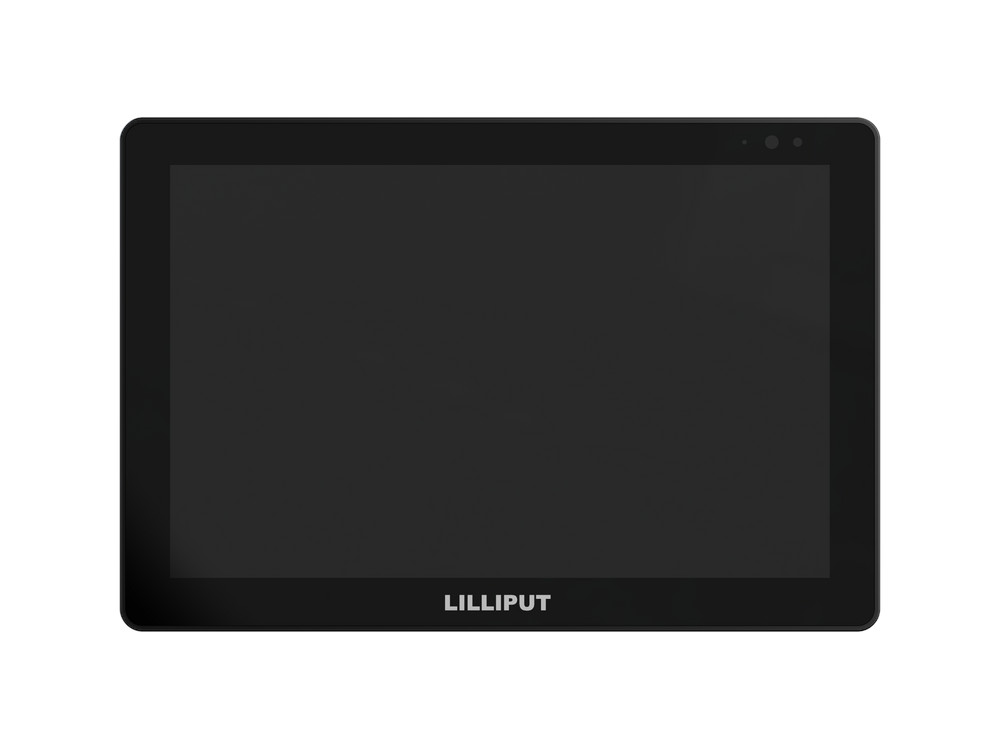

The LILLIPUT FA1019/T Integrated 10.1" touchscreen monitor is an industrial-grade capacitive touch monitor suitable for various field applications.

The monitor offers a 1920x1200 FHD resolution and our best-in-range 1500cdm² high brightness screen, making it suitable for a wide range of outdoor industrial and commercial applications.

The FA1019/T comes with and capacitive touch function making it ideal for use in a POI/POS, Kiosk, HMI or other industrial field-equipment setup.

It boasts a long LED panel life time of 50,000 hours, achieved through the selection of high-quality industrial-grade LCD screens.

This FA1019/T can be installed as either a desktop device for control centers, a built-in monitor and control unit for production line consoles, or as the controlling panel for a home PC system (or a home automation system like Home Assistant).

Interfaces and Connectivity

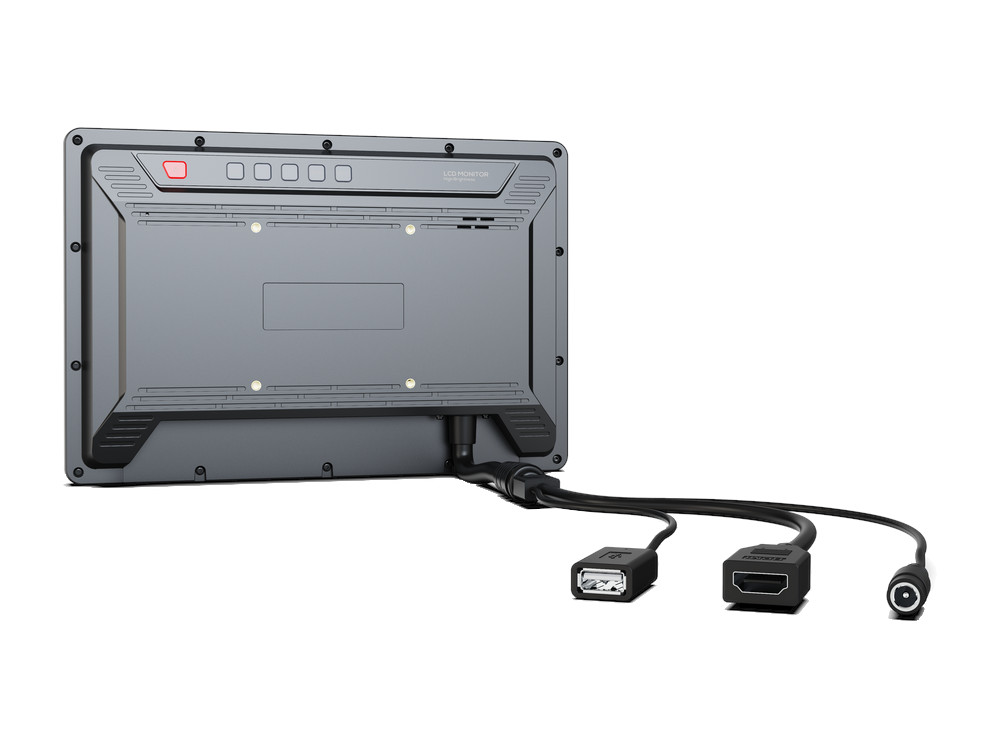

• The monitor includes rich interfaces such as HDMI, VGA, and a USB Type-C port, which simplifies wiring by transmitting both video signals and touch functions.
• Connectivity options include HDMI IN supporting up to 4K 30Hz, VGA IN up to 1080p 60Hz, and a DC power input range of 12V-24V.
• An IP65 frame with rugged HDMI extension cable, ensuring waterproofing and dustproofing.

Industrial Design and Mounting

• The monitor is designed for use in applications like industrial control and ordering machines with the optional folding VESA 75mm bracket for mounting on a table or fixing to the ceiling.

Specifications

• DISPLAY
  • Touch Screen: Captive Touch
  • Panel: 10.1” LCD
  • Physical Resolution: 1920x1200
  • Aspect Ratio: 16:10
  • Brightness: 1500 nits
  • Contrast: 1000:1
  • Viewing Angle: 170° / 170° (H/V)
  • LED Panel Life Time: 50000h
• INPUT
  • HDMI Extension Cable
    • ​HDMI
    • USB-A
• SUPPORTED FORMATS
  • HDMI: 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60...
• AUDIO IN/OUT
  • Speaker: 1
  • HDMI: 8ch 24-bit
  • Ear Jack: 3.5mm - 2ch 48kHz 24-bit
• POWER
  • Input Voltage: DC 12-24V
  • Power Consumption: ≤19W (12V)
• ENVIRONMENT
  • IP Rating: IP65
  • Operating Temperature: -20°C~60°C
  • Storage Temperature: -30°C~80°C
• DIMENSION
  • Dimension (LxWxD): 9.88 x 6.69 x 1.3 inch (251mm × 170mm × 33mm)
  • Weight: 1.81 lbs (820g)

What's Included

• HDMI Cable
• USB-A to A Cable
• Power Supply
• Remote Control
